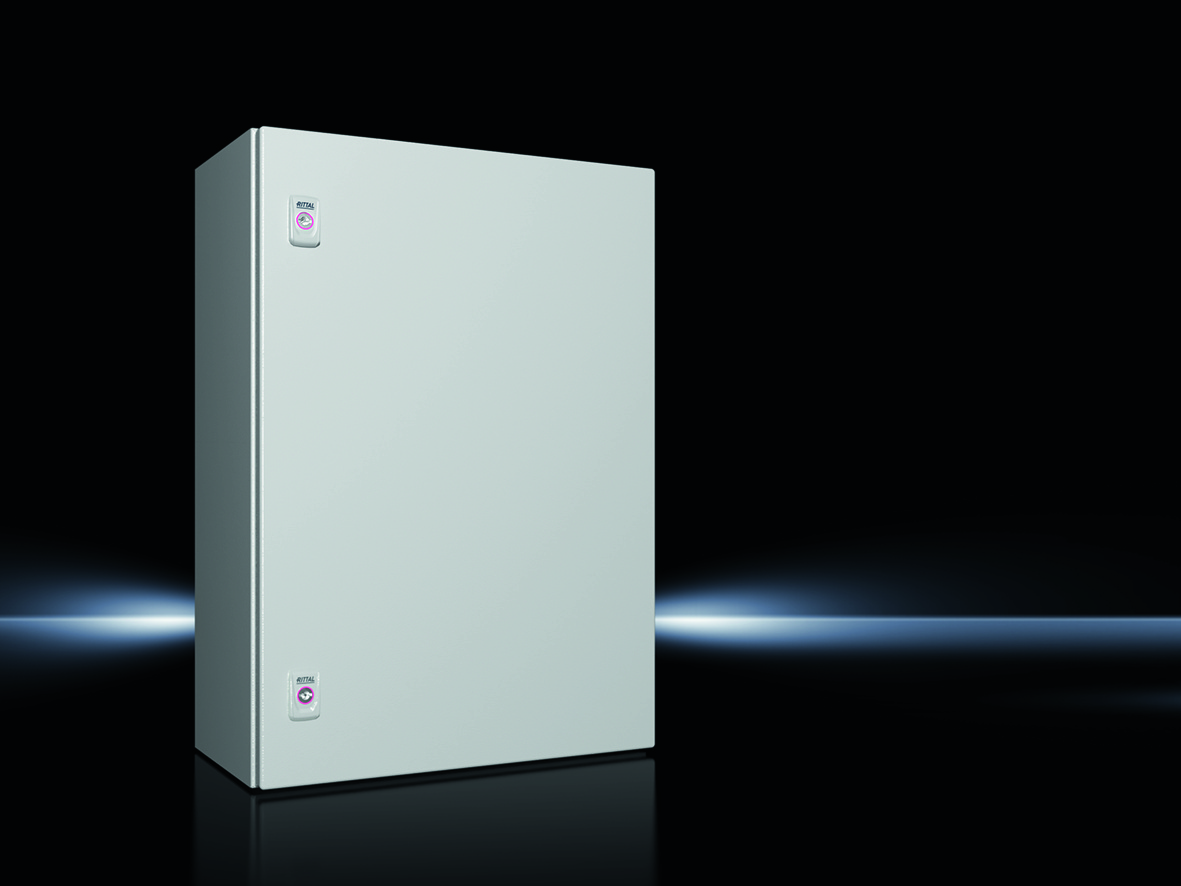

Rittal 1057000 Compact enclosure AX, 1-door, W x H x D: 500x700x250 mm
|
142,77 EUR |
|
|
( 169,90 EUR incl. VAT ) ≈ £119.50 | ≈ $156.90 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598214 |
| Mfg Part No: | 1057000 |
| UPC/EAN: | 4028177813335 |
| Weight: | 24.96 kg |
| Type: | AX 1057000 |
Product information for Rittal 1057000:
Applications
The enclosure is designed for use in industrial environments, particularly in areas where a high level of protection against dust, water and mechanical stress is required. It is suitable for installations in manufacturing, energy supply, transportation and automation technology. The integrated enclosure lugs in the 25 mm system grid enable flexible and modular interior fitting, making it suitable for various application scenarios such as control systems, distributors or switching installations.
Functions and Equipment in Detail
The enclosure is equipped with a mounting plate made of galvanized sheet steel, featuring keyhole slots for earthing and dimension markings. The mounting plate is secured with ring weld nuts and provides a stable mounting surface for interior components. The door is single-door and can be mounted in either viewing direction, as the door hinge is reversible. The door opens up to 130° according to VDI, with an option to retrofit to 180°. The door is fitted with two latch locks operating with a 3 mm double-barrel lock insert according to DIN 43668. These locks ensure a secure and reliable locking of the enclosure.
Technology Explained Simply
The integrated enclosure lugs in the 25 mm system grid allow mounting of interior components without drilling. This system, derived from the VX25 large enclosure, offers high flexibility in planning and configuration. Mounting the interior mounting rail is done without drilling, preserving the protection rating (UL approval). The base mounting rail provides an additional mounting level and increases load capacity. The surface of the enclosure and door is treated in three stages: dip-primed, externally powder-coated and finished with a textured lacquer, ensuring high corrosion resistance and durability. The color is RAL 7035, a grey-beige tone commonly used in industrial environments.
Compatibility and Accessories
The enclosure is compatible with a comprehensive system of accessories, enabling individual adaptation to specific requirements. Compatible accessories include lock inserts made of zinc die-cast, lock box covers, mounting brackets for internal and external mounting levels, wall mounting angles, system chassis, dust protection strips, baying sets, knob handles, handles with security cylinder, metal gland plates and multitools. These components can be used to extend functionality, improve accessibility or integrate into existing systems.
Mounting and Installation
Mounting is done via the integrated gland plate size 3 in the enclosure base. The rear wall of the enclosure features pass-throughs for wall mounting brackets, enabling flexible attachment to walls or other structures. The mounting plate is included in the delivery scope and provides a stable mounting surface for interior components. The door can be mounted with right-hand or left-hand hinges depending on requirements, allowing flexible integration into existing installations.
Operational Advantages
The enclosure offers high reliability due to its robust construction and integrated protection rating IP 66. The modular interior fitting allows flexible adaptation to changing requirements without requiring drilling or additional mounting work. The integrated enclosure lugs and interior mounting rail ensure quick and secure installation of components. The surface treatment ensures long service life even in corrosive environments. QR codes on the enclosure body, door and nameplate enable unique identification and easy access to product information and documentation, simplifying maintenance and traceability.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 500 mm |
| Height | 700 mm |
| Depth | 250 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 450 mm x 675 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 3, quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 95.89 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
Questions & answers
What is the delivery time of Rittal 1057000 Compact enclosure AX, 1-door, W x H x D: 500x700x250 mm?
The article Rittal 1057000 Compact enclosure AX, 1-door, W x H x D: 500x700x250 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1057000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1057000 Compact enclosure AX, 1-door, W x H x D: 500x700x250 mm always at the best possible price. We can give you a discount of 2% on Rittal 1057000 Compact enclosure AX, 1-door, W x H x D: 500x700x250 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
