Rittal 2563450 SZ metal gland plate two-piece for AX with elastic

Your rating:
Average rating
product review for Rittal 2563450 SZ metal gland plate two-piece for AX with elastic
( 4 / 5 ) 1 ratings
Rittal 2563450

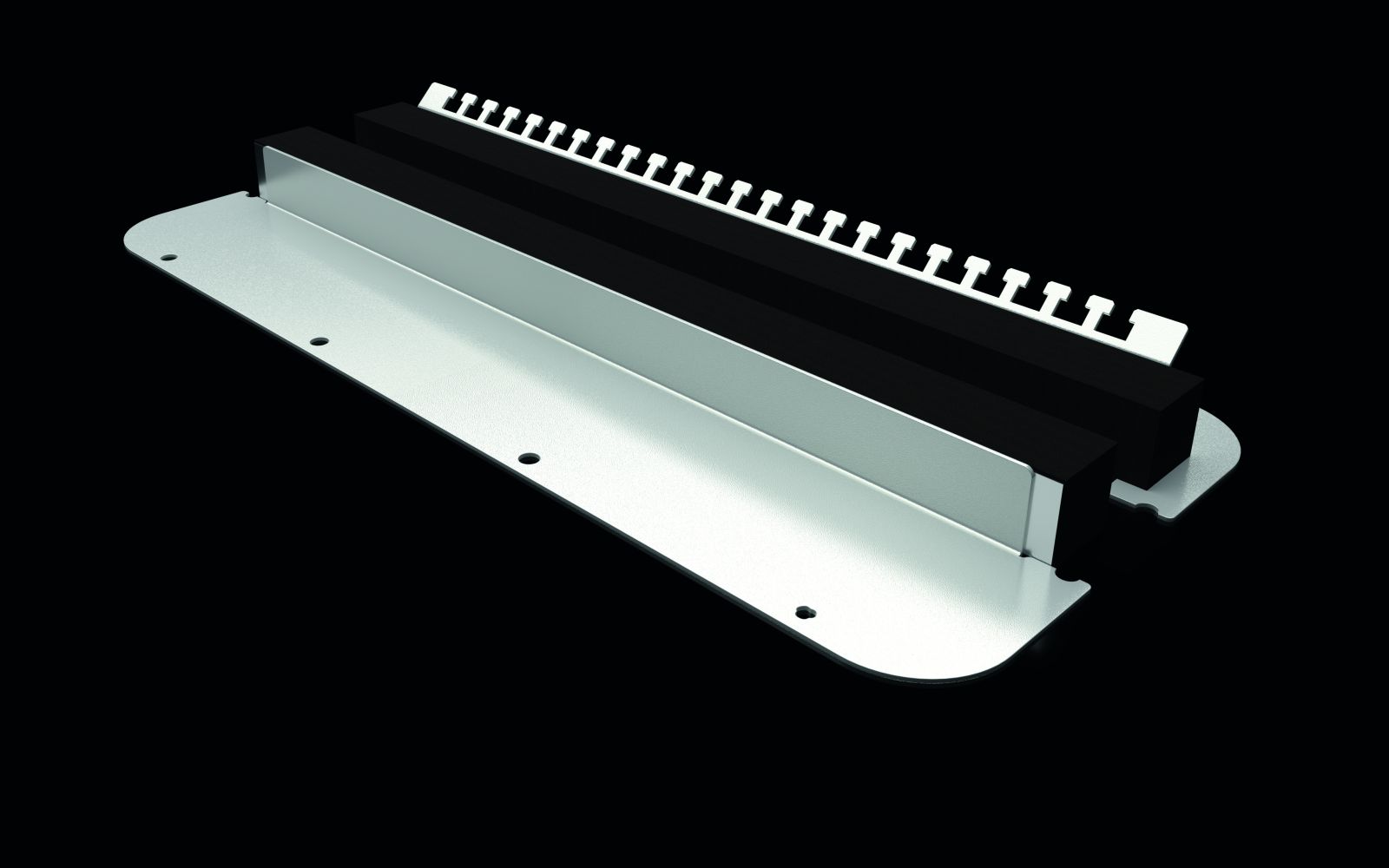

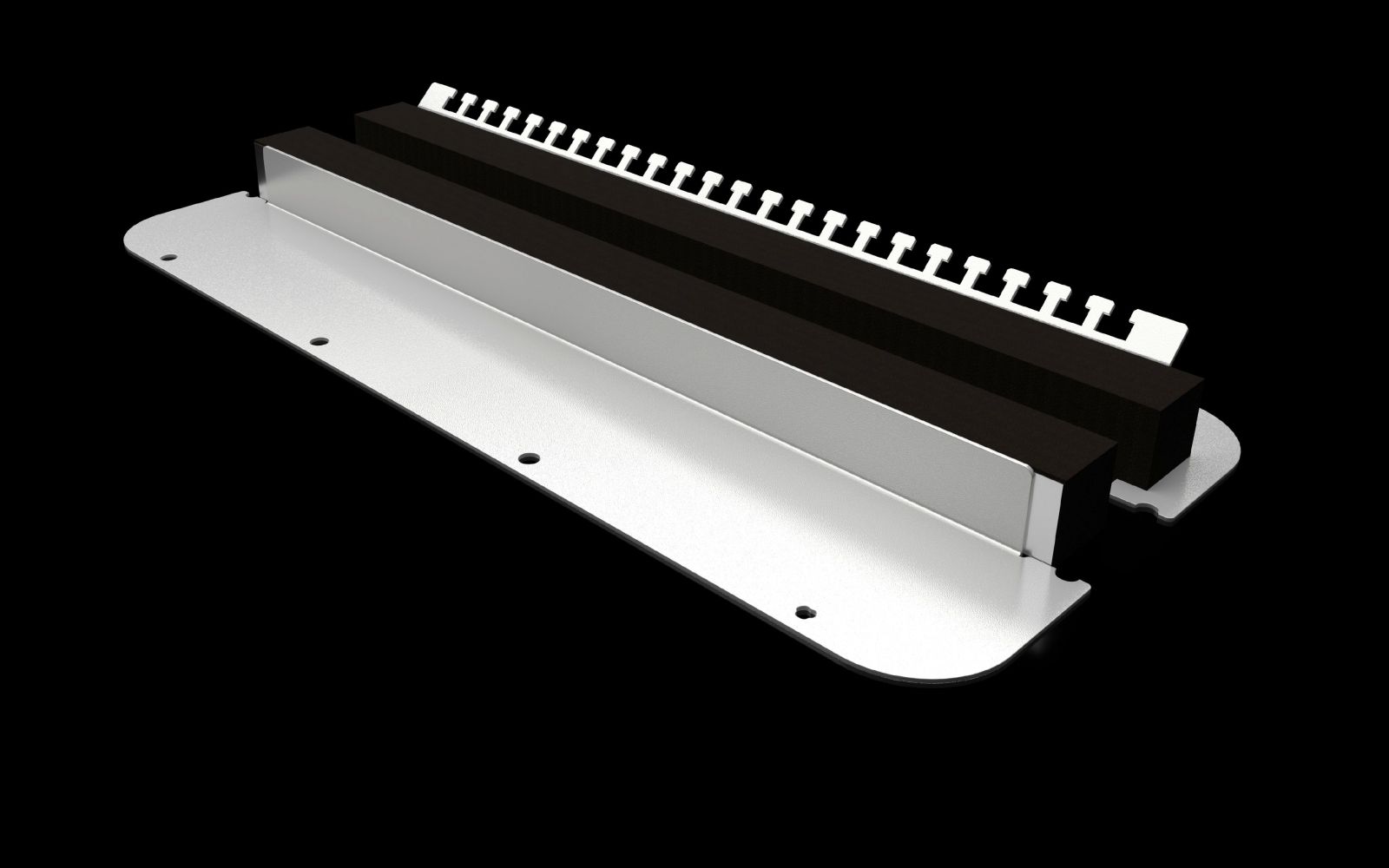

This image may differ from the desired article.
48,82 EUR 50,94 EUR
( 58,10 EUR incl. VAT )
≈ £40.86  |  ≈ $53.65
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2563450 SZ metal gland plate two-piece for AX with elastic
Datasheet:file_download Download
Lieske Part No.:895250
Mfg Part No: 2563450
UPC/EAN: 4069196011791
Weight:1.046 kg
Type:SZ 2563450

Product information for Rittal 2563450:

The Rittal SZ 2563450 is a two-part metal gland plate, specifically designed for mounting on enclosures of the AX housing type. It serves as an installation component for secure and easy cable guidance into the enclosure, accommodating both cables without connectors and those with connectors. The gland plate is sized 3 and fits housing articles 1050000, 1057000, and 110000. Dimensions are 447 mm in width and 149 mm in depth. The product is made of sheet steel and painted in RAL 7035, ensuring good compatibility with standard enclosure colors.

Applications

The gland plate is used in industrial environments where reliable and quick cable connections to enclosures are required. It is particularly suitable for installations involving frequent cable mounting and dismounting operations, as it allows for easy insertion and removal. The two-part design simplifies mounting on the enclosure and offers multiple installation options.

Functions and Equipment in Detail

A central feature of the gland plate is the integrated elastic clamping profile, which ensures secure cable fixation while enabling easy handling. The special holes in the gland plate provide automatic equipotential bonding when screwed in, eliminating the need for additional earthing cables, bolts, or terminals. This reduces installation time and minimizes the risk of errors during installation. The delivery includes the mounting hardware required for installation on the enclosure.

Technology Explained Simply

The two-part construction of the gland plate allows precise adaptation to the enclosure opening. The sheet steel thickness ensures high mechanical stability, while the RAL 7035 color ensures visual harmony with other enclosure components. The elastic clamping profile is designed to securely hold cables of various diameters without damaging them. The mounting holes are positioned to automatically support equipotential bonding, enhancing electrical safety.

Compatibility and Accessories

The gland plate is specifically developed for enclosures of type AX and fits articles 1050000, 1057000, and 110000. For enclosure widths exceeding 760 mm, two packaging units are required to cover the entire opening. As compatible accessory, an elastic clamping profile IP55 with a length of 3 meters is offered, which can be used for additional cable routing or as a replacement part.

Mounting and Installation

Installation is carried out at the designated opening of the enclosure. The two-part design allows easy adaptation to the enclosure geometry. The included mounting hardware is used to securely screw the gland plate in place. The special holes ensure automatic equipotential bonding, eliminating the need for additional earthing cables or terminals. Installation is therefore faster and safer compared to conventional solutions.

Operational Advantages

The gland plate reduces installation time through easy handling and the integrated equipotential bonding function. The use of sheet steel ensures high mechanical load capacity, while the elastic clamping profile enables secure and damage-free cable guidance. Compatibility with the specified housing types and clear assignment to size 3 simplifies planning and selection in project environments. The RAL 7035 color supports a uniform visual design of enclosure systems.

General
Modeltwo-piece
Materialsteel sheet
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
NoteThe assignment of flange plate size can be found in the respective housings. For installation in cabinet width >760 mm, 2 units are required.
Width447 mm
Depth149 mm
Suitable forHousing type: AX
Suitable for part no.1050000, 1057000, 1100000
Flange plateSize: 3


Product data sheet
Datasheet for Rittal 2563450, EAN: 4069196011791

Questions & answers

What is the delivery time of Rittal 2563450 SZ metal gland plate two-piece for AX with elastic?

The article Rittal 2563450 SZ metal gland plate two-piece for AX with elastic is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2563450 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2563450 SZ metal gland plate two-piece for AX with elastic always at the best possible price. We can give you a discount of 2% on Rittal 2563450 SZ metal gland plate two-piece for AX with elastic if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
