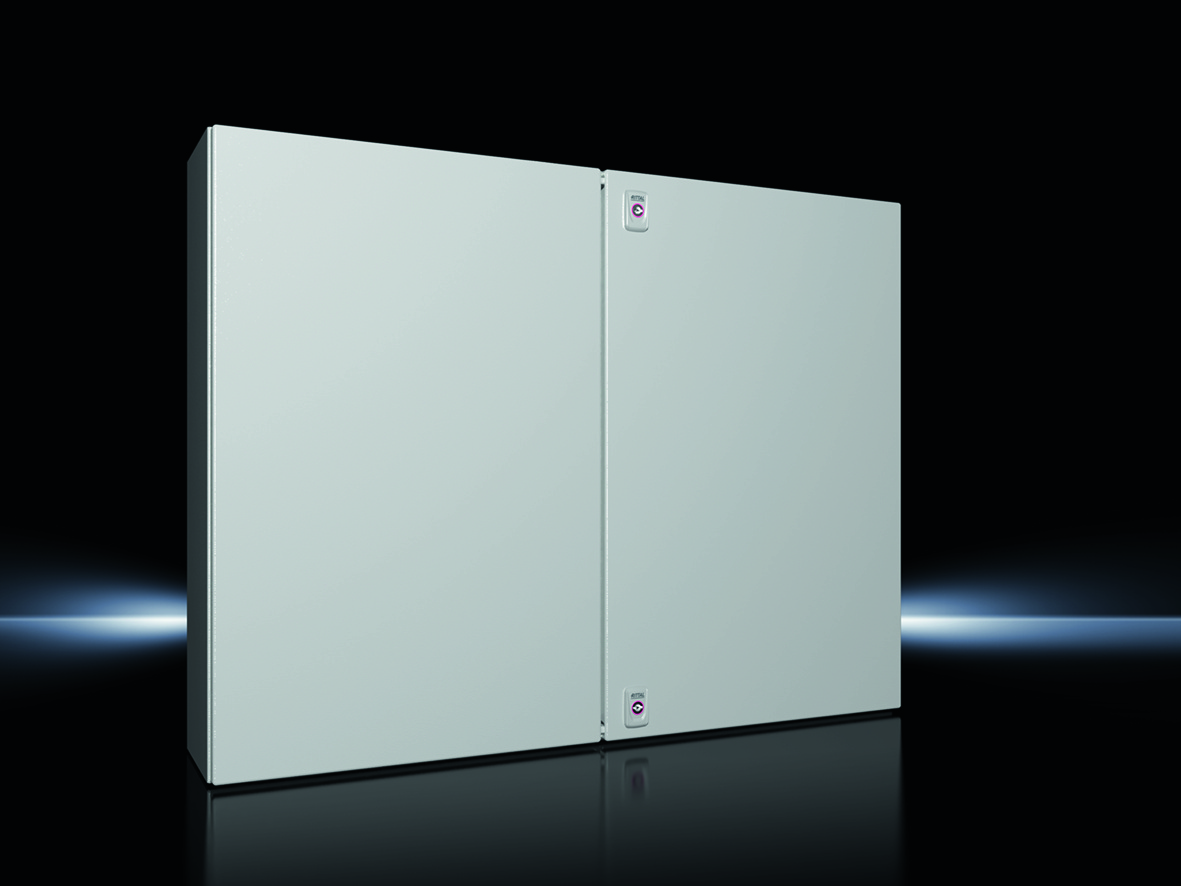

Rittal 1100000 Compact enclosure AX, 2-door, 1000x760x210 mm
|
269,22 EUR 269,62 EUR |
|
|
( 320,37 EUR incl. VAT ) ≈ £225.34 | ≈ $295.87 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598148 |
| Mfg Part No: | 1100000 |
| UPC/EAN: | 4028177813342 |
| Weight: | 49 kg |
| Type: | AX 1100000 |
Product information for Rittal 1100000:
Applications
The enclosure is suitable for use in indoor environments and areas with increased contamination risk. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for industrial applications with moderate environmental contamination risk. The NEMA protection ratings 1 and 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry indoor areas and environments with slight contamination risk. The IK code IK10 indicates high mechanical strength against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a material thickness of 1.5 mm, and the doors are made of 2 mm thick sheet steel. The doors are fitted with a continuous foamed PU seal, ensuring a tight closure. The surface of the enclosure and doors is dip-primed and externally powder-coated with textured paint, providing high corrosion resistance and resistance to mineral oils, lubricants, and machining emulsions. The mounting plate is galvanized and has dimensions of 945 mm x 735 mm, featuring keyhole slots for earthing and dimension markings. Two gland plates of size 3 are integrated into the enclosure base, enabling secure cable entry.
Technology Explained Simply
The integrated enclosure lugs in a 25 mm grid allow for the installation of internal mounting rails and other accessories without drilling, reducing installation time and maintaining the integrity of the protection rating. The doors open up to 130° according to VDI standards, with an option for retrofitting to 180°. The locks are designed as deadbolts, ensuring secure and easy operation. The mounting plate is secured with ring weld nuts, enabling stable fixation of electrical components.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories, including lock inserts made of zinc die-cast, wall mounting brackets, dust protection strips, system lights, and handles. Matching mounting rails for external mounting levels and baying sets for AX, KX, AE, and KL models allow for flexible expansion and integration into existing systems. Using rails and accessories from the Rittal system ensures uniform and standardized installation.
Mounting and Installation
Installation is carried out via the integrated gland plates in the enclosure base and the mounting plate. The doors are screwed to hinges and can be opened up to 130° according to VDI standards. Internal components are mounted using the integrated enclosure lugs and rails, avoiding drilling in the enclosure. The mounting plate provides a stable mounting surface for electrical assemblies.
Operational Advantages
The enclosure offers high mechanical strength (IK10) and reliable protection against dust and splashing water IP 55). The drill-free installation of internal mounting rails and accessories reduces installation time and increases flexibility for modifications or expansions. The integrated gland plates and mounting plate simplify installation and maintenance. The surface coating ensures high resistance to corrosion and chemical influences, extending the service life of the enclosure. QR codes on the enclosure body, door, and nameplate enable unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 1.000 mm |
| Height | 760 mm |
| Depth | 210 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 945 mm x 735 mm |
| Number of doors | 2 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 3, Quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 158.98 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
