Rittal 2563200 Plastic gland plate, modular, metric pre-punching

Your rating:
Average rating
product review for Rittal 2563200 Plastic gland plate, modular, metric pre-punching
( 4.6 / 5 ) 8 ratings
Rittal 2563200
This image may differ from the desired article.
Rittal 2563200Rittal 2563200Rittal 2563200Rittal 2563200Rittal 2563200Rittal 2563200Rittal 2563200Rittal 2563200
19,90 EUR
( 23,68 EUR incl. VAT )
≈ £16.66  |  ≈ $21.87
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2563200 Plastic gland plate, modular, metric pre-punching
Datasheet:file_download Download
Lieske Part No.:1598246
Mfg Part No: 2563200
UPC/EAN: 4028177938410
Weight:0.48 kg
Type:AX 2563200

Product information for Rittal 2563200:

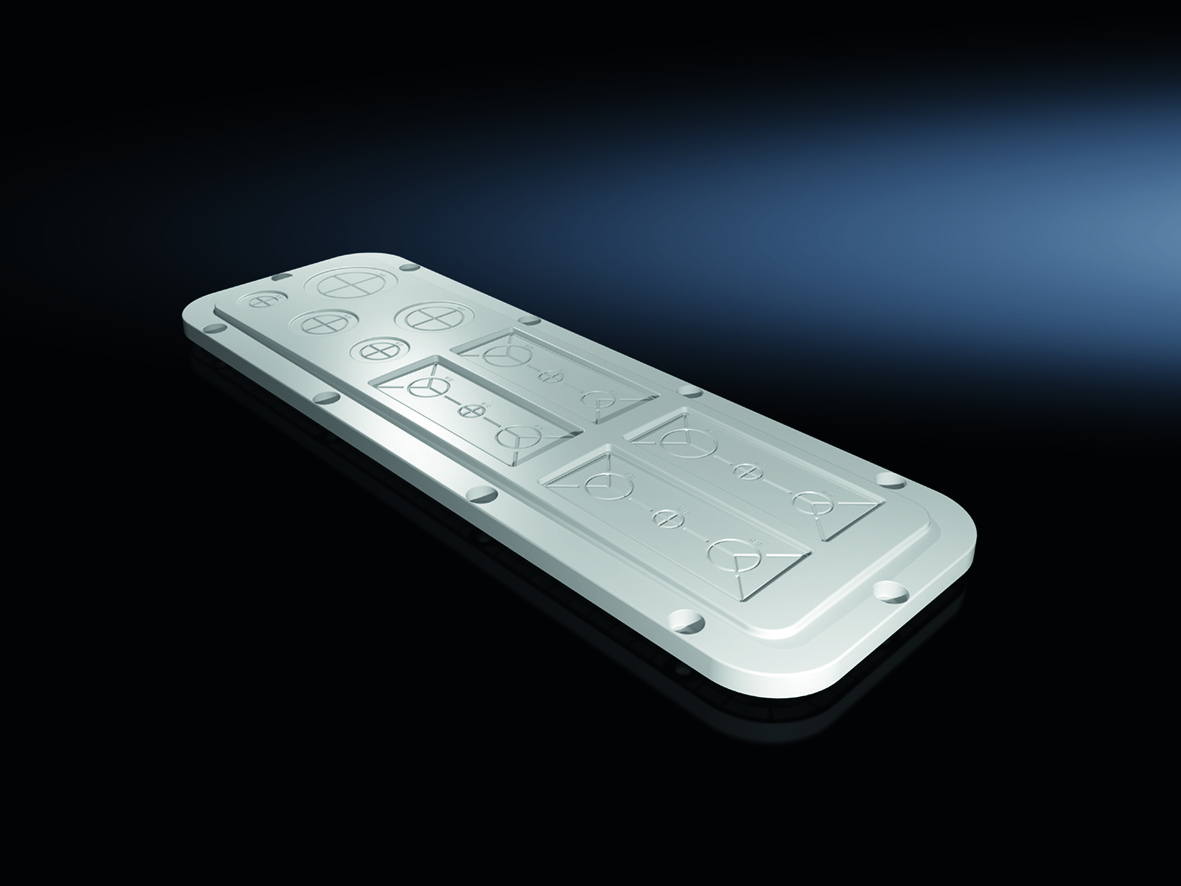

The Rittal AX 2563200 is a plastic gland plate for use in enclosures of type AX. It serves as a modular component for secure and structured cable gland installation and is specifically designed for gland plate size 3. The plate enables direct installation of cable entries through pre-punched openings and integrated reinforcement frames, allowing for quick and tool-free assembly. Dimensions are 447 mm in width and 149 mm in depth, making it suitable for standard enclosure configurations.

Applications

The gland plate is designed for use in industrial environments, particularly in enclosures of the AX series. It is used where structured and secure cable routing is required, for example in automation technology, manufacturing industry, or in plants with high demands on mechanical stability and protection against environmental influences. The modular design allows flexible adaptation to different cable entry sizes and gland dimensions.

Functions and Equipment in Detail

The plate features multiple metric pre-punchings intended for mounting cable glands. The exact distribution includes 4 x M12, 3 x M16, 5 x M20, 3 x M25, 1 x M32, and 1 x M40. These pre-punchings can be easily broken through, enabling installation without additional tools or drilling. Additionally, 4 rectangular cutouts are integrated, with each cutout providing space for 10 small sealing inserts. These cutouts facilitate the installation of cable entries and ensure orderly cable routing.

Technology Explained Simply

The gland plate is made of plastic to UL 94-V0, a material that meets high flame protection requirements and exhibits low smoke development at high temperatures. The color is RAL 7035, a gray tone that integrates well visually in industrial environments. The protection rating IP 66 is achieved with proper installation, meaning the plate is dust-tight and protected against heavy splashing water. This makes it suitable for outdoor use or in damp environments. Additionally, the product meets the type rating according to UL 50E in categories Type 1 and Type 12, confirming suitability for indoor and outdoor installations with limited splash water protection.

Compatibility and Accessories

The gland plate is specifically developed for enclosures of type AX and fits gland plate size 3. The exact size assignment is determined according to the respective enclosure description. The modular construction allows combination with various cable entries and glands available in the specified metric sizes. The use of sealing inserts in the rectangular cutouts supports a tight and secure gland installation.

Installation and Mounting

Mounting is done by breaking through the pre-punched openings, with the plastic structure at the pre-punchings designed to be opened without tools or additional processing. The reinforcement frames ensure high mechanical stability and prevent the plate from collapsing during installation. The gland plate is fastened at the designated mounting points in the enclosure, with the exact mounting instructions corresponding to the respective enclosure.

Advantages in Operation

The modular design and pre-punched openings reduce installation time and minimize the need for additional tools. The high mechanical stability and protection rating IP 66 ensure reliable operation even under harsh operating conditions. The operating temperature range of -40 °C to 80 °C allows use in a wide variety of environments, from cold storage halls to warm production rooms. The use of UL 94-V0 plastic ensures high safety in case of fire.

The gland plate is available in a packaging unit of 1 piece and has a net weight of 0.42 kg. Dimensions and technical properties are optimized for use in industrial enclosures, with exact fit and compatibility with AX enclosures guaranteed.

General
MaterialPlastic according to UL 94-V0
ColourRAL 7035
Number of rectangular cutouts information1 rectangular cutout accepts 10 density inserts, small size
Number of rectangular cutouts4
NoteThe assignment of flange plate size can be found with the respective enclosures
Number of metric pre-forms4 x M12, 3 x M16, 5 x M20, 3 x M25, 1 x M32, 1 x M40
Width447 mm
Depth149 mm
Suitable forHousing type: AX
Flange plateSize: 3
Operating temperature range-40 °C...80 °C
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12


Product data sheet
Datasheet for Rittal 2563200, EAN: 4028177938410
