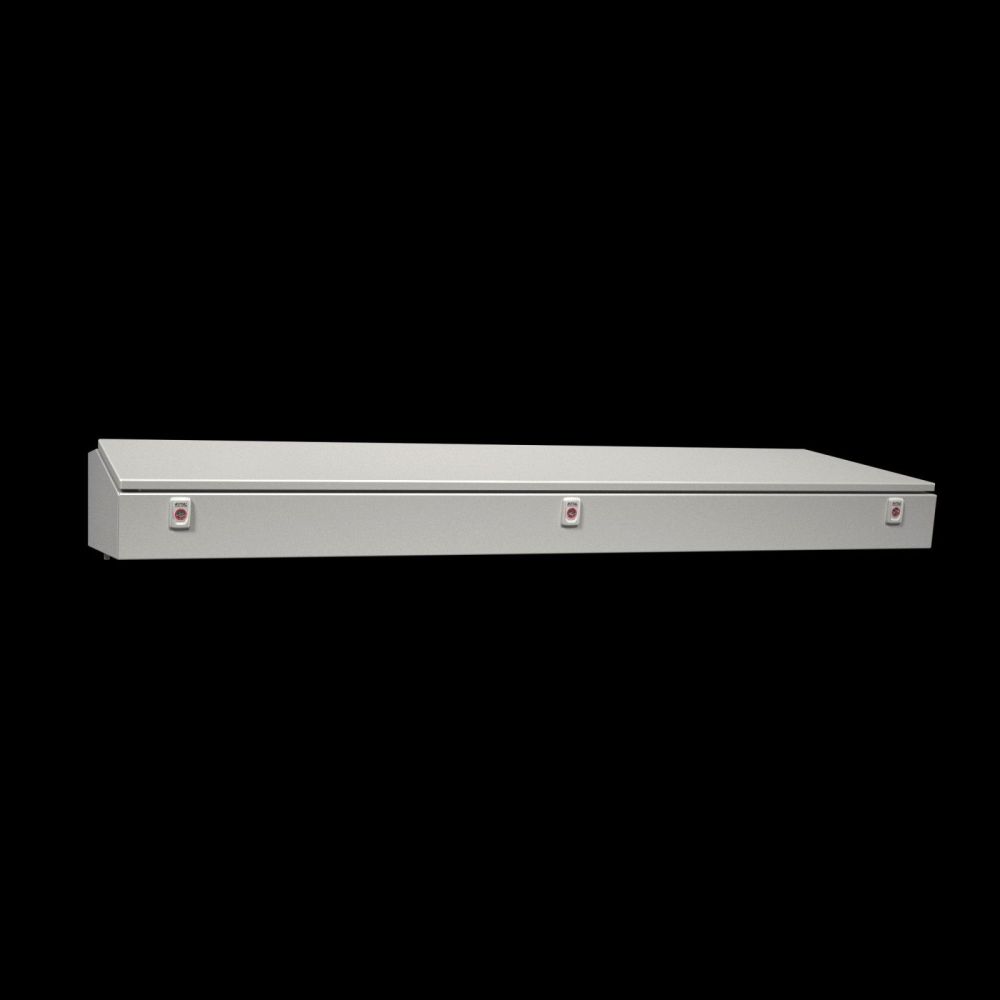

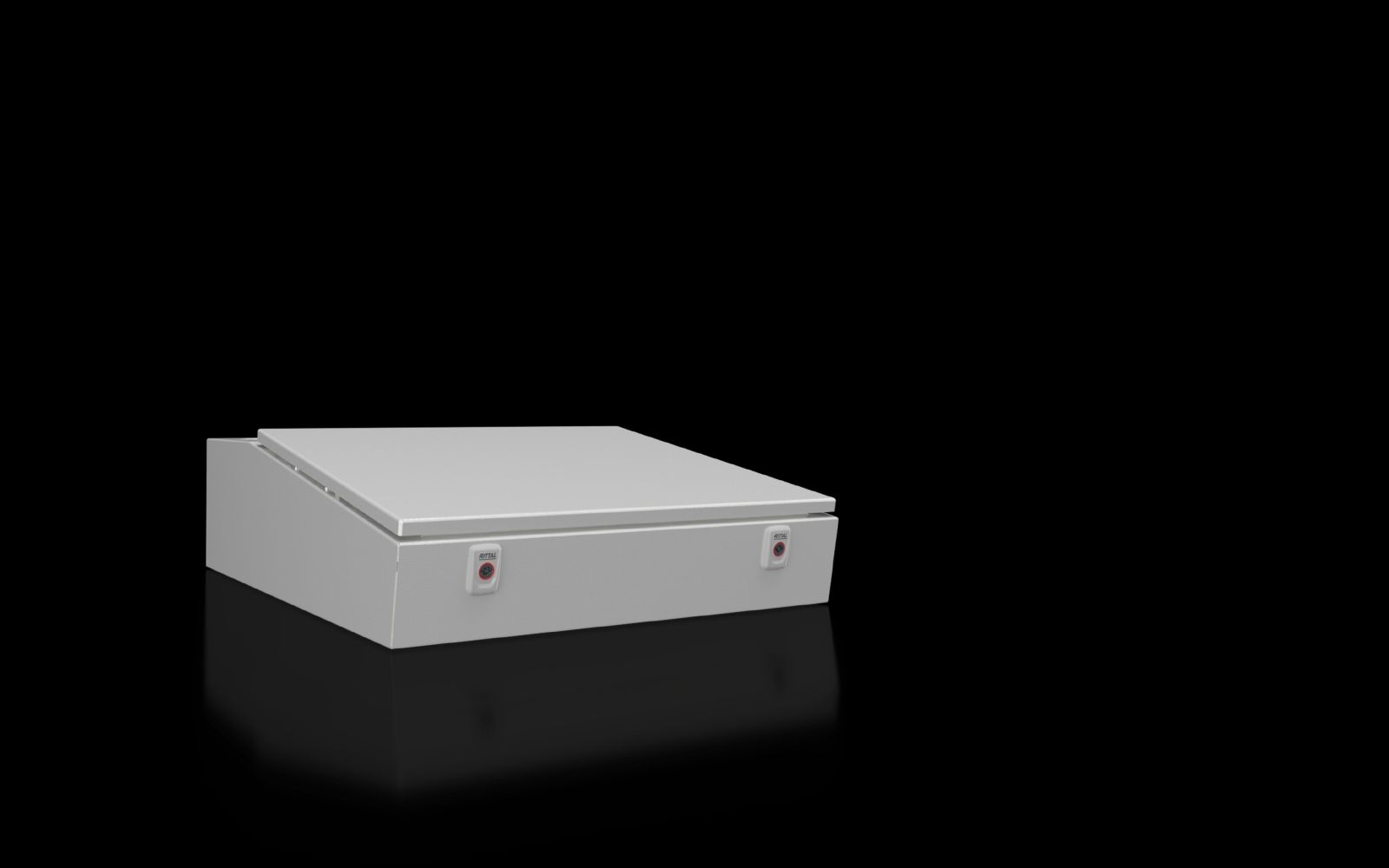

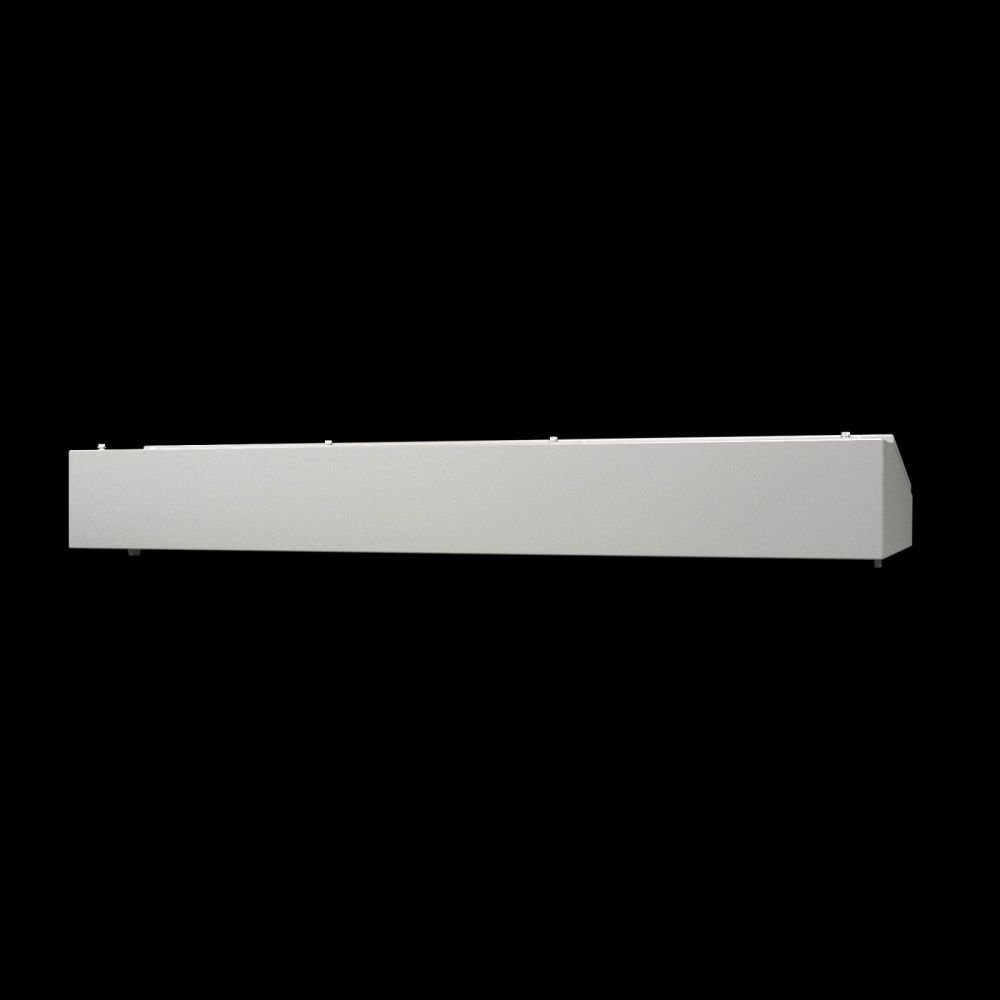

Rittal 6710000 CX console center section W:600 mm
|
326,60 EUR 339,66 EUR |
|
|
( 388,65 EUR incl. VAT ) ≈ £273.36 | ≈ $358.93 plus delivery charges: 235,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 602812 |
| Mfg Part No: | 6710000 |
| UPC/EAN: | 4028177983724 |
| Weight: | 20.6 kg |
| Type: | CX 6710000 |
Product information for Rittal 6710000:
Applications
This console centre section is designed for use in industrial environments where high mechanical stability and protective functions are required. It is suitable for installations in manufacturing technology, automation technology, or machine building, where control and operating elements are housed in a protected enclosure. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, enabling use in indoor environments and slightly damp conditions. The protection ratings NEMA 1 and NEMA 12 further enhance suitability for indoor use and environments with limited splashing water. The IK code IK10 provides high protection against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail

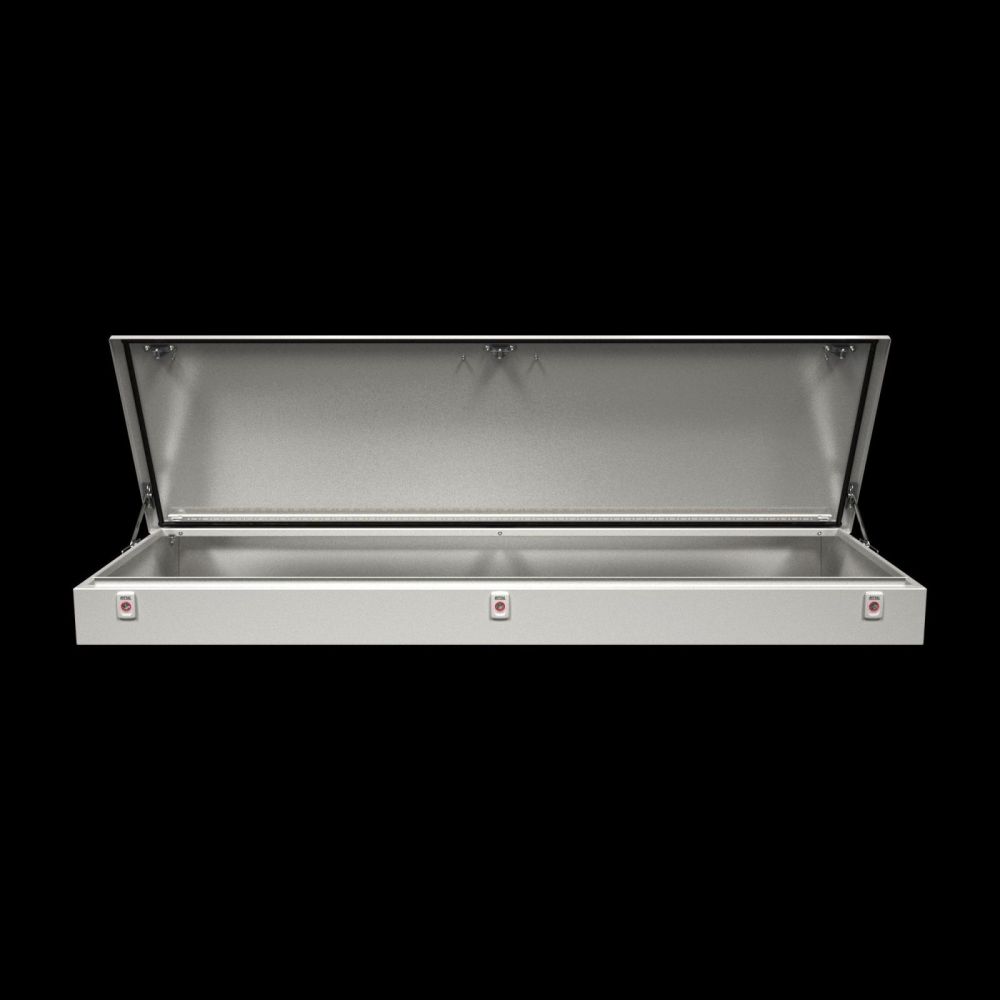

The housing is supplied with a rear-hinged lid, enabling convenient access to the interior. Two stands with automatic locking ensure secure mounting and stability. Unlocking is automatic on the left and manual on the right, allowing for flexible operation. An opening for cable entry is integrated into the housing base to support structured cabling. The locking system consists of two latches with a 3 mm double-barrel lock insert, ensuring secure and reliable closure.
Technology Explained Simply
The use of steel sheet in the specified wall thicknesses ensures high mechanical strength and resistance to deformation. The PU seal provides a tight seal, preventing the ingress of dust and moisture. The powder-coated surface in RAL 7035 offers high resistance to corrosion and mechanical stress. The protection rating IP 55 means the housing is protected against dust and splashing water, which is sufficient for many industrial applications. The IK code IK10 guarantees that the housing is resistant to mechanical impacts such as shocks with an energy of up to 10 Joules.
Compatibility and Accessories
The console centre section is part of a modular system and is used in combination with other components of the CX console system. For a two-part assembly, a console base section and an end plate for the centre section are required. For a three-part assembly, a console base and a console top section are needed. Suitable accessories include zinc die-cast lock box covers, mounting brackets for the internal mounting plane, multitools, system chassis, as well as plastic and metal gland plates, which facilitate the integration of operating elements and controls.
Mounting and Installation
Mounting is done via the integrated stands, which allow for secure fastening. The automatic locking of the stands ensures quick and secure installation. The opening in the housing base facilitates cabling, which can be adapted to the requirements of the respective installation. The locks are designed to ensure secure and reliable closure, with the manual unlocking on the right side providing additional security.
Advantages in Operation
The console centre section offers high mechanical stability and protective functions required for use in industrial environments. The modular design allows for flexible adaptation to different requirements. The integrated cable entry and robust locking system support structured and secure installation. The use of high-quality materials and protection according to IP 55 and IK10 ensure a long service life and low maintenance requirements.
| General | |
| Model | Middle part |
| Material | Housing: steel sheet 1.5 mm, console cover: steel sheet 2.0 mm, continuous foamed PU seal |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Housing, rear cover hinged, 2 feet with automatic locking. Unlocking left automatic, right manual, opening for cable passage in housing base, closure: 3 mm double barb |
| Width | 600 mm |
| Depth | 745 mm |

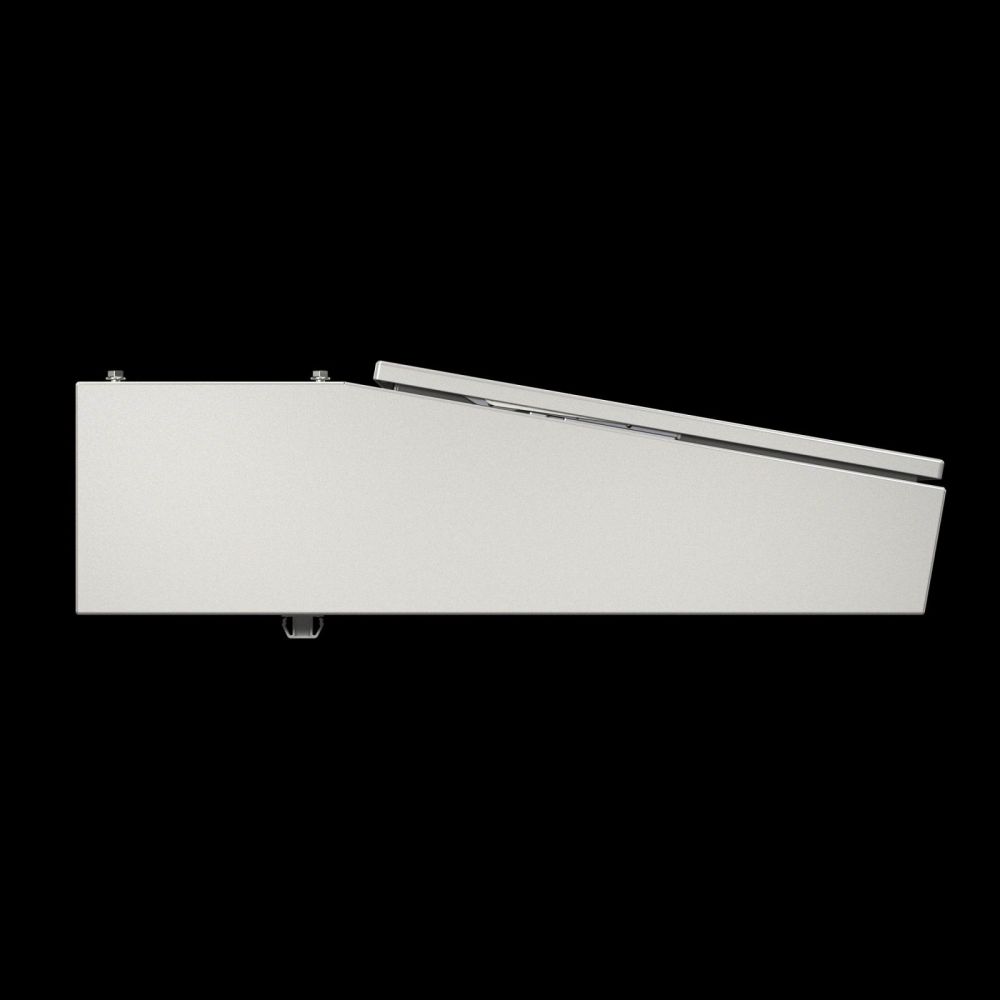

| Height front | 130 mm |
| Height at rear | 200 mm |
| IK code | IK10 |
| Note | To close the console center section, an end plate is required. For a 2-part console setup, a console base and an end plate for the console center section are required. For a 3-part console setup, a console base and a console top section are required. |
| Degree of protection IP according to IEC 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Base material | steel sheet |
| Number of locks | 2 |
| Closure type | Pre-wiper |
| Closure insert | 3 mm double barb |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
