Rittal 2573100 Metal gland plate with metric pre-punching, for

Your rating:
Average rating
product review for Rittal 2573100 Metal gland plate with metric pre-punching, for
( 4.4 / 5 ) 7 ratings

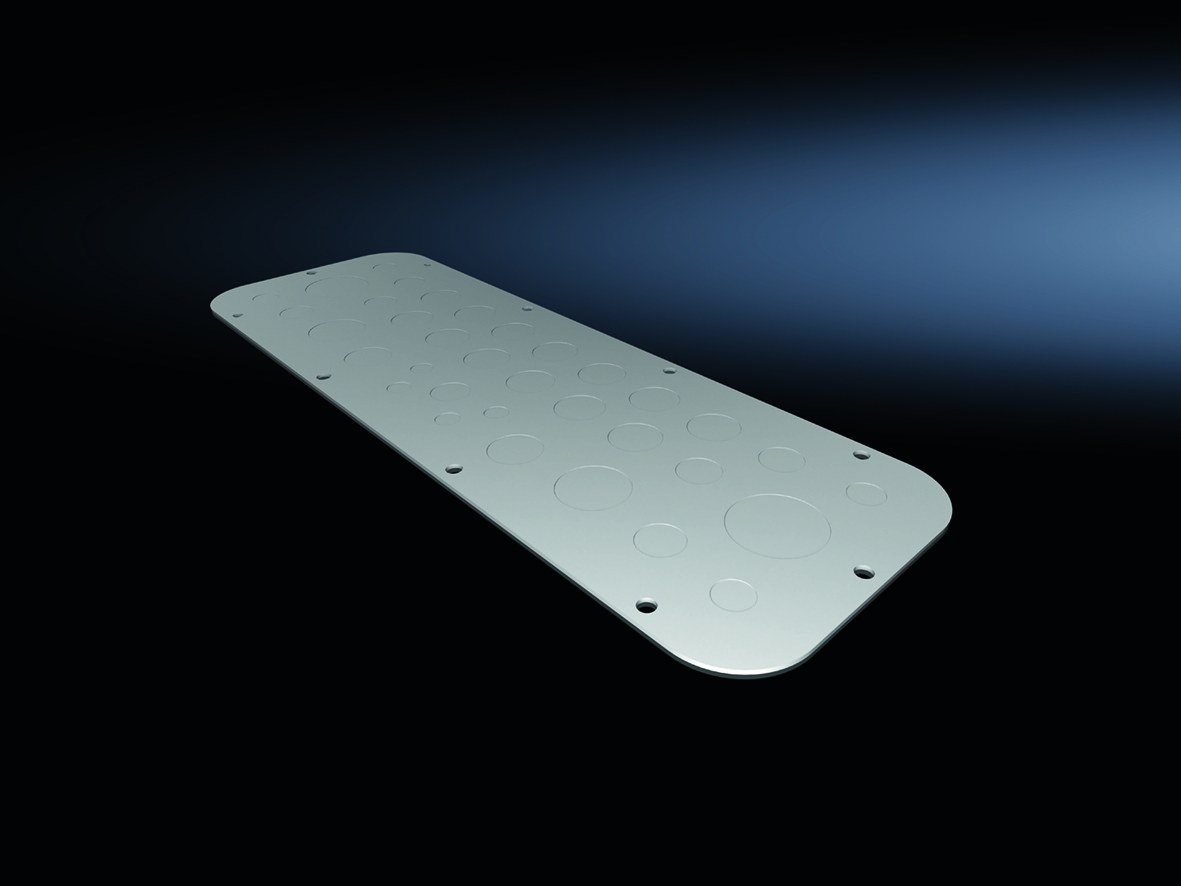

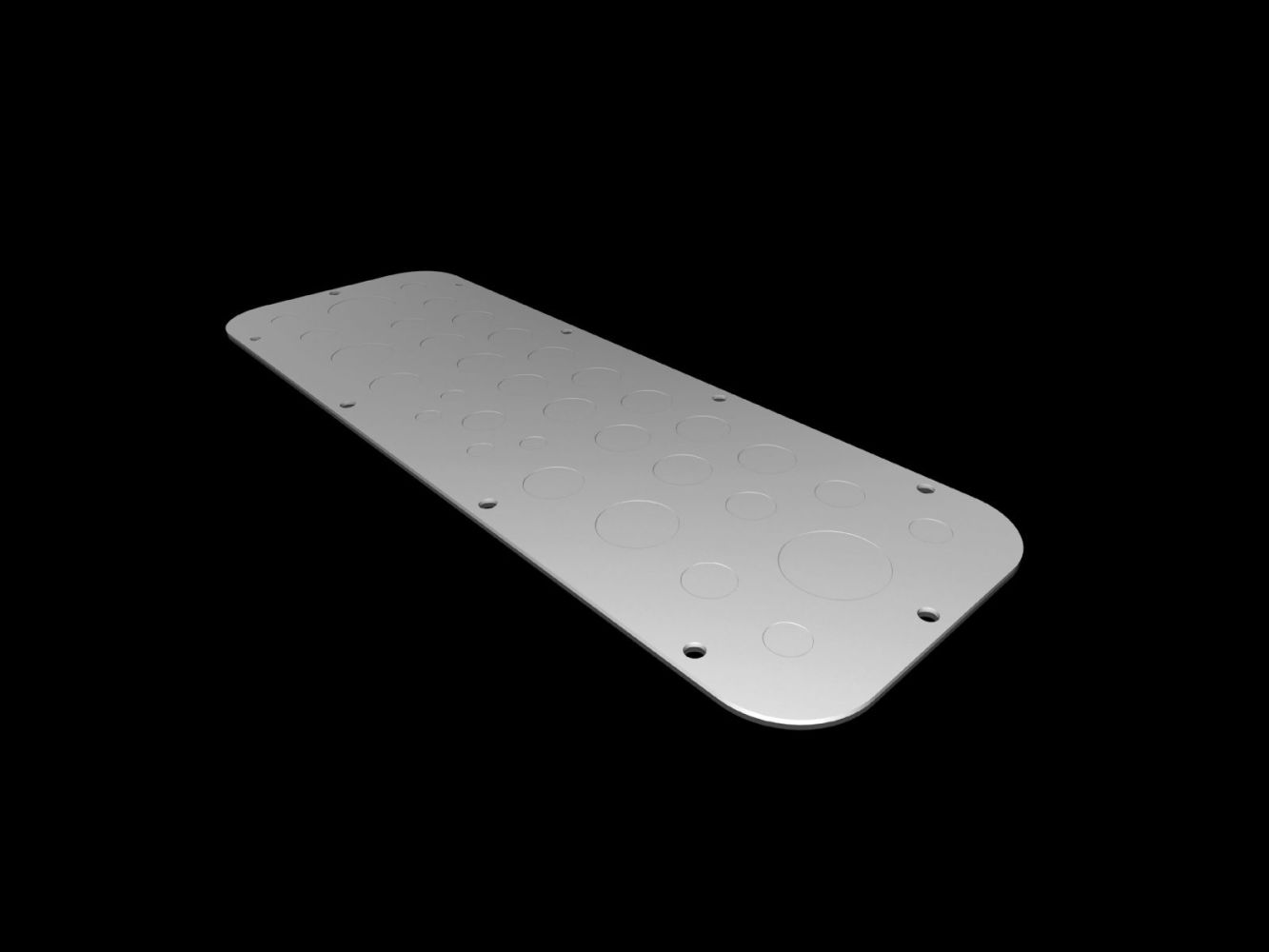

Rittal 2573100
This image may differ from the desired article.
Rittal 2573100Rittal 2573100Rittal 2573100
17,60 EUR 18,41 EUR
( 20,94 EUR incl. VAT )
≈ £14.73  |  ≈ $19.34
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2573100 Metal gland plate with metric pre-punching, for
Datasheet:file_download Download
Lieske Part No.:1598287
Mfg Part No: 2573100
UPC/EAN: 4028177925205
Weight:0.82 kg
Type:AX 2573100

Product information for Rittal 2573100:

The Rittal AX 2573100 is a metal gland plate made of sheet steel, specifically designed for enclosures of type AX. It serves as a mounting and connection element on the front side of the enclosure, enabling secure installation of cable glands or other fastening components. The gland plate is manufactured in size 3 and has dimensions of 447 mm width and 149 mm depth. The colour corresponds to the standard RAL 7035, a grey-black tone that integrates well in industrial environments.

Applications
The gland plate is primarily used in industrial environments where enclosures are mounted on walls or in mounting structures. It enables secure and standardised fastening of cable glands and other components to the front side of the enclosure. The pre-punched holes facilitate installation, as they can be easily punched out with a screwdriver. This reduces mounting time and increases precision when installing cable entries.

Functions and Equipment in Detail
The gland plate features a variety of metric pre-punchings suitable for different cable diameters. The exact count is: 4 x M12, 4 x M16, 7 x M20, 15 x M25, 2 x M32 and 2 x M40. This wide range of holes allows flexible adaptation to various cable cross-sections and fastening requirements. The pre-punchings are arranged to allow optimal placement of cable glands without compromising the structure of the enclosure.

Technology Explained Simply
The gland plate is made of sheet steel, ensuring high mechanical stability and durability. The protection rating IP 66 according to EN 60 529 is achieved with proper installation, meaning the gland plate is dust-tight and protected against strong splashing water. This makes it suitable for use in damp or dusty environments. Additionally, it meets the type rating according to UL 50E in categories Type 1 and Type 12K, confirming suitability for indoor and outdoor use under specific conditions. Installation is done by punching out the pre-punched holes with a screwdriver, enabling quick and tool-free assembly.

Compatibility and Accessories
The gland plate is specifically designed for enclosures of the enclosure type AX and fits into gland plate size 3. The assignment of gland plate size is based on the respective enclosure description. The gland plate is supplied as a single unit.

Mounting and Installation
Installation is performed by punching out the pre-punched holes with a screwdriver. This allows precise and quick adaptation to the desired cable entries. The gland plate is mounted on the front side of the AX enclosure, with the mounting instructions of the respective enclosure model to be observed. Proper installation is essential to achieve the specified protection rating IP 66.

Advantages in Operation
The gland plate provides a robust and reliable solution for fastening cable glands to AX enclosures. The pre-punched holes reduce mounting time and increase accuracy. The protection rating IP 66 ensures high resistance to dust and splashing water, enhancing reliability in demanding environments. Compatibility with the AX system and standardisation of the holes simplify planning and maintenance of enclosure installations.

General
Materialsteel sheet
ColourRAL 7035
NoteThe assignment of flange plate size can be found with the respective enclosures
Number of metric pre-forms4 x M12, 4 x M16, 7 x M20, 15 x M25, 2 x M32, 2 x M40
Width447 mm
Depth149 mm
Suitable forHousing type: AX
Flange plateSize: 3
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12K
PCF/VE (Cradle-to-Gate)4.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 2573100, EAN: 4028177925205

Questions & answers

What is the delivery time of Rittal 2573100 Metal gland plate with metric pre-punching, for?

The article Rittal 2573100 Metal gland plate with metric pre-punching, for is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2573100 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2573100 Metal gland plate with metric pre-punching, for always at the best possible price. We can give you a discount of 2% on Rittal 2573100 Metal gland plate with metric pre-punching, for if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
