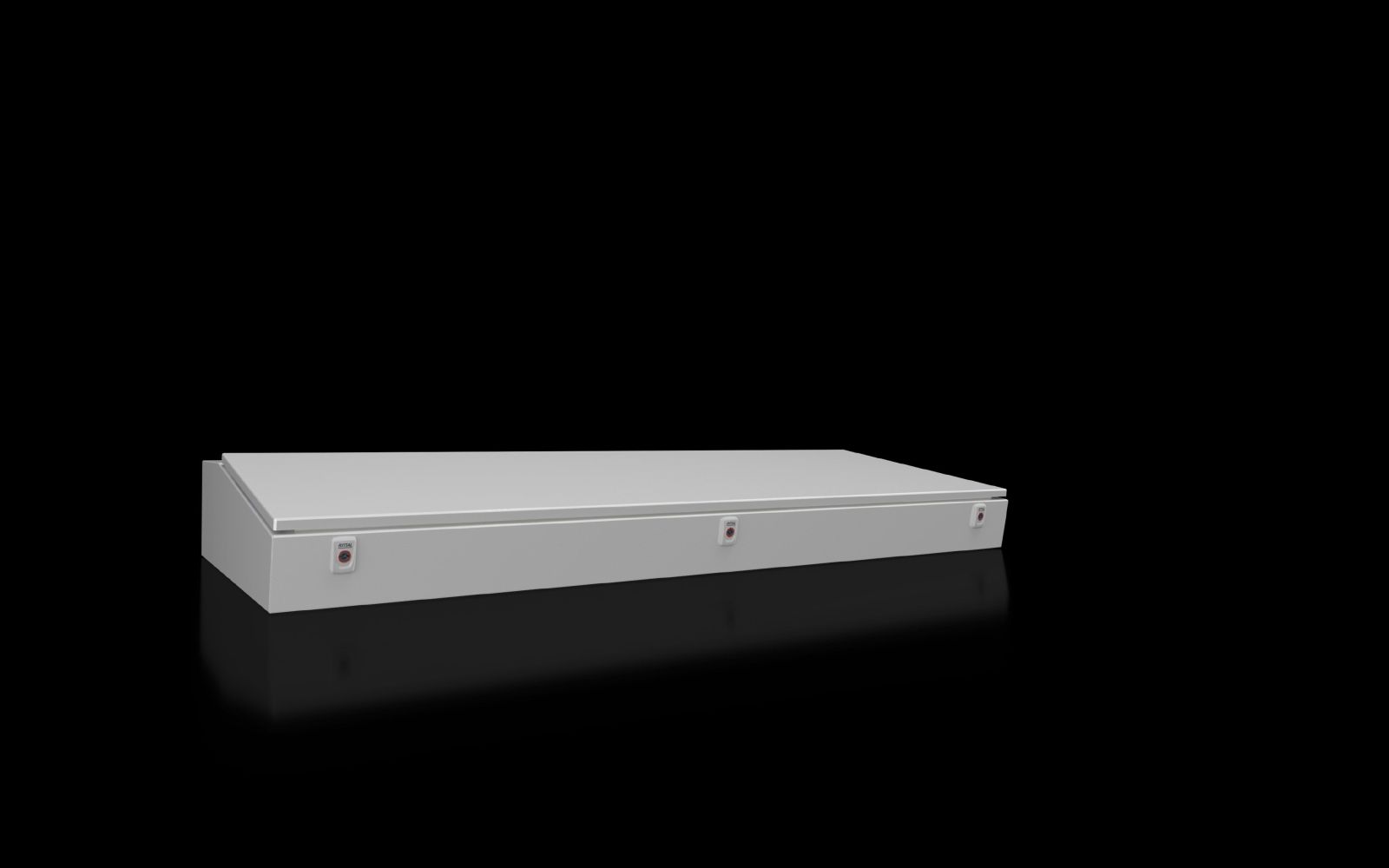

Rittal 6713000 CX console center section W:1600 mm

Your rating:
Average rating
product review for Rittal 6713000 CX console center section W:1600 mm
( 4.5 / 5 ) 2 ratings
Rittal 6713000
This image may differ from the desired article.
Rittal 6713000Rittal 6713000Rittal 6713000Rittal 6713000Rittal 6713000Rittal 6713000
517,50 EUR 538,20 EUR
( 615,82 EUR incl. VAT )
≈ £433.15  |  ≈ $568.73
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6713000 CX console center section W:1600 mm
Datasheet:file_download Download
Lieske Part No.:2145729
Mfg Part No: 6713000
UPC/EAN: 4028177983694
Weight:47 kg
Type:CX 6713000

Product information for Rittal 6713000:

The Rittal CX 6713000 is a console middle section for the CX console system, designed for use in industrial and technical installations. It serves as a central component in a modular setup consisting of a console base section, a console middle section, and optionally a console top section. The width is 1,600 mm, the depth 745 mm, with the front side having a height of 130 mm and the rear side 200 mm. The enclosure is made of steel sheet with a wall thickness of 1.5 mm, and the console lid is made of 2.0 mm thick steel sheet. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035. The continuously foamed PU sealing ensures a tight seal. The protection class IP 55 according to IEC 60 529 protects against dust and splashing water, enabling use in indoor environments as well as in slightly damp conditions. The protection classes NEMA 1 and NEMA 12 correspond to the respective American standards for protection against contact and contaminated environments. The IK code IK10 guarantees mechanical protection against impact with an energy of up to 10 joules, suitable for use in industrial environments.

Applications
This console middle section is designed for use in industrial control and operator console systems, particularly in installations requiring a modular division of the operator interface. It is suitable for applications in manufacturing industry, process automation, and technical control centres, where a clear separation between operator and control levels is required. The open base construction allows for individual cable entry, facilitating integration into existing cabling systems.

Functions and Equipment in Detail

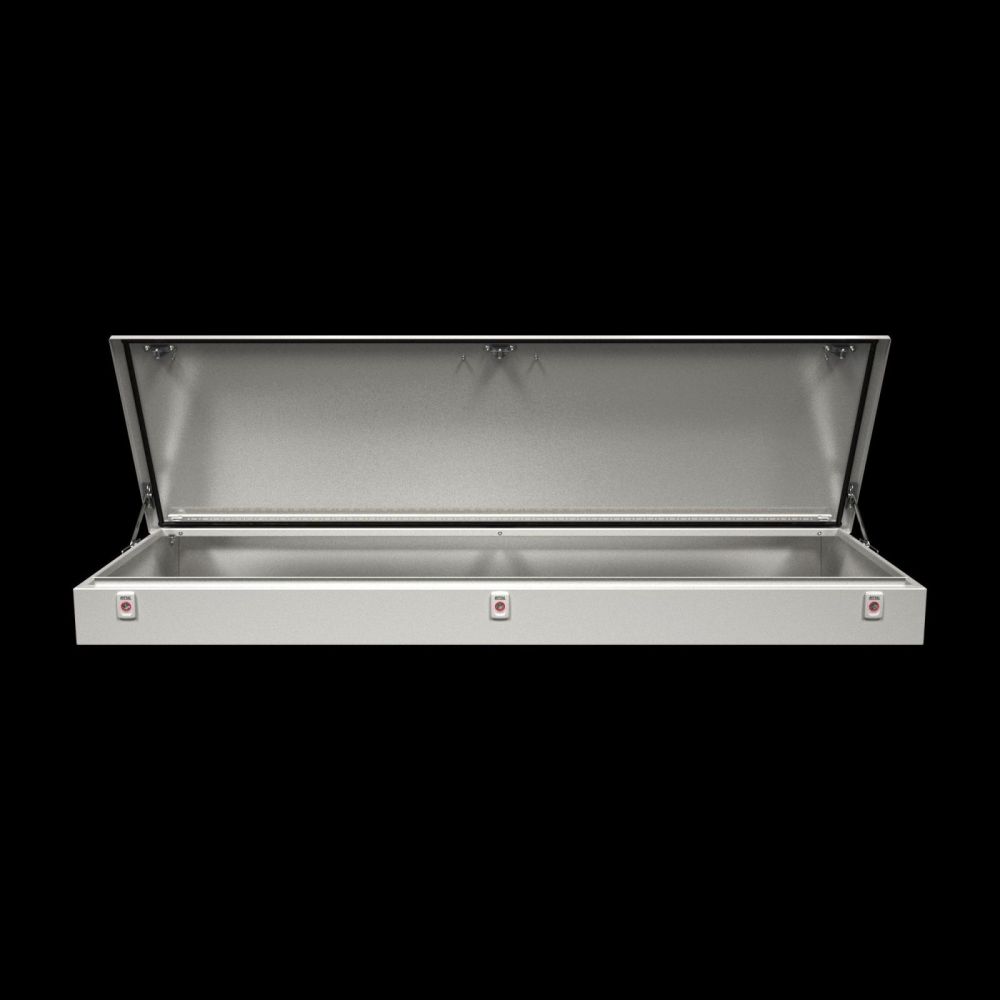

The enclosure is supplied with a lid that is hinged at the rear and features two lifters with automatic locking. Unlocking is automatic on the left and manual on the right. The lid is hinged at the bottom and secured with a lid holder. The locking system consists of three latches with a 3 mm double-barrel lock insert, ensuring secure closure. The opening in the enclosure base serves for cable entry and enables flexible cabling.

Technology Explained Simply
The use of steel sheet with a wall thickness of 1.5 mm for the enclosure and 2.0 mm for the lid ensures high mechanical stability. The powder-coated surface in RAL 7035 provides a robust, abrasion-resistant, and corrosion-resistant coating. The IP protection class 55 protects against dust and splashing water, enabling use in indoor environments with increased humidity or occasional water spray. The IK10 rating protects against mechanical impacts such as shocks or impacts, which is important for use in industrial environments. The continuous PU sealing ensures a tight seal and prevents dust or moisture from entering.

Compatibility and Accessories
The console middle section is part of the modular CX console system and can be combined with a console base section and optionally a console top section. For a two-part setup, a console base section and an end plate for the console middle section are required. For a three-part setup, a console base and a console top section are necessary. Suitable accessories include drawers for keyboard and mouse, lock box covers, mounting brackets, pull-out keyboards with integrated trackball, multitools, system chassis, plastic and metal gland plates, and aluminium strips. These components allow individual adaptation of the operator console to specific requirements.

Mounting and Installation
Mounting is achieved by connecting the console middle section to a console base section, with the automatic lifters and hinged lids enabling easy mounting and maintenance. The open base construction allows for individual cable entry, facilitating integration into existing cabling systems. The locking system with three latches ensures secure closure of the enclosure.

Operational Advantages
The console middle section offers a robust and secure construction that meets the requirements of industrial environments. The modular design allows flexible adaptation to different requirements. The IP protection class 55 and IK code IK10 ensure a high protection standard. The open base construction and flexible locking system facilitate mounting and maintenance. The use of steel sheet and a powder-coated surface ensures long service life and high resistance to mechanical and chemical stresses.

General
ModelMiddle part
MaterialHousing: steel sheet 1.5 mm, console cover: steel sheet 2.0 mm, continuous foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryHousing, rear cover hinged, 2 feet with automatic locking. Unlocking left automatic, right manual, opening for cable passage in housing base, closure: 3 mm double bar, housing, cover hinged at bottom, including cover holder, open base for individual cable entry
Width1.600 mm
Depth745 mm
Height front130 mm
Height at rear200 mm
IK codeIK10
NoteTo close the console center section, an end plate is required. For a 2-part console setup, a console base and an end plate for the console center section are required. For a 3-part console setup, a console base and a console top section are required.
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Base materialsteel sheet
Number of locks3
Closure typePre-wiper
Closure insert3 mm double barb
LockClosure type: Deadbolt, Number of closures: 3, Closure insert: 3 mm double barb


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 6713000, EAN: 4028177983694
