Rittal 6730800 CX aluminium strip 1=1 L:1750 mm

Your rating:
Average rating
product review for Rittal 6730800 CX aluminium strip 1=1 L:1750 mm
( 5 / 5 ) 1 ratings
Rittal 6730800
This image may differ from the desired article.
Rittal 6730800Rittal 6730800Rittal 6730800
-6% 27,60 EUR 29,51 EUR
( 32,84 EUR incl. VAT )
≈ £23.10  |  ≈ $30.33
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6730800 CX aluminium strip 1=1 L:1750 mm
Datasheet:file_download Download
Lieske Part No.:2145909
Mfg Part No: 6730800
UPC/EAN: 4028177994744
Weight:1.23 kg
Type:CX 6730800

Product information for Rittal 6730800:

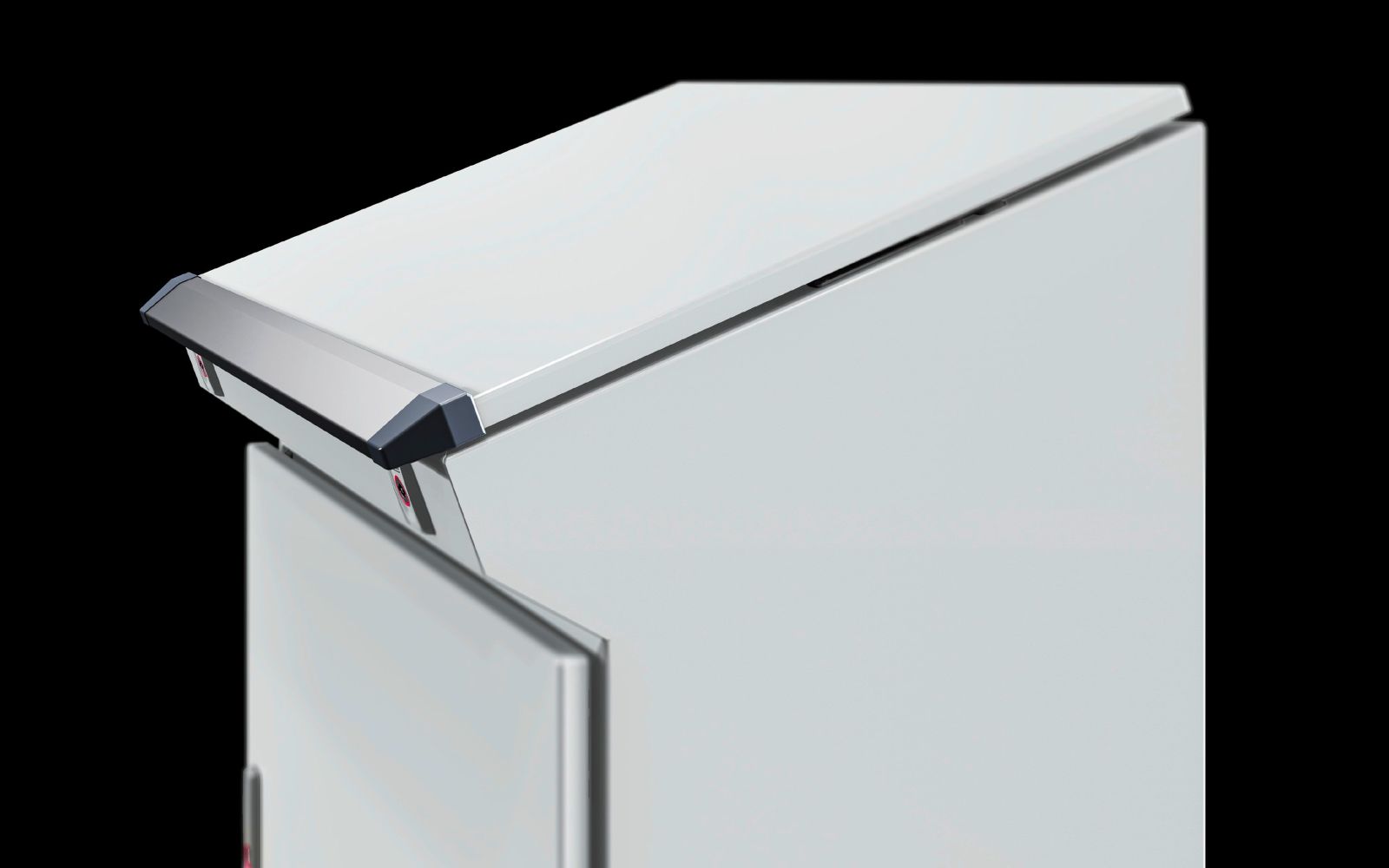

The Rittal CX 6730800 is an aluminium strip specifically developed for the CX console system and standing consoles. It serves as a mounting element for circuit diagrams, documents or other papers, preventing them from slipping. The strip is mounted retrospectively on CX middle and top sections as well as on standing consoles, and thus represents supplementary system accessory for industrial enclosures and workstations in the electrical and IT sectors.

Functions and equipment in detail

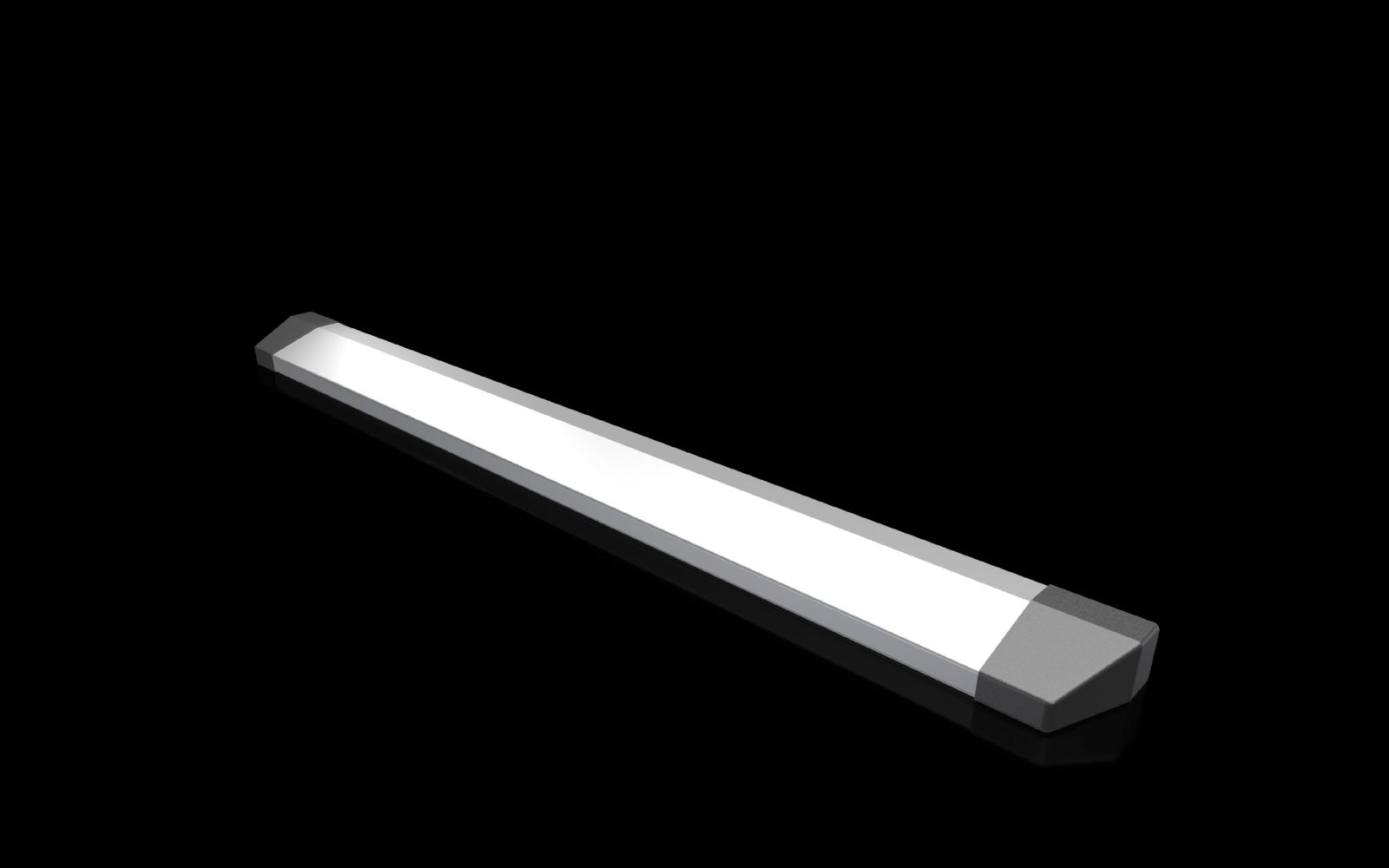

The aluminium strip consists of an extruded aluminium profile with natural anodised surface. This surface treatment provides good corrosion resistance and a uniform, decorative finish. The end caps are made of plastic and are coloured RAL 7016, ensuring visual harmony with the standard colours of the CX product line. The strip has a total length of 1,750 mm and is designed for various mounting options. It can be easily cut to size to adapt to different widths such as 600 mm, 800 mm, 1,000 mm, 1,200 mm or 1,600 mm.

Technology explained clearly
The extruded aluminium profile offers high mechanical stability and is lightweight at the same time. The natural anodised surface protects the material against environmental influences such as moisture or minor corrosion, which is particularly advantageous in industrial environments. The plastic end caps ensure a clean optical finish and protect the ends of the profile from damage. The drilling template facilitates precise positioning of the mounting holes, ensuring secure and quick installation. The mounting accessories allow for firm anchoring at the designated mounting points of the CX systems.

Compatibility and accessories
The aluminium strip is specifically designed for the CX console system and standing consoles. It is compatible with various width configurations mentioned in the scope of delivery and can be mounted at the designated mounting points of CX middle and top sections. The strip is not intended for other systems or manufacturers, but exclusively for the Rittal CX product family. Mounting is done retrospectively, enabling flexible use in existing installations.

Mounting and installation
Installation is carried out by securing the strip to the designated mounting points of the CX elements. The drilling template supports precise alignment of the mounting holes. The included mounting accessories are used to securely fix the strip. The strip can be cut to length as required, with the specified mounting options allowing adaptation to standard widths. Mounting requires no special tools beyond standard tools typically used for screws and drilling.

Advantages in operation
The aluminium strip provides a reliable mounting solution for documents and circuit diagrams needed at industrial workstations or enclosures. The use of aluminium and plastic ensures long service life and low maintenance. The simple mounting and adaptation to various widths increases flexibility in use. The integrated drilling template and mounting accessories reduce installation time and increase installation accuracy. The strip is thus a practical accessory for organising and structuring workstations in industrial environments.

General
MaterialAluminium extruded profile, covers: plastic
Surface protectionAluminium extruded profile: natural anodized
ColourCover caps: RAL 7016
Scope of delivery1 aluminium profile, 6 plastic covers, drilling template, including mounting accessories
Length1.750 mm
Mounting optionseasily cut to other dimensions, 3 x width 600 mm, 2 x width 800 mm, 1 x width 1000 mm + 1 x width 600 mm, 1 x width 1200 mm, 1 x width 1600 mm
Suitable forConsole system CX, floor console CX


Product data sheet
Datasheet for Rittal 6730800, EAN: 4028177994744

Questions & answers

What is the delivery time of Rittal 6730800 CX aluminium strip 1=1 L:1750 mm?

The article Rittal 6730800 CX aluminium strip 1=1 L:1750 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6730800 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 6730800 CX aluminium strip 1=1 L:1750 mm always at the best possible price. We can give you a discount of 2% on Rittal 6730800 CX aluminium strip 1=1 L:1750 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
