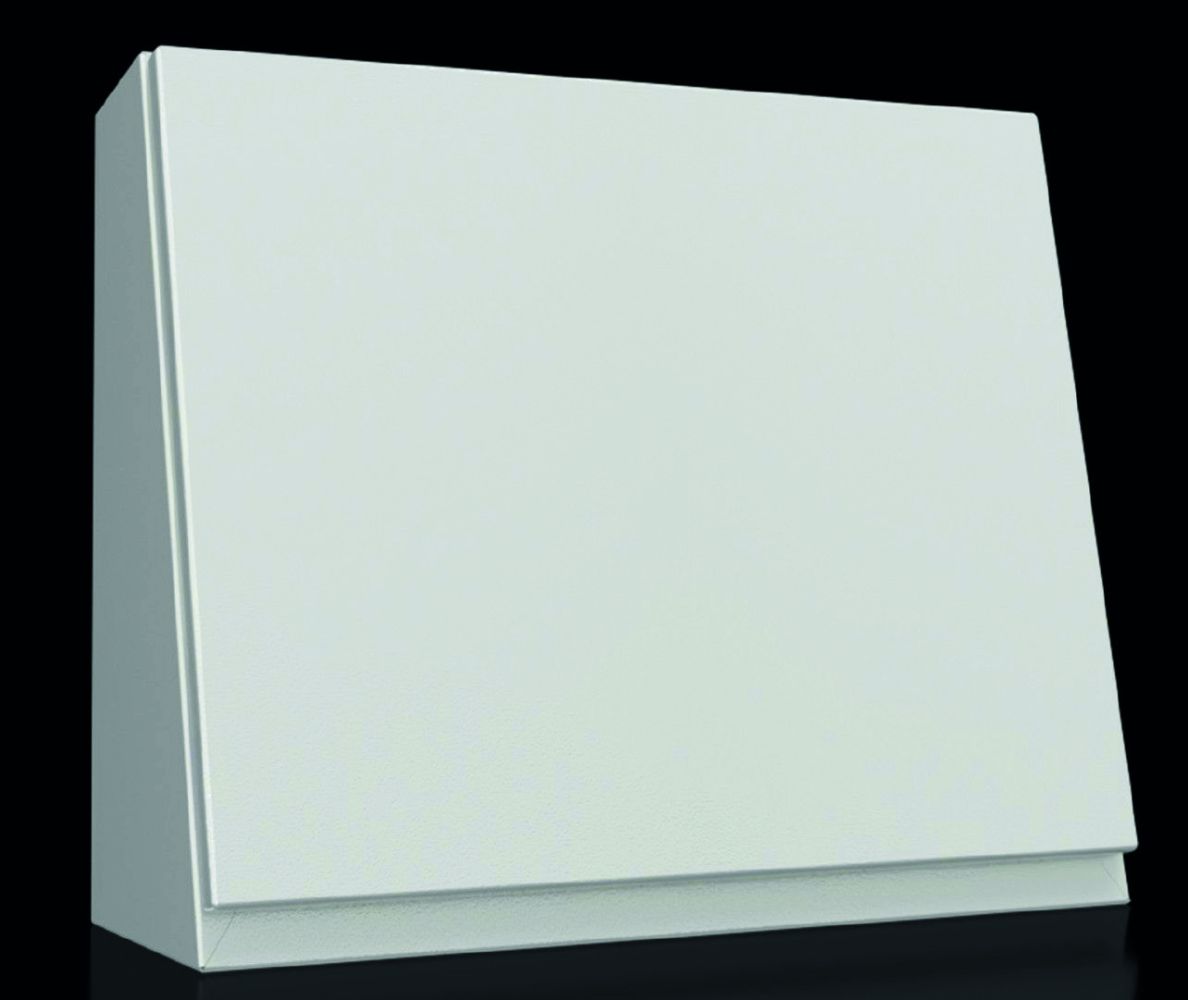

Rittal 6720000 CX console top section for 3-piece assembly W: 600 mm
|
317,40 EUR 330,10 EUR |
|
|
( 377,71 EUR incl. VAT ) ≈ £265.66 | ≈ $348.82 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 124693 |
| Mfg Part No: | 6720000 |
| UPC/EAN: | 4028177983687 |
| Weight: | 16.8 kg |
| Type: | CX 6720000 |
Product information for Rittal 6720000:
Applications
The console top section is designed for use in industrial environments where a robust, impact-resistant, and dust- and splash-water-protected enclosure is required. It is suitable, for example, for control consoles in production plants, machine controls, or automation technology, where high mechanical load capacity and protection against environmental influences are necessary. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for outdoor use as well. Additionally, the enclosure meets the protection ratings NEMA 1 and NEMA 12, confirming its suitability for indoor and lightly contaminated environments. The IK10 protection class protects against mechanical impacts such as blows and shocks with an energy of up to 10 joules.
Functions and Equipment in Detail
The enclosure features an open base construction, enabling individual cable entry. This is particularly advantageous when cables of different cross-sections or special cabling solutions are required. The lid is hinged at the bottom and secured by a lid holder, enabling safe and convenient opening and closing. The locking mechanism consists of two latches with a 3 mm double-barrel insert, ensuring secure locking. The locks are designed to allow secure access to the interior without compromising the mechanical stability of the enclosure.
Technology Explained Simply
The use of sheet steel in the specified thicknesses ensures high strength and durability of the enclosure. The PU seal provides a tight seal between the door and the enclosure, supporting the protective function against dust and moisture. The powder-coated surface offers additional corrosion protection and is resistant to mechanical stress. The protection rating IP 55 means the enclosure is protected against dust and splashing water, making it suitable for use in humid or dusty environments. The IK10 classification guarantees that the enclosure is protected against mechanical impacts such as blows or shocks with an energy of up to 10 joules.
Compatibility and Accessories
The console top section is part of a modular system and must be combined with a console middle section and a console bottom section for a three-part construction. Suitable accessories include TS mounting rails for the internal mounting plane (W x D: 400 mm), VX system chassis (14 x 39 mm, door width 500 mm), and aluminum strips (L: 1750 mm), which are suitable for mounting components inside the enclosure. These accessories enable flexible and individual equipping of the console system.
Mounting and Installation
Mounting is carried out in conjunction with the other modules of the CX console system. The open base construction allows for flexible cable entry, enabling cables to be routed according to individual requirements. The hinged door and lid holder facilitate installation and maintenance, as access to the interior is possible without tools. The locks are designed to ensure secure locking without increasing mounting complexity.
Operational Advantages
The Rittal CX 6720000 offers high mechanical stability, reliable protection against environmental influences, and modular expandability. The open base construction enables flexible cable routing, while the hinged door and secure locks facilitate access to the interior. The use of sheet steel and a robust surface coating ensures a long service life and low maintenance requirements. Compatibility with other modules and accessories of the CX system allows for individual adaptation to specific requirements.
| General | |
| Model | Cover |
| Material | Housing: 1.5 mm steel sheet, door: 2.0 mm steel sheet, with continuous foamed PU seal |
| Surface protection | Housing and door: dip primed, externally powder-coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Housing, bottom cover hinged, including cover holder, open base for individual cable entry, closure: 3 mm double barb |
| Width | 600 mm |
| Height | 515 mm |
| Depth top | 125 mm |
| Depth bottom | 245 mm |
| IK code | IK10 |
| Note | For a 3-piece console assembly, a console center and console bottom section are required |
| Degree of protection IP according to IEC 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Base material | steel sheet |
| Number of locks | 2 |
| Closure type | Pre-wiper |
| Closure insert | 3 mm double barb |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
Questions & answers
What is the delivery time of Rittal 6720000 CX console top section for 3-piece assembly W: 600 mm?
The article Rittal 6720000 CX console top section for 3-piece assembly W: 600 mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6720000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 6720000 CX console top section for 3-piece assembly W: 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 6720000 CX console top section for 3-piece assembly W: 600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
