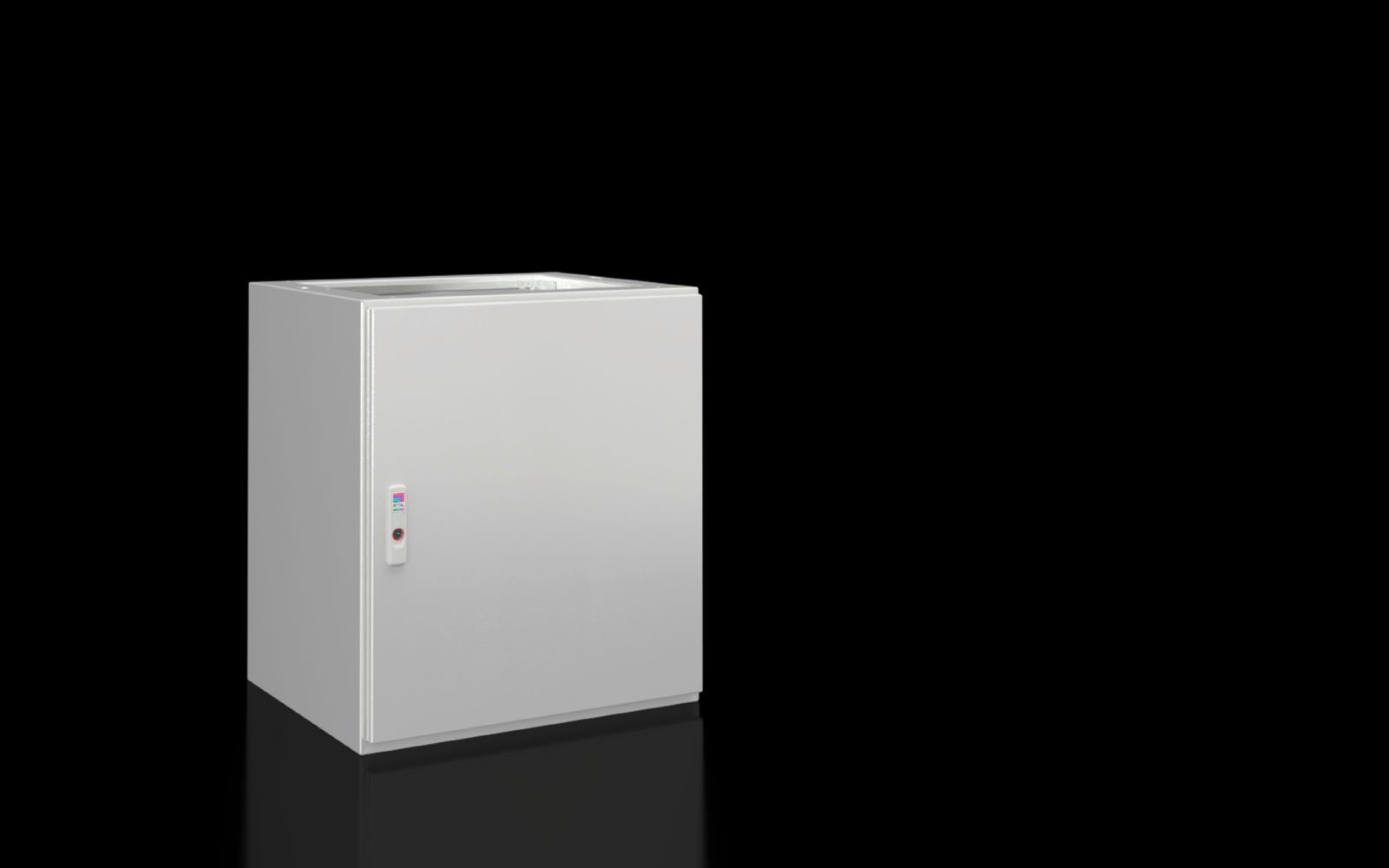

Rittal 6704000 CX console base unit W x H x D: 600x675x500 mm

Your rating:
Average rating
product review for Rittal 6704000 CX console base unit W x H x D: 600x675x500 mm
( 4 / 5 ) 1 ratings
Rittal 6704000
This image may differ from the desired article.
Rittal 6704000Rittal 6704000Rittal 6704000Rittal 6704000Rittal 6704000Rittal 6704000Rittal 6704000
393,30 EUR 409,03 EUR
( 468,03 EUR incl. VAT )
≈ £329.19  |  ≈ $432.24
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6704000 CX console base unit W x H x D: 600x675x500 mm
Datasheet:file_download Download
Lieske Part No.:602814
Mfg Part No: 6704000
UPC/EAN: 4028177983762
Weight:35.75 kg
Type:CX 6704000

Product information for Rittal 6704000:

The Rittal CX 6704000 is a console base unit from the CX console system, designed as a foundation for modular console solutions in industrial and technical applications. The housing is made of steel sheet with a wall thickness of 1.5 mm, the door from 2.0 mm steel sheet, and features a continuously foamed PU seal ensuring a tight seal. The mounting plate is made of 2.5 mm thick steel sheet and is galvanized. The surface of the housing and door is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035. The product has dimensions of 600 mm (width) × 675 mm (height) × 500 mm (depth) and is open at the top, serving as a base for modular construction.

Applications
This console base unit is designed for use in industrial environments where a robust and impact-resistant construction is required. It is suitable as a basic element for console systems in production plants, control centres or automation technology. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for indoor use with increased contamination risk. The protection ratings NEMA 1 and NEMA 12 complement its suitability for dry and slightly contaminated indoor environments. The IK code IK10 indicates high mechanical strength against mechanical impacts.

Functions and Equipment in Detail
The unit features a front door equipped with a 3-point locking system to ensure secure and stable latching. The lock insert is a 3 mm double bar, providing secure locking. The door opens to an angle of 130°, allowing good access to the interior. The delivery includes the housing, door, mounting plate, and two-part base sheets, which facilitate easy cable routing. The mounting plate has dimensions of 520 mm × 625 mm and is intended for mounting components or control elements.

Technology Explained Simply
The use of steel sheet in various wall thicknesses ensures high mechanical stability and durability. The PU seal provides a tight seal, preventing dust and moisture ingress. The powder-coated surface in RAL 7035 offers high corrosion resistance and a uniform, textured surface finish. The protection rating IP 55 means the unit is protected against dust and splashing water, making it suitable for industrial indoor use. The protection ratings NEMA 1 and NEMA 12 complement its suitability for dry and slightly contaminated environments. The IK code IK10 guarantees high mechanical strength against mechanical impacts.

Compatibility and Accessories
The console base unit is part of the CX console system and can be combined with other components to create modular console solutions. For a 2-part console assembly, a console middle section and an end plate for the console middle section are required. For a 3-part assembly, a console middle section and a console top section are needed. Suitable accessories include, for example, the CX 6720000 console top section for 3-part assembly, lock inserts made of zinc die-cast, baying sets for AX, KX, AE, KL, TS mounting rails, earthing straps, VX plinth trim panels, plinth corner pieces, VX system chassis, VX support rails, cable entry plates, and cable strain relief rails. These components allow individual adaptation of the console system to specific requirements.

Mounting and Installation
Mounting is done via the provided mounting plate with dimensions 520 mm × 625 mm. The two-part base sheets facilitate cable routing and cable installation. The front door with the 3-point locking system allows secure and convenient access.

Operational Advantages
The console base unit offers a robust and durable construction designed for industrial environments. The modular design enables flexible adaptation to different requirements. The integrated base sheets and secure locking via the 3-point locking system ensure easy and secure installation. The protection rating IP 55 and mechanical strength according to IK10 ensure high reliability and safety in operation.

General
ModelBase unit
MaterialHousing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, continuous foamed PU seal, mounting plate: steel sheet, 2.5 mm
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryHousing open at top, door or double door at front, with 3-point locking system, mounting plate, base plates, lock: 3 mm double bar
Width600 mm
Height675 mm
Depth500 mm
Mounting plate dimensions (W x H)520 mm x 625 mm
Number of doors1
Door opening angle130°
IK codeIK10
NoteTo close the console base, an end plate is required. For a 2-part console assembly, a console center section and an end plate for the console center section are required. For a 3-part console assembly, a console center section and a console top section are required.
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Base materialsteel sheet
Number of locks1
Closure type3-point locking system
Closure insert3 mm double barb
LockClosure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 6704000, EAN: 4028177983762
