Rittal 2568500 SZ earthing straps M8-M8 cross-section 16 mm² L 600 mm, pack of 5

Your rating:
Average rating
product review for Rittal 2568500 SZ earthing straps M8-M8 cross-section 16 mm² L 600 mm, pack of 5
( 4.2 / 5 ) 5 ratings
Rittal 2568500
This image may differ from the desired article.
Rittal 2568500Rittal 2568500Rittal 2568500
-6% 31,74 EUR 33,93 EUR
( 37,77 EUR incl. VAT )
≈ £26.57  |  ≈ $34.88
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2568500 SZ earthing straps M8-M8 cross-section 16 mm² L 600 mm, pack of 5
Datasheet:file_download Download
Lieske Part No.:643857
Mfg Part No: 2568500
UPC/EAN: 4028177995307
Weight:0.518 kg
Type:SZ 2568500

Product information for Rittal 2568500:

The Rittal SZ 2568500 is an earthing strap for use in enclosures and housings, ensuring a safe and reliable earthing connection. It is specifically designed for use in industrial electrical installations, where reliable contact and a stable electrical connection for the protective conductor are required. The strap features a cross-section of 16 mm², enabling sufficient current dissipation during fault currents, and is equipped with ring cable lugs in M8 at both ends to be fastened to corresponding earthing screws in the enclosure or housing. The total length is 600 mm, making it optimised for typical mounting situations in standard enclosures.

Applications

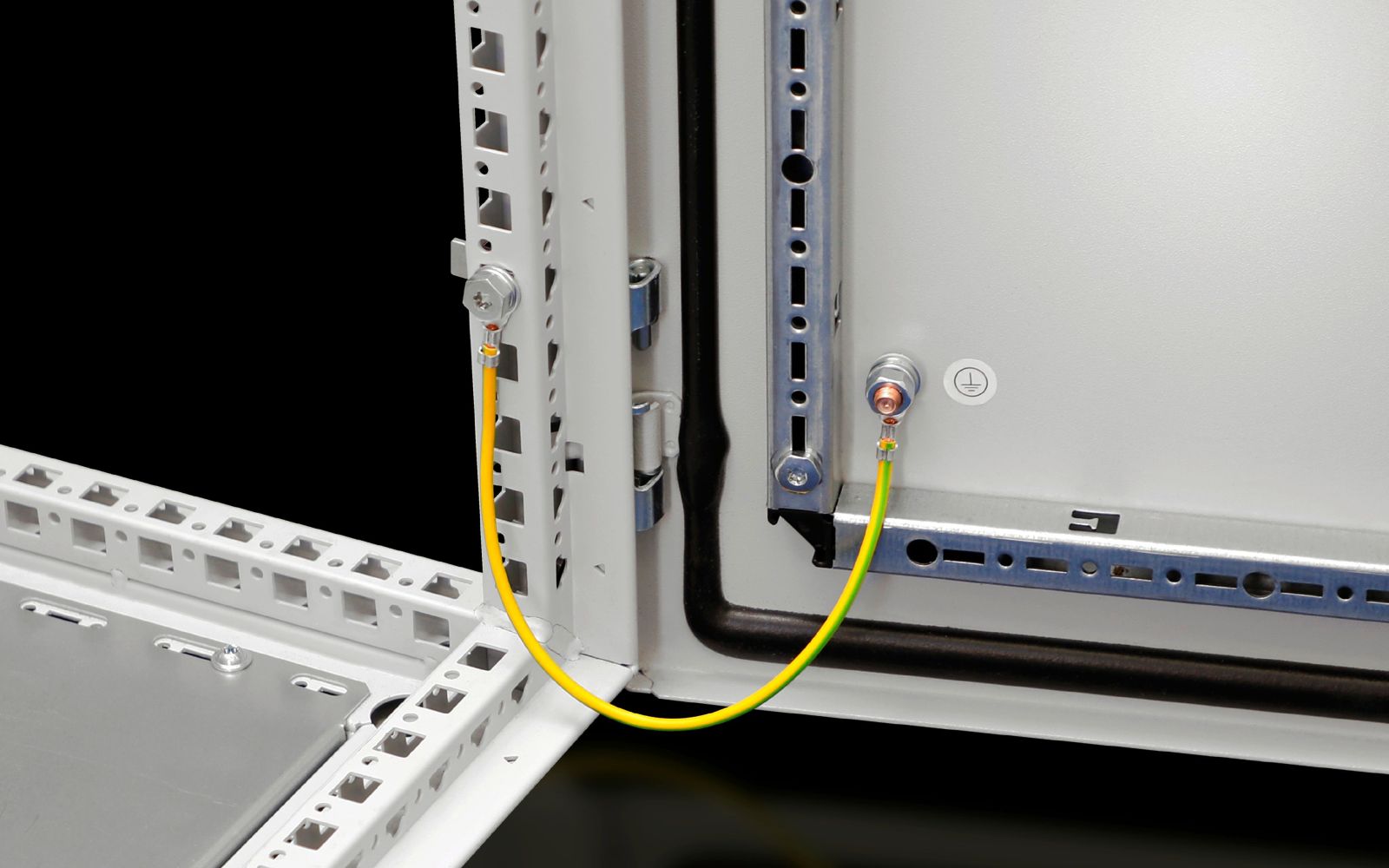

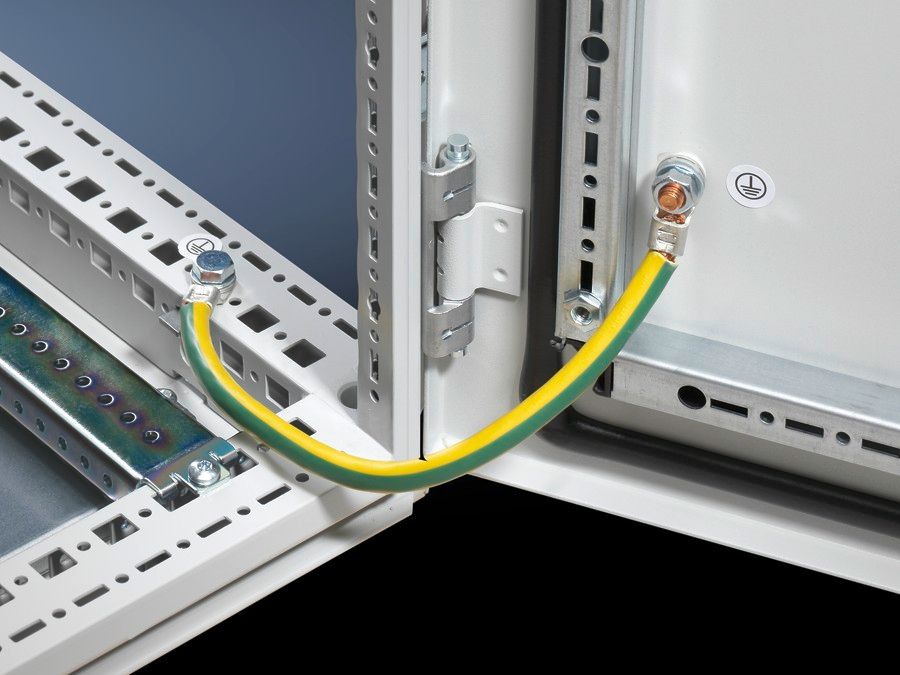

The earthing strap is used in industrial electrical engineering to connect electrical housings, doors, covers, mounting plates, side panels, or base plates to the protective conductor of the enclosure. It ensures safe dissipation of fault currents and contributes to avoiding touch voltages. Installation options include connections to door/cover, housing, mounting plate, side panel, and base plate, each with M8 connection. The designations AX and VX refer to different mounting variants, with AX covering connections to doors/covers and housings as well as mounting plates, and VX including additional options such as side panel and base plate.

Functions and Equipment in Detail
The earthing strap is delivered ready for mounting, allowing it to be directly integrated into the installation without additional processing or cutting. The M8 ring cable lugs are standard-compatible with earthing screws used in Rittal enclosures and compatible systems. The use of a cross-section of 16 mm² ensures sufficient conductivity for the protective conductor, especially in installations with higher current ratings. The length of 600 mm is designed for most standard mounting situations, with exact adaptation to the specific enclosure configuration achieved through the provided mounting options.

Technology Explained Simply
An earthing strap such as the SZ 2568500 provides an electrical connection between metallic components of an enclosure and the protective conductor (PE). This ensures that in the event of a fault, such as a short circuit, the fault current is dissipated via the protective conductor and does not flow through the enclosure wall. The ring cable lugs enable a mechanically stable and electrically conductive connection that remains intact even under mechanical stress (e.g. vibrations). The use of M8 connections is widespread in industrial electrical engineering, as this screw size provides sufficient fastening force and is compatible with common earthing screws.

Compatibility and Accessories
The earthing strap is designed for use in Rittal enclosures and compatible systems. It can be mounted at various points within the enclosure, including doors, covers, housings, mounting plates, side panels, and base plates. Suitable accessories, such as mounting materials for system perforation with earthing straps, are also available to facilitate installation. The use of appropriate fastening elements is essential to ensure a secure and durable connection.

Mounting and Installation
Installation is performed by screwing the ring cable lugs onto the designated earthing screws in the enclosure. Detailed mounting instructions can be found in the installation manual or protective conductor brochure for the respective enclosure or housing system. Adhering to these instructions is crucial to ensure a correct and safe earthing connection. The strap is already optimised in length, so it can usually be used without additional processing.

Operational Advantages
The earthing strap provides a reliable and maintenance-friendly solution for earthing in enclosures. The ready-to-mount design reduces installation time and minimises error sources. The use of a cross-section of 16 mm² ensures sufficient conductivity, and the M8 ring cable lugs provide secure mechanical fastening. The variety of installation options allows flexible adaptation to different enclosure configurations.

General
Cross section16 mm²
ConnectionM8 – M8
Mounting optionsConnection options AX: door/cover M8, housing M8, mounting plate M8, connection options VX: door/cover M8, housing M8, mounting plate M8, side wall M8, base plate M8
NotePlease refer to the installation instructions or earthing brochure of the respective cabinet or enclosure system.
Length600 mm


Product data sheet
Datasheet for Rittal 2568500, EAN: 4028177995307
