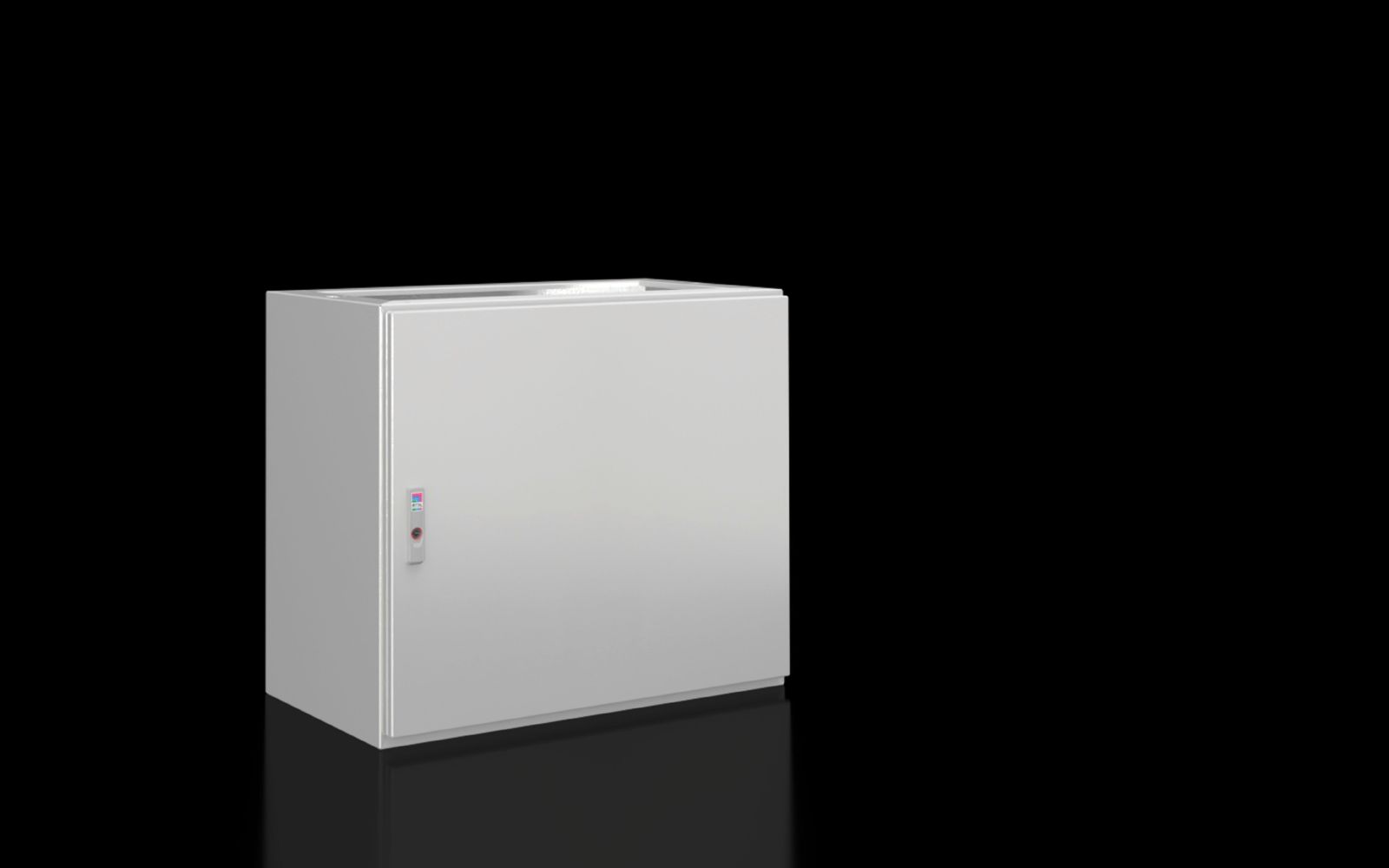

Rittal 6701000 CX console base unit W x H x D: 800 x 675 x 400 mm

Your rating:
Average rating
product review for Rittal 6701000 CX console base unit W x H x D: 800 x 675 x 400 mm
( 4 / 5 ) 1 ratings
Rittal 6701000
This image may differ from the desired article.
Rittal 6701000Rittal 6701000Rittal 6701000Rittal 6701000Rittal 6701000Rittal 6701000Rittal 6701000Rittal 6701000
387,55 EUR 403,05 EUR
( 461,18 EUR incl. VAT )
≈ £324.38  |  ≈ $425.92
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6701000 CX console base unit W x H x D: 800 x 675 x 400 mm
Datasheet:file_download Download
Lieske Part No.:2145730
Mfg Part No: 6701000
UPC/EAN: 4028177983793
Weight:39.875 kg
Type:CX 6701000

Product information for Rittal 6701000:

The Rittal CX 6701000 is a console base unit from the CX console system, designed as a basic element for modular workstation and enclosure solutions. It has dimensions of 800 mm width, 675 mm height, and 400 mm depth and is manufactured from sheet steel. The enclosure is made of 1.5 mm thick sheet steel, the door from 2.0 mm sheet steel with a continuously foamed PU seal, and the mounting plate from 2.5 mm sheet steel. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035. The mounting plate is zinc-plated. The base unit is open at the top and is fitted with a door secured by a 3-point locking system with a 3 mm double-barrel lock insert. The door opens to 130°. The scope of delivery includes the enclosure, door, mounting plate, and two-part base plates that facilitate easy cable routing.

Applications
This console base unit is designed for use in industrial and technical environments where a robust, impact-resistant enclosure with high mechanical stability is required. It serves as a base for console systems used in production facilities, control centres, or for the installation of operating and monitoring elements. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for use in damp or dusty areas. The protection ratings NEMA 1 and NEMA 12 further extend its suitability for indoor environments with low to medium environmental stress. The IK code IK10 ensures high mechanical strength against impacts and shock loads.

Functions and Equipment in Detail
The enclosure is designed for modular expansion. It can be combined with additional elements such as console middle or console top units to create a multi-part console assembly. A closing plate is required to complete the base unit. The two-part base plates included in the scope of delivery facilitate installation and cable routing. The 3-point locking system ensures secure and stable door latching. The mounting plate, with dimensions of 720 mm x 625 mm, provides a stable mounting surface for devices and components.

Technology Explained Simply
The use of sheet steel in various wall thicknesses ensures high mechanical strength and durability. The PU seal on the door provides a tight closure and prevents dust and moisture from entering. The powder-coated surface in RAL 7035 offers high corrosion resistance and a uniform, textured surface finish. The protection rating IP 55 means the enclosure is protected against dust and splashing water, making it suitable for industrial environments. The IK code IK10 guarantees that the enclosure is resistant to mechanical impacts such as shocks and blows up to a certain energy level.

Compatibility and Accessories
The console base unit is part of the CX console system and can be combined with other components such as console middle and console top units. Suitable accessories include, for example, VX plinth corner pieces with plinth trim panels, lock inserts made of zinc die-cast, baying sets for AX, KX, AE, KL, earthing straps, mounting brackets, VX system chassis, support rails, cable entry plates, cable strain relief rails, and comfort handles for lock inserts. These elements allow for individual adaptation and expansion of the console system to meet specific requirements.

Mounting and Installation
Mounting is carried out via the provided mounting plate, which is included in the scope of delivery. The two-part base plates facilitate installation and cable routing. The door is secured with the 3-point locking system, with the 3 mm double-barrel lock insert enabling the latching. The dimensions and construction are designed so that the base unit can be easily integrated into existing console systems.

Advantages in Operation
The Rittal CX 6701000 offers high mechanical stability and protection through the IP 55 and IK10 ratings. The modular design enables flexible expansion and adaptation to different requirements. The integrated base plates and mounting plate simplify installation and maintenance. The robust construction from sheet steel and the powder-coated surface ensure a long service life and high reliability in industrial use. The uniform design with the AX lock escutcheon ensures a professional appearance.

General
ModelBase unit
MaterialHousing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, continuous foamed PU seal, mounting plate: steel sheet, 2.5 mm
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryHousing open at top, door or double door at front, with 3-point locking system, mounting plate, base plates, lock: 3 mm double bar
Width800 mm
Height675 mm
Depth400 mm
Mounting plate dimensions (W x H)720 mm x 625 mm
Number of doors1
Door opening angle130°
IK codeIK10
NoteTo close the console base, an end plate is required. For a 2-part console assembly, a console center section and an end plate for the console center section are required. For a 3-part console assembly, a console center section and a console top section are required.
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Base materialsteel sheet
Number of locks1
Closure type3-point locking system
Closure insert3 mm double barb
LockClosure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 6701000, EAN: 4028177983793
