Rittal 1199100 Baying set for AX, KX, AE, KL
|
32,32 EUR 33,69 EUR |
|
|
( 38,46 EUR incl. VAT ) ≈ £27.05 | ≈ $35.52 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 583514 |
| Mfg Part No: | 1199100 |
| UPC/EAN: | 4028177602373 |
| Weight: | 0.281 kg |
| Type: | SZ 1199100 |
Product information for Rittal 1199100:

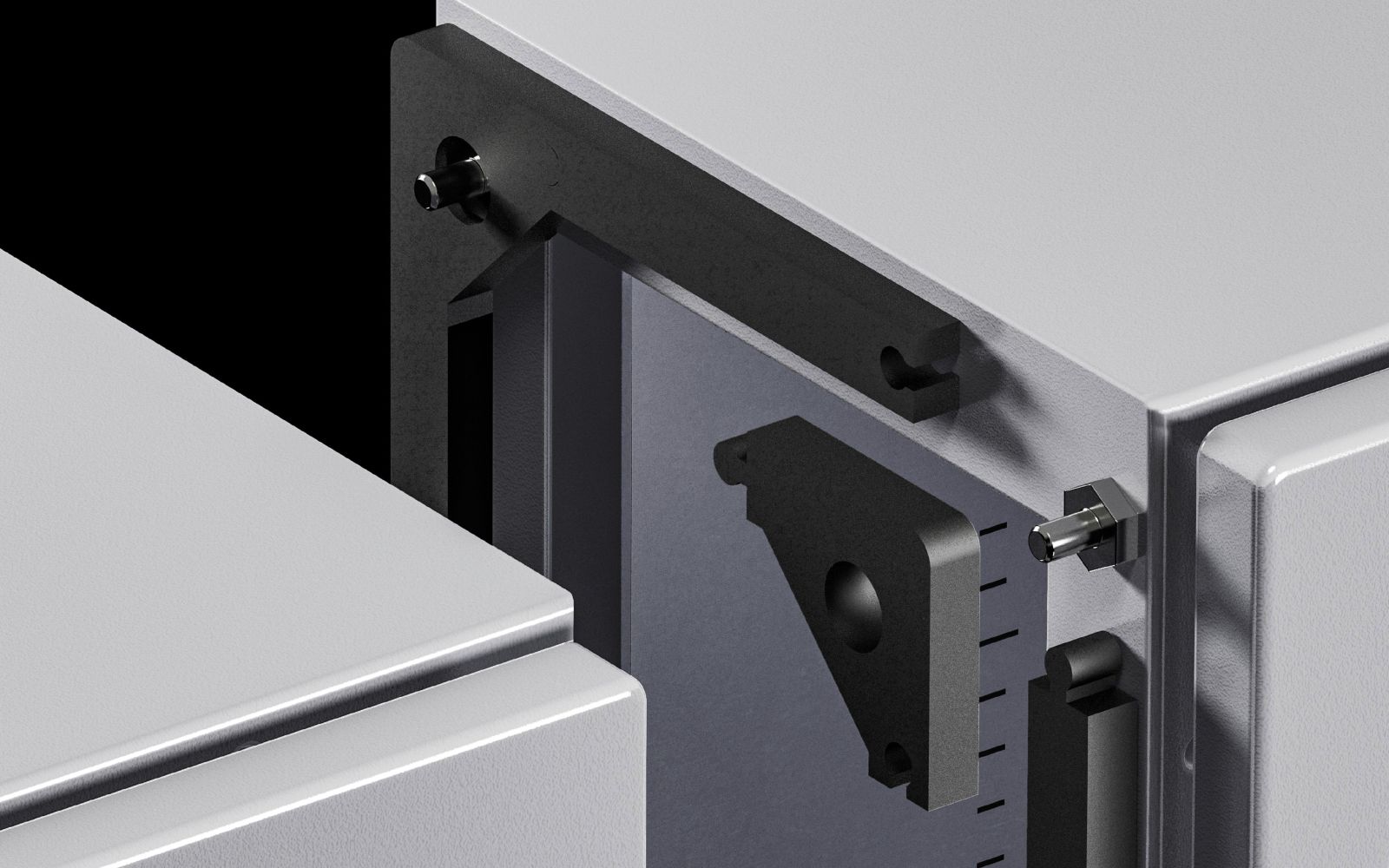

Benefits: Special screws and nuts limit compression of the seal to a predefined level, to ensure a long-lasting, permanent seal between enclosures
Fast, simple assembly without thread-tapping
Seal, self-adhesive, comprised of bayable sealing elements and corner pieces, for individual adaptation to various enclosure sizes
Protection category IP to IEC 60 529: IP 66
Protection category NEMA: NEMA 4X

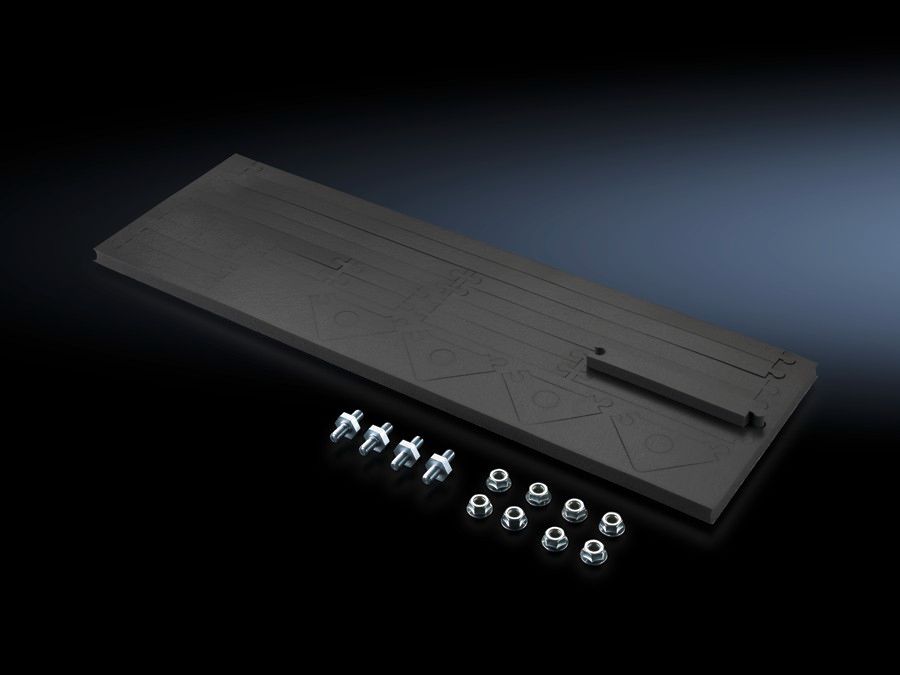

Supply includes: Sealing elements
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177602373
Customs tariff number: 39269097
eCl@ss 5.1: 27189204
eCl@ss 7.0: 27189234
ETIM 6.0: EC002622
To fit: Enclosure type: KL
Enclosure type: AE
Height: = 800 mm
Depth: = 350 mm
Weight/pack: 0.22 kg
| General | |
| Scope of delivery | Special screws and nuts, sealing elements, self-adhesive |
| Note | 1 unit is sufficient for one mounting position up to H x T = 800 x 350 mm, mounting on KX E-Box is not possible on the hinged side |
| Suitable for | Housing type: AX, KX, AE, KL, height: ≤ 800 mm, depth: ≤ 350 mm |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4X, Type 12 |
| Degree of protection IP according to IEC 60 529 | IP 66 when installed correctly |
