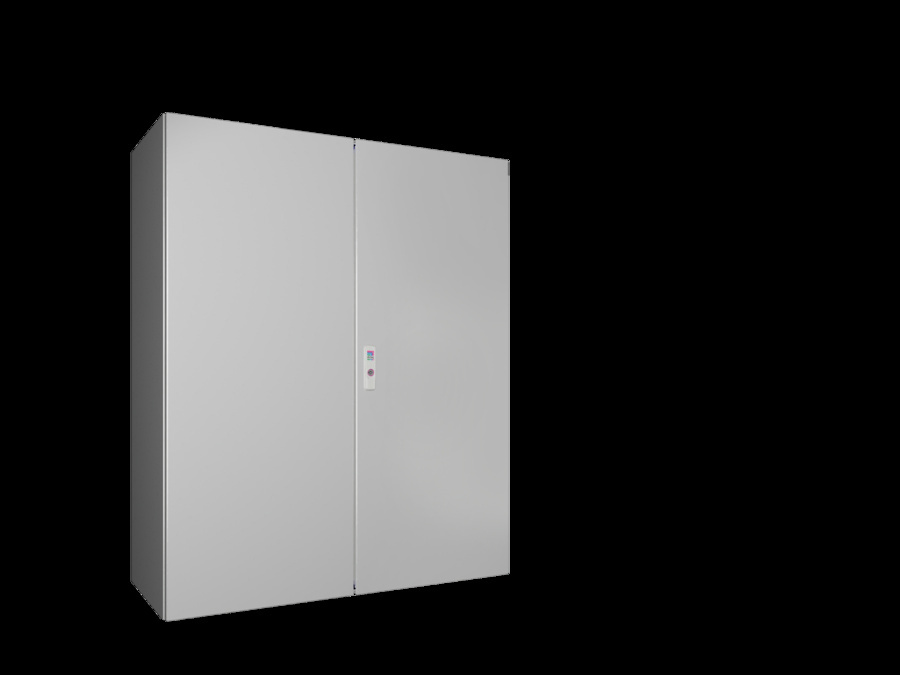

Rittal 1214000 Compact enclosure AX, 2-door, 1000x1200x400 mm,
|
-6% 446,20 EUR 472,97 EUR |
|
|
( 530,98 EUR incl. VAT ) ≈ £373.47 | ≈ $490.37 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598139 |
| Mfg Part No: | 1214000 |
| UPC/EAN: | 4028177813090 |
| Weight: | 82.5 kg |
| Type: | AX 1214000 |
Product information for Rittal 1214000:
Applications
The enclosure is suitable for use in indoor environments and in areas with limited protection requirements against dust and splashing water. The protection rating IP 55 according to EN 60 529 ensures high protection against dust and splashing water from all directions. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), make it suitable for applications in dry indoor areas and environments with light contamination. The IK code IK10 indicates high mechanical resistance against mechanical impacts such as shocks or vibrations.
Functions and Equipment in Detail
A central feature of the AX 1214000 is the integrated 25 mm system grid through embossed enclosure lugs on the roof, base, and side panels. This enables flexible and tool-free mounting of internal fitting systems, such as rails and accessories, without drilling. The base fitting rail provides an additional mounting level and increases load capacity. The mounting plate is equipped with keyhole slots for earthing and dimension markings and is secured with ring weld nuts. A QR code is printed on the enclosure body, door, and type plate to make product information and documentation easily accessible.
Technology Explained Simply
The integrated enclosure lugs in the 25 mm grid enable modular and flexible internal fitting. System components such as rails or mounting brackets can be installed without drilling, preserving the protection rating (UL approval). The PU seal ensures a tight seal, supporting the IP 55 protection rating. The 3-point locking system with double-barrel lock insert according to DIN 43668 ensures secure and stable door locking. The door opening angle is 130° according to VDI, with an option to retrofit to 180°.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories. These include lock inserts made of zinc die-cast, TS mounting brackets for internal and external mounting levels, wall mounting angles, dust protection strips, baying sets for AX, KX, AE, and KL, as well as plinth trim panels and elements in various heights. The VX System Chassis 14 x 39 mm for a height of 1,200 mm is also available. The AS Multitool AX/VX 4052000 serves as a tool for mounting and maintenance.
Mounting and Installation
Mounting is done via the integrated enclosure lugs and the base fitting rail. The mounting plate enables secure fastening of components. The gland plates in the enclosure base serve as connection points for cable entries. The door hole strips on the doors offer additional mounting options. The door hinges are reversible, allowing for flexible installation. Mounting is done without drilling, preserving the protection rating.
Operational Advantages
The enclosure offers high mechanical stability due to its sheet steel construction and material thicknesses. The integrated lugs and 25 mm grid enable flexible and quick internal fitting. The IP 55 and NEMA 12 protection ratings ensure reliable protection against environmental influences. The 3-point locking system ensures secure locking. QR codes on the components facilitate identification and documentation. The use of Rittal system accessories enables modular expansion and adaptation to specific requirements.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 1.000 mm |
| Height | 1.200 mm |
| Depth | 400 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 945 mm x 1.175 mm |
| Number of doors | 2 |
| Lock | Closure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb |
| Flange plate | Size: 6, Quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 268.57 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
