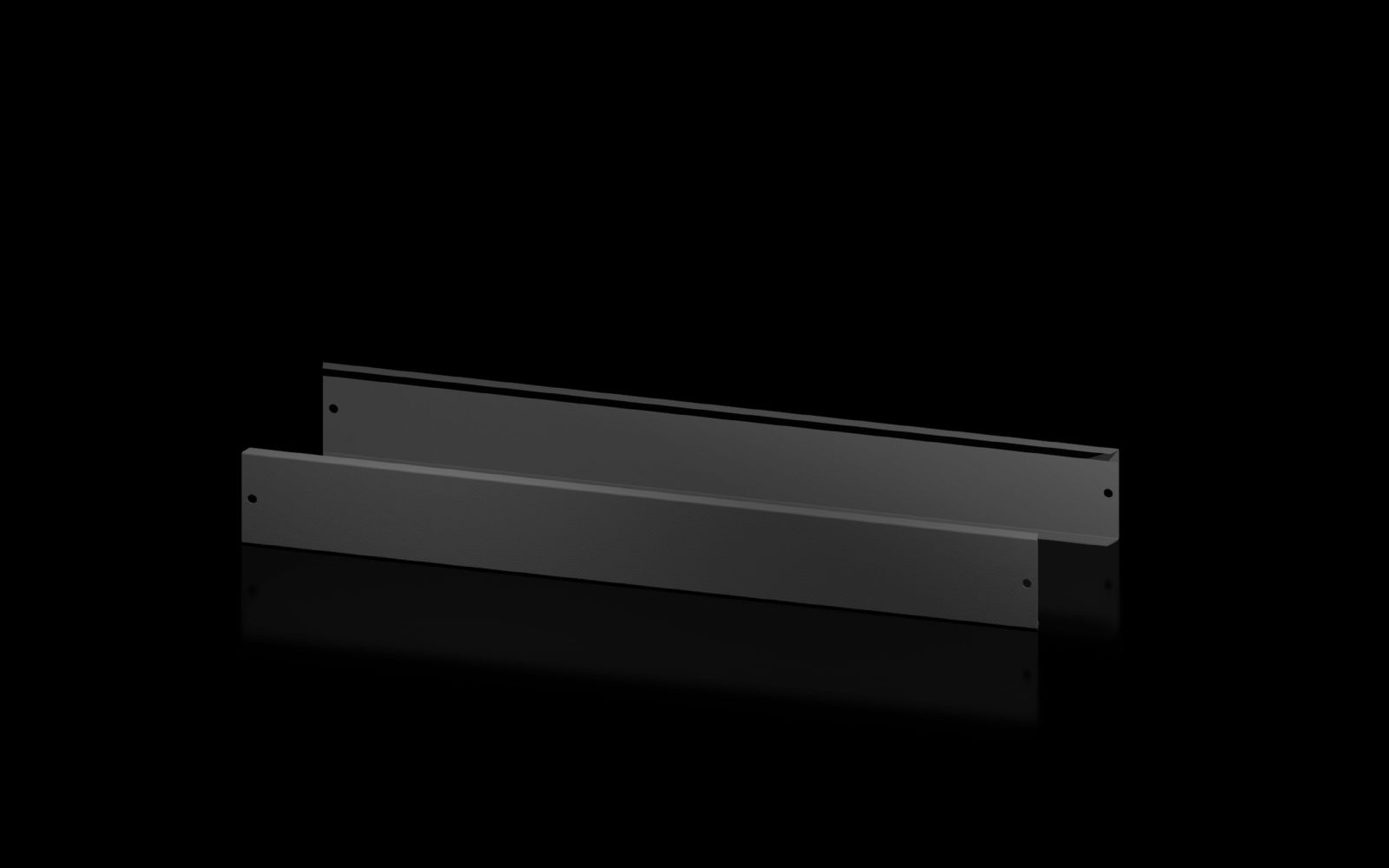

Rittal 2830101 AX AX plinth trim panel 1=2 front/back H:100 mm for W:1000 mm
|
-8% 31,97 EUR 34,85 EUR |
|
|
( 38,04 EUR incl. VAT ) ≈ £26.76 | ≈ $35.14 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 684161 |
| Mfg Part No: | 2830101 |
| UPC/EAN: | 4028177037403 |
| Weight: | 2.603 kg |
| Type: | AX 2830101 |
Product information for Rittal 2830101:
Applications
The plinth trim panel is used in industrial environments to visually finish the lower edge of AX system enclosures and to facilitate access to screwing points. It is specifically designed for enclosures with a width of 1,000 mm and conforms to the standard dimensions of the AX system. The large opening in the panel allows for easy cable entry and unobstructed access to fastening elements on the plinth.
Functions and equipment in detail
The panel provides a large, open surface that exposes the connection area at the plinth. This simplifies the installation and maintenance of cables and fastenings. The use of sheet steel ensures a robust and durable construction that meets the requirements of industrial environments. The RAL 9005 colour ensures a uniform visual appearance that harmonises with other components of the AX system.
Technology explained simply
The plinth trim panel is not an active component but a passive finishing and design element. Its function lies in mechanical closure and protection of the lower edges of the enclosure. The height of 100 mm corresponds to the standard height for plinth elements in the AX system. The choice of sheet steel provides sufficient strength and corrosion resistance for use in industrial installations. The RAL 9005 colour is a standard finish used in many industrial environments.
Compatibility and accessories

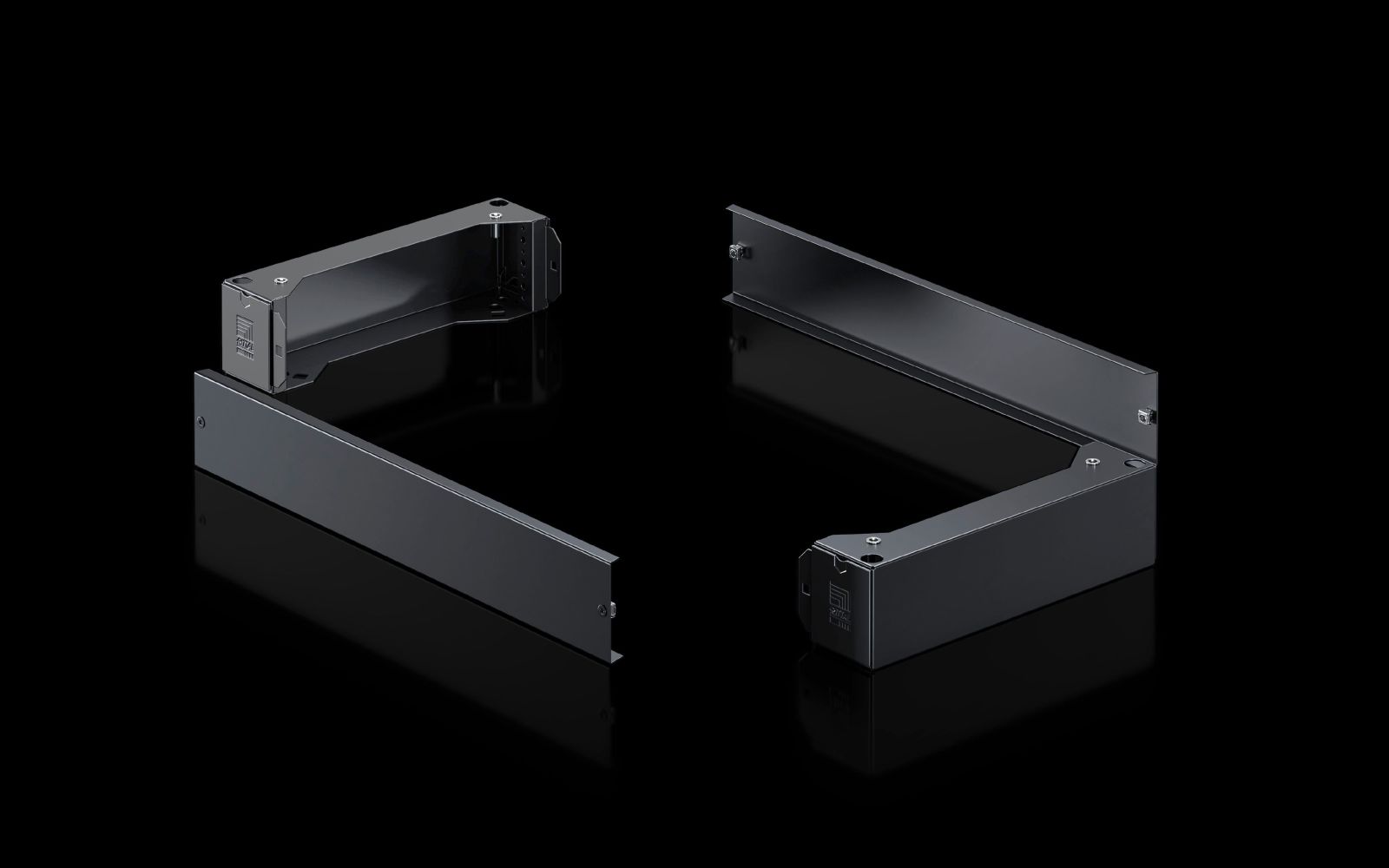

The panel is specifically designed for AX system enclosures with a width of 1,000 mm. Additional plinth elements on the sides are required for complete closure of the plinth unit. Suitable accessories include levelling feet M12, C-profile rails (e.g. SZ 4946000), plinth adapters for double swivel castors, and cable strain relief rails (e.g. VX). These elements complement the plinth trim panel and support the installation, stability, and cable routing of the enclosure.
Installation and mounting

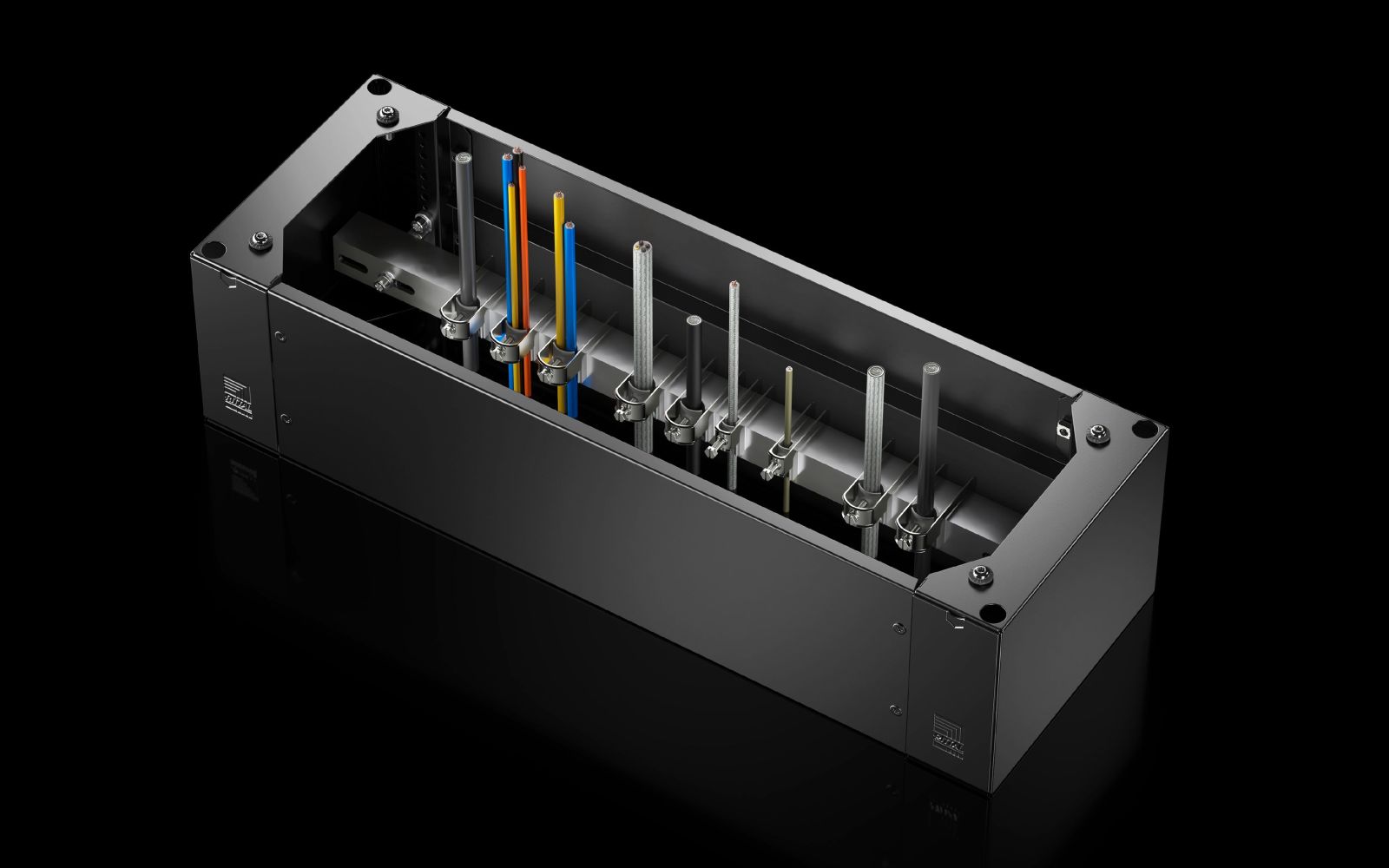

Mounting is carried out on the front and rear sides of the plinth, where the panels are screwed into the designated fastening points. The large opening facilitates installation, as cables and fastenings can be inserted without additional tools or modifications. The panels are not self-supporting and must be attached to already installed plinth elements. The use of side plinth elements is necessary to complete the unit visually and mechanically.
Advantages in operation
The plinth trim panel improves accessibility for maintenance work and cable connections at the lower part of the enclosure. The robust sheet steel construction ensures a long service life under industrial conditions. The uniform colour design in RAL 9005 supports a professional and clean appearance of the enclosure. The combination with other plinth elements and accessories enables flexible and adaptable installation to meet different requirements.
| General | |
| Material | Front/rear socket bezel: steel sheet |
| Colour | RAL 9005 |
| Scope of delivery | 2 socket faceplates front/back, 100 mm |
| Note | To complete a base unit, base elements are required on the sides |
| Height | 100 mm |
| Suitable for | Enclosure type: AX, width: = 1,000 mm |
Questions & answers
What is the delivery time of Rittal 2830101 AX AX plinth trim panel 1=2 front/back H:100 mm for W:1000 mm?
The article Rittal 2830101 AX AX plinth trim panel 1=2 front/back H:100 mm for W:1000 mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2830101 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 2830101 AX AX plinth trim panel 1=2 front/back H:100 mm for W:1000 mm always at the best possible price. We can give you a discount of 2% on Rittal 2830101 AX AX plinth trim panel 1=2 front/back H:100 mm for W:1000 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
