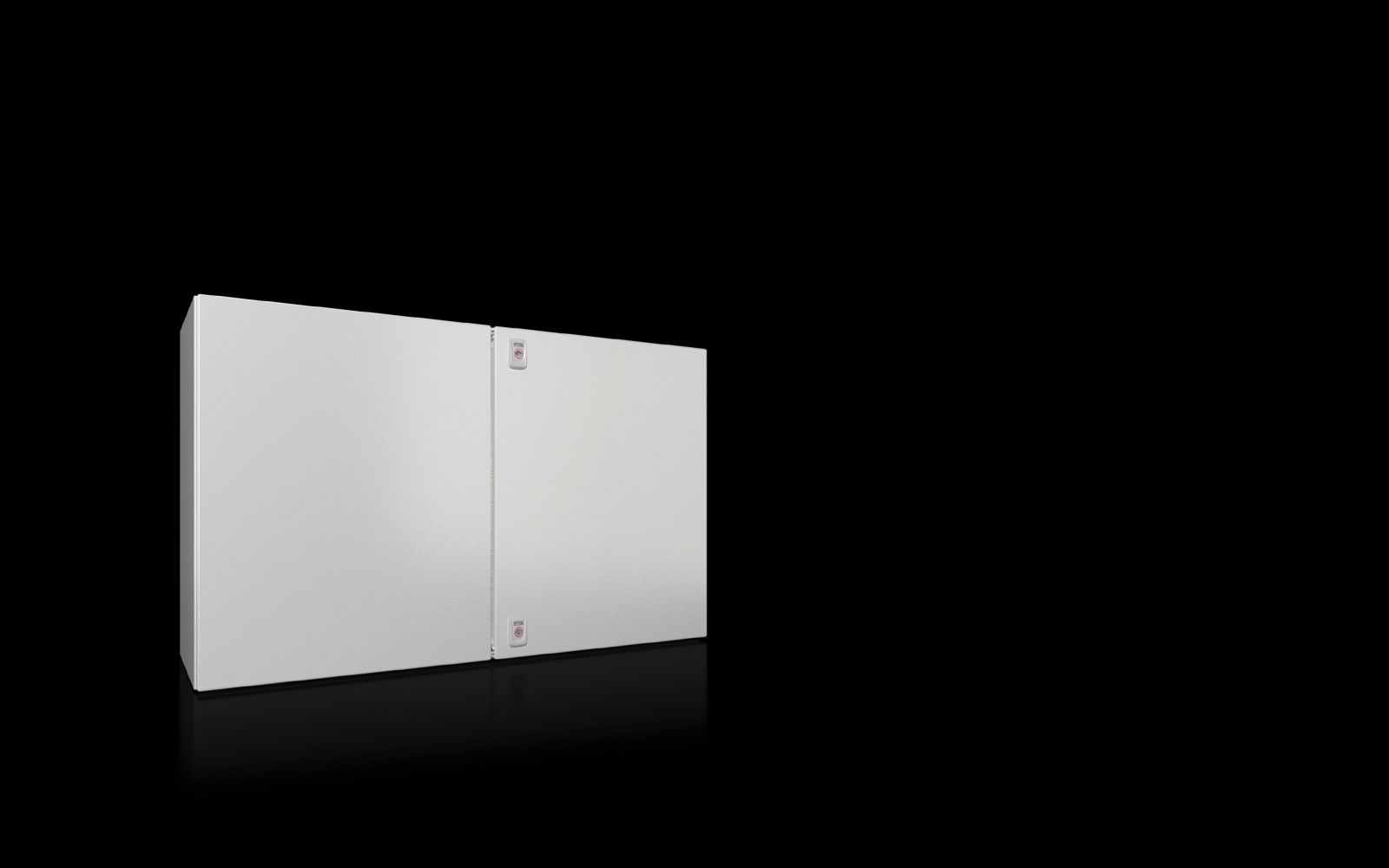

Rittal 1096000 AX compact enclosure 2-door W x H x D: 1000x600x300 mm
|
-6% 381,80 EUR 404,71 EUR |
|
|
( 454,34 EUR incl. VAT ) ≈ £319.57 | ≈ $419.60 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1571614 |
| Mfg Part No: | 1096000 |
| UPC/EAN: | 4028177995253 |
| Weight: | 42.778 kg |
| Type: | AX 1096000 |
Product information for Rittal 1096000:
Applications
This enclosure is suitable for use in production plants, machine building, automation technology, and other industrial environments where a closed, impact-resistant, and dust- and splash-water-protected cover for electrical components is required. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, making it suitable for outdoor use as long as there is no direct rainfall. The UL approval as Type 1 and Type 12 allows use in installations that must comply with North American safety standards. The IK code IK10 guarantees high protection against mechanical impacts, such as blows from tools.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a material thickness of 1.5 mm, while the doors are made of 2 mm thick sheet steel. The doors are fitted with a continuous foamed PU seal, ensuring a tight seal. The mounting plate has dimensions of 950 mm width and 575 mm height and features keyhole slots for earthing as well as dimension markings. Mounting is done using ring weld nuts. Two gland plates of size 6 are integrated into the enclosure base, providing cable entry and securing cable entry plates. The door hole strip allows flexible mounting of locks and accessories.
Technology Explained Simply

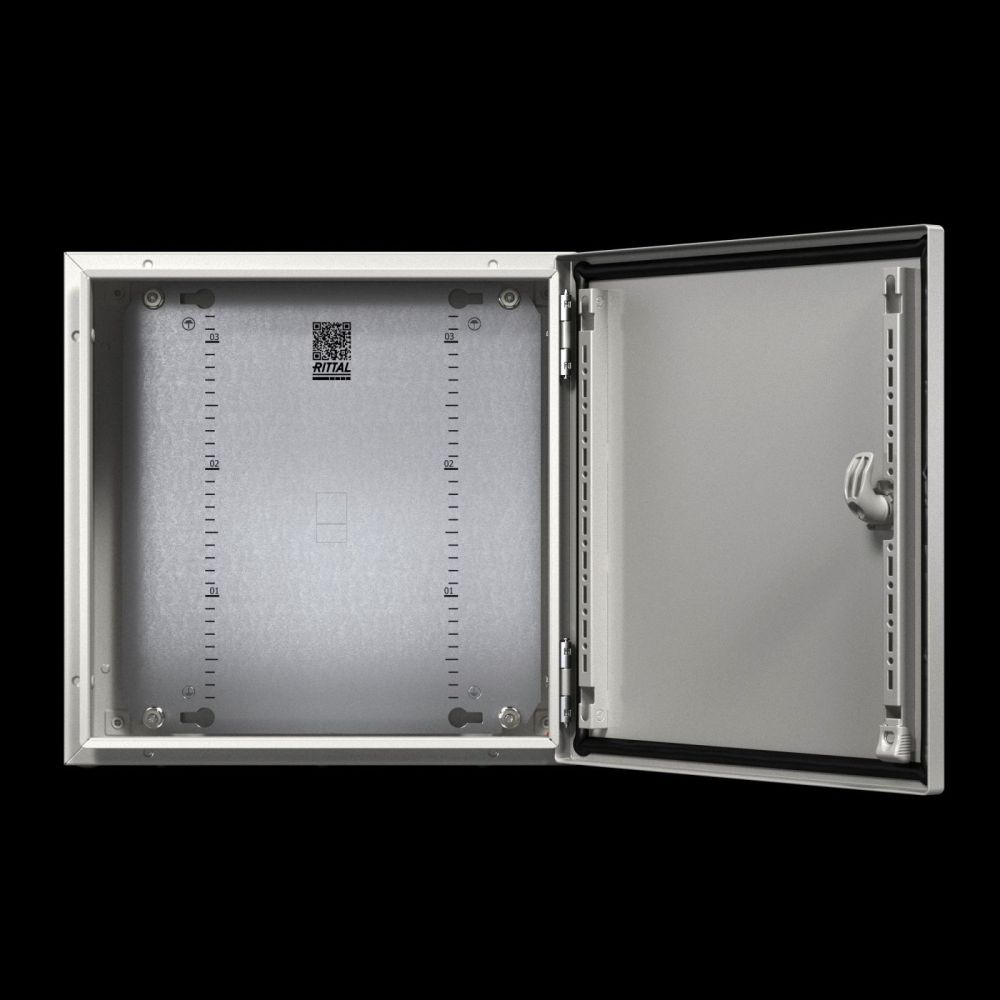

A central feature of the AX 1096000 is the integrated 25 mm system grid, realized through embossed enclosure lugs on the roof, base, and sides. This system enables easy, drill-free mounting of internal mounting rails and other system components. The base mounting rail provides an additional mounting level and increases load capacity. Using the Rittal configurator RiPanel simplifies planning and configuration of the enclosure. The doors open up to 130° according to VDI, with an option to retrofit to 180°. The locks are designed as lead locks and comply with DIN 43668.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories, enabling individual adaptation to specific requirements. These include lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, baying sets for AX, KX, AE, and KL, knob handles, handles with safety cylinder, plinth trim panels in various heights, plinth elements, stainless steel protection hoods, and the AS Multitool AX/VX 4052000. These components extend the functionality and protection of the enclosure.
Mounting and Installation
Mounting is done via the integrated gland plates in the enclosure base and the designated mounting points on the rear wall. The mounting plate is included in the delivery scope and enables secure mounting of internal components. The rails for internal mounting can be installed without drilling, speeding up installation and maintaining the protection rating. The doors are screwed to hinges and can be retrofitted as needed.
Advantages in Operation
The AX 1096000 offers high mechanical stability and protective function. The powder-coated surface in RAL 7035 ensures long service life and resistance to environmental influences. The integrated enclosure lugs and drill-free mounting of internal mounting rails reduce installation time and increase flexibility for modifications. QR codes on the body, door, and nameplate enable unique identification and easy access to product information and documentation, simplifying maintenance and traceability. The combination of IP 55, IK10, and UL approval makes this enclosure a reliable solution for demanding industrial applications.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 1.000 mm |
| Height | 600 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 950 mm x 575 mm |
| Number of doors | 2 |
| Number of locks | 2 |
| Lock | Closure type: push-in, closure insert: 3 mm double barb |
| Flange plate | Size: 6, Quantity: 2 |
| Base material | steel sheet |
