Rittal 2566200 Plastic gland plate, modular, metric pre-punching,

Your rating:
Average rating
product review for Rittal 2566200 Plastic gland plate, modular, metric pre-punching,
( 4.7 / 5 ) 10 ratings
Rittal 2566200
This image may differ from the desired article.
Rittal 2566200Rittal 2566200Rittal 2566200Rittal 2566200Rittal 2566200Rittal 2566200Rittal 2566200Rittal 2566200
22,88 EUR
( 27,23 EUR incl. VAT )
≈ £19.15  |  ≈ $25.15
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2566200 Plastic gland plate, modular, metric pre-punching,
Datasheet:file_download Download
Lieske Part No.:1598280
Mfg Part No: 2566200
UPC/EAN: 4028177938441
Weight:0.56 kg
Type:AX 2566200

Product information for Rittal 2566200:

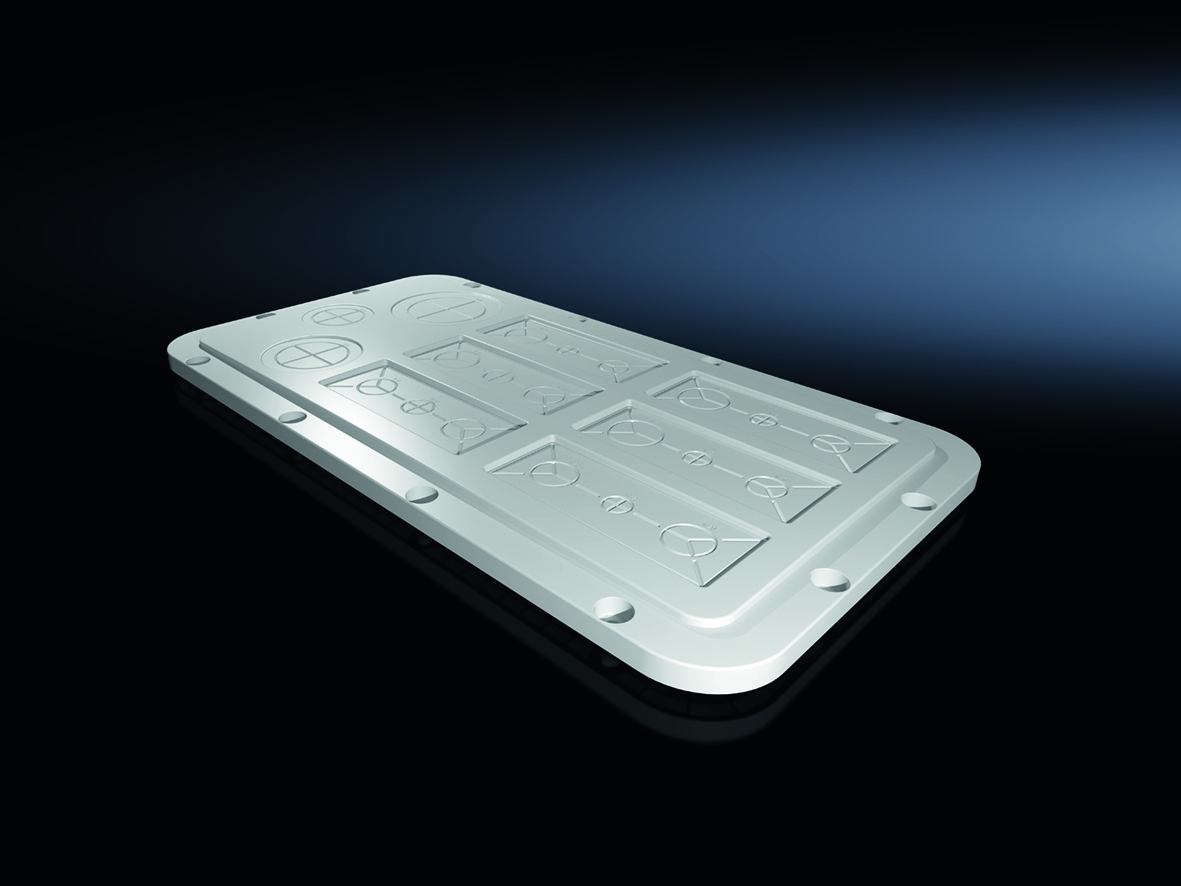

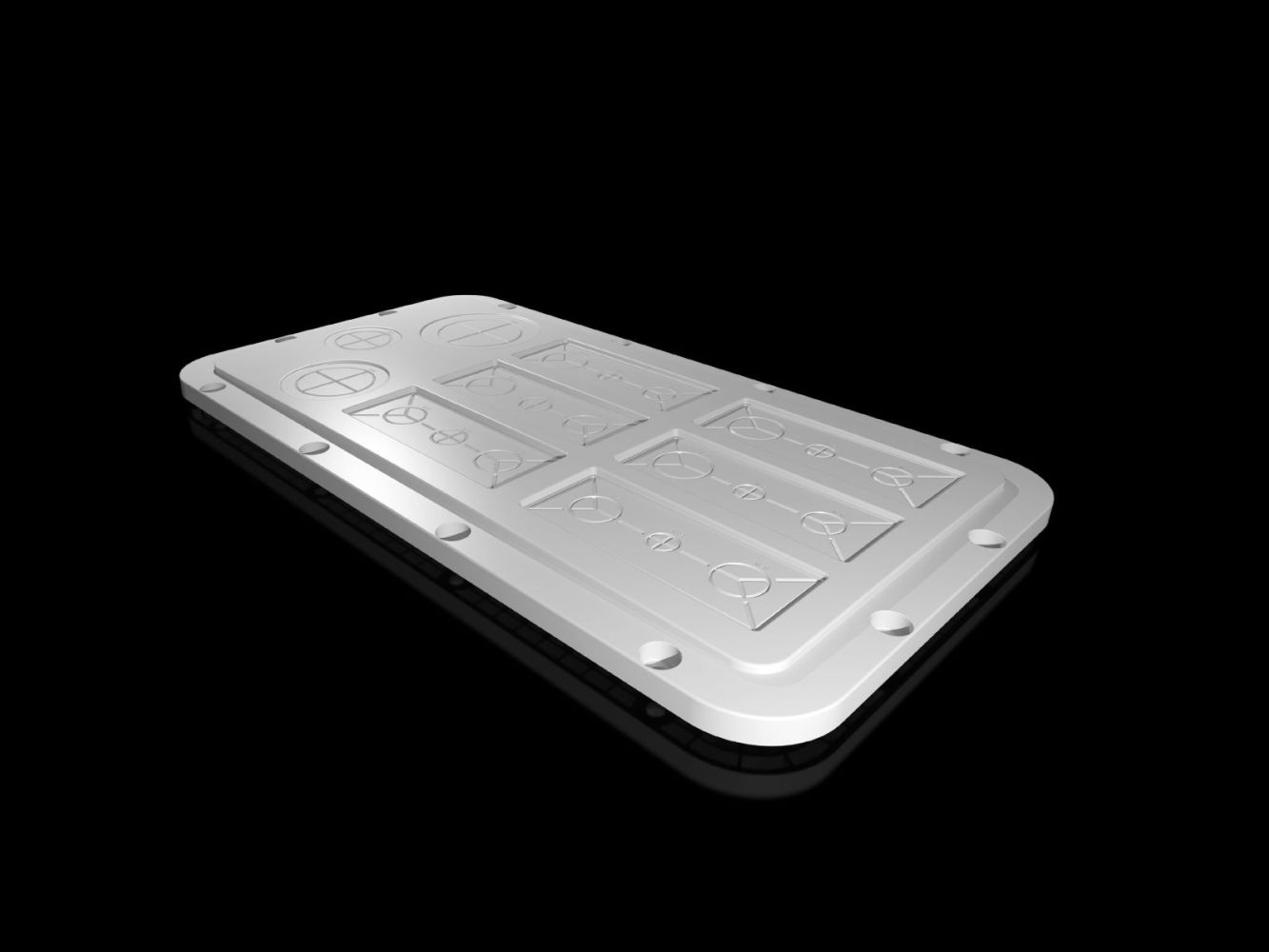

The Rittal AX 2566200 is a plastic gland plate for use in enclosures of type AX. It serves as a modular component for secure and structured cable gland installation and enables direct mounting of cable entries. The gland plate is designed for size 6 and specifically fits enclosures of the AX series. Its material is plastic to UL 94-V0, which has a high flame retardant rating and is therefore suitable for industrial applications. The colour corresponds to the standard RAL 7035, a grey tone that integrates well visually in industrial environments.

Applications
The gland plate is primarily used in industrial enclosures where structured and secure cable routing is required. It is particularly suitable for systems operated in harsh environments, such as in manufacturing, automation technology, or machine building. The modular design allows flexible adaptation to different cable entries and cable diameters. The dimensions of 401 mm width and 221 mm depth match the standard dimensions of AX enclosures.

Functions and Equipment in Detail

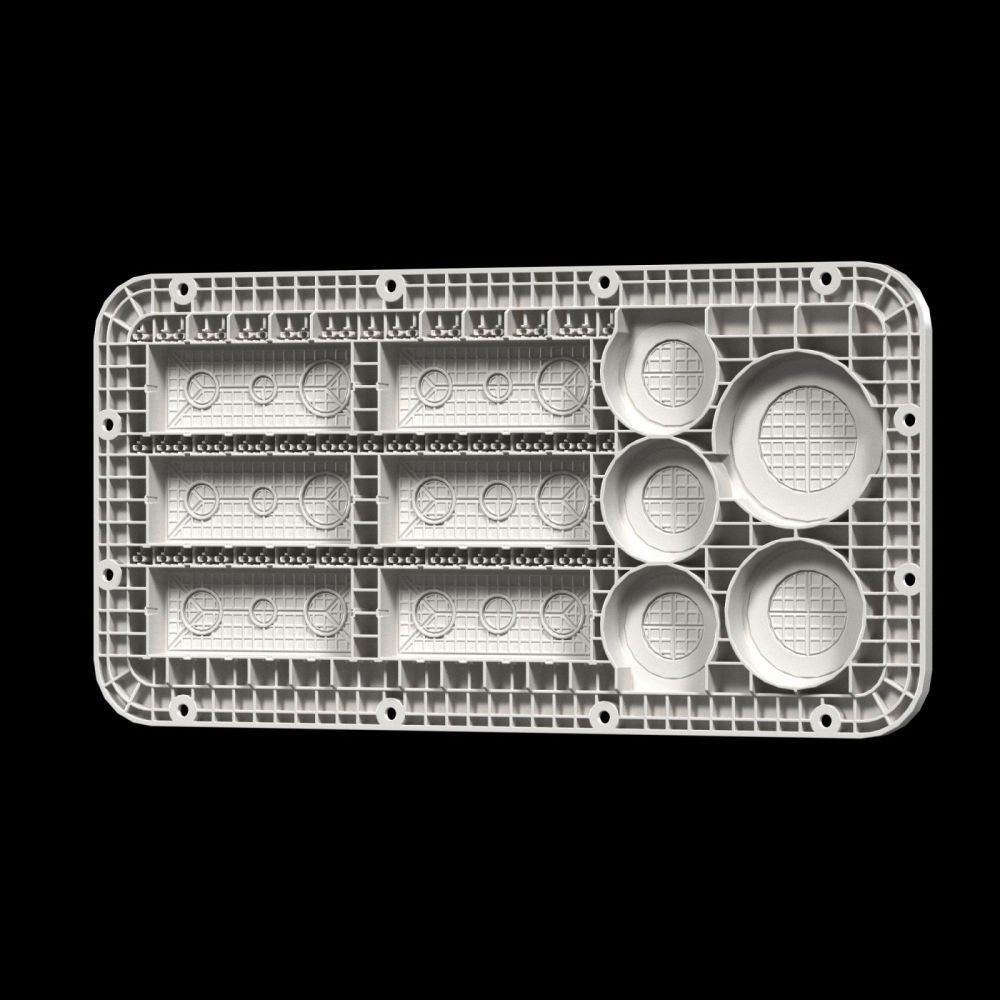

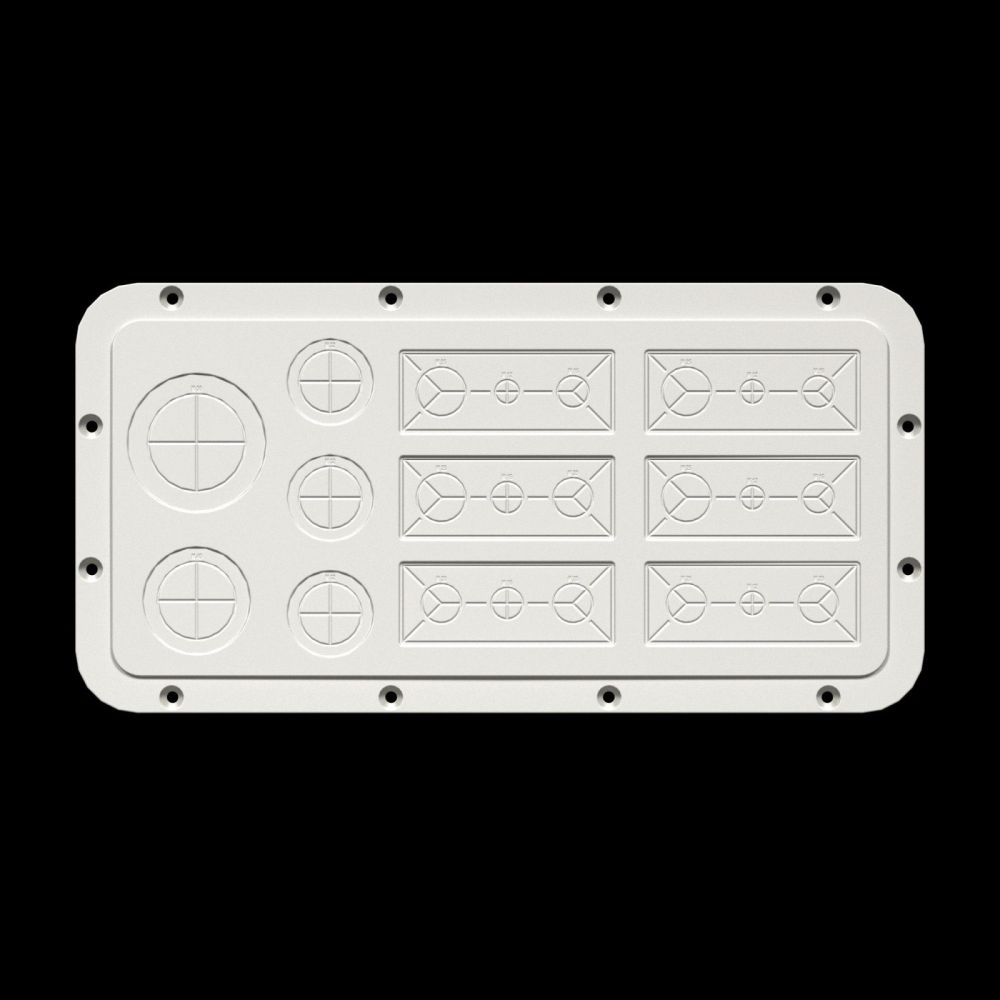

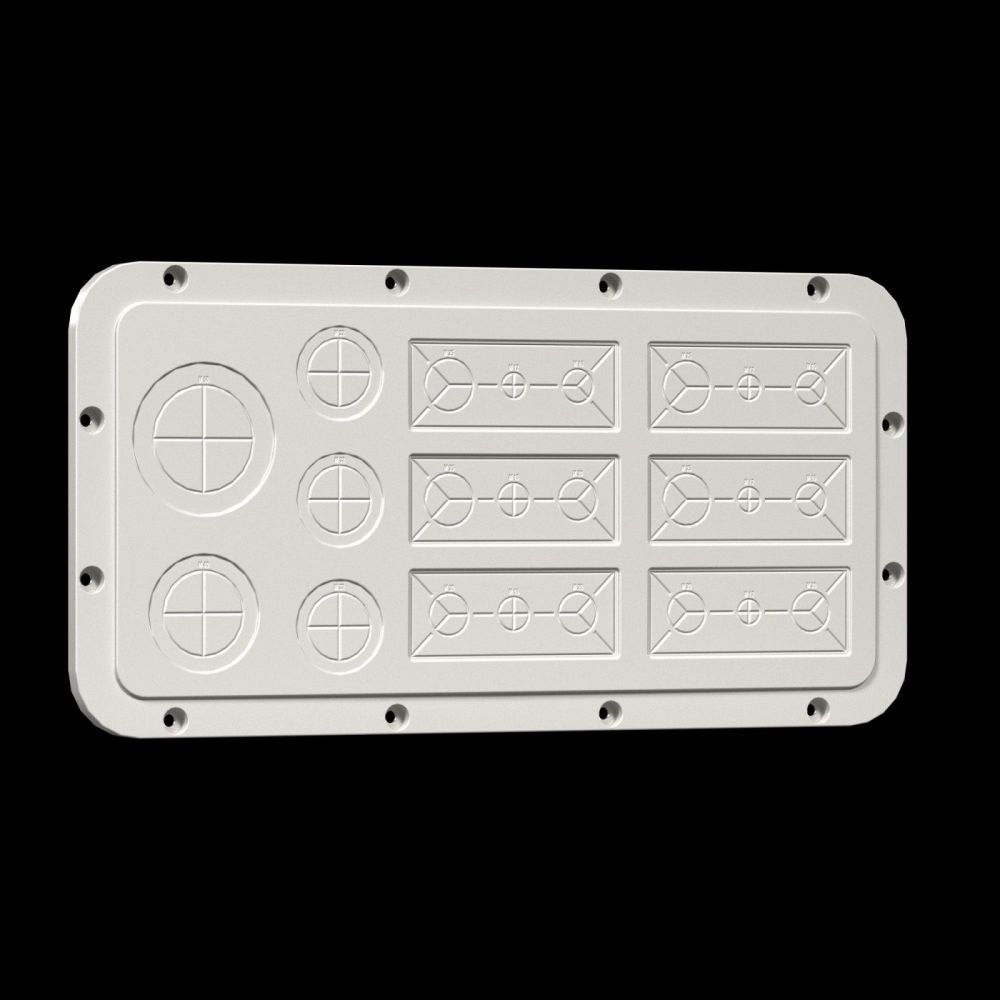

The gland plate features metric pre-punchings in various sizes: 4 x M12, 5 x M16, 5 x M20, 4 x M25, 1 x M32, 1 x M40, and 1 x M50. These pre-punchings can be easily broken through to install cable glands. Additionally, 6 rectangular cutouts are integrated, with each cutout providing space for 10 small sealing inserts. These cutouts allow direct installation of cable entries and reduce the need for additional mounting work. A reinforcement frame provides additional stability and prevents deformation during installation.

Technology Explained Simply
The protection rating IP 66 (according to EN 60 529) is achieved with proper installation. This means the gland plate is dust-tight and protected against water jets from any angle, making it suitable for outdoor use or in damp environments. The operating temperature range of -40 °C to +80 °C enables use in extreme climatic conditions, such as those found in process industries or outdoor applications. The type rating according to UL 50E includes Type 1 and Type 12, confirming suitability for indoor and outdoor applications with protection against dust and splashing water.

Compatibility and Accessories
The gland plate is specifically designed for enclosures of type AX and fits size 6. The assignment of gland plate size is based on the respective enclosure description.

Mounting and Installation

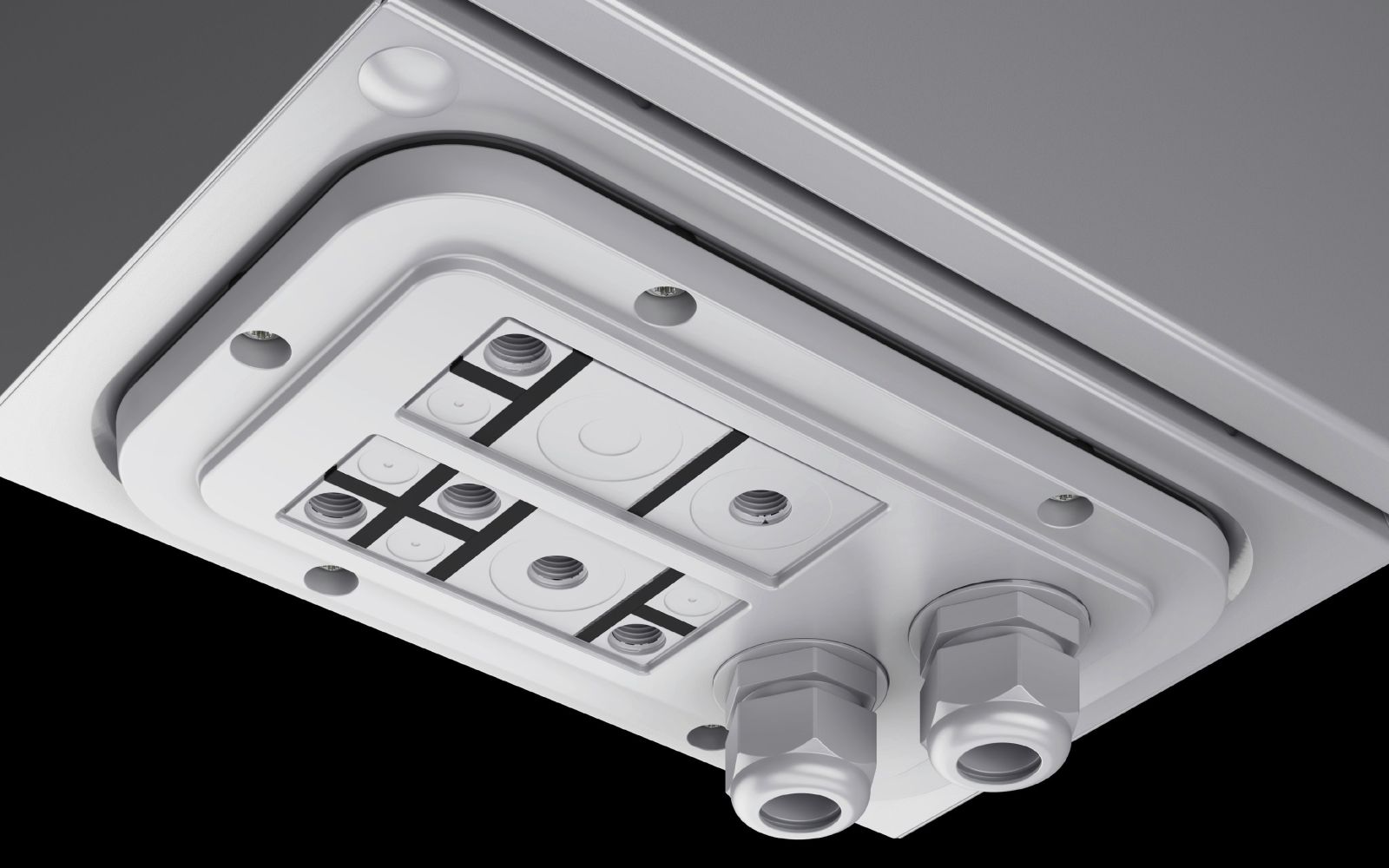

Mounting is done by breaking through the plastic pre-punchings at the desired locations. The rectangular cutouts and reinforcement frame facilitate the installation of cable entries. The gland plate is inserted into the corresponding enclosure and secured there. Proper installation is essential to ensure the intended protection rating IP 66.

Advantages in Operation
The modular design and pre-punched openings reduce installation time and increase accuracy in cable routing. The high temperature resistance and high protection rating ensure reliable operation even under demanding operating conditions. The use of UL 94-V0 plastic ensures high safety in the event of fire. The gland plate is thus a reliable component for industrial electrical installations.

General
MaterialPlastic according to UL 94-V0
ColourRAL 7035
Number of rectangular cutouts information1 rectangular cutout accepts 10 density inserts, small size
Number of rectangular cutouts6
NoteThe assignment of flange plate size can be found with the respective enclosures
Number of metric pre-forms4 x M12, 5 x M16, 5 x M20, 4 x M25, 1 x M32, 1 x M40, 1 x M50
Width401 mm
Depth221 mm
Suitable forHousing type: AX
Flange plateSize: 6
Operating temperature range-40 °C...80 °C
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12


Product data sheet
Datasheet for Rittal 2566200, EAN: 4028177938441
