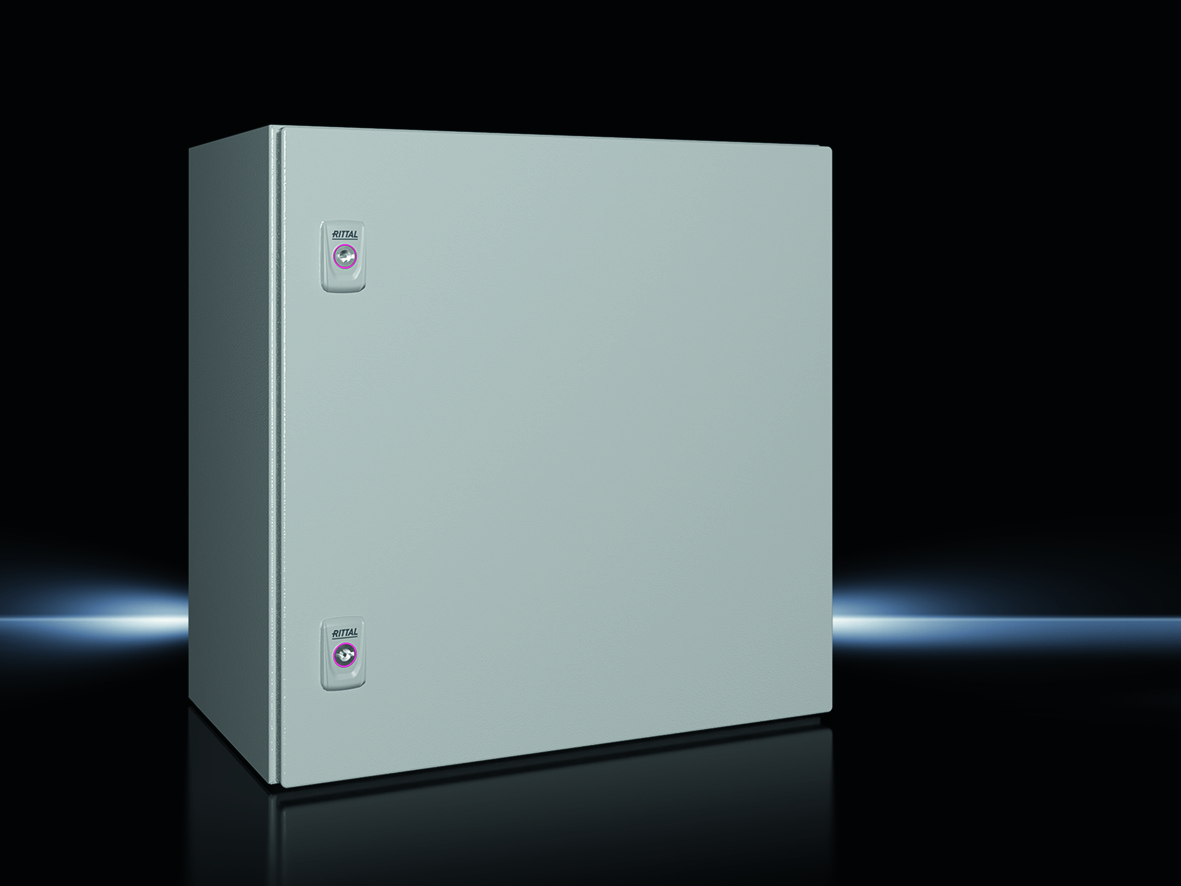

Rittal 1350000 Compact enclosure AX, 1-door, W x H x D: 500x500x300 mm
|
138,06 EUR |
|
|
( 164,29 EUR incl. VAT ) ≈ £115.56 | ≈ $151.73 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598132 |
| Mfg Part No: | 1350000 |
| UPC/EAN: | 4028177813281 |
| Weight: | 19 kg |
| Type: | AX 1350000 |
Product information for Rittal 1350000:
Applications
The enclosure is suitable for use in industrial environments where protection against dust, water and mechanical impacts is required. The protection rating IP 66 according to EN 60 529 ensures dust-tight and watertight sealing, even under heavy spray water conditions. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4 and NEMA 12, as well as the Type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for indoor and outdoor applications, including humid or dusty environments. The IK code IK10 indicates high mechanical resistance against impact and shock loads. These properties make the enclosure particularly suitable for use in manufacturing industry, machine construction, process engineering or energy supply.
Functions and Equipment in Detail
A central feature of the AX 1350000 is the integrated 25 mm system grid, realised through embossed enclosure lugs in the roof, base and side panels. This system enables simple and drill-free mounting of internal mounting rails and other accessories, thereby expanding internal mounting options. The base mounting rail provides an additional mounting level and increases load capacity. The internal mounting plate is equipped with keyhole slots for earthing and dimension markings and is secured with ring weld nuts. The door features vertical door hole strips on both sides and a protective conductor connection, facilitating the installation of control panels or displays. A QR code is printed on the enclosure body, door and type plate, enabling quick access to product information and documentation.
Technology Explained Simply
The use of sheet steel with a material thickness of 1.5 mm for the enclosure and door ensures high mechanical stability. The PU seal provides a tight seal, ensuring the IP 66 protection rating. The powder-coated surface in RAL 7035 offers corrosion protection and is resistant to environmental influences. The deadbolt locks with double-barrel lock inserts according to DIN 43668 allow secure and quick locking. The reversible door hinge direction allows flexible installation, with the door opening up to 130° (retrofittable to 180°). The integrated enclosure lugs in the 25 mm grid enable drill-free mounting of internal mounting rails and accessories, simplifying planning and installation.
Compatibility and Accessories
The enclosure is compatible with the Rittal RiPanel configurator, enabling easy planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, lock box covers, mounting brackets for internal and external mounting levels, wall mounting angles, dust protection strips, baying sets for AX, KX, AE, KL, as well as plastic and metal gland plates. Further options include cable entry plates, earthing straps, circuit diagram pockets, door latches, viewing windows, control panels, filter fans, heaters, swing frames, protective roofs and 180° hinges. These components can be added as required to adapt the functionality of the enclosure.
Mounting and Installation
Mounting is done via the integrated gland plate in the enclosure base and the rear wall with threaded inserts for wall mounting brackets. The internal mounting plate is pre-installed and enables the fixation of components. The internal mounting rail can be mounted drill-free onto the enclosure lugs, maintaining the protection rating. The door can be reversed from right to left as needed, which is advantageous in limited space or specific access requirements.
Operational Advantages
The AX 1350000 offers high mechanical and environmental resistance through the IP 66 and IK10 protection ratings. The drill-free mounting of internal mounting rails and accessories reduces installation time and increases flexibility for modifications. The integrated mounting plate and enclosure lugs simplify the installation of components. The use of sheet steel and powder-coated surface ensures durability and corrosion protection. The QR codes on the enclosure, door and type plate enable easy traceability and quick access to technical documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 500 mm |
| Height | 500 mm |
| Depth | 300 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 450 mm x 475 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 6, quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 84.75 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
