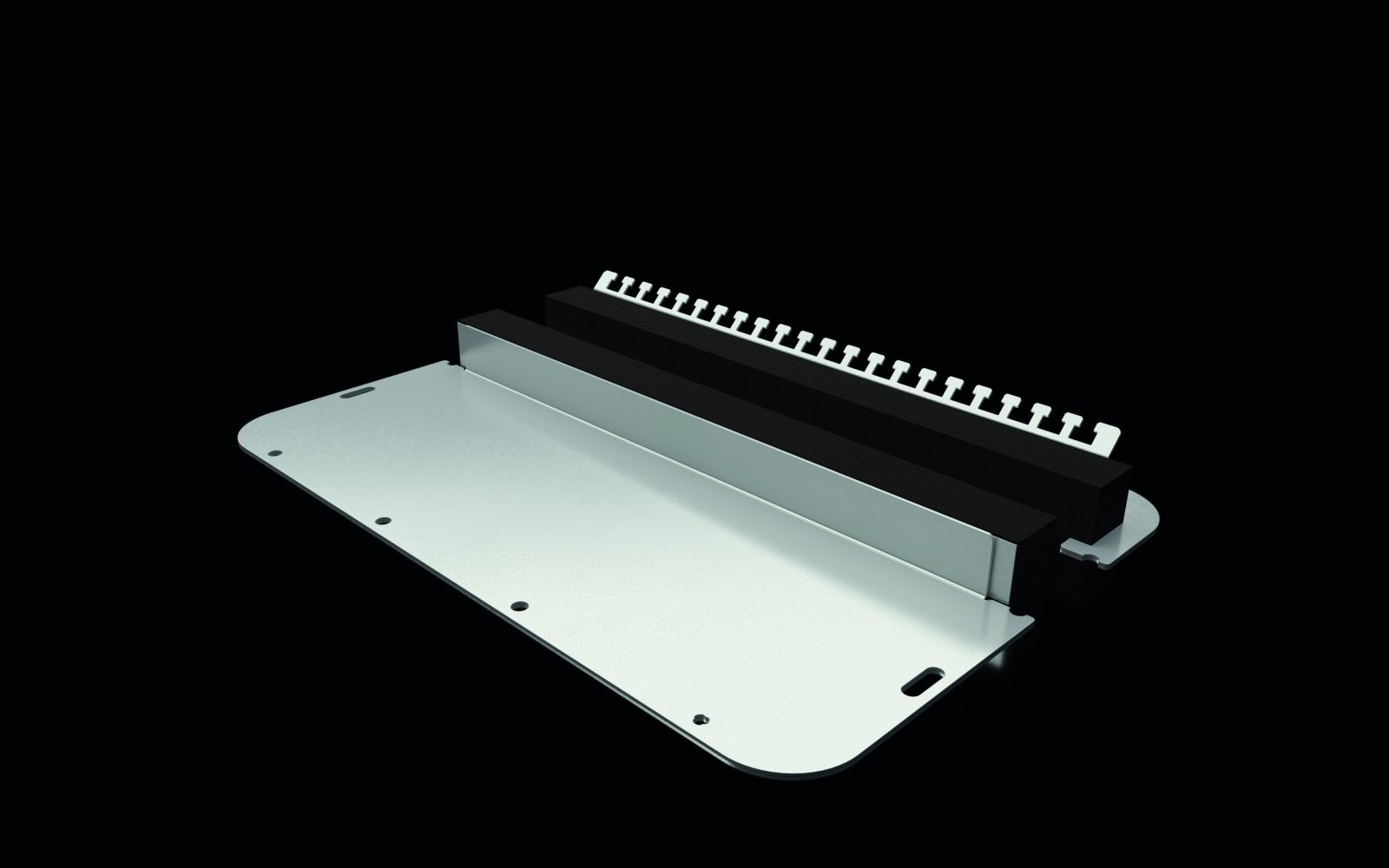

Rittal 2566450 Metal gland plate two-piece, for AX, with elastic sealing ring,

Your rating:
Average rating
product review for Rittal 2566450 Metal gland plate two-piece, for AX, with elastic sealing ring,
( 4.5 / 5 ) 6 ratings
Rittal 2566450
This image may differ from the desired article.
40,83 EUR 42,47 EUR
( 48,59 EUR incl. VAT )
≈ £34.17  |  ≈ $44.87
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2566450 Metal gland plate two-piece, for AX, with elastic sealing ring,
Datasheet:file_download Download
Lieske Part No.:1101872
Mfg Part No: 2566450
UPC/EAN: 4028177973138
Weight:1.36 kg
Type:SZ 2566450

Product information for Rittal 2566450:

Rittal SZ 2566450 is a two-piece metal gland plate, specifically designed for enclosures of the AX housing type. It serves as a mounting and cable routing element at the front edge of the enclosure, enabling simple and secure cable entry into the housing, regardless of whether the cables are equipped with or without connectors. The gland plate is made of sheet steel and finished in RAL 7035, ensuring visual harmony with standardised Rittal enclosures. Dimensions are 401 mm in width and 221 mm in depth, with the two-piece design allowing flexible adaptation to different enclosure widths. For enclosure widths exceeding 760 mm, two packaging units are required to cover the entire front side.

Applications
The gland plate is primarily intended for use in industrial enclosures, particularly in AX-type systems. It is used wherever secure and structured cable connections at the front of the enclosure are required. The integrated cable routing with an elastic clamp profile ensures orderly cable guidance and prevents unintended movement or wear on the cables. The gland plate is designed for gland plate size 6, ensuring compatibility with a range of Rittal enclosures.

Functions and Equipment in Detail
A central feature of the SZ 2566450 is the elastic clamp profile, integrated along the entire length of the gland plate. This profile acts as a cable clamp and allows for simple yet secure cable fixation without additional holders. The special holes in the gland plate ensure automatic equipotential bonding when screwed, eliminating the need for additional earthing cables, bolts, or terminals. This reduces installation time and improves electrical safety.

Technology Explained Simply
The two-piece construction of the gland plate enables modular installation, adaptable to the respective enclosure width. The choice of sheet steel material provides sufficient mechanical stability and corrosion resistance for industrial environments. The RAL 7035 colour is standard in the enclosure industry and ensures uniform visual design. The elastic clamp profile is made of a flexible yet durable material that securely holds cables of various diameters without damaging them. The mounting holes are arranged to automatically support equipotential bonding, enhancing electrical safety.

Compatibility and Accessories
The gland plate is designed for AX-type enclosures and fits with article numbers 1110.000, 1114.000, 1130.000, 1213.000, 1350.000, 1115.000, and 1214.000. The assignment of gland plate size is based on the respective housing description. As suitable accessories, an elastic clamp profile IP55 with a length of 3 m is offered, suitable for cable routing in similar applications. The gland plate itself is designed for gland plate size 6, enabling use in standard enclosure configurations.

Installation and Mounting
Mounting is done directly at the front edge of the AX housing. The two-piece design allows adaptation to enclosure widths over 760 mm, requiring two units. Fixation is achieved via the designated holes using the included mounting material. The elastic clamp profile is inserted directly into the designated groove, making cable routing immediately functional.

Operational Advantages
The SZ 2566450 reduces installation time through the integrated cable clamp and automatic equipotential bonding. The two-piece construction offers flexibility in adapting to different enclosure widths. The use of sheet steel and the RAL 7035 colour provide a robust and visually uniform solution. The integrated cable routing prevents cable wear and ensures orderly structuring of connection lines, facilitating maintenance and inspection. Compatibility with a wide range of AX enclosures increases the product’s application flexibility.

General
Modeltwo-piece
Materialsteel sheet
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
NoteThe assignment of flange plate size can be found in the respective housings. For installation in cabinet width >760 mm, 2 units are required.
Width401 mm
Depth221 mm
Suitable forHousing type: AX
Suitable for part no.1110.000, 1114.000, 1130.000, 1213.000, 1350.000, 1115.000, 1214.000
Flange plateSize: 6
PCF/VE (Cradle-to-Gate)5.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 2566450, EAN: 4028177973138

Questions & answers

What is the delivery time of Rittal 2566450 Metal gland plate two-piece, for AX, with elastic sealing ring, ?

The article Rittal 2566450 Metal gland plate two-piece, for AX, with elastic sealing ring, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2566450 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2566450 Metal gland plate two-piece, for AX, with elastic sealing ring, always at the best possible price. We can give you a discount of 2% on Rittal 2566450 Metal gland plate two-piece, for AX, with elastic sealing ring, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
