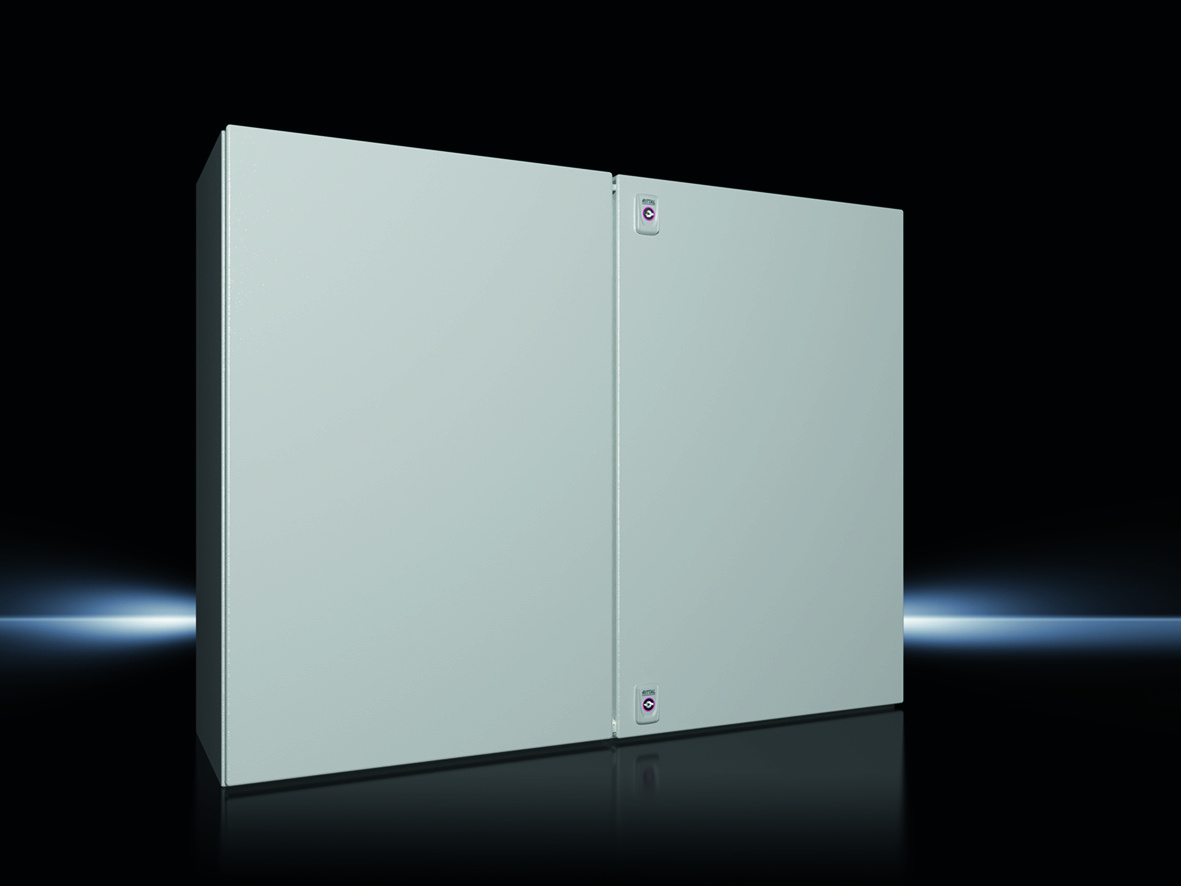

Rittal 1130000 Compact enclosure AX, 2-door, 1000x760x300 mm,

Your rating:
Average rating
product review for Rittal 1130000 Compact enclosure AX, 2-door, 1000x760x300 mm,
( 4.8 / 5 ) 8 ratings
Rittal 1130000
This image may differ from the desired article.
Rittal 1130000Rittal 1130000Rittal 1130000Rittal 1130000Rittal 1130000Rittal 1130000Rittal 1130000
-6% 300,15 EUR 318,16 EUR
( 357,18 EUR incl. VAT )
≈ £251.23  |  ≈ $329.86
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 1130000 Compact enclosure AX, 2-door, 1000x760x300 mm,
Datasheet:file_download Download
Lieske Part No.:1598143
Mfg Part No: 1130000
UPC/EAN: 4028177813229
Weight:52 kg
Type:AX 1130000

Product information for Rittal 1130000:

The Rittal AX 1130000 is a compact enclosure made of sheet steel, designed for use in industrial and technical installations. The enclosure has dimensions of 1000 mm width, 760 mm height, and 300 mm depth and is equipped with two doors. The doors are fitted with a continuous foamed PU seal, ensuring a tight seal. The surface of the enclosure and doors is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035. The mounting plate is galvanized and provides a stable mounting surface for internal components. The delivery includes the enclosure with both doors, two gland plates in the enclosure base, the mounting plate, a door hole strip, and two deadbolt locks with 3 mm double-barrel inserts.

Applications
This enclosure is suitable for use in indoor environments as well as in areas with limited protection requirements against dust and splashing water. The protection rating IP 55 according to EN 60 529 ensures high protection against dust and splashing water, allowing safe operation even in slightly damp or dusty environments. The NEMA protection ratings 1 and 12, as well as the Type rating according to UL 50E (Type 1, Type 12), confirm suitability for use in dry indoor environments and areas with limited protection requirements against dust and liquid contaminants. The IK classification IK10 indicates high mechanical resistance against mechanical impacts.

Functions and Equipment in Detail
The enclosure is made of sheet steel, with the door having a material thickness of 2 mm and the enclosure itself 1.5 mm. The mounting plate has a material thickness of 2.5 mm and dimensions of 945 mm (W) × 735 mm (H). The doors are fitted with two deadbolt locks, each equipped with a 3 mm double-barrel insert. The door hinges are reversible, enabling flexible installation. The integrated enclosure lugs in the 25 mm system grid allow for easy and secure mounting of internal components without drilling. The gland plates in the enclosure base are size 6, with two pieces included in the delivery.

Technology Explained Simply
The integrated enclosure lugs in the 25 mm grid enable modular internal equipment. System components such as rails, cable entry plates, or mounting elements can be mounted without drilling, preserving the protection rating (UL approval). The mounting plate provides an additional mounting surface and is equipped with keyhole slots for earthing and a dimension marking. The doors open up to 130° according to VDI, with an option for retrofitting to 180°. The continuous PU seal ensures a tight seal and prevents ingress of dust and moisture.

Compatibility and Accessories
The enclosure is compatible with a wide range of accessories. These include lock inserts made of zinc die-cast, lock box covers, mounting brackets, wall mounting angles, dust protection strips, baying sets, as well as plinth trim panels and elements. These components allow for individual adaptation to specific requirements. The use of system accessories such as floor mounting rails increases load capacity and provides an additional mounting level.

Mounting and Installation
Mounting is carried out using the integrated enclosure lugs and the mounting plate. The gland plates in the enclosure base allow for secure fastening to walls or floors. The doors are fitted with screwed hinges, ensuring a stable connection. The door hole strips on both sides of the doors facilitate the installation of control panels or viewing windows. The mounting plate is secured with ring weld nuts, ensuring a secure and durable connection.

Advantages in Operation
The enclosure offers high mechanical stability and reliable protection against environmental influences. The modular internal equipment allows flexible adaptation to different requirements. The integrated enclosure lugs and the option to mount without drilling reduce installation time and increase safety. The surface treatment with dip-priming and powder-coated textured lacquer ensures high corrosion resistance. QR codes on the enclosure, door, and nameplate enable unique identification and easy access to product information and documentation.

General
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar
NEMA degree of protectionNEMA 1, NEMA 12
Degree of protection IP according to EN 60 529IP 55
Type rating according to UL 50EType 1, Type 12
IK codeIK10
Width1.000 mm
Height760 mm
Depth300 mm
Door material thickness2 mm
Plate thickness cabinet1,5 mm
Mounting plate material thickness2,5 mm
Mounting plate dimensions (W x H)945 mm x 735 mm
Number of doors2
Number of locks2
LockClosure type: latch, number of closures: 2, closure insert: 3 mm double barb
Flange plateSize: 6, Quantity: 2
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)177.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
Reversible door hingeJa


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1130000, EAN: 4028177813229
