Rittal 8617820 VX support rail 48 x 26 mm, W: 1000 mm

Your rating:
Average rating
product review for Rittal 8617820 VX support rail 48 x 26 mm, W: 1000 mm
( 4.1 / 5 ) 8 ratings
Rittal 8617820
This image may differ from the desired article.
Rittal 8617820Rittal 8617820Rittal 8617820Rittal 8617820Rittal 8617820Rittal 8617820
65,90 EUR
( 78,42 EUR incl. VAT )
≈ £55.16  |  ≈ $72.42
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8617820 VX support rail 48 x 26 mm, W: 1000 mm
Datasheet:file_download Download
Lieske Part No.:1440918
Mfg Part No: 8617820
UPC/EAN: 4028177919532
Weight:4.913 kg
Type:VX 8617.820

Product information for Rittal 8617820:

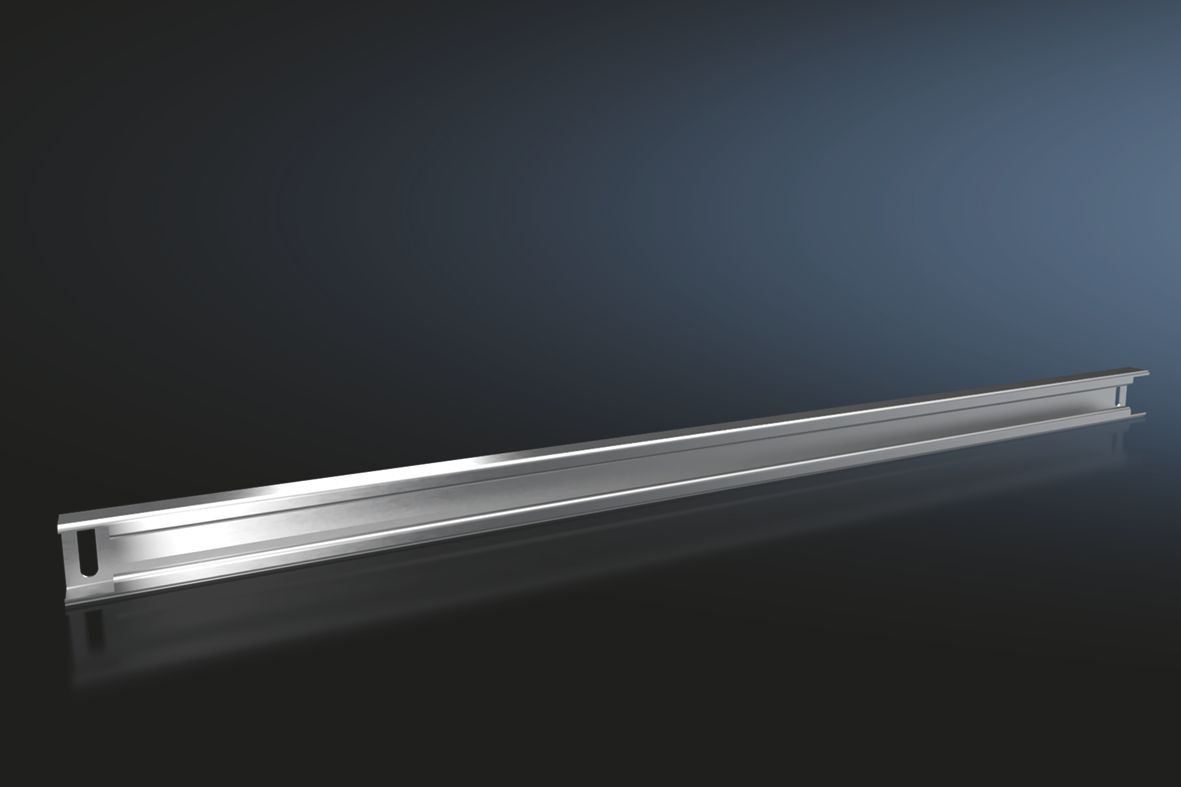

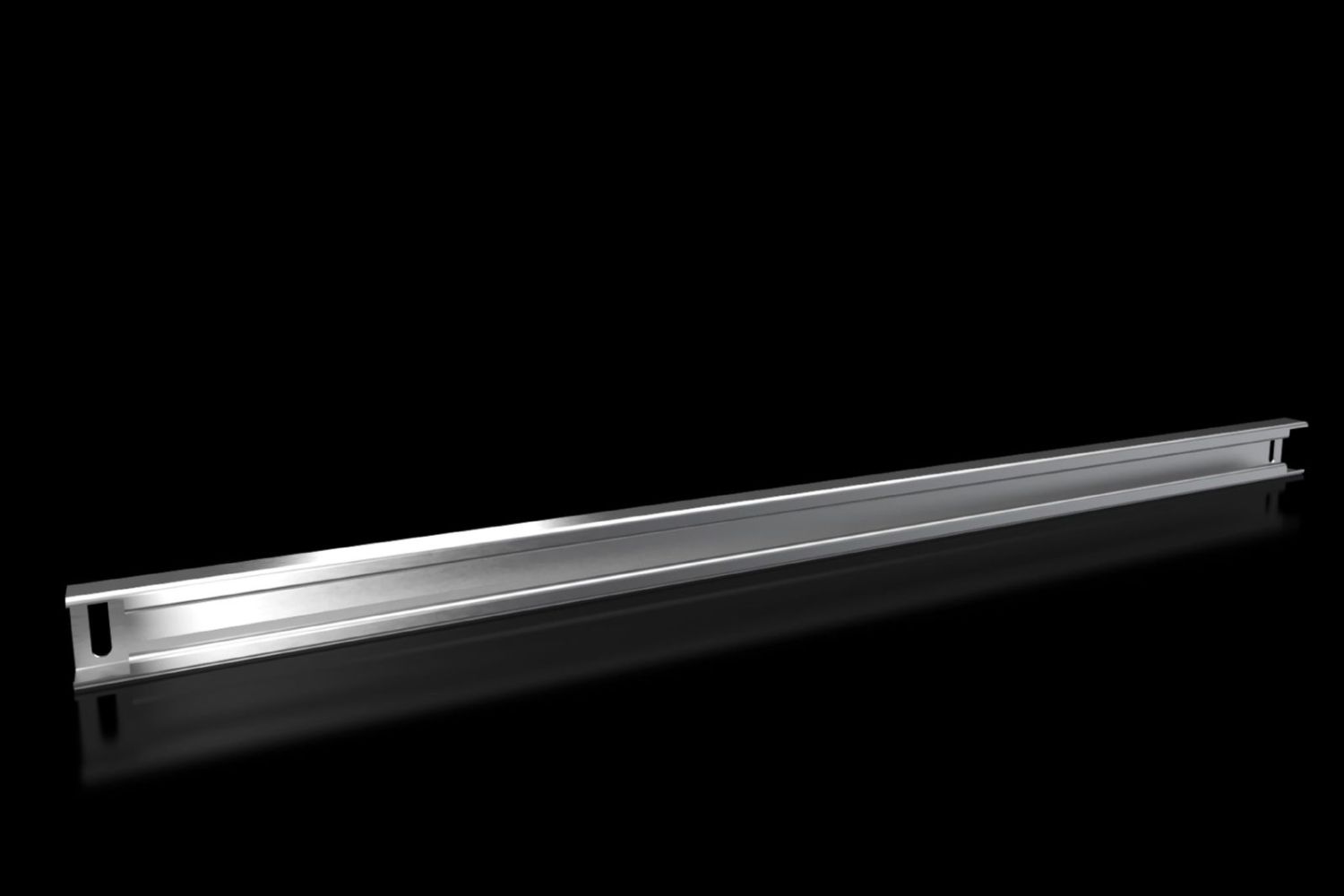

The Rittal VX support rail 8617.820 is a robust mounting component made of sheet steel with a galvanised surface, specifically designed for use in enclosures and housings with a width of 1000 mm. It serves as a load-bearing mounting structure for heavy installations such as transformers and other heavy-duty components. The support rail has dimensions of 48 x 26 mm and is supplied in a packaging unit containing two pieces. The delivery includes the mounting hardware required for installation.

Applications
The support rail is suitable for various housing types, including VX, VX SE, PC, IW, AX, and CX console units. It can be mounted in enclosures with an exact width of 1000 mm. Installation is carried out either on the inner mounting plane or in the base area of the housing. For housing types VX SE, PC, IW, and AX, installation typically requires the use of additional adapter or extension rails to ensure compatibility.

Functions and Equipment in Detail

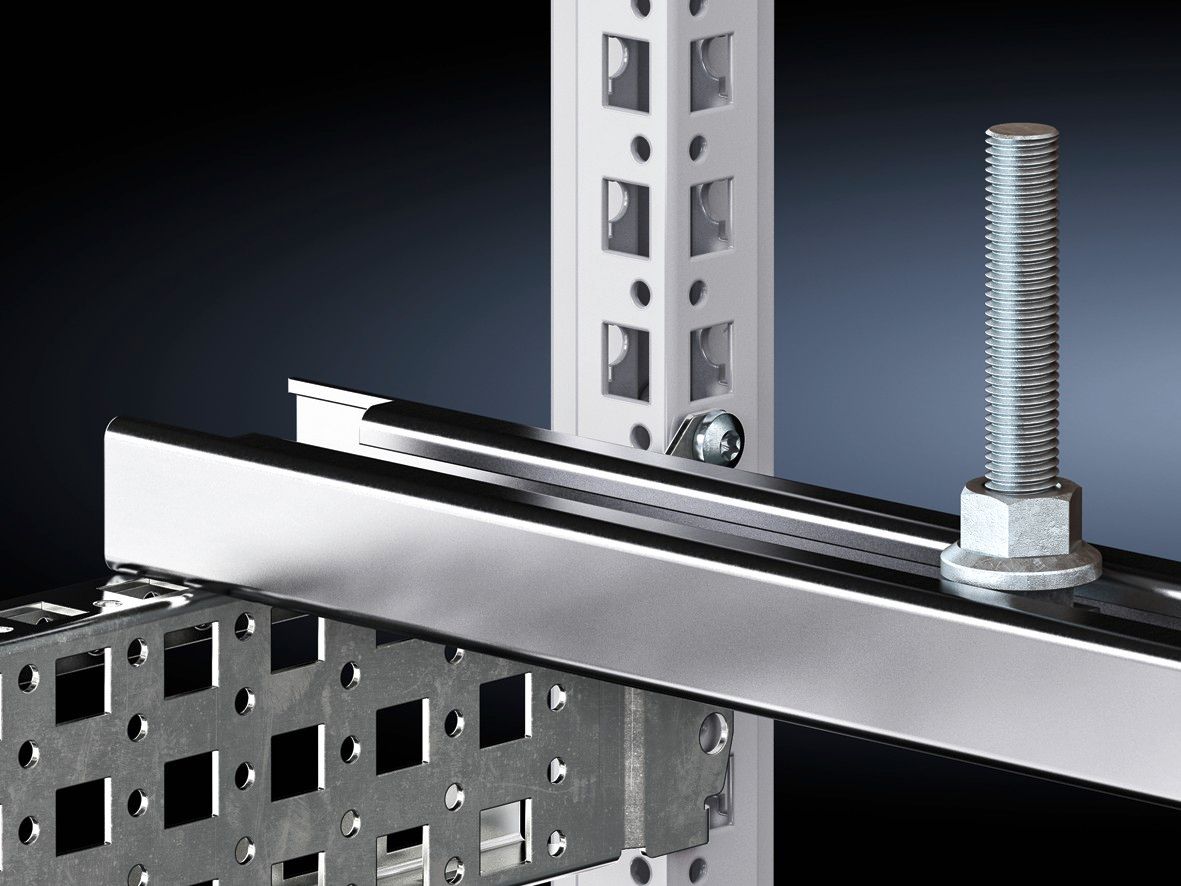

The rail features elongated holes, enabling flexible mounting and allowing any required mounting spacing. The hook-head screws included in the delivery ensure secure and stable anchoring of the installed components. The galvanised surface provides good corrosion protection, extending the service life of the support rail in industrial environments.

Technology Explained Simply
The support rail is made of sheet steel, ensuring high mechanical strength and load capacity. The galvanisation protects the material from oxidation and moisture, which is particularly important in damp or industrial environments. The dimensions 48 x 26 mm correspond to a standard format widely used in electrical and automation technology. The elongated holes in the rail allow for adjustable mounting, enabling flexible adaptation to different mounting requirements.

Compatibility and Accessories
The support rail is compatible with housing types VX, VX SE, PC, IW, AX, and console unit CX, each with a housing width of 1000 mm. For installation in VX SE, PC, IW, and AX housings, the use of an adapter rail is required to ensure compatibility. As suitable accessories, the VX system partition 600 mm is offered, which can be used to divide the interior of the enclosure.

Mounting and Installation

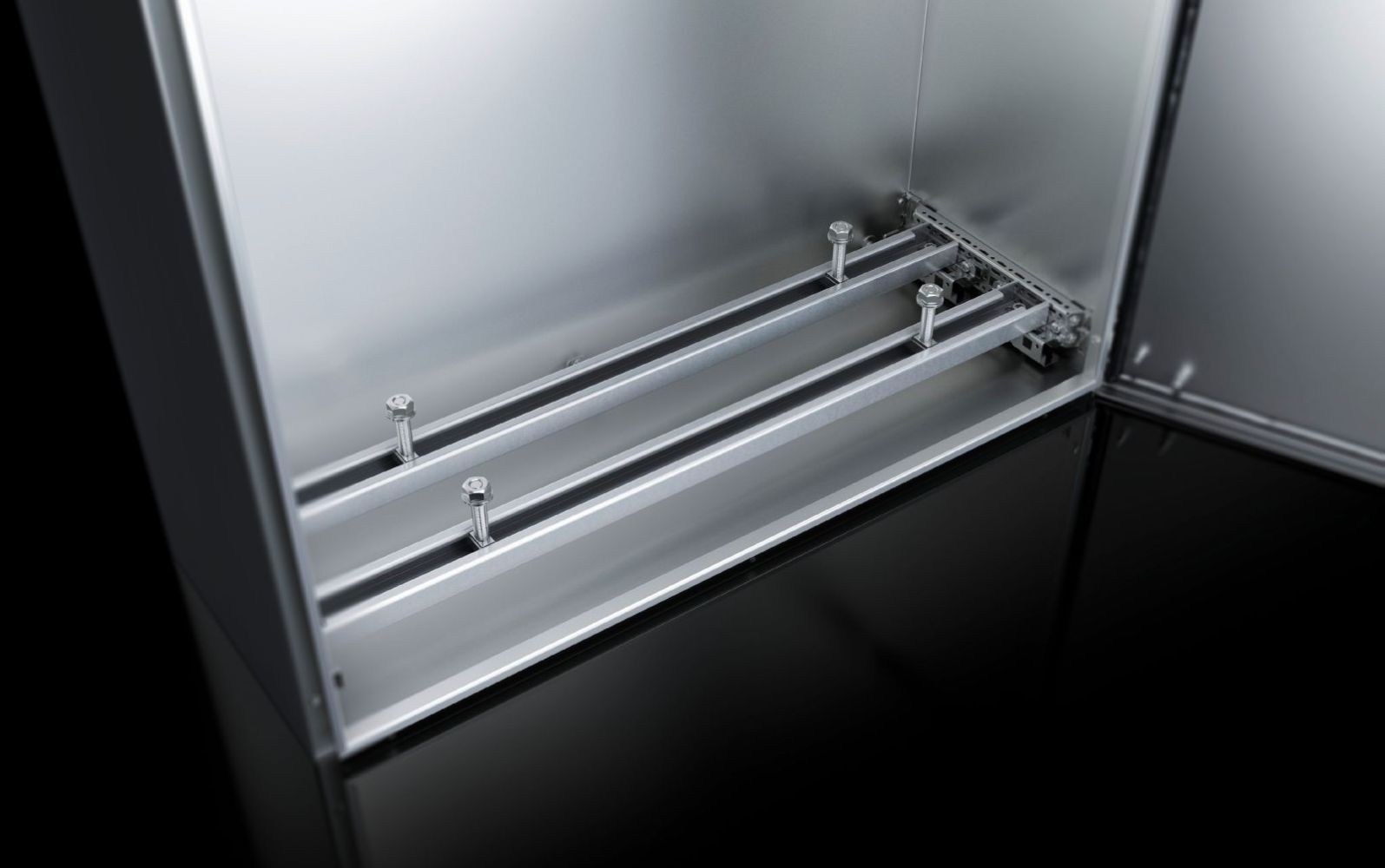

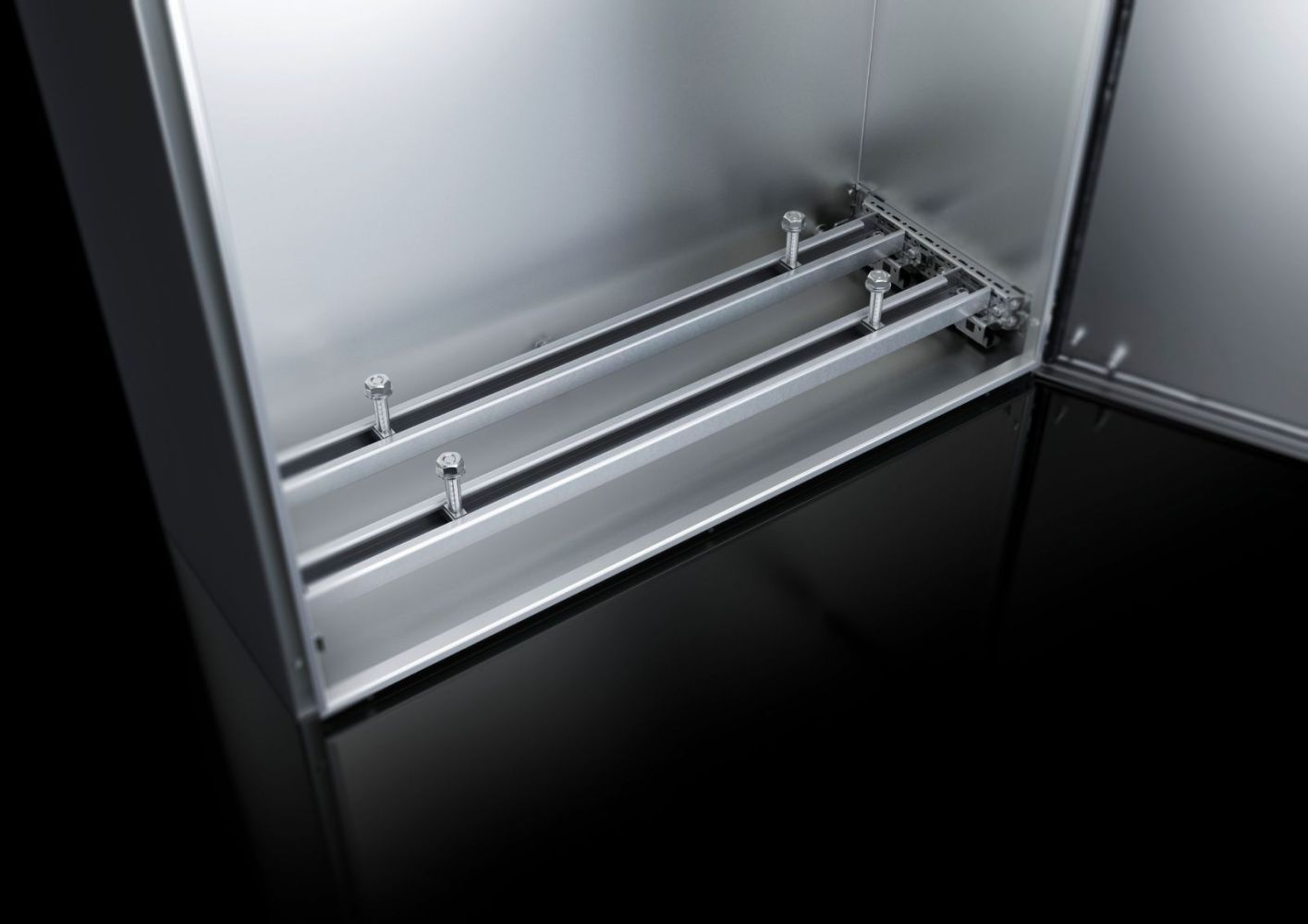

Installation is carried out either on the inner mounting plane or in the base area of the enclosure. Mounting is done using the hook-head screws included in the delivery, which are inserted into the elongated holes of the support rail. The exact positioning is freely selectable, as the elongated holes allow for variable mounting. Installation requires no special tools other than a screwdriver or an appropriate wrench.

Advantages in Operation
The support rail offers high load capacity and is designed for heavy installations, making it particularly suitable for use in industrial plants. The galvanised surface ensures a long service life, even under demanding environmental conditions. The flexible mounting via elongated holes enables adaptable installation, which can be adjusted to different components and mounting requirements. Compatibility with various housing types increases versatility and reduces the need to stock multiple different support rails.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting options VXIn cabinet width 1000 mm, on the inner mounting plane and in the floor
Mounting options VX SEIn cabinet width 1000 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility and on the floor
Mounting options AXIn cabinet width 1000 mm, in conjunction with AX indoor mounting rail and AX floor mounting rail
PC mounting optionsIn cabinet width 1000 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility and on the floor
Installation options IWIn cabinet width 1000 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility and on the floor
Suitable forEnclosure type: VX, VX SE, PC, IW, AX, floor-standing console CX, width: = 1.000 mm
PCF/VE (Cradle-to-Gate)20,87


Product data sheet
Datasheet for Rittal 8617820, EAN: 4028177919532

Questions & answers

What is the delivery time of Rittal 8617820 VX support rail 48 x 26 mm, W: 1000 mm?

The article Rittal 8617820 VX support rail 48 x 26 mm, W: 1000 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617820 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617820 VX support rail 48 x 26 mm, W: 1000 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617820 VX support rail 48 x 26 mm, W: 1000 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
