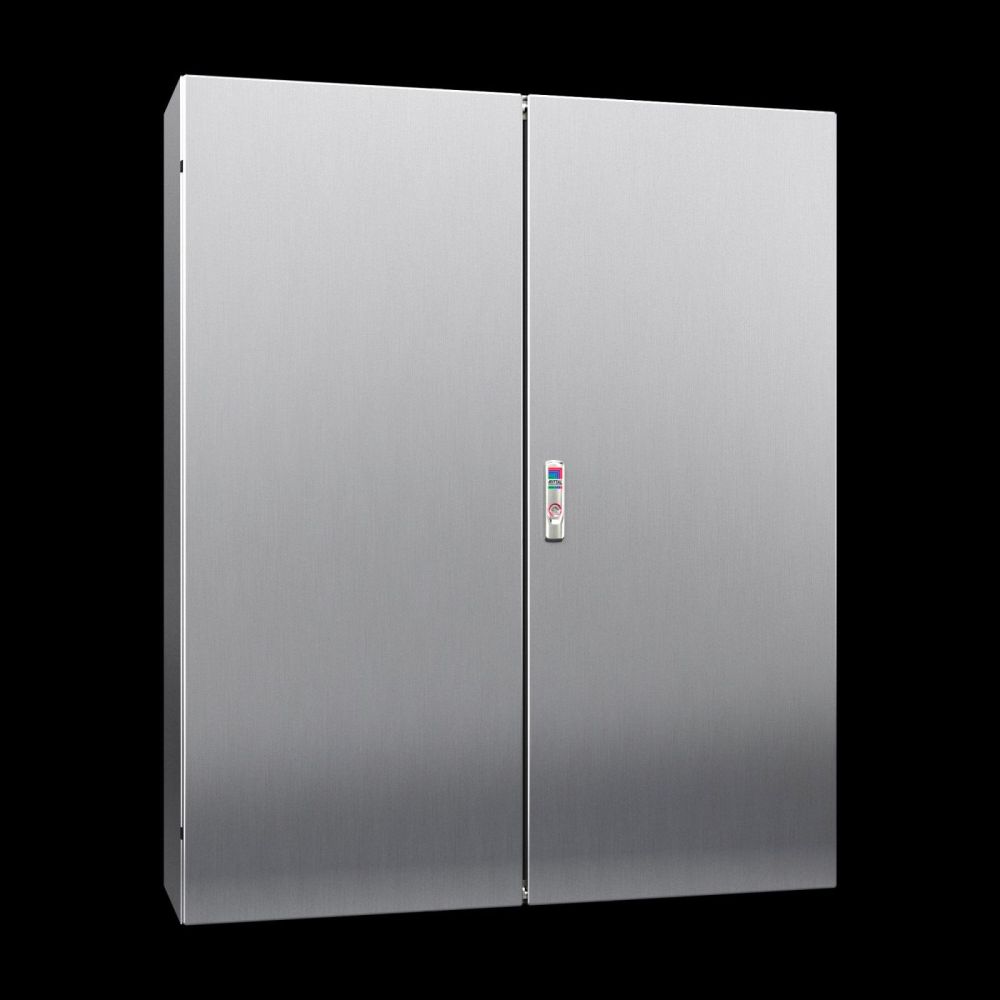

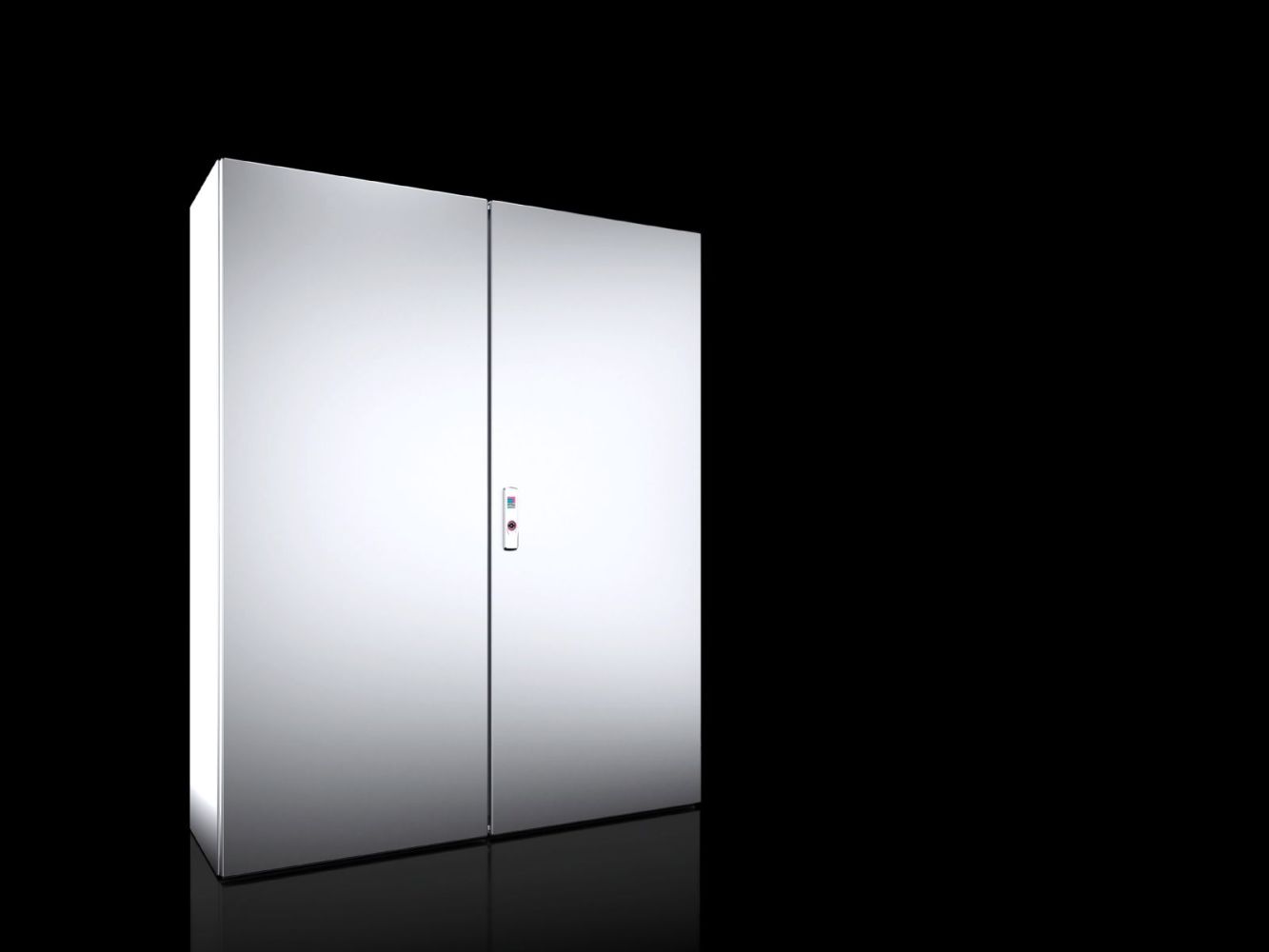

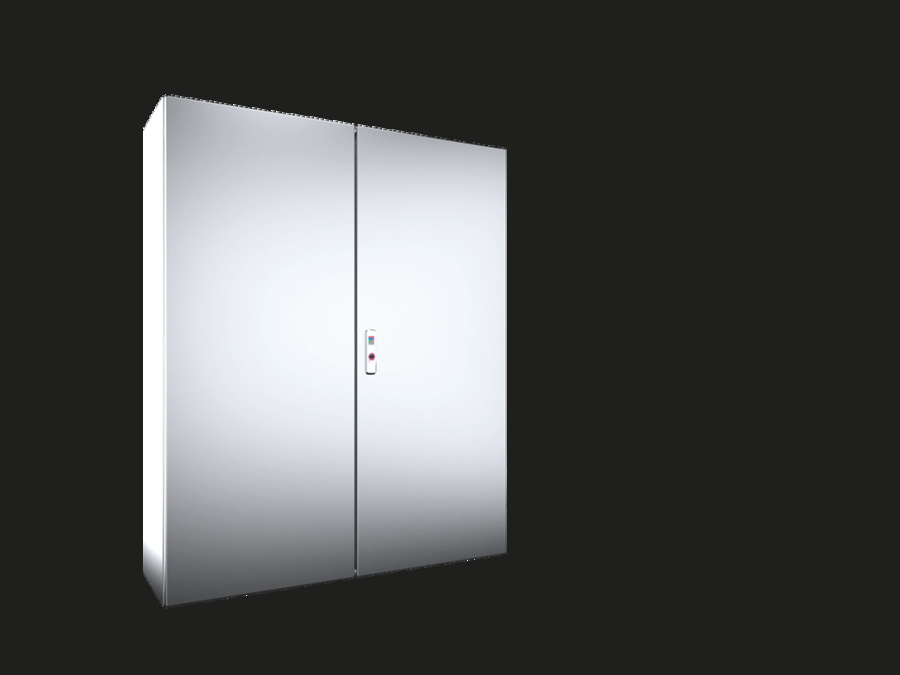

Rittal 1019000 Compact enclosure AX, 2-door, 1000x1200x300 mm
|
-10% 1.060,30 EUR 1.172,01 EUR |
|
|
( 1.261,76 EUR incl. VAT ) ≈ £887.47 | ≈ $1,165.27 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980355 |
| Mfg Part No: | 1019000 |
| UPC/EAN: | 4028177815056 |
| Weight: | 78 kg |
| Type: | AX 1019000 |
Product information for Rittal 1019000:
Applications
The enclosure is designed for use in indoor environments as well as in areas with increased contamination risk. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water from any direction, making it suitable for industrial plants, production halls, or technical rooms. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry indoor environments and areas with light contamination. The IK code IK10 guarantees high mechanical protection against mechanical impacts, such as shocks or vibrations, making it suitable for installations with increased stress.
Functions and Equipment in Detail

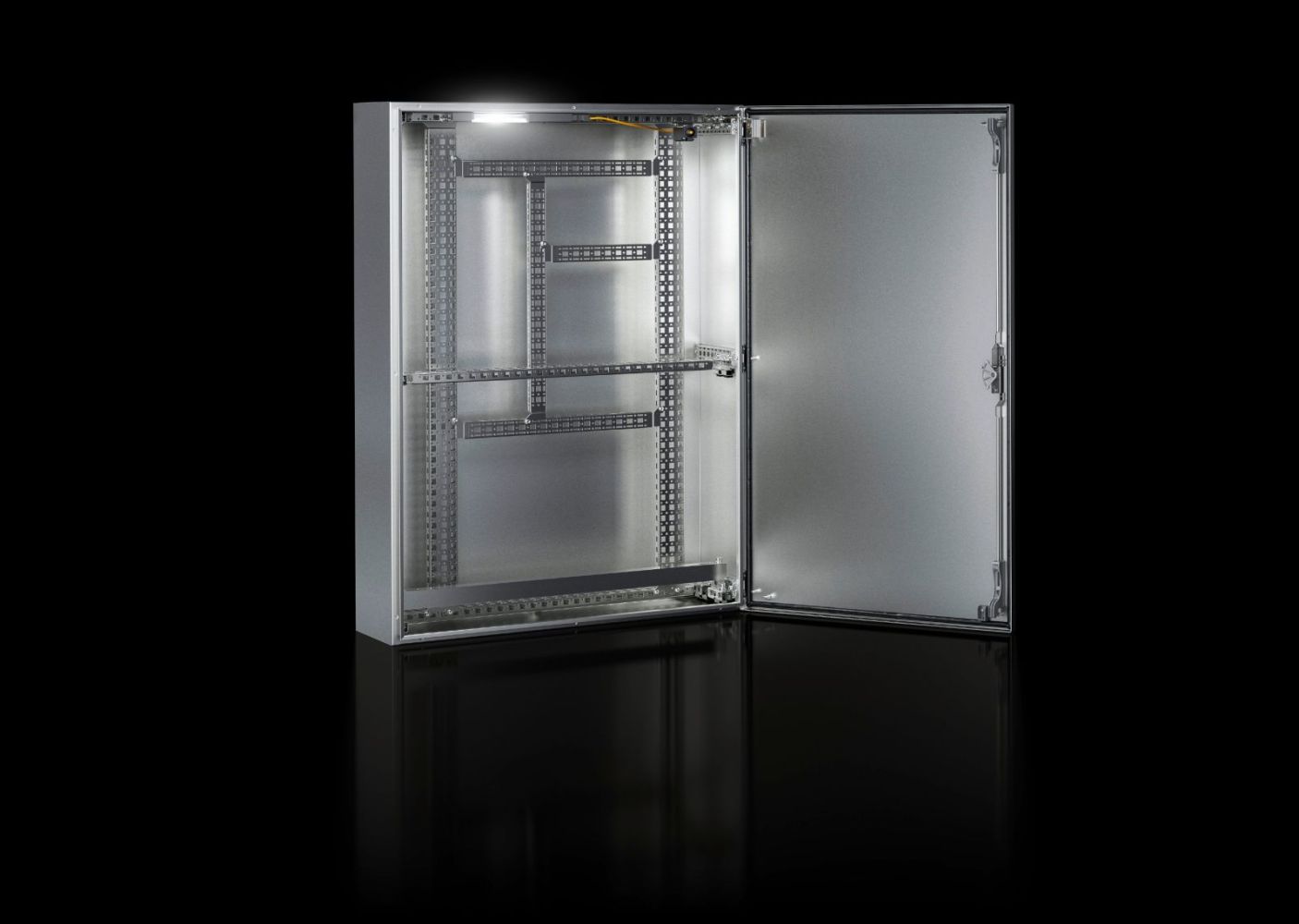

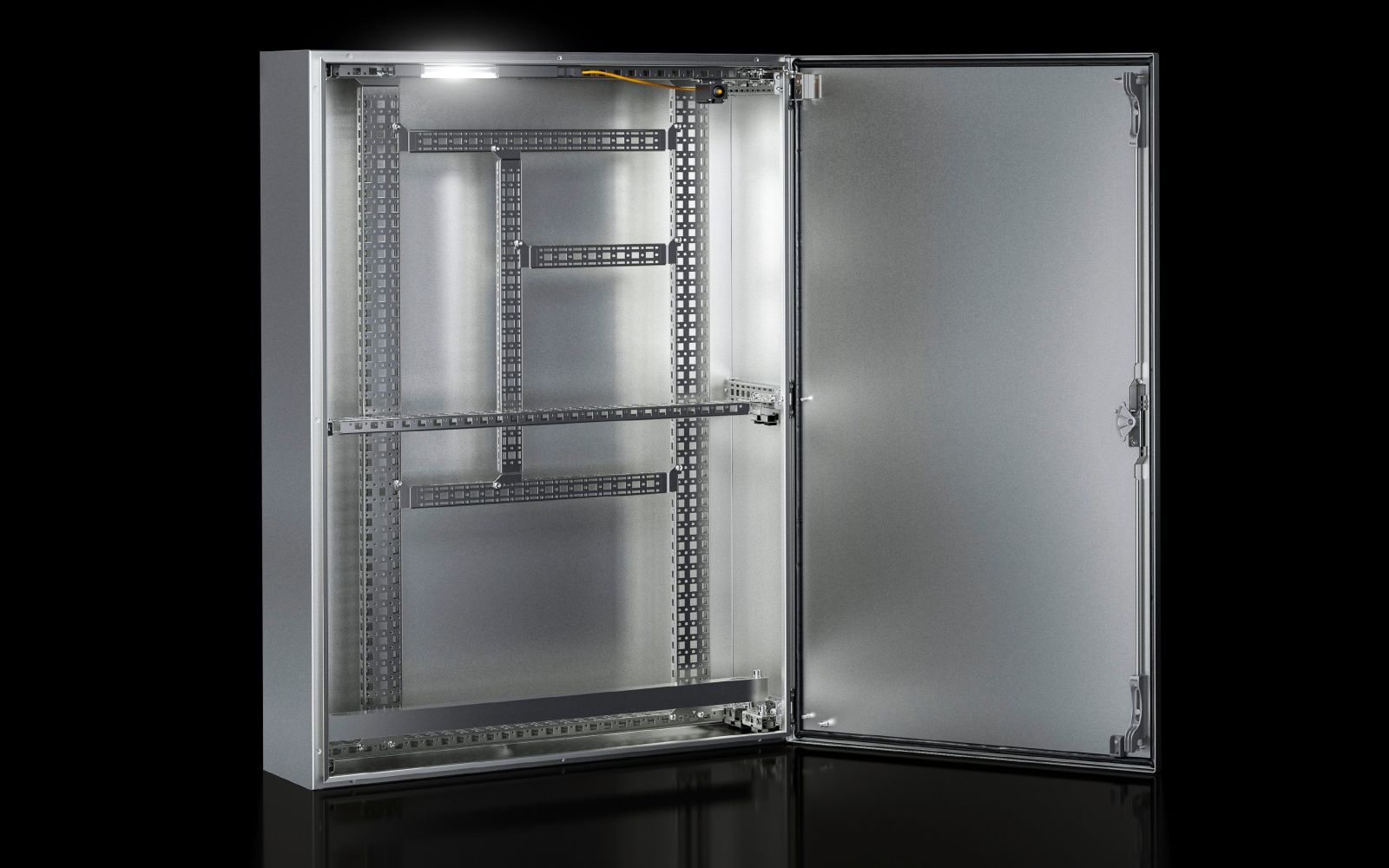

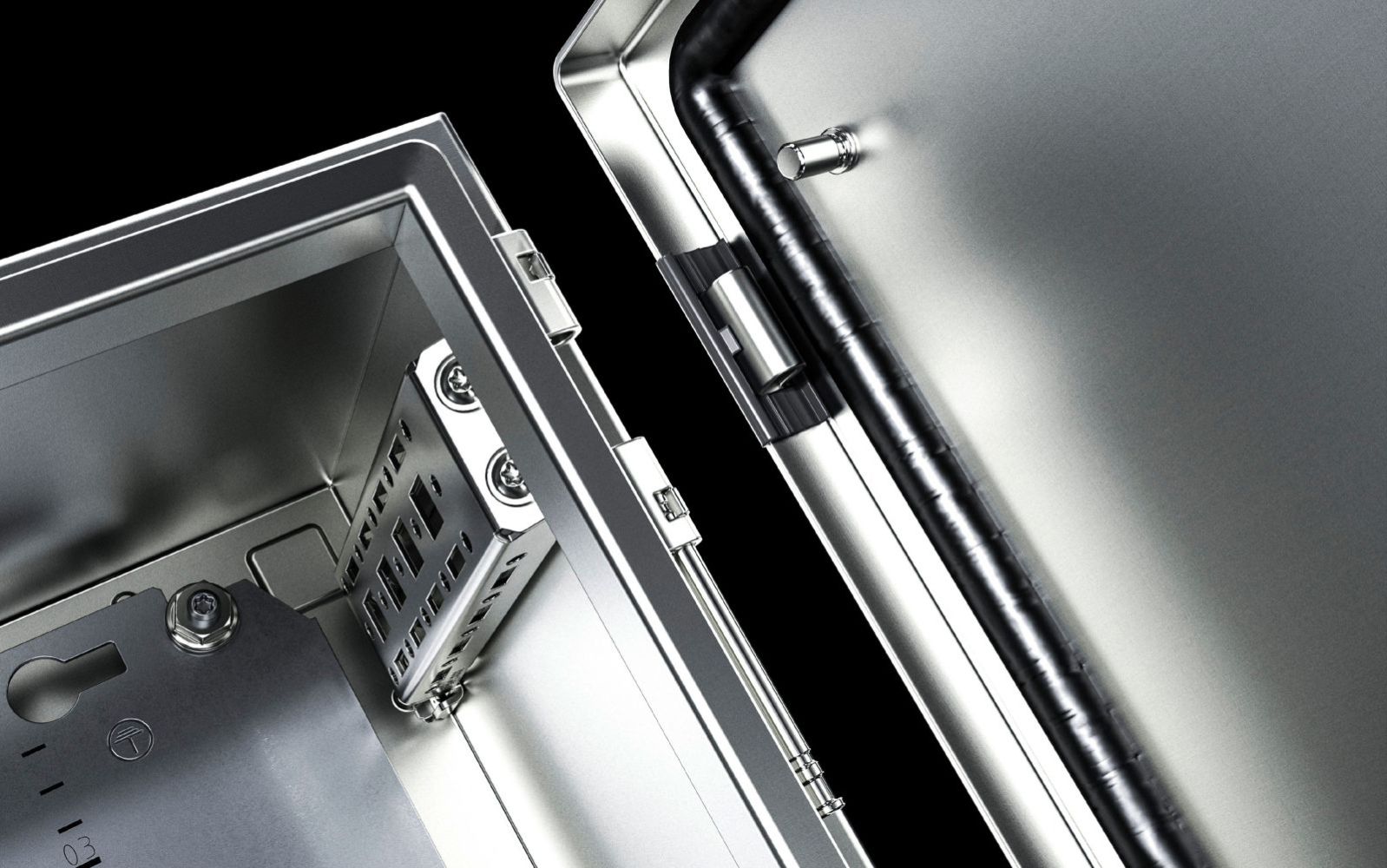

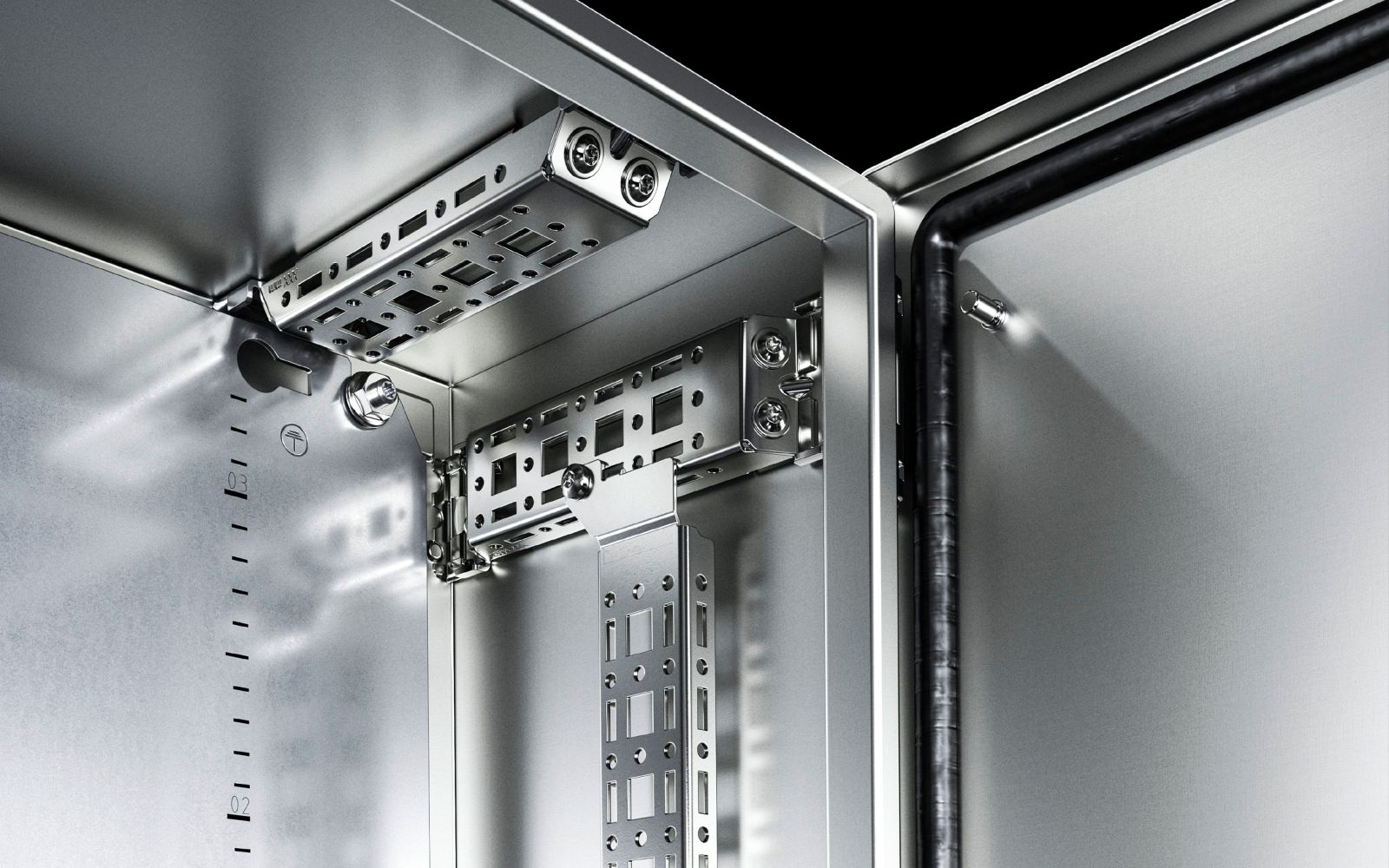

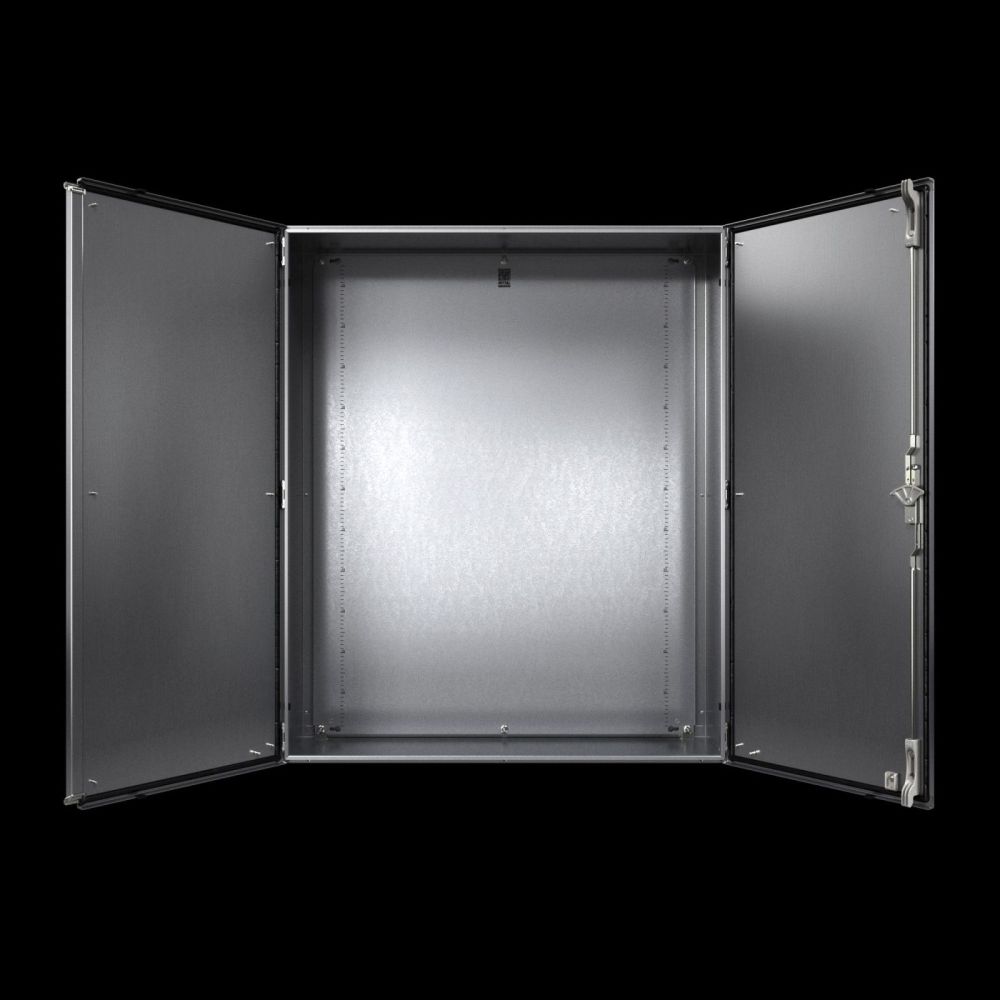

The enclosure features an integrated cam system that enables systematic internal installation without drilling. This simplifies the mounting of rails, conduits, and other components. The doors are equipped with welded hinges and a 3-point locking system, ensuring secure and stable latching. The lock consists of a 3 mm double-barrel insert made of stainless steel 1.4404 (AISI 316L), a highly corrosion-resistant material suitable for use in humid or aggressive environments. The door material thickness is 2 mm, the enclosure material thickness is 1.5 mm, and the mounting plate thickness is 2.5 mm, ensuring high mechanical stability and durability.
Technology Explained Simply
The IP protection rating IP 55 means the enclosure is dust-tight and protected against splashing water from any direction. This makes the enclosure suitable for use in environments where dust or splashing water may occur, for example in manufacturing or the food industry. The NEMA protection ratings NEMA 1 and NEMA 12, as well as the UL type ratings Type 1 and Type 12, correspond to internationally recognized standards for protection against mechanical and atmospheric influences. The IK code IK10 guarantees protection against mechanical impacts, such as blows with a hammer or tool, with an energy of up to 10 Joules. The continuously foamed PU seal ensures a tight seal that maintains its function even under temperature fluctuations.
Compatibility and Accessories
The enclosure is compatible with various accessories that enable use in different application scenarios. These include, for example, TS mounting brackets for external mounting level, baying sets for AX, KX, AE, KL, LED system lights, floor mounting rail, VX system chassis, AX mast mounting, door hole strip, AX protective roof, wall mounting brackets, AX rail for internal installation, lock inserts made of zinc die-cast, condensate drain, and other components for internal installation. These accessories can be added as required to adapt the functionality of the enclosure to the specific needs of the installation.
Mounting and Installation

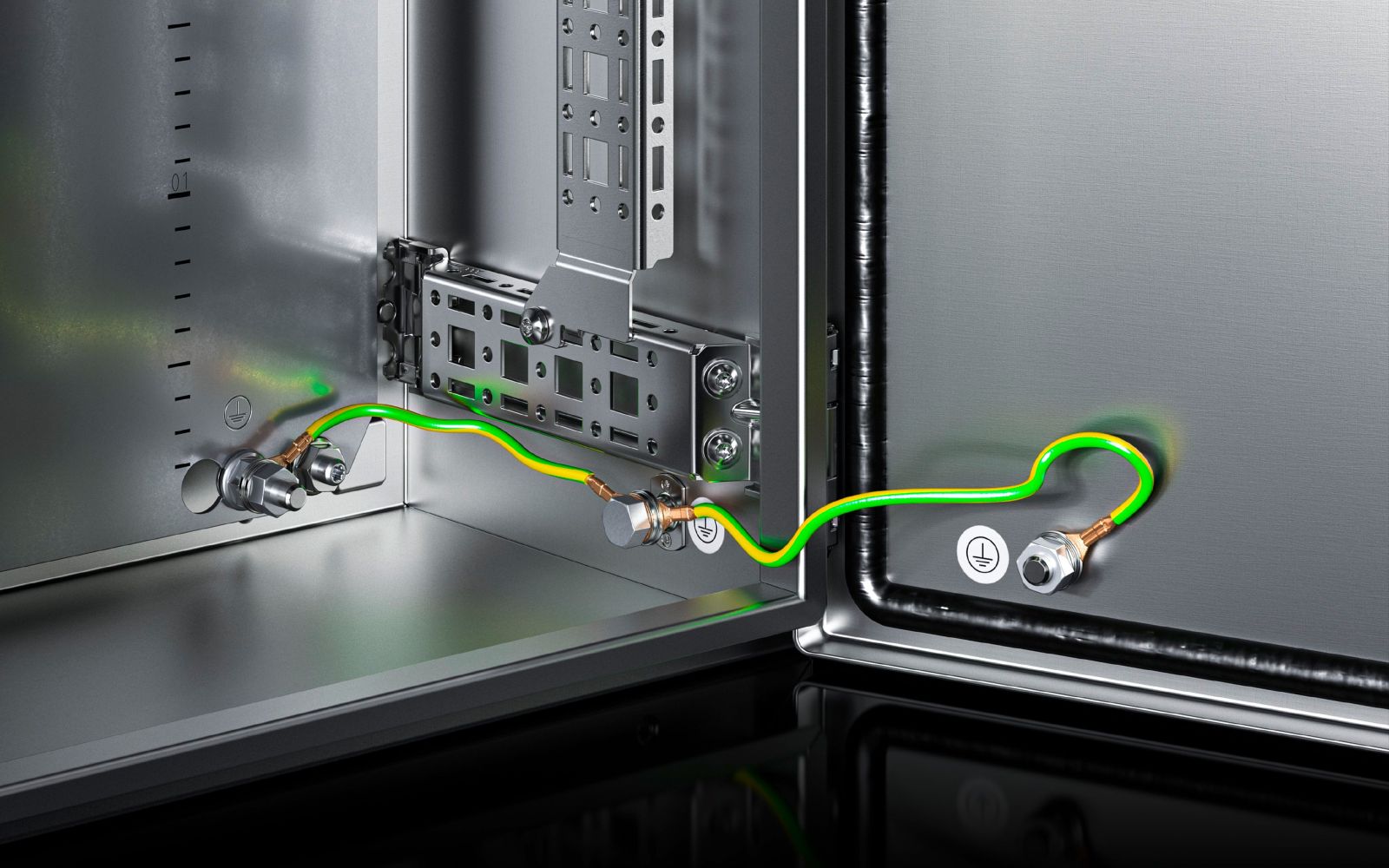

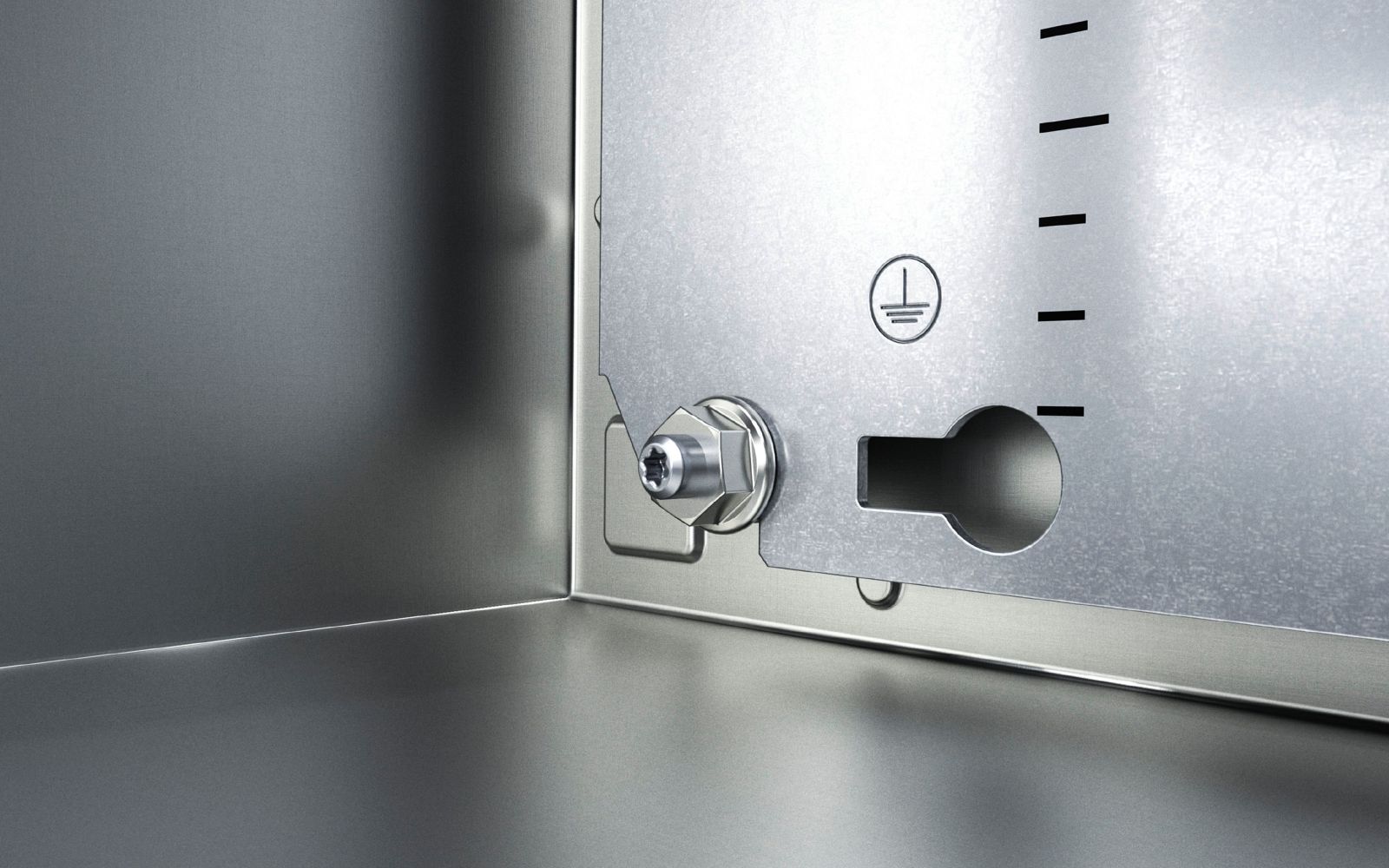

Mounting is done via the integrated mounting plate, which features keyhole slots for grounding and dimension markings. Fixing is done using Limbach nuts, ensuring a secure and durable anchoring. The doors open with an opening angle of 130°, facilitating access to internal components. The integrated enclosure cams allow for quick and tool-free installation of internal components. The rear wall is closed and features embossing for wall mounting brackets, enabling flexible mounting on walls or in rows.
Operational Advantages
The enclosure offers high mechanical and chemical resistance due to the use of stainless steel 1.4301 and stainless steel 1.4404. The brush-finished surface is easy to clean and provides a uniform appearance. The integrated cams and the 3-point locking system enable quick and secure installation as well as a secure lock. The protection ratings IP 55, NEMA 1/12, and IK10 ensure reliable protection against environmental influences and mechanical loads. The mounting plate with keyhole slots and dimension markings simplifies installation and maintenance. The use of stainless steel ensures a long service life and low maintenance costs, especially in humid or corrosive environments.
The enclosure is equipped with a QR code on the body, door, and nameplate, enabling unique identification and easy access to relevant product information as well as traceability of individual parts. This supports documentation and maintenance during operation.
| General | |

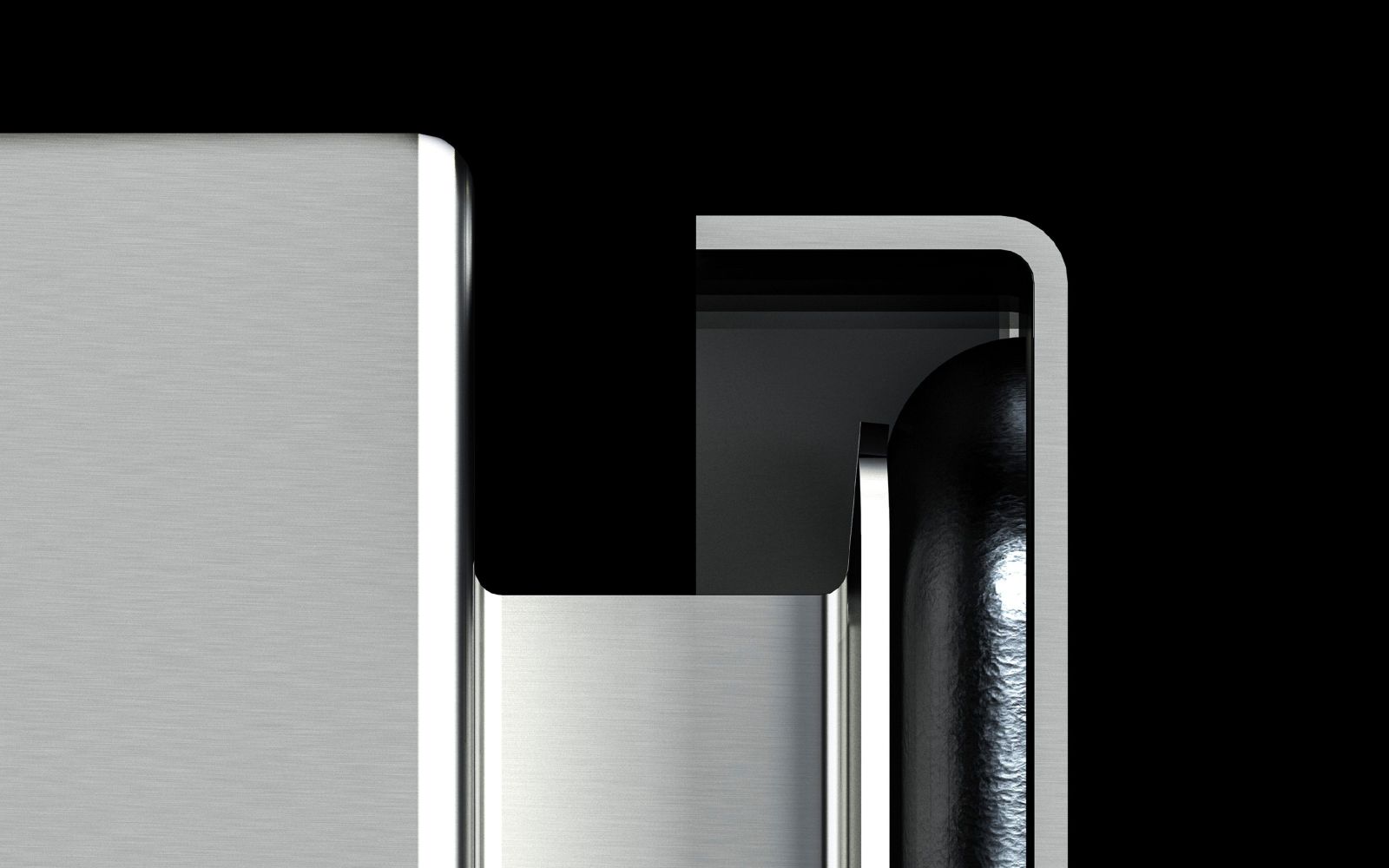

| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 1.000 mm |
| Height | 1.200 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 945 mm x 1.175 mm |
| Number of doors | 2 |
| Lock | Closure type: 3-point locking system, Number of locks: 1, Lock insert: 3 mm double barb, Lock material: Stainless steel 1.4404 (AISI 316L) |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 242,98 |
Questions & answers
What is the delivery time of Rittal 1019000 Compact enclosure AX, 2-door, 1000x1200x300 mm?
The article Rittal 1019000 Compact enclosure AX, 2-door, 1000x1200x300 mm is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1019000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1019000 Compact enclosure AX, 2-door, 1000x1200x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 1019000 Compact enclosure AX, 2-door, 1000x1200x300 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Rittal 1019000 Compact enclosure AX, 2-door, 1000x1200x300 mm
|
Rittal 2463000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023826 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 191196 Mfg Part No: 2463000 Type: SZ 2463000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2307000 Lock inserts, zinc die-cast, length 27 mm, outer dimension 27 mm
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177020849 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 236156 Mfg Part No: 2307000 Type: SZ 2307000 |
2,98 EUR
![]() ≈ £2.49 | ≈ $3.28
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2465000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023864 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 251997 Mfg Part No: 2465000 Type: SZ 2465000 |
-11% 2,62 EUR 2,93 EUR
![]() ≈ £2.19 | ≈ $2.88
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 4695000 TS mounting brackets for external mounting plane W x D: 500 mm
Applications: For attachment ofCable ducts Cable conduit holder Contact hazard protection covers Equipment installed on the door Cable clamping and attachment Material: Sheet steel Surface finish: ... Lieske Part No.: 340448 Mfg Part No: 4695000 Type: TS 4695000 |
78,96 EUR
![]() ≈ £66.09 | ≈ $86.78
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2460000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023765 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 400490 Mfg Part No: 2460000 Type: SZ 2460000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2459000 SZ Condensate discharge
For reliable discharge from the inside and protection against splashes from the outside (labyrinth effect). A hole diameter of 16 mm is required. (With AE sheet steel, the holes are already provided ...Lieske Part No.: 469525 Mfg Part No: 2459000 Type: SZ 2459000 |
10,88 EUR
![]() ≈ £9.11 | ≈ $11.96
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2460650 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177220331 Customs tariff number: 83024900 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 499708 Mfg Part No: 2460650 Type: SZ 2460650 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 1199100 Baying set for AX, KX, AE, KL
Supports baying and sealing between KL/KL and AE/AE.Benefits: Special screws and nuts limit compression of the seal to a predefined level, to ensure a long-lasting, permanent seal between enclosures ... Lieske Part No.: 583514 Mfg Part No: 1199100 Type: SZ 1199100 |
32,32 EUR 33,69 EUR
![]() ≈ £27.05 | ≈ $35.52
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 8619770 VX system chassis 14 x 39 mm, for height: 1200 mm
The Rittal VX 8619770 is a system chassis made of sheet steel with a galvanized surface, specifically designed for use in enclosures of type AX with a housing height of 1,200 mm. It serves as a ...Lieske Part No.: 592836 Mfg Part No: 8619770 Type: VX 8619770 |
69,23 EUR
![]() ≈ £57.95 | ≈ $76.08
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2461000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023789 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 661058 Mfg Part No: 2461000 Type: SZ 2461000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2464000 lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023840 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 724120 Mfg Part No: 2464000 Type: SZ 2464000 |
2,46 EUR
![]() ≈ £2.06 | ≈ $2.70
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2583010 Wall mounting bracket, stainless steel 1.4301
The Rittal SZ 2583010 is a wall mounting bracket made of stainless steel 1.4301 (AISI 304), specifically developed for mounting sheet metal and stainless steel enclosures to walls. It serves as a ...Lieske Part No.: 796959 Mfg Part No: 2583010 Type: SZ 2583010 |
19,44 EUR 20,21 EUR
![]() ≈ £16.27 | ≈ $21.36
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 2462000 lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023802 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 889854 Mfg Part No: 2462000 Type: SZ 2462000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 2466000 lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023888 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 975920 Mfg Part No: 2466000 Type: SZ 2466000 |
2,67 EUR
![]() ≈ £2.23 | ≈ $2.93
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 2363010 AX protective roof, W x D: 1000x300 mm, stainless steel
The Rittal AX 2363010 is a protective roof made of stainless steel, specifically designed for enclosures of type AX with a width of 1,000 mm and a depth of 300 mm. It provides protection for the ...Lieske Part No.: 1054679 Mfg Part No: 2363010 Type: AX 2363010 |
-12% 162,27 EUR 184,74 EUR
![]() ≈ £135.82 | ≈ $178.33
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 4052000 AS Multitool AX/VX
The Rittal AS 4052000 is a multifunctional tool, specifically developed for handling and mounting AX enclosures as well as VX doors in the field of enclosure technology. It combines several useful ...Lieske Part No.: 1055448 Mfg Part No: 4052000 Type: AS 4052000 |
29,65 EUR
![]() ≈ £24.82 | ≈ $32.59
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|

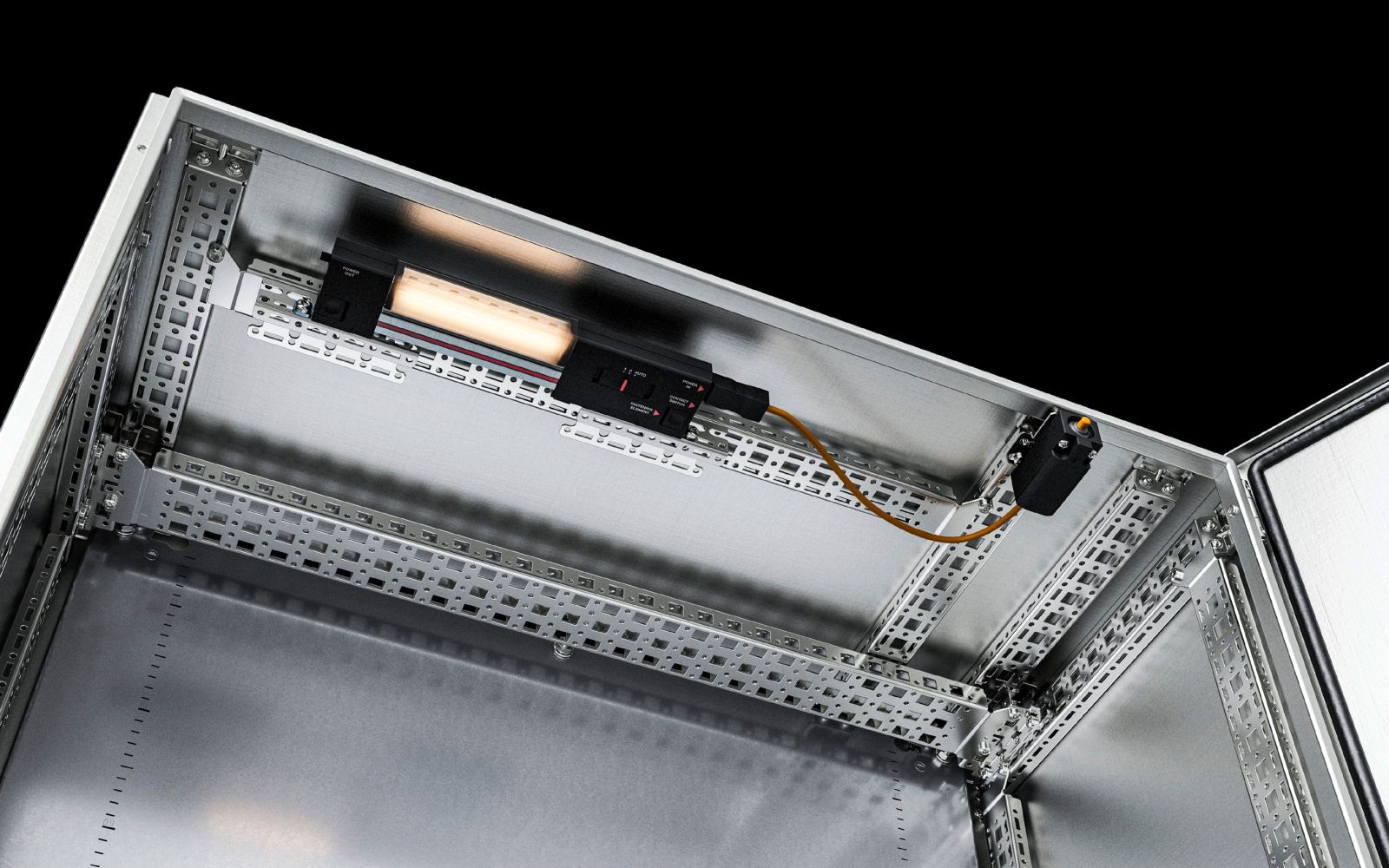

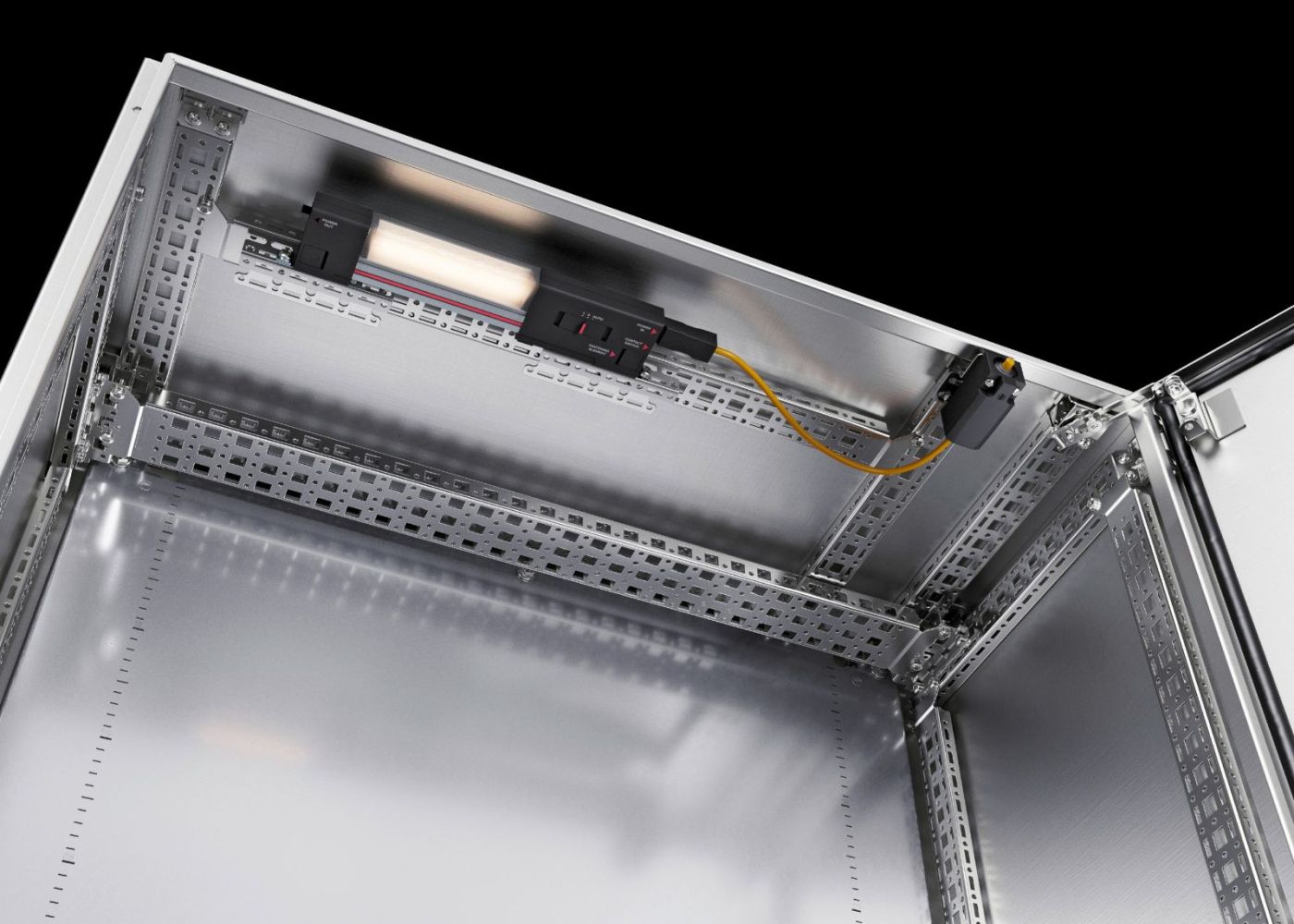

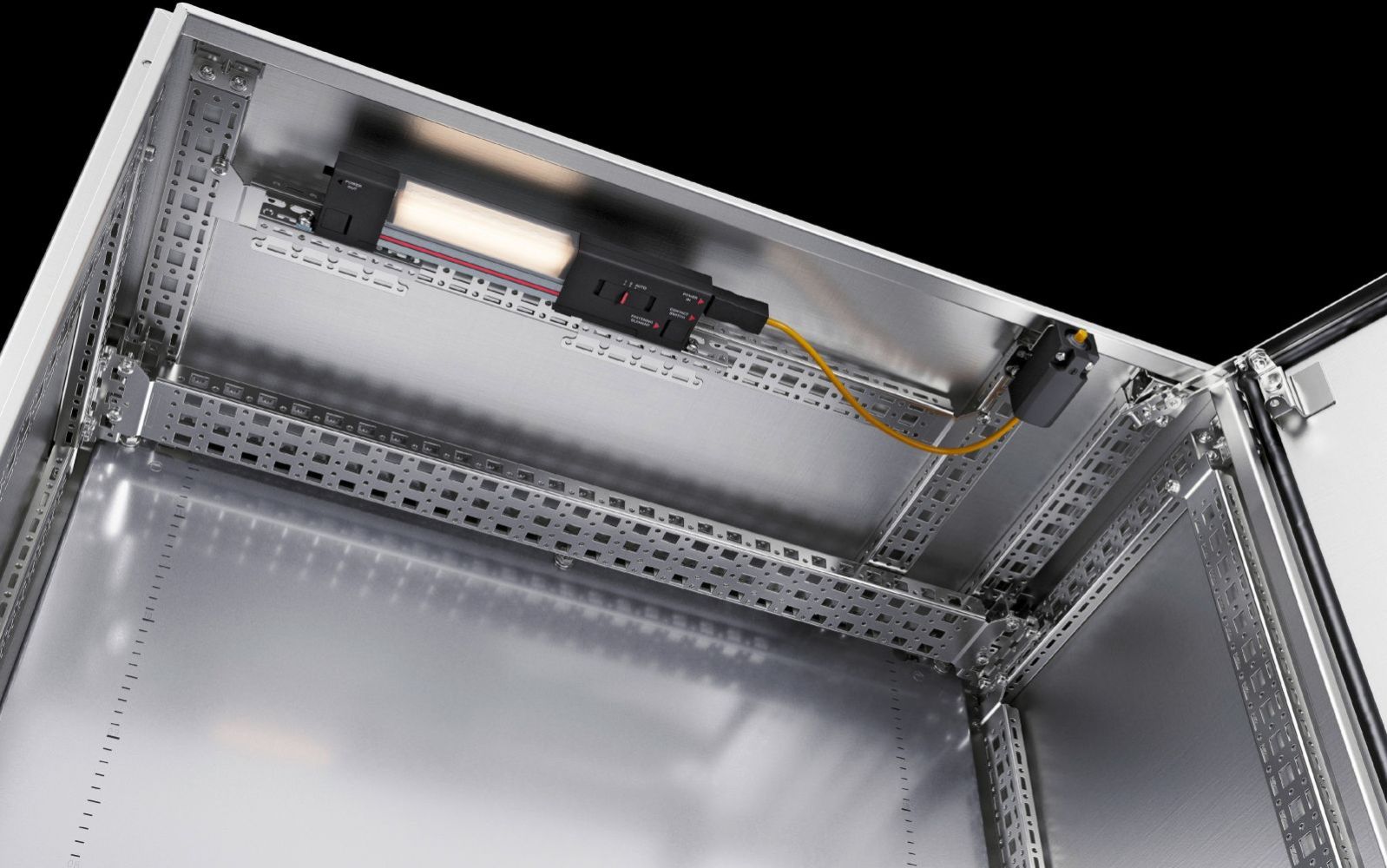

Rittal 2500110 System light LED (freight shipping)
The Rittal SZ 2500110 is a system light LED for use in enclosures and industrial installations. It provides even and sufficient illumination of the interior of enclosures to enable safe and efficient ...Lieske Part No.: 1087030 Mfg Part No: 2500110 Type: SZ 2500110 |
62,30 EUR
![]() ≈ £52.15 | ≈ $68.47
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2435600 AX comfort handle for AX with rod lock for locking
The Rittal AX 2435600 is a comfort handle for enclosures and housings of the AX system, specifically designed for use with bar locks and compatible with lock inserts from the brands KESO and KABA. It ...Lieske Part No.: 1101323 Mfg Part No: 2435600 Type: AX 2435600 |
-12% 48,30 EUR 54,99 EUR
![]() ≈ £40.43 | ≈ $53.08
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2394100 floor extension rail, for AX
The Rittal AX 2394100 is a floor expansion rail made of sheet steel with a zinc-coated surface, specifically developed for use in the AX compact enclosure system. It serves as an additional mounting ...Lieske Part No.: 1101816 Mfg Part No: 2394100 Type: AX 2394100 |
17,92 EUR
![]() ≈ £15.00 | ≈ $19.69
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 4000300 SZ pressure equalization plug, stainless steel, 1.4305
The Rittal SZ 4000300 is a pressure equalization plug made of stainless steel 1.4305 (AISI 303), specifically designed for use in enclosures and housings exposed to changing climatic conditions. It ...Lieske Part No.: 1101878 Mfg Part No: 4000300 Type: SZ 4000300 |
-6% 163,42 EUR 174,72 EUR
![]() ≈ £136.78 | ≈ $179.60
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 8617820 VX support rail 48 x 26 mm, W: 1000 mm
The Rittal VX support rail 8617.820 is a robust mounting component made of sheet steel with a galvanised surface, specifically designed for use in enclosures and housings with a width of 1000 mm. It ...Lieske Part No.: 1440918 Mfg Part No: 8617820 Type: VX 8617.820 |
65,90 EUR
![]() ≈ £55.16 | ≈ $72.42
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 8617160 VX system chassis 23 x 64 mm W x H x D: 1200 mm
The Rittal VX 8617.160 is a system chassis made of sheet steel with a galvanized surface, specifically designed for variable and individual interior fitting of enclosures. It serves as a mounting base ...Lieske Part No.: 1441091 Mfg Part No: 8617160 Type: VX 8617.160 |
100,26 EUR
![]() ≈ £83.92 | ≈ $110.19
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 8617150 VX system chassis 23 x 64 mm W x H x D: 1000 mm
The Rittal VX 8617.150 is a system chassis made of sheet steel with a galvanized surface, specifically designed for variable and individual interior fitting of enclosures. It serves as a mounting ...Lieske Part No.: 1441092 Mfg Part No: 8617150 Type: VX 8617.150 |
88,09 EUR 90,90 EUR
![]() ≈ £73.73 | ≈ $96.81
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 8619710 VX system chassis 14 x 39 mm, door width: 500 mm
The Rittal System Chassis VX 8619.710 is a steel sheet mounting component with a galvanized surface, specifically designed for use in enclosures and housings of the Rittal system. It is used for the ...Lieske Part No.: 1441165 Mfg Part No: 8619710 Type: VX 8619.710 |
38,14 EUR 38,15 EUR
![]() ≈ £31.92 | ≈ $41.92
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 8619430 VX cable strain relief rail angle profile, W: 1000 mm
The Rittal VX 8619.430 is a cable strain relief rail in angle profile, specifically designed for tension relief during cable entry into enclosures and plinth systems. The product is made of steel and ...Lieske Part No.: 1441178 Mfg Part No: 8619430 Type: VX 8619.430 |
46,81 EUR
![]() ≈ £39.18 | ≈ $51.44
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|

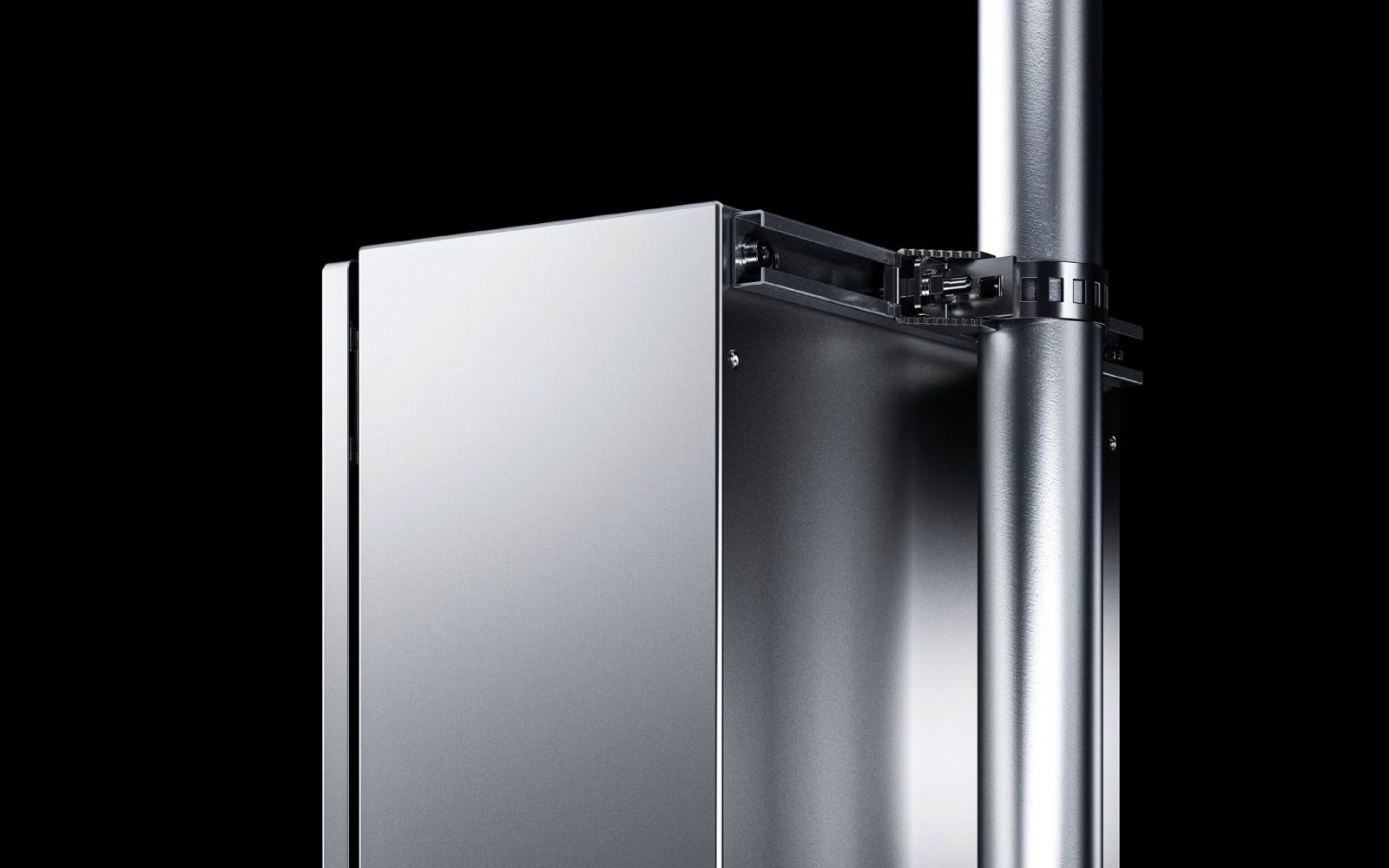

Rittal 2584100 AX mast mounting
Rittal AX 2584100 is a mast mounting for enclosures and housings of the series AX, KX, AX plastic, AX IT, CS wall-mounted enclosures, AX outdoor housing, AE, KL, EB, as well as wall-mounted enclosures ...Lieske Part No.: 1593407 Mfg Part No: 2584100 Type: AX 2584100 |
66,45 EUR 66,47 EUR
![]() ≈ £55.62 | ≈ $73.03
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2435100 AX comfort handle for lock inserts or half cylinder
The Rittal AX 2435100 is a comfort handle for enclosures and housings, specifically designed for use with lock inserts or half cylinders. It serves as an ergonomic handle mechanism that simplifies the ...Lieske Part No.: 1598252 Mfg Part No: 2435100 Type: AX 2435100 |
-6% 37,15 EUR 39,38 EUR
![]() ≈ £31.09 | ≈ $40.83
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
|
|

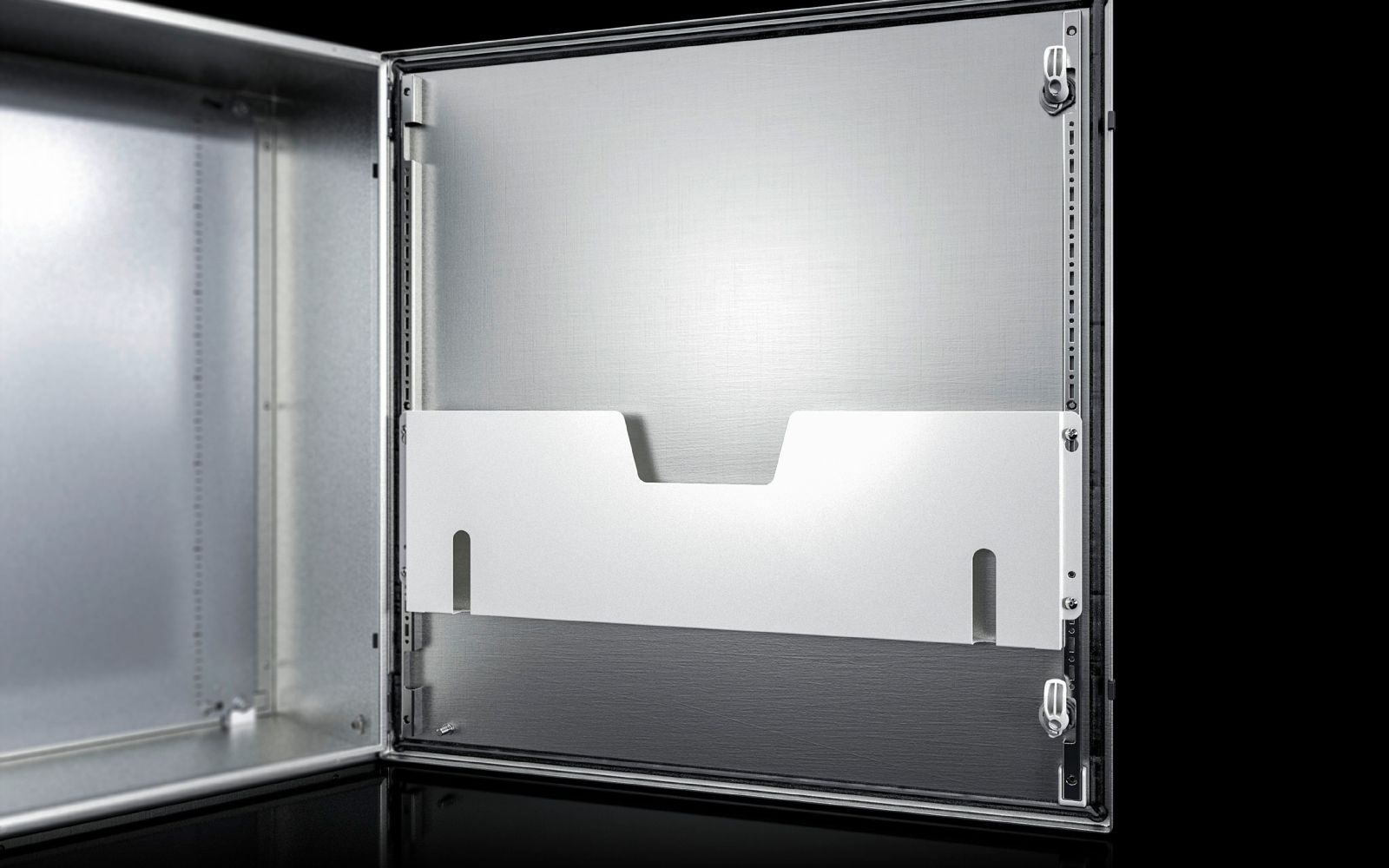

Rittal 2515200 Circuit diagram pocket made of steel sheet for AX, for door width
