Rittal 2515200 Circuit diagram pocket made of steel sheet for AX, for door width

Your rating:
Average rating
product review for Rittal 2515200 Circuit diagram pocket made of steel sheet for AX, for door width
( 4.6 / 5 ) 8 ratings
Rittal 2515200
This image may differ from the desired article.
Rittal 2515200Rittal 2515200Rittal 2515200Rittal 2515200
23,77 EUR 23,78 EUR
( 28,29 EUR incl. VAT )
≈ £19.90  |  ≈ $26.12
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2515200 Circuit diagram pocket made of steel sheet for AX, for door width
Datasheet:file_download Download
Lieske Part No.:1598257
Mfg Part No: 2515200
UPC/EAN: 4028177938304
Weight:0.83 kg
Type:AX 2515200

Product information for Rittal 2515200:

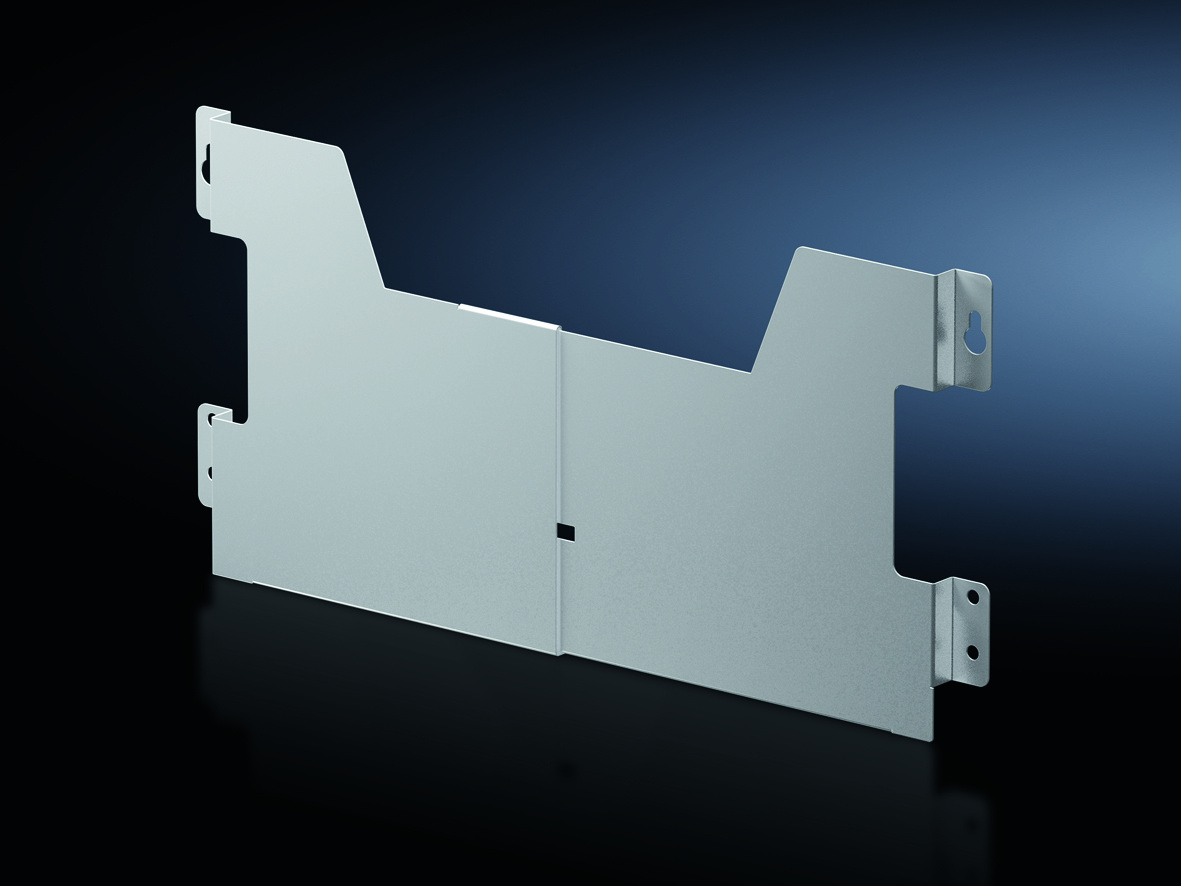

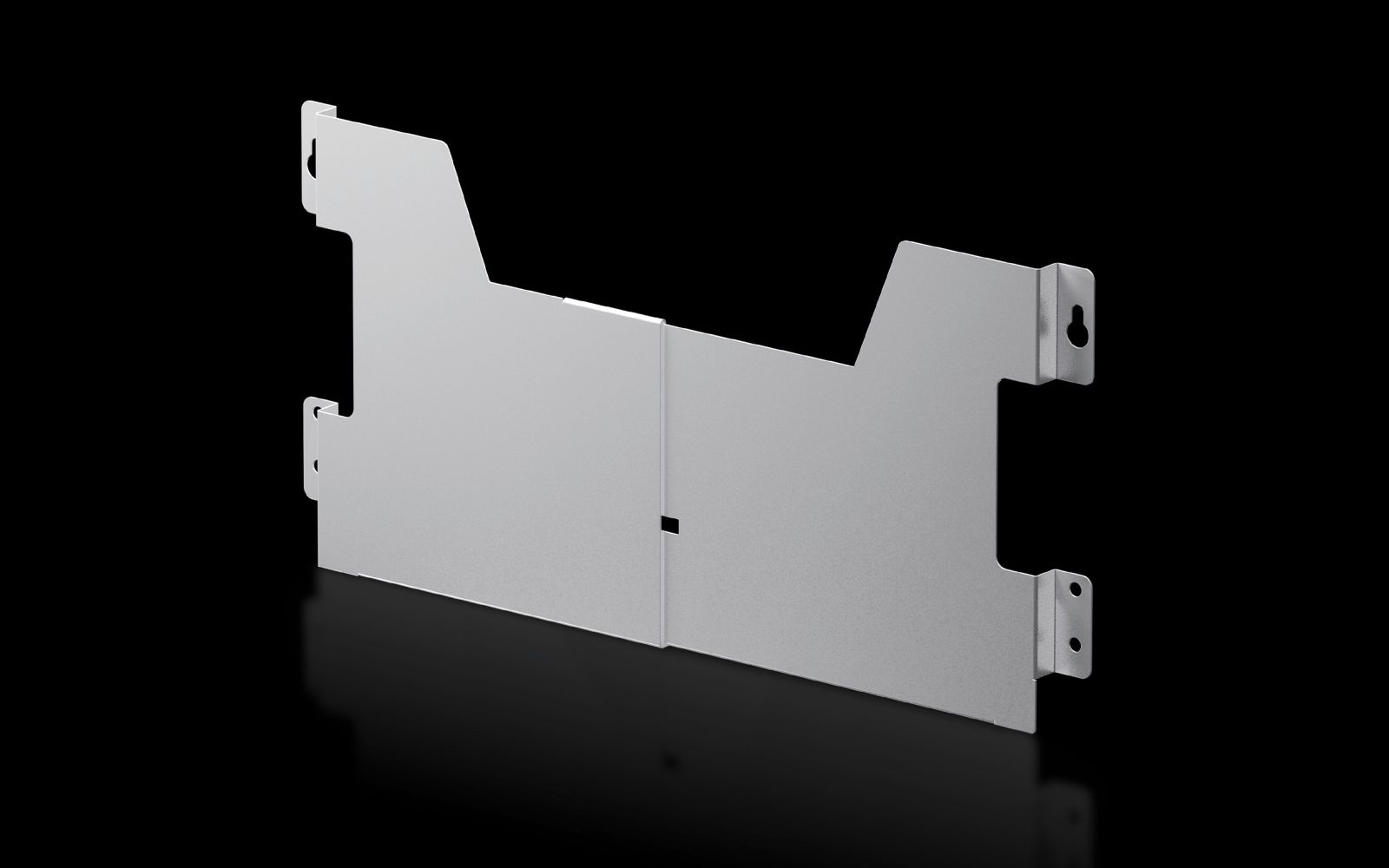

The Rittal AX 2515200 is a circuit diagram pocket made of sheet metal, specifically designed for mounting on doors of enclosures and housings. It is used to secure circuit diagrams, documentation, or other documents directly to the door mounting rail. The product is width-adjustable and can be set to a clear width of 325 to 425 mm, allowing flexible adaptation to different door widths. It is designed for doors with widths of 400 mm and 500 mm, making it compatible with housing types such as AX, AE sheet metal, and stand console CX. The clear height is 210 mm, and the depth of the pocket is 35 mm. The color is RAL 7035, a gray-beige sheet metal that integrates well visually in industrial environments.

Applications
The circuit diagram pocket is used in industrial environments where quick and secure access to circuit diagrams, connection diagrams, or operating instructions is required. It is particularly suitable for enclosures used in production plants, automation systems, or electrical engineering. Mounting on the door mounting rail allows flexible placement at any height, enabling optimal adaptation to working conditions.

Functions and Equipment in Detail
The AX 2515200 is made of sheet metal, ensuring high mechanical stability and durability. The width-adjustable design allows easy adaptation to the respective door width without requiring additional tools or mounting aids. The pocket is mounted on the door mounting rail, ensuring secure and slip-resistant installation. The delivery includes mounting screws, enabling immediate installation upon receipt.

Technology Explained Simply
The clear height of 210 mm provides sufficient space for standard circuit diagrams or documents in A4 format or smaller. The depth of 35 mm ensures that documents lie securely in the pocket and do not fall out. The width adjustability from 325 to 425 mm allows adaptation to various door sizes, making the pocket universally applicable. Installation is done on the door mounting rail, which is standard in most Rittal enclosures.

Compatibility and Accessories
The circuit diagram pocket is compatible with housing types AX, AE sheet metal, and stand console CX. It is designed for doors with widths of 400 mm and 500 mm.

Mounting and Installation

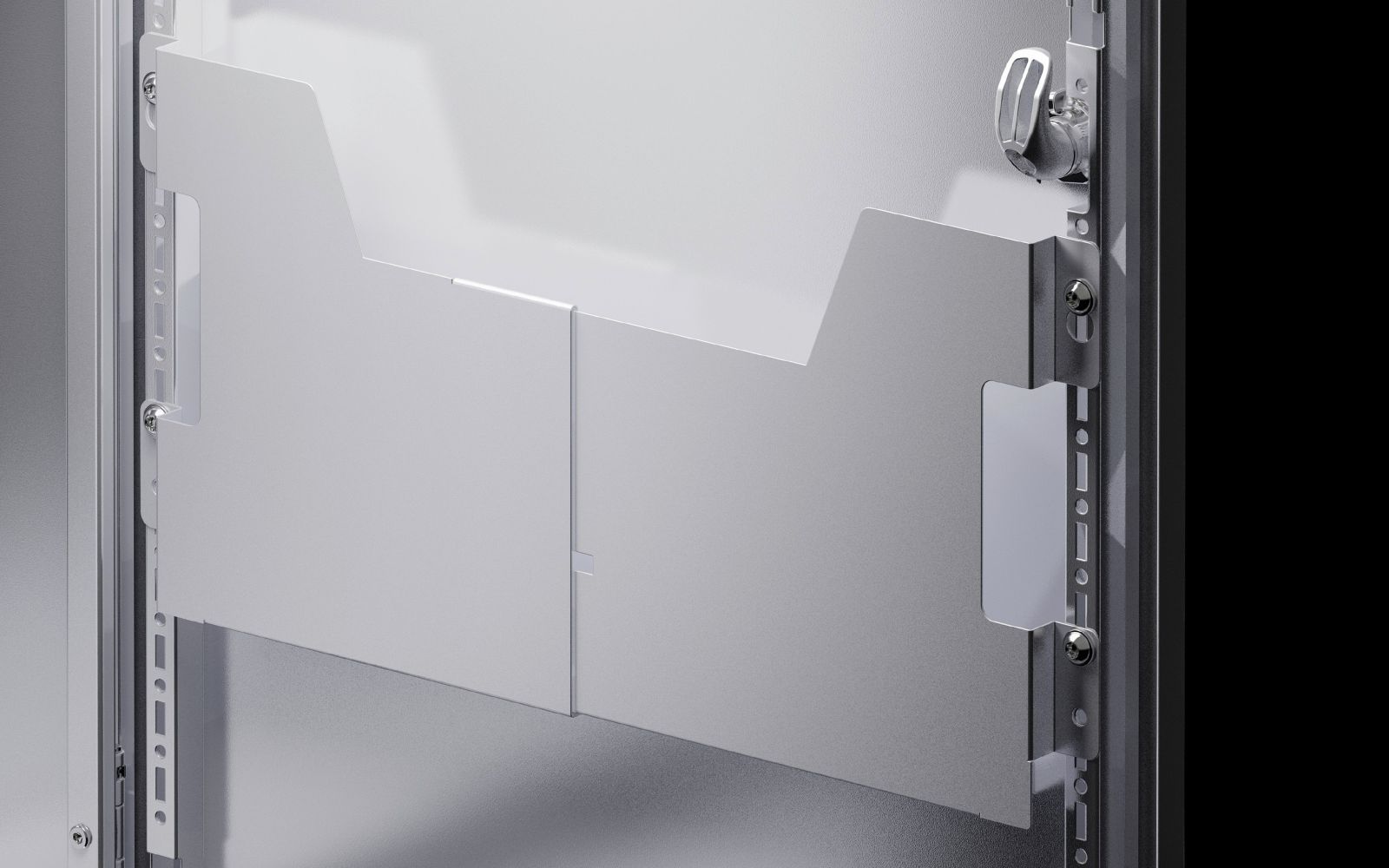

Installation is performed on the door mounting rail, which is integrated in most Rittal enclosures. The mounting screws included in the delivery are used to fix the pocket at the desired height. Width adjustment is done by simply adjusting the side locking mechanism, allowing the pocket to be adapted to the respective door width. No additional tools or mounting aids are required.

Advantages in Operation
The circuit diagram pocket provides quick and secure access to important documents directly at the enclosure. The width-adjustable design and flexible mounting height allow optimal adaptation to specific working conditions. The use of sheet metal ensures high mechanical load capacity and durability, even in industrial environments with high stress. The integrated mounting on the door mounting rail ensures stable installation without additional fastening elements.

General
ColourRAL 7035
Scope of deliveryIncluding mounting screws
Clear height210 mm
Clear width, range325 - 425 mm
Suitable for door width400 mm, 500 mm
Suitable forHousing type: AX, AE steel sheet, stand cabinet CX
Depth35 mm


Product data sheet
Datasheet for Rittal 2515200, EAN: 4028177938304
