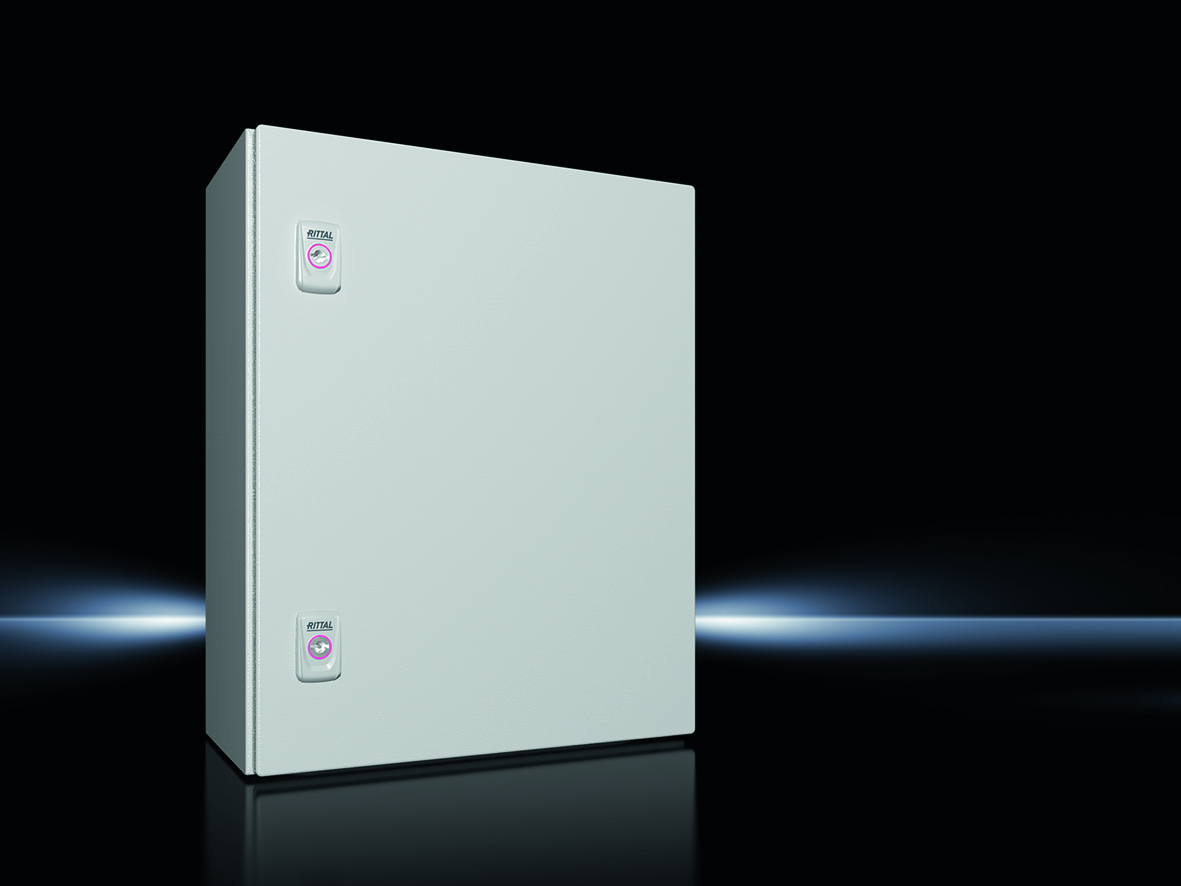

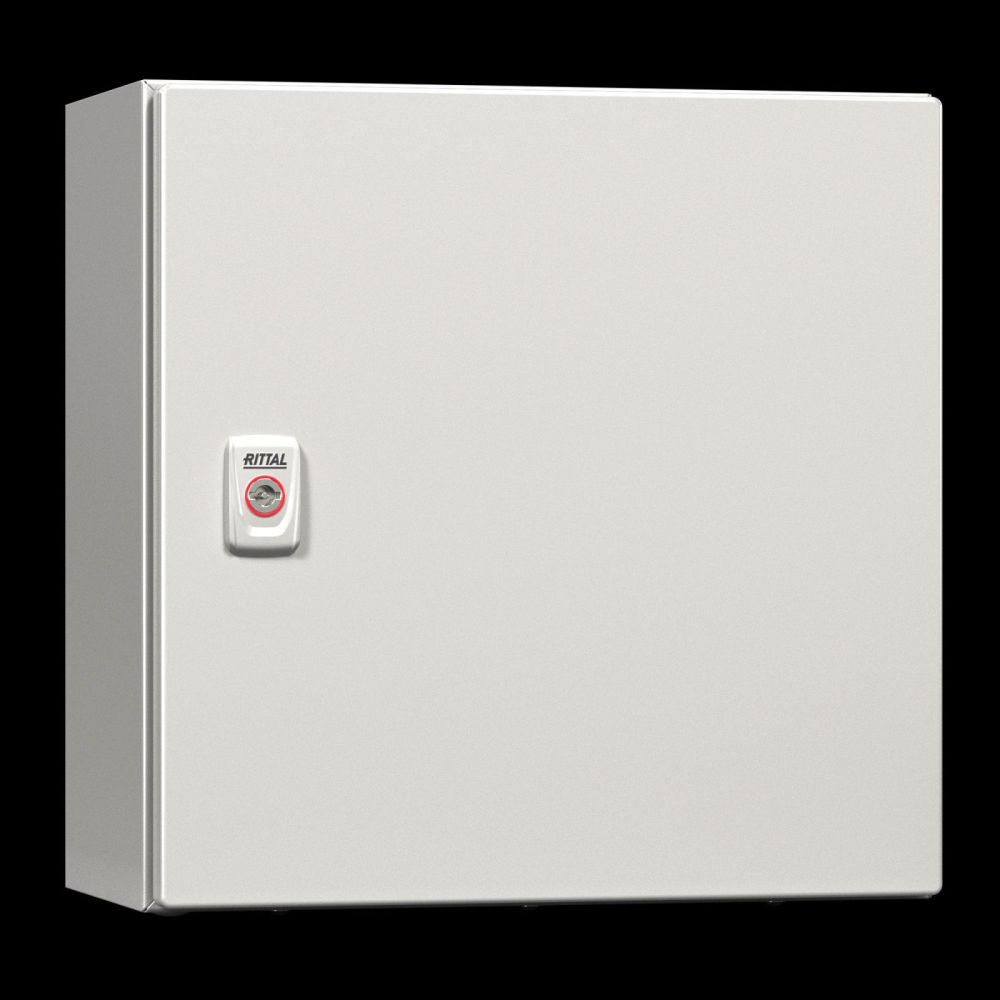

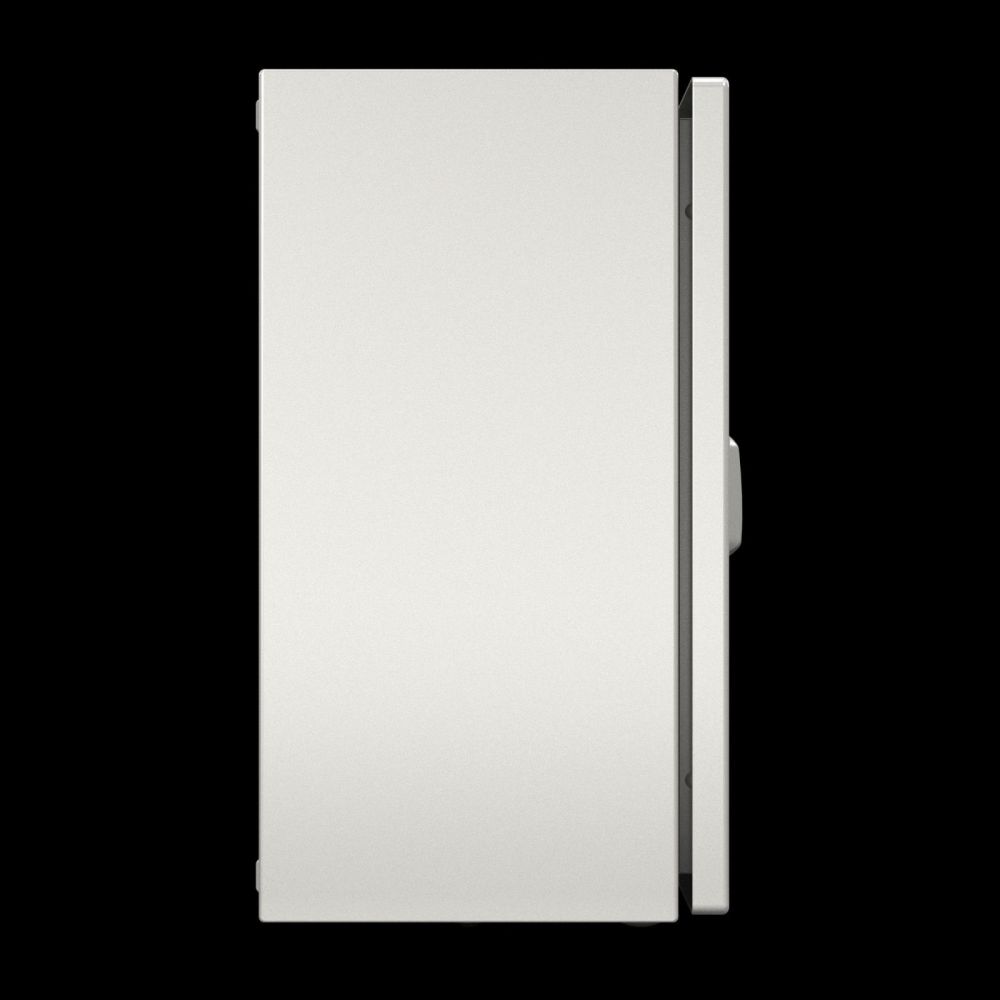

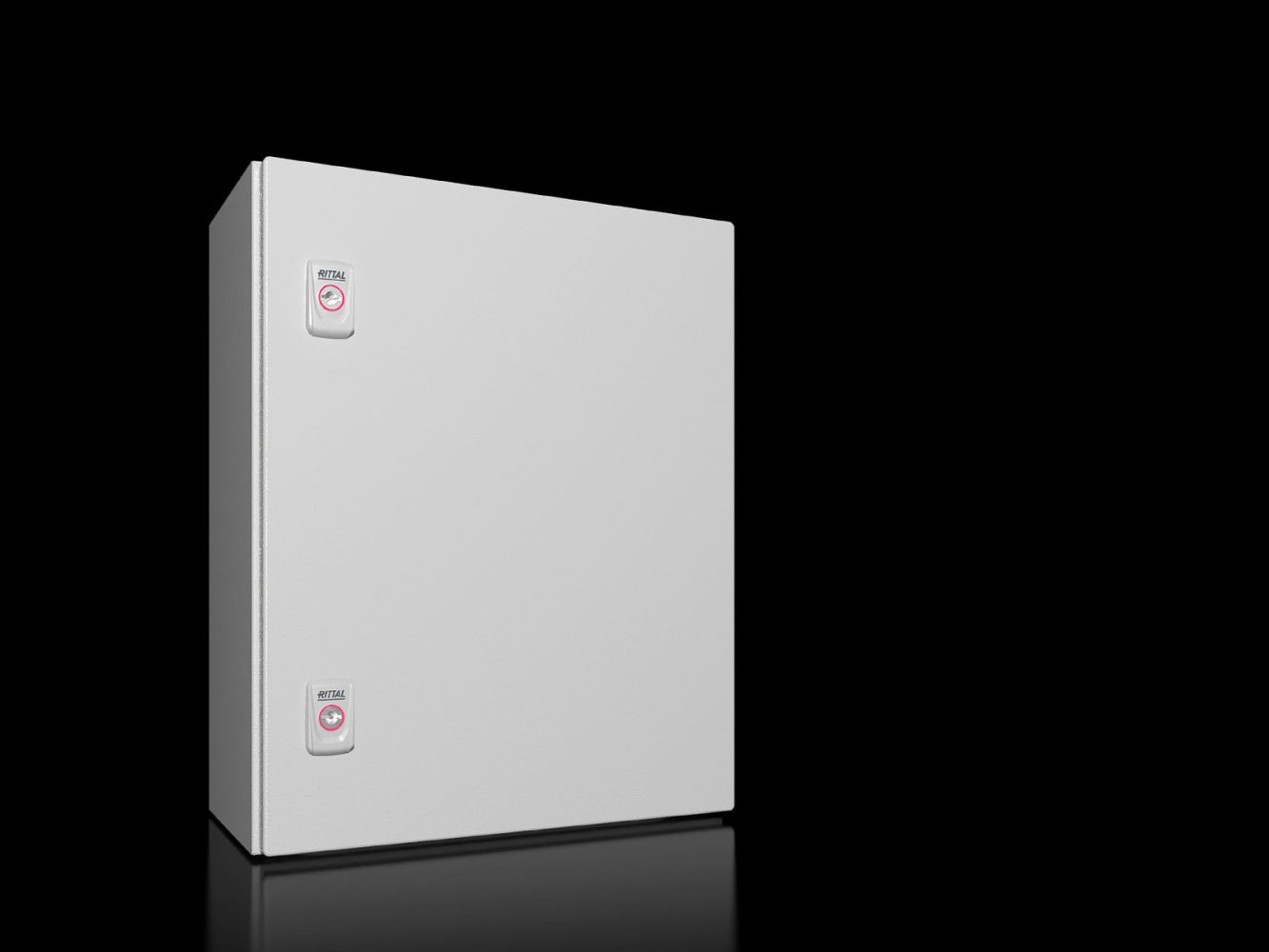

Rittal 1045000 Compact enclosure AX, 1-door, W x H x D: 400x500x210 mm
|
79,31 EUR |
|
|
( 94,38 EUR incl. VAT ) ≈ £66.38 | ≈ $87.16 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598224 |
| Mfg Part No: | 1045000 |
| UPC/EAN: | 4028177813403 |
| Weight: | 12.14 kg |
| Type: | AX 1045000 |
Product information for Rittal 1045000:
Applications
The enclosure is intended for use in various industrial environments, particularly where a high protection class against dust, water, and mechanical stress is required. It is suitable for use in automation technology, power supply, process control, and manufacturing technology. The integrated enclosure lugs in the 25 mm system grid allow for flexible and modular interior fitting, which can be adapted to different mounting requirements. The IP 66 protection rating also makes it suitable for outdoor installations, where it must be protected against weather influences such as rain or splashing water.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a material thickness of 1.25 mm, while the door has a thickness of 1.5 mm. The surface is dip-primed and powder-coated externally with a textured lacquer, ensuring high corrosion resistance and durability. The color corresponds to RAL 7035. The mounting plate, included in the delivery scope, has a thickness of 2 mm and is galvanized, providing protection against corrosion. The dimensions of the mounting plate are 350 mm (width) × 475 mm (height). The door is equipped with two latching locks, each fitted with a 3 mm double-barrel lock insert. The door hinge is reversible, allowing the door to be mounted to open on the right or left. The opening angle is 130° according to VDI, with an option to upgrade to 180°.
Technology Explained Simply

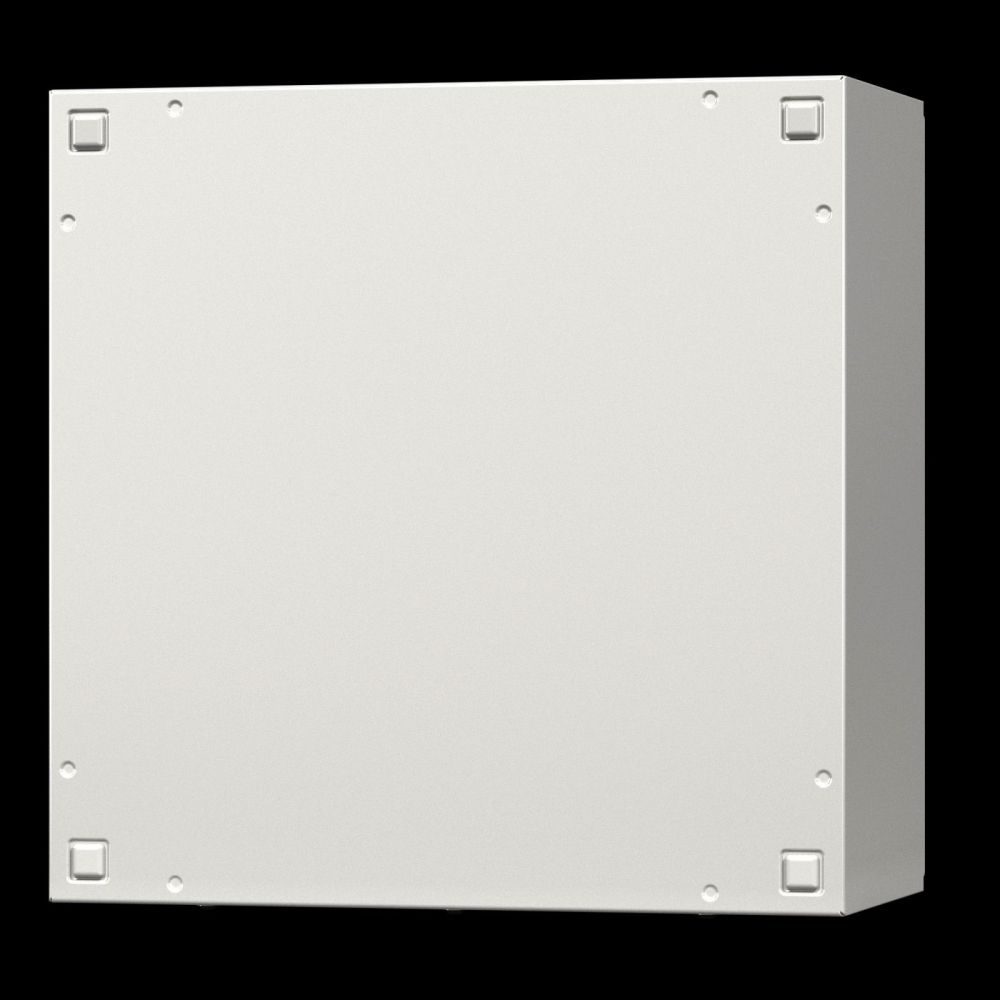

The integrated enclosure lugs in the 25 mm system grid allow mounting of interior fitting rails and additional accessories without drilling. This ensures that the protection rating (UL approval) is maintained during rail installation. The base fitting rail provides an additional mounting level and increases load capacity. The mounting plate is equipped with keyhole slots for earthing and dimension markings and is fastened with ring weld nuts. A QR code is printed on the body, door, and type plate to enable unique identification and easy access to product information and documentation.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories, enabling individual adaptation to specific requirements. These include lock inserts made of zinc die-cast, wall mounting brackets, mounting rails for internal and external mounting levels, dust protection strips made of UV-resistant plastic, baying sets for AX, KX, AE, KL, lock box covers, knob handles, handles with security cylinder, metal gland plates, and multitools. These components can be added as needed to optimize the functionality and safety of the enclosure.
Mounting and Installation
Mounting is performed using the integrated enclosure lugs and the mounting plate. The base flange plate enables secure fastening to the wall or floor. The door can be flipped without tools, making installation flexible. Interior fitting is done via the interior fitting rail, which can be mounted without drilling, thus maintaining the protection rating. The mounting plate provides a stable base for securing assemblies and components.
Advantages in Operation
The enclosure offers high mechanical and electrical safety due to the IP 66 and IK10 protection ratings. The modular interior fitting allows flexible adaptation to different requirements. The integrated enclosure lugs and the interior fitting rail ensure quick and secure mounting without drilling. The reversible door hinge and the option to extend the opening angle to 180° facilitate access to the interior fitting. The robust construction from sheet steel and the powder-coated surface ensure long service life and high corrosion resistance.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 400 mm |
| Height | 500 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2 mm |

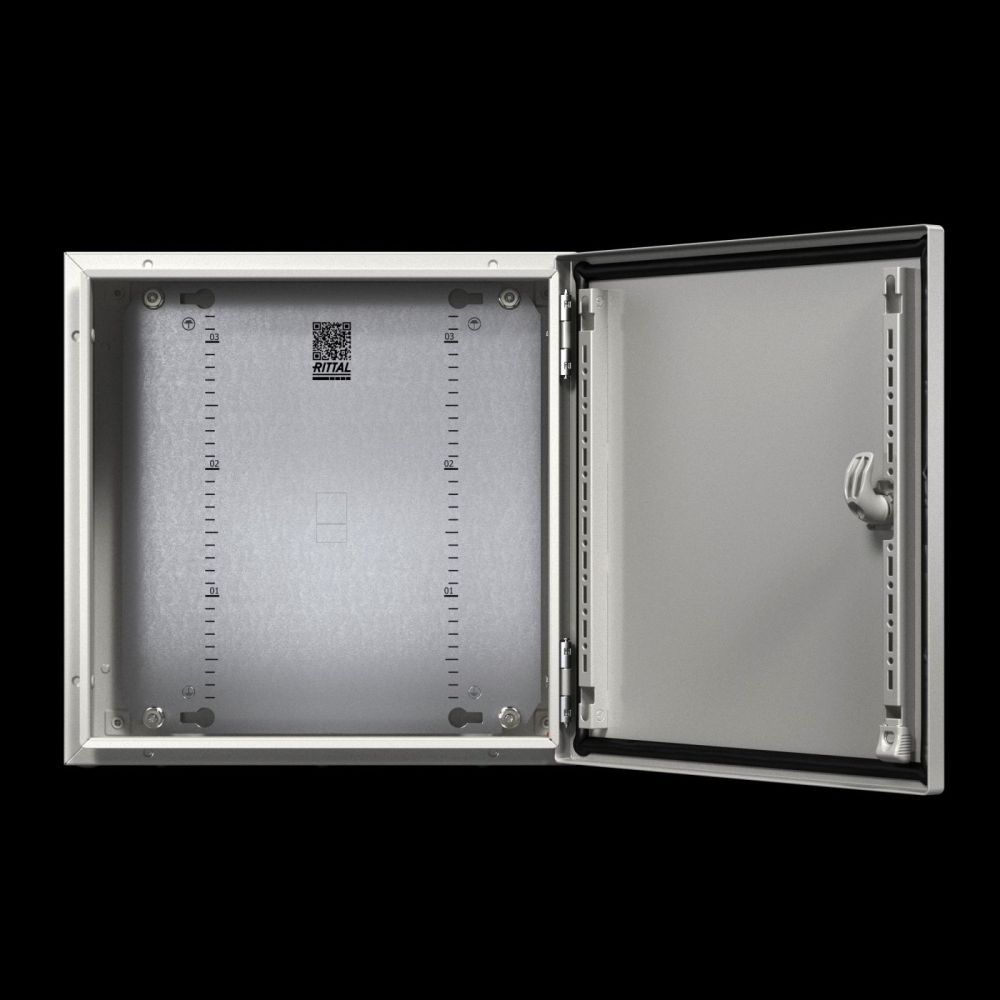

| Mounting plate dimensions (W x H) | 350 mm x 475 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 2, quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 58.99 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
