Rittal 2562450 SZ metal gland plate two-piece for AX with elastic

Your rating:
Average rating
product review for Rittal 2562450 SZ metal gland plate two-piece for AX with elastic
( 4 / 5 ) 1 ratings
Rittal 2562450
This image may differ from the desired article.
-6% 39,68 EUR 42,42 EUR
( 47,22 EUR incl. VAT )
≈ £33.21  |  ≈ $43.61
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2562450 SZ metal gland plate two-piece for AX with elastic
Datasheet:file_download Download
Lieske Part No.:895249
Mfg Part No: 2562450
UPC/EAN: 4069196011913
Weight:0.796 kg
Type:SZ 2562450

Product information for Rittal 2562450:

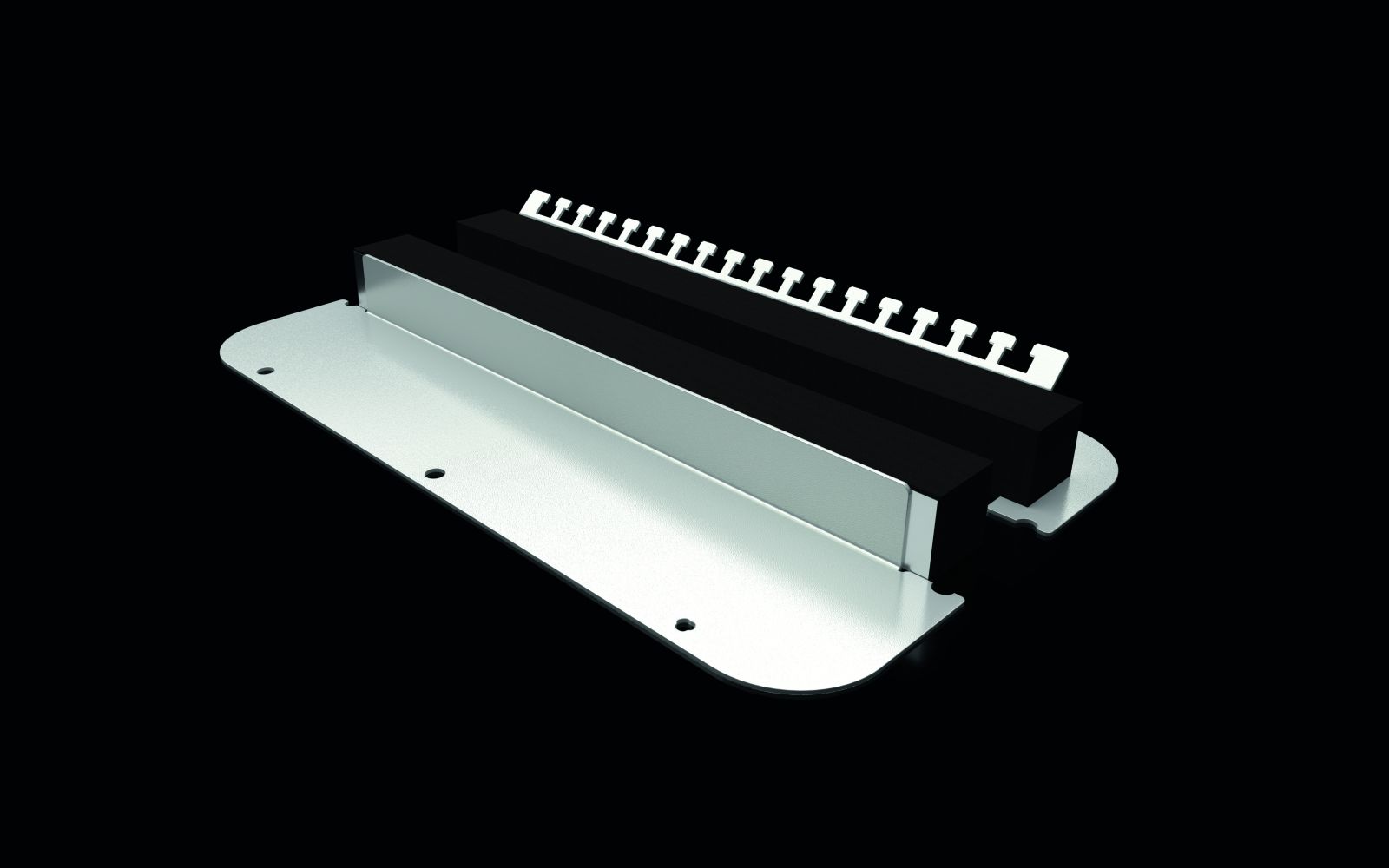

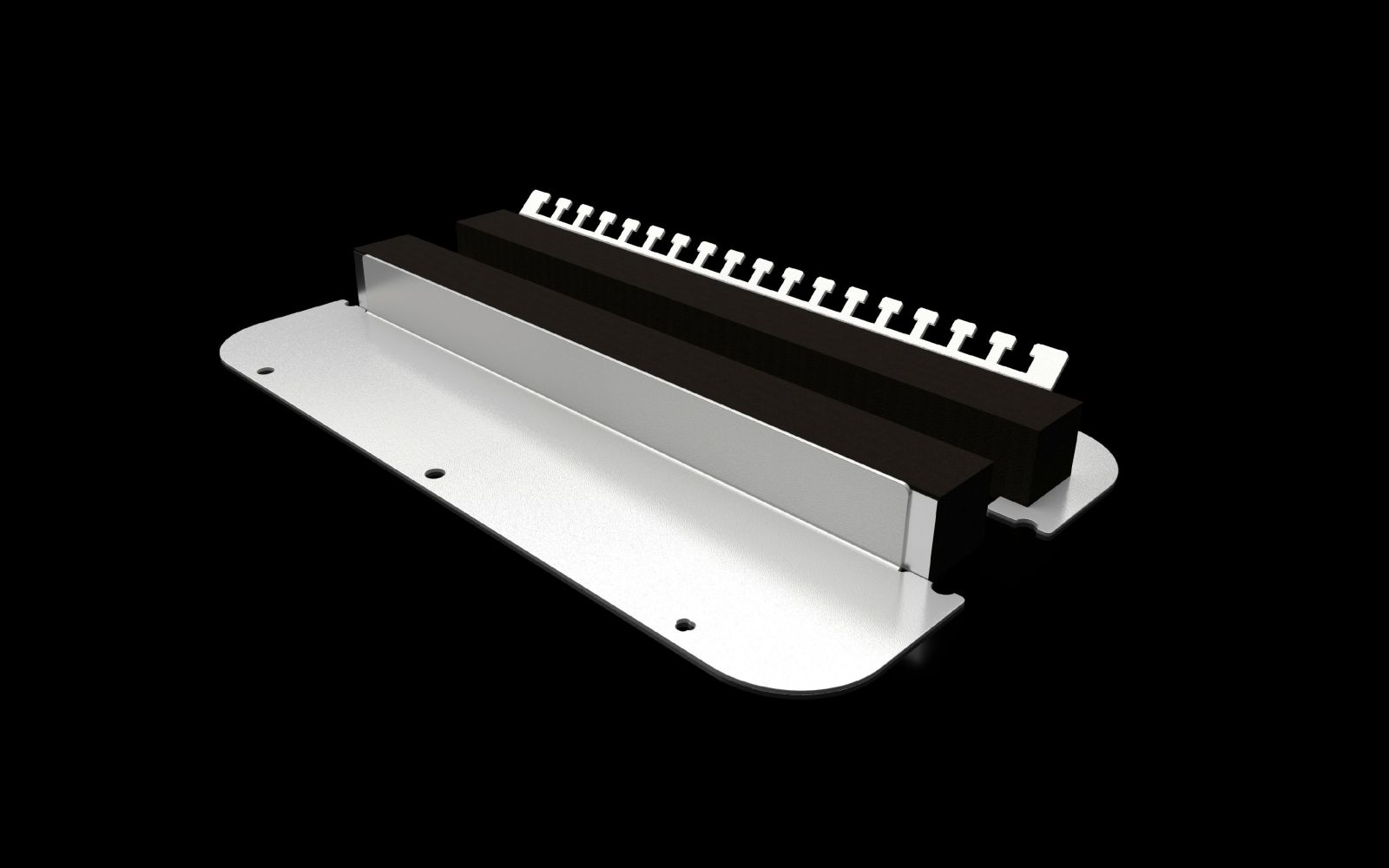

The Rittal SZ 2562450 is a two-part metal gland plate, specifically designed for enclosures of the AX housing type. It serves as a mounting component on the enclosure to enable simple and secure cable entry into the housing, with or without connectors. The gland plate is made of sheet steel and finished in RAL 7035, ensuring visual harmony with standardised enclosure components. Dimensions are 339 mm in width and 149 mm in depth, with the gland plate assigned to size 2. The delivery includes the mounting hardware required for installation on the housing.

Applications
The gland plate is primarily used in industrial environments where secure and structured cable routing in enclosures is required. It is compatible with housings of article numbers 1031000, 1038000, 1045000, 1077000, 1094000, and 1380000. For enclosure widths exceeding 760 mm, two packaging units are required to cover the full width. The two-part design allows for flexible adaptation to different mounting conditions and simplifies installation.

Functions and Equipment in Detail
A central feature of the gland plate is the integrated elastic clamping profile, which enables simple and secure cable fixation. The special holes in the gland plate ensure automatic equipotential bonding during screwing, eliminating the need for additional earthing cables, bolts, or terminals. This reduces installation time and minimises the risk of errors in electrical connections. The gland plate is therefore particularly suitable for applications requiring reliable and quick cable installation in enclosures.

Technology Explained Simply
The two-part construction of the gland plate allows precise adaptation to the enclosure geometry. The elastic clamping profile, located on the front side of the plate, serves as cable guidance and fixation. It ensures that cables are not dislodged by movement or vibration. The holes in the gland plate are designed to create an electrical connection between the individual parts during installation, ensuring equipotential bonding. This is particularly important in electrical installations to avoid voltage differences.

Compatibility and Accessories
The gland plate is specifically developed for AX housing types and fits the mentioned article numbers. As suitable accessories, an elastic clamping profile IP55 with a length of 3 m is offered, suitable for cable guidance in similar applications.

Mounting and Installation
Mounting is carried out using the included mounting hardware. The gland plate is fastened at the designated location on the enclosure, utilising the holes for screwing. For enclosure widths exceeding 760 mm, two units are required to cover the full width. Installation is performed without additional earthing cables, as equipotential bonding is automatically achieved through the holes.

Operational Advantages
The SZ 2562450 provides a reliable and fast cable connection within the enclosure. The integrated earthing function via the holes reduces installation complexity and increases safety. The elastic clamping profile ensures stable cable fixation, extending the service life of the installation. Compatibility with multiple housing types and clear assignment to gland plate size 2 simplifies planning and selection for various industrial applications.

General
Modeltwo-piece
Materialsteel sheet
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
NoteThe assignment of flange plate size can be found in the respective housings. For installation in cabinet width >760 mm, 2 units are required.
Width339 mm
Depth149 mm
Suitable forHousing type: AX
Suitable for part no.1031000, 1038000, 1045000, 1077000, 1094000, 1380000
Flange plateSize: 2


Product data sheet
Datasheet for Rittal 2562450, EAN: 4069196011913

Questions & answers

What is the delivery time of Rittal 2562450 SZ metal gland plate two-piece for AX with elastic?

The article Rittal 2562450 SZ metal gland plate two-piece for AX with elastic is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2562450 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2562450 SZ metal gland plate two-piece for AX with elastic always at the best possible price. We can give you a discount of 2% on Rittal 2562450 SZ metal gland plate two-piece for AX with elastic if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
