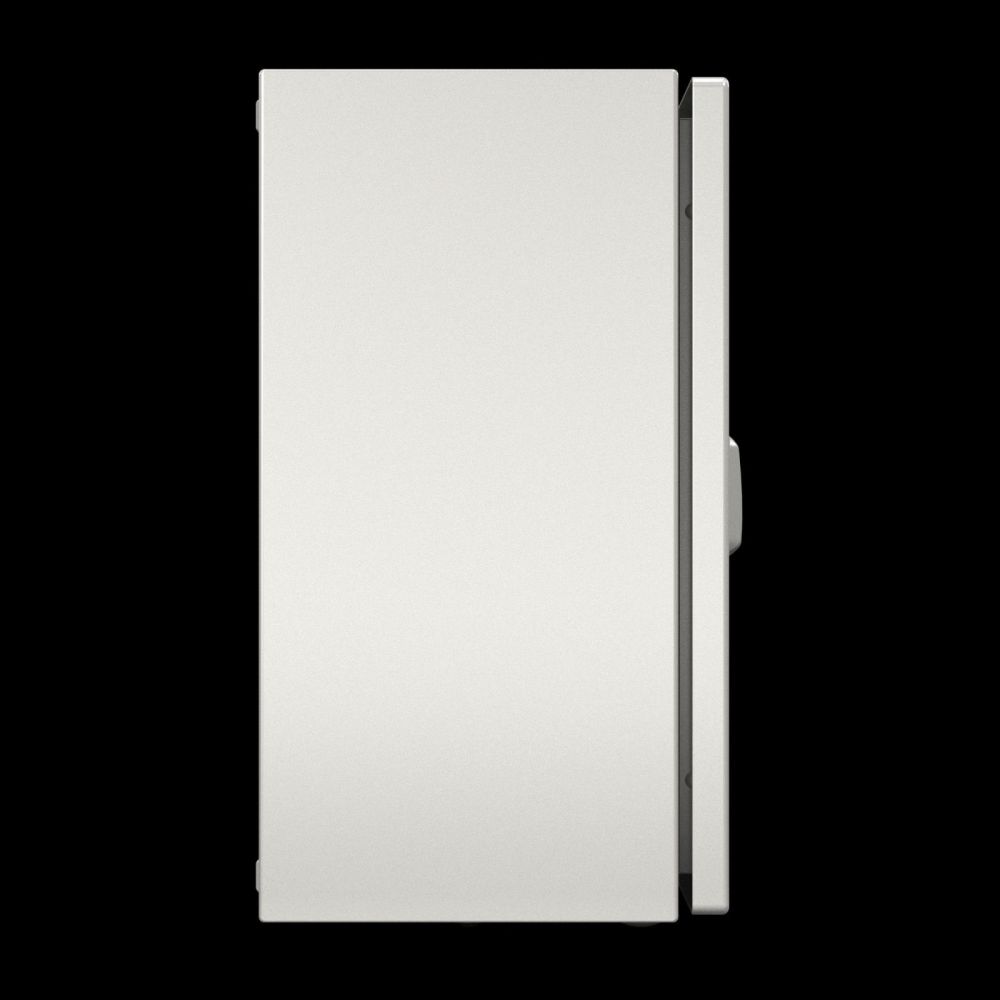

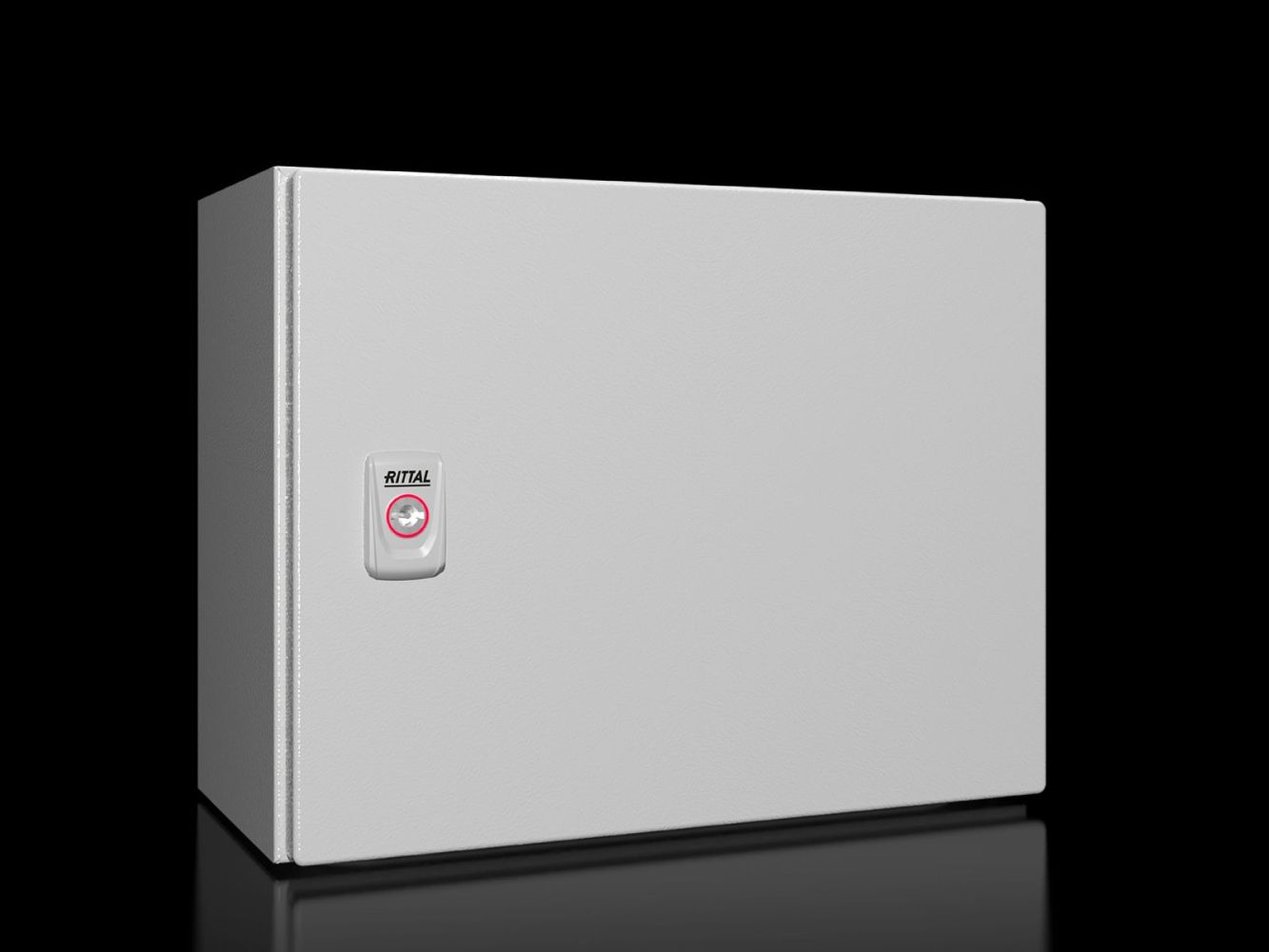

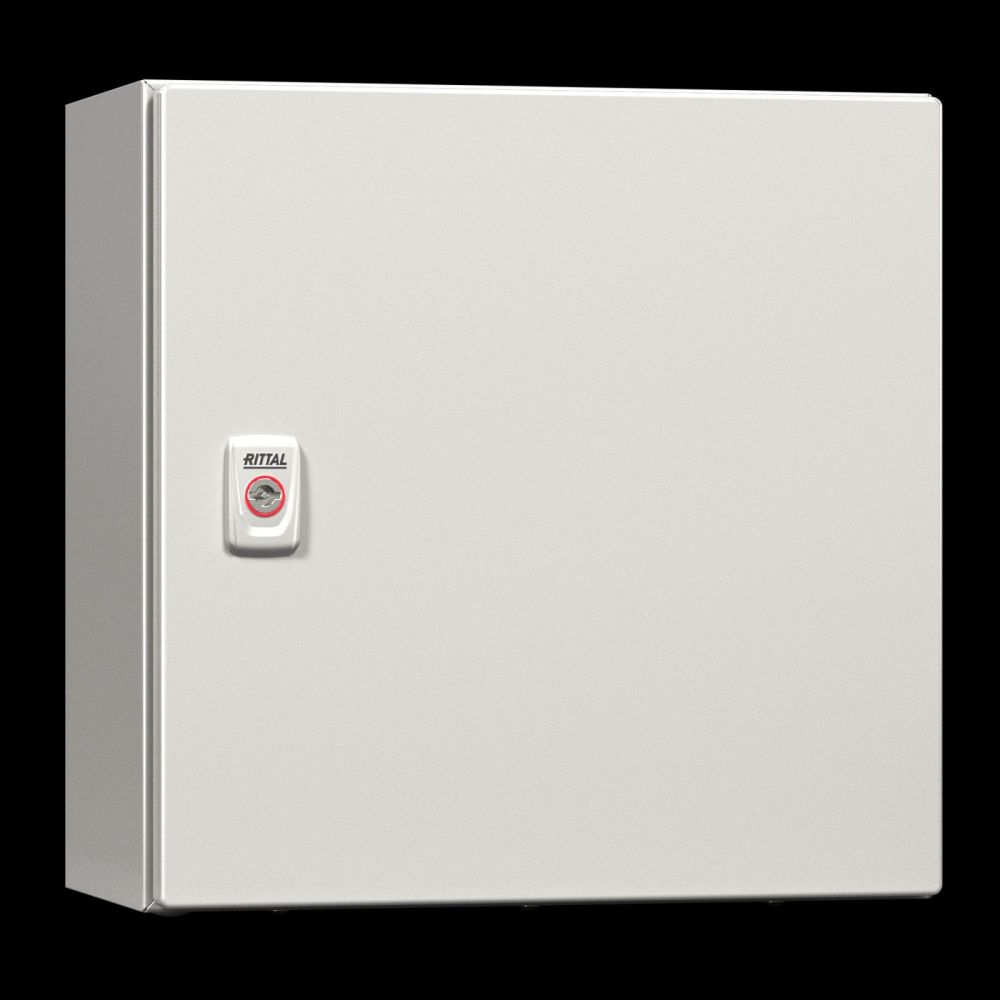

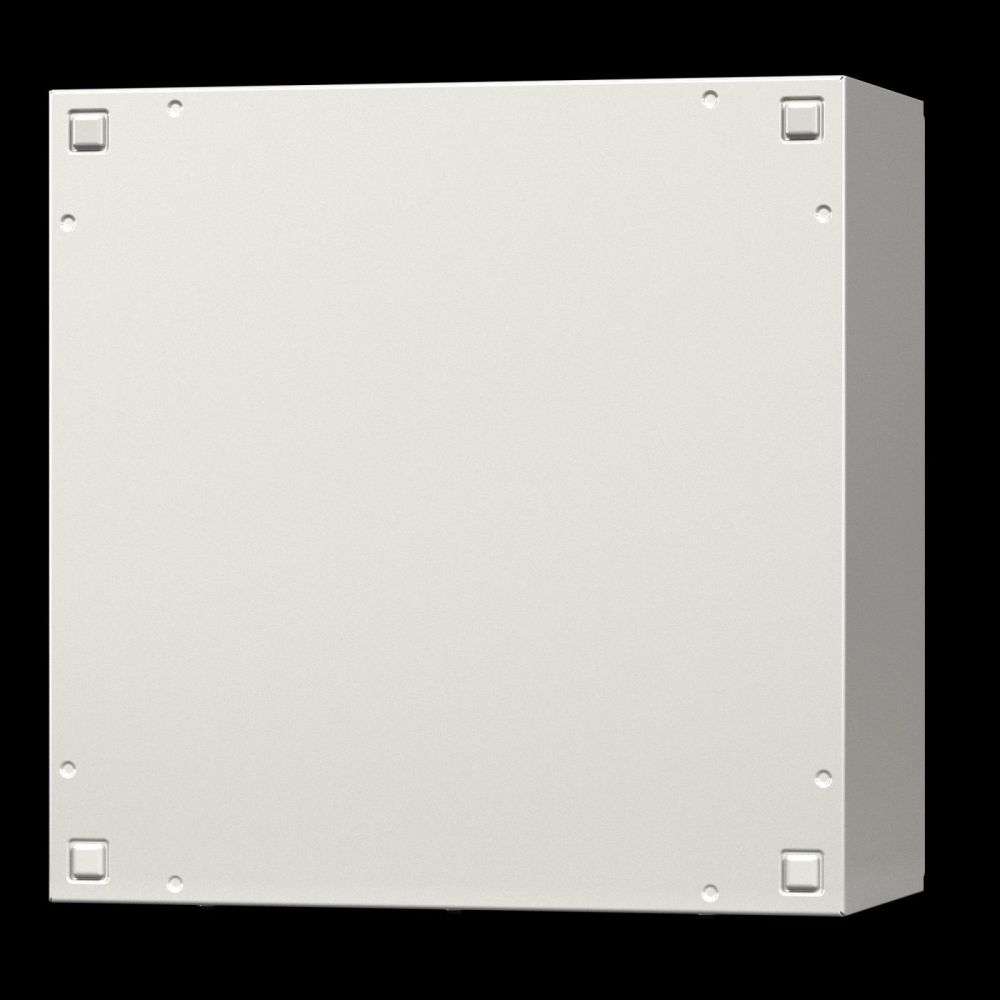

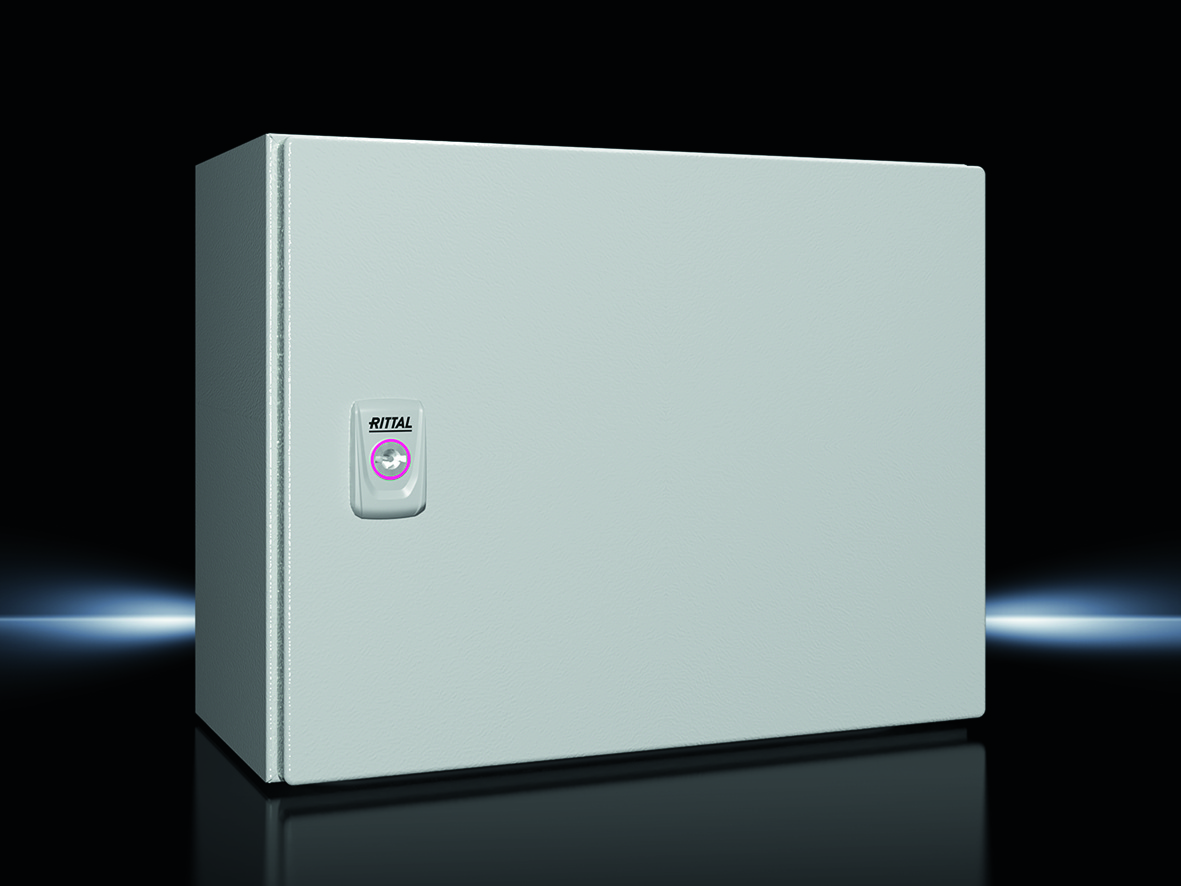

Rittal 1031000 Compact enclosure AX, 1-door, W x H x D: 380x300x210 mm

Your rating:
Average rating
product review for Rittal 1031000 Compact enclosure AX, 1-door, W x H x D: 380x300x210 mm
( 4.4 / 5 ) 9 ratings
Rittal 1031000
This image may differ from the desired article.
Rittal 1031000Rittal 1031000Rittal 1031000Rittal 1031000Rittal 1031000Rittal 1031000Rittal 1031000
66,61 EUR 66,66 EUR
( 79,27 EUR incl. VAT )
≈ £55.75  |  ≈ $73.20
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1031000 Compact enclosure AX, 1-door, W x H x D: 380x300x210 mm
Datasheet:file_download Download
Lieske Part No.:1598230
Mfg Part No: 1031000
UPC/EAN: 4028177813434
Weight:8.18 kg
Type:AX 1031000

Product information for Rittal 1031000:

The Rittal AX 1031000 is a compact enclosure made of steel sheet, designed for use in industrial and technical installations. It features a compact design with dimensions width 380 mm, height 300 mm, and depth 210 mm. The enclosure is made of steel sheet with a material thickness of 1.25 mm, and the door is made of steel sheet with a thickness of 1.5 mm. The surface is dip-primed and externally powder-coated with a textured finish in the colour RAL 7035, ensuring high corrosion resistance and mechanical strength. The mounting plate, made of galvanised steel sheet (2 mm thickness), is included in the delivery scope and provides a stable mounting surface for electrical components. The door is fitted with a continuous foamed PU seal, ensuring protection class IP 66 according to EN 60 529. This protection class means the enclosure is dust-tight and protected against heavy splashing water, making it suitable for outdoor use or in damp environments. Additionally, the enclosure meets protection classes NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as Type ratings according to UL 50E: Type 1, Type 3R, Type 4, and Type 12. The IK code IK10 indicates high mechanical impact resistance, making the enclosure suitable for environments with increased mechanical stress.

Applications
This enclosure is designed for use in industrial installations, machine building, automation technology, and electrical installation. It is particularly suitable for applications requiring a compact, robust, and weather-resistant cover for electrical components, control units, or fuse boxes. The protection class IP 66 and NEMA classification also make it suitable for outdoor use, for example in agriculture, environmental technology, or manufacturing technology.

Functions and Equipment in Detail

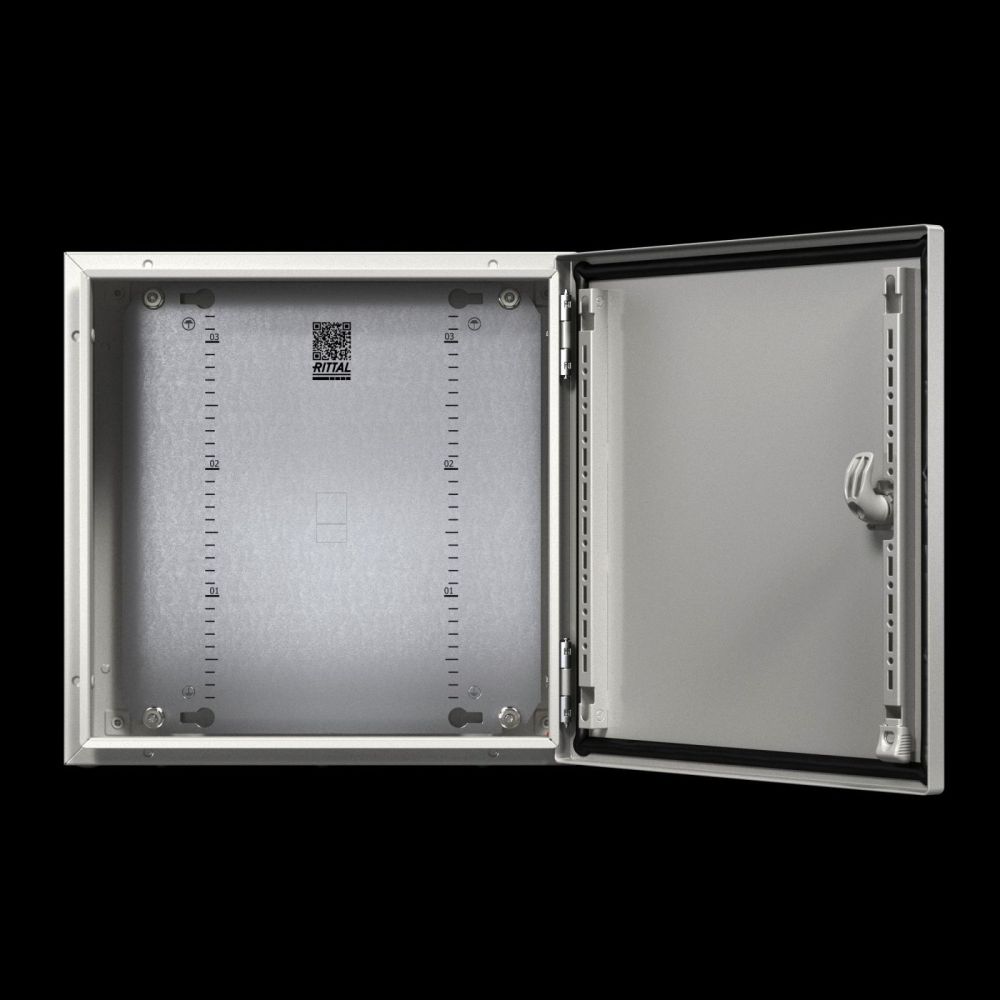

The enclosure is single-door, with a reversible door hinge, allowing the door to be mounted with right- or left-hand swing. The door is secured with a deadbolt lock featuring a 3 mm double-barrel lock insert. This lock is standardised according to DIN 43668 and provides secure locking. The delivery scope also includes a door hole strip and a gland plate (size 2) in the enclosure base, which facilitate mounting and cable entry. The mounting plate is equipped with keyhole slots for earthing and dimension markings and is fastened with ring weld nuts.

Technical Explanation
A central feature of the AX enclosure is the integrated 25 mm system grid, realised through embossed enclosure lugs in the roof, base, and sides. This system enables easy and secure mounting of internal mounting rails and additional accessories without drilling. The rail can be directly inserted into the lugs, preserving the protection class (UL approval). This simplifies planning and installation and allows flexible adaptation to different mounting requirements. The base mounting rail provides an additional mounting level and increases load capacity inside the enclosure.

Compatibility and Accessories
The enclosure is compatible with the Rittal configurator RiPanel, enabling easy planning and configuration. Suitable accessories include, among others, lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, dust protection strips, baying sets, knob handles, hand grips, metal gland plates, stainless steel protection roofs, multitools, and plastic hand grips. These components can be added according to requirements to optimise the functionality and safety of the enclosure.

Mounting and Installation
Mounting is performed via the integrated gland plate in the enclosure base and the mounting plate. The door can be installed with right- or left-hand swing as required. The internal mounting rail is inserted without drilling into the enclosure lugs, speeding up installation and maintaining the protection class. The mounting plate is equipped with keyhole slots for earthing, ensuring electrical safety.

Operational Advantages
The enclosure offers high mechanical and climatic protection ratings, making it suitable for demanding operating conditions. The integrated lugs and 25 mm system grid enable flexible and rapid adaptation to different requirements. The robust steel sheet construction and powder-coated surface ensure long service life and high resistance to corrosion. The uniform colouring in RAL 7035 supports visual harmonisation in technical installations. The integrated QR code identification on the body, door, and nameplate enables unique identification and easy access to relevant product information and documentation.

General
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK10
Width380 mm
Height300 mm
Depth210 mm
Door material thickness1,5 mm
Plate thickness cabinet1,25 mm
Mounting plate material thickness2 mm
Mounting plate dimensions (W x H)330 mm x 275 mm
Number of doors1
Number of locks1
LockLocking mechanism type: latch, number of locks: 1, lock insert: 3 mm double barb
Flange plateSize: 2, quantity: 1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)47.17 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
Reversible door hingeJa


Product data sheet
Datasheet for Rittal 1031000, EAN: 4028177813434
