Rittal 4599100 TS mounting bracket for door width 380 mm

Your rating:
Average rating
product review for Rittal 4599100 TS mounting bracket for door width 380 mm
( 4.5 / 5 ) 6 ratings
Rittal 4599100
This image may differ from the desired article.
Rittal 4599100Rittal 4599100Rittal 4599100Rittal 4599100Rittal 4599100Rittal 4599100
50,49 EUR 50,72 EUR
( 60,08 EUR incl. VAT )
≈ £42.26  |  ≈ $55.49
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 4599100 TS mounting bracket for door width 380 mm
Datasheet:file_download Download
Lieske Part No.:1593434
Mfg Part No: 4599100
UPC/EAN: 4028177939035
Weight:3.308 kg
Type:TS 4599100

Product information for Rittal 4599100:

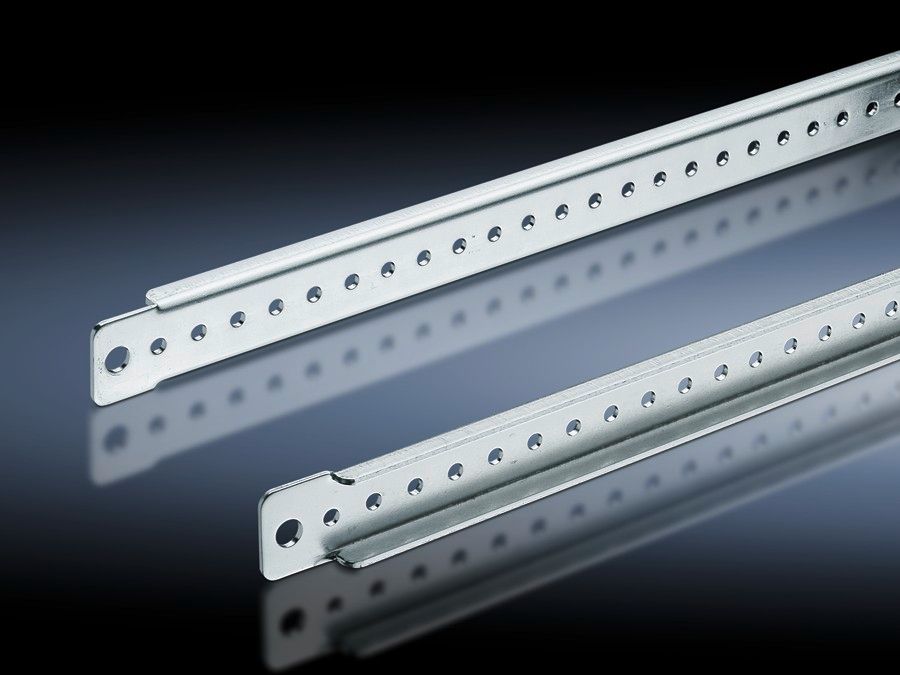

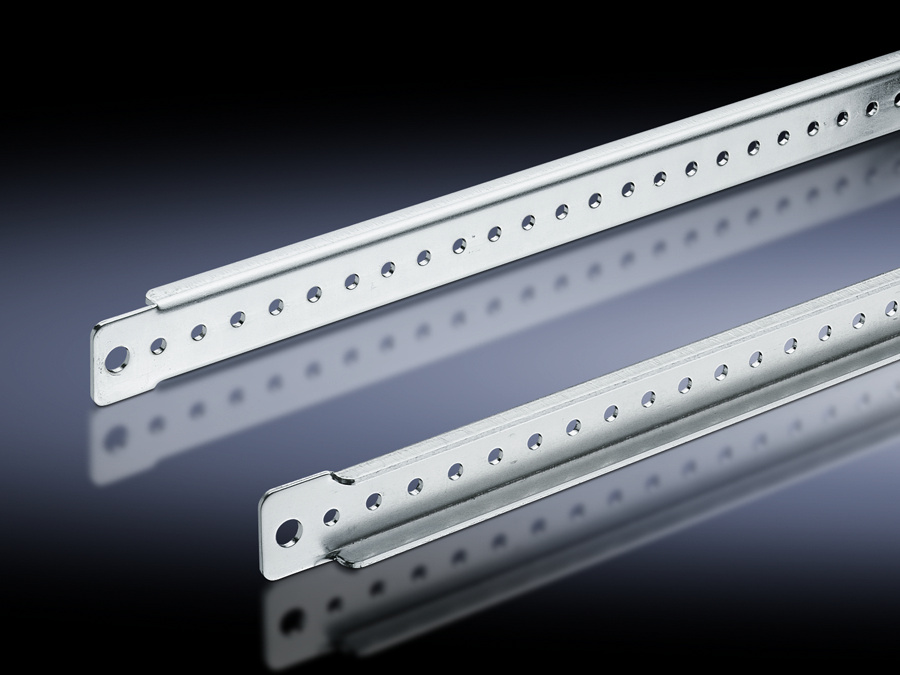

The Rittal TS 4599100 is a mounting bracket made of sheet steel, specifically designed for securing components to enclosure doors. It is intended for doors with a width of 380 mm and is particularly suitable for enclosure types from the AX series. The bracket serves as a universal mounting base for various elements in enclosure construction, such as cable ducts, cable conduit holders, shock protection covers, door inserts, as well as for cable strain relief and fixation. The zinc-coated surface ensures good corrosion resistance and long-term performance in industrial environments.

Applications

The mounting bracket is used in industrial enclosure construction where secure and structured mounting of components to the door is required. It is particularly suitable for installations where cables and wiring must be properly routed and secured to ensure a safe and maintenance-friendly installation. The bracket is used in enclosures with a door width of 380 mm, with installation intended to be done with a pre-drilled hole.

Functions and Equipment in Detail

The bracket features a drilling pattern with a diameter of 4.5 mm on a 25 mm grid, enabling flexible and precise mounting of accessory parts. The length is 320 mm, allowing it to fit well within the designated door width of 380 mm. The zinc coating of the sheet steel surface provides effective protection against corrosion and ensures long service life under industrial conditions.

Technology Explained Simply

The drilling pattern on a 25 mm grid allows for standardized and uniform mounting of components that are also designed for this grid. This simplifies planning and installation, as the positioning of elements is precise and repeatable. The use of sheet steel ensures sufficient strength to securely hold mounted components. The zinc coating protects the material from moisture and oxidative influences, which is particularly beneficial in humid or corrosive environments.

Compatibility and Accessories

The mounting bracket is specifically designed for enclosure housings of type AX with a door width of 380 mm. It is compatible with various accessories commonly used in enclosure construction, such as cable ducts, cable conduit holders, or shock protection covers. Suitable accessories include cable ties with a length of 150 mm, which can be used to secure cables or wiring to the mounting bracket.

Mounting and Installation

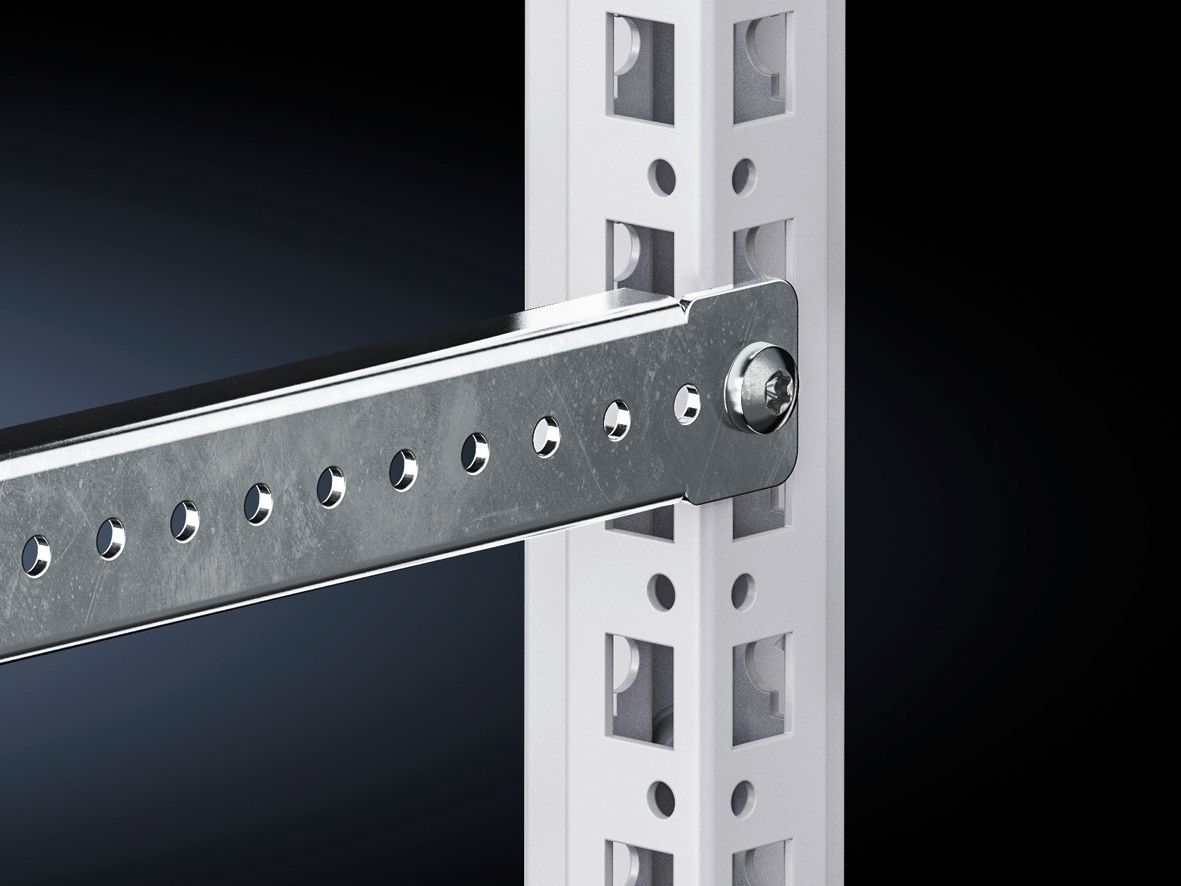

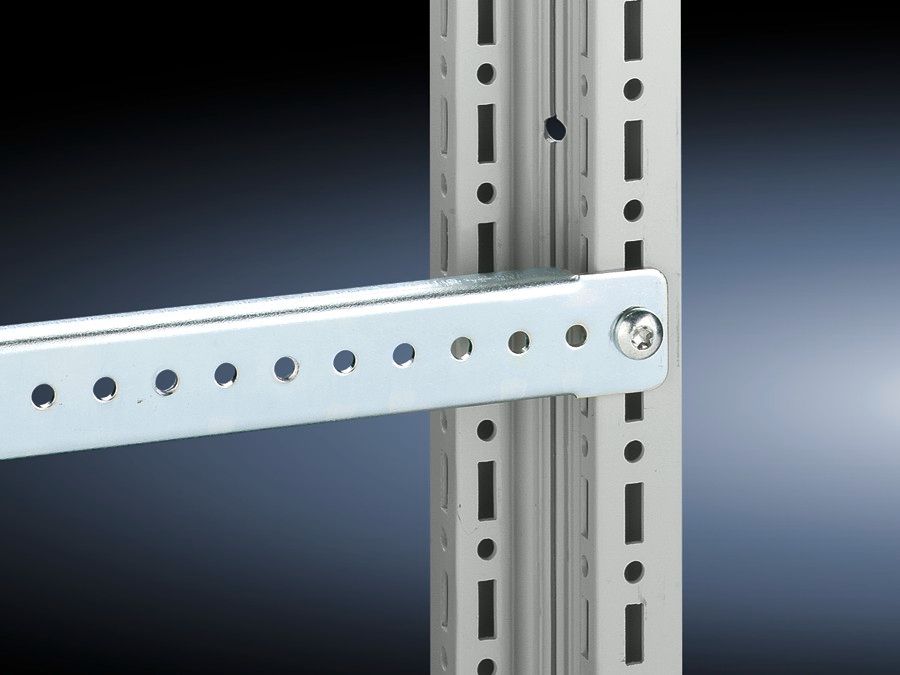

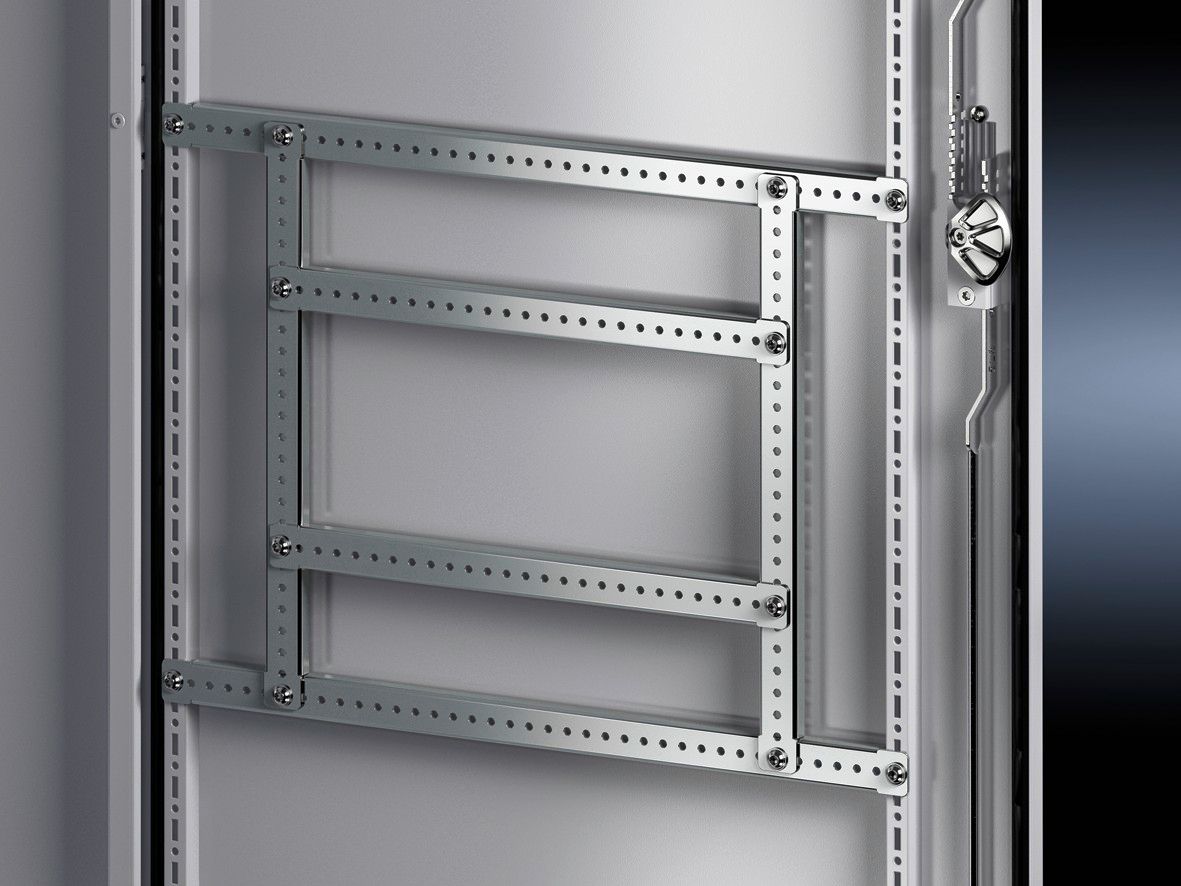

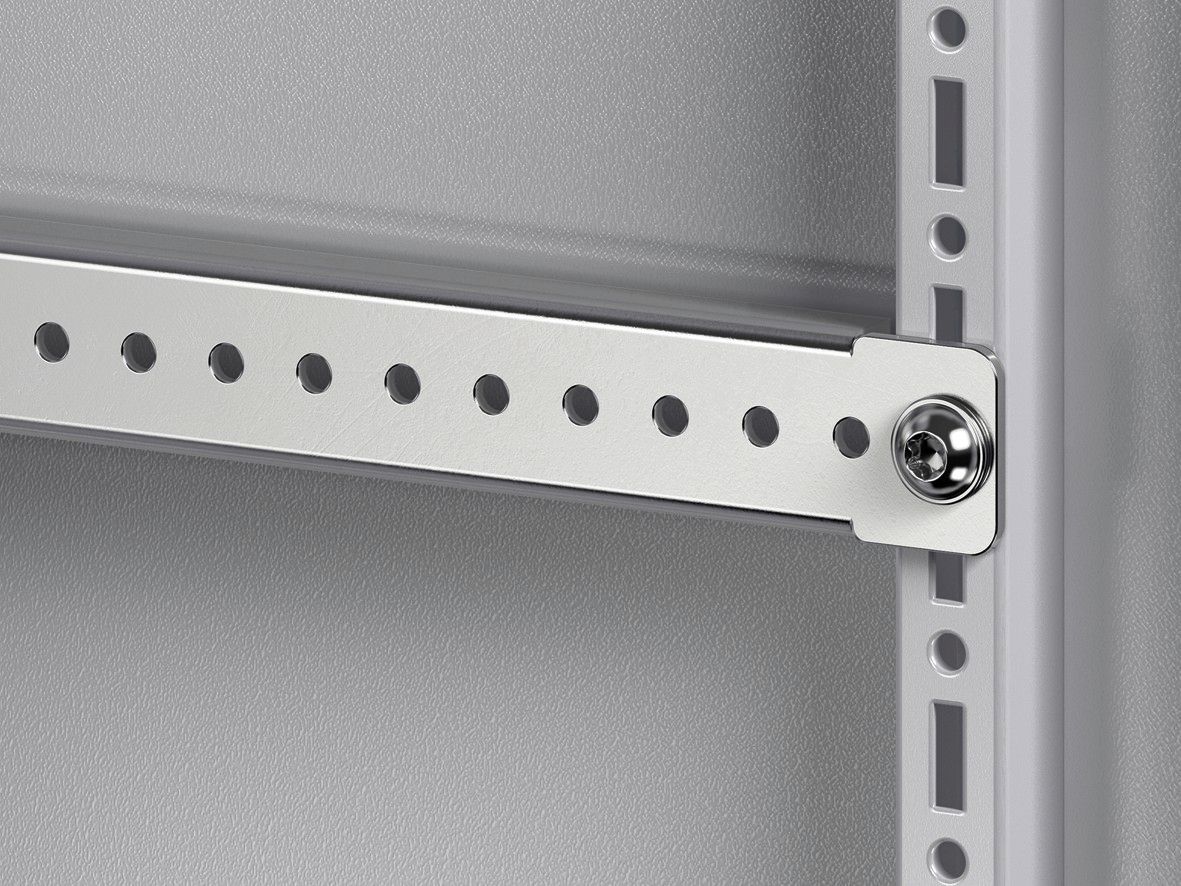

Installation is carried out in doors with a width of 380 mm, with the mounting method requiring a pre-drilled hole. The included fastening material enables quick and secure installation. The bracket is positioned along the door, with the 25 mm grid drilling ensuring precise alignment of the components to be mounted. Installation requires no additional tools beyond a screwdriver or pliers, depending on the fastening material.

Advantages in Operation

The mounting bracket provides a structured and secure mounting option for various components within the enclosure. The standardized drilling pattern simplifies planning and installation, while the zinc coating ensures high corrosion resistance. Integration into the 380 mm door width ensures optimal fit, and the included fastening material reduces installation time. Use in AX enclosures enables uniform and professional execution of enclosure installations.

General
Technical dataDrilling Ø 4.5 mm on 25 mm grid
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Length320 mm
Suitable for door width380 mm
Mounting options AXIn door width 380 mm, with pilot
Suitable forHousing type: AX, width/depth: 380 mm
PCF/VE (Cradle-to-Gate)15.44 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 4599100, EAN: 4028177939035

Questions & answers

What is the delivery time of Rittal 4599100 TS mounting bracket for door width 380 mm?

The article Rittal 4599100 TS mounting bracket for door width 380 mm is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4599100 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 4599100 TS mounting bracket for door width 380 mm always at the best possible price. We can give you a discount of 2% on Rittal 4599100 TS mounting bracket for door width 380 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
