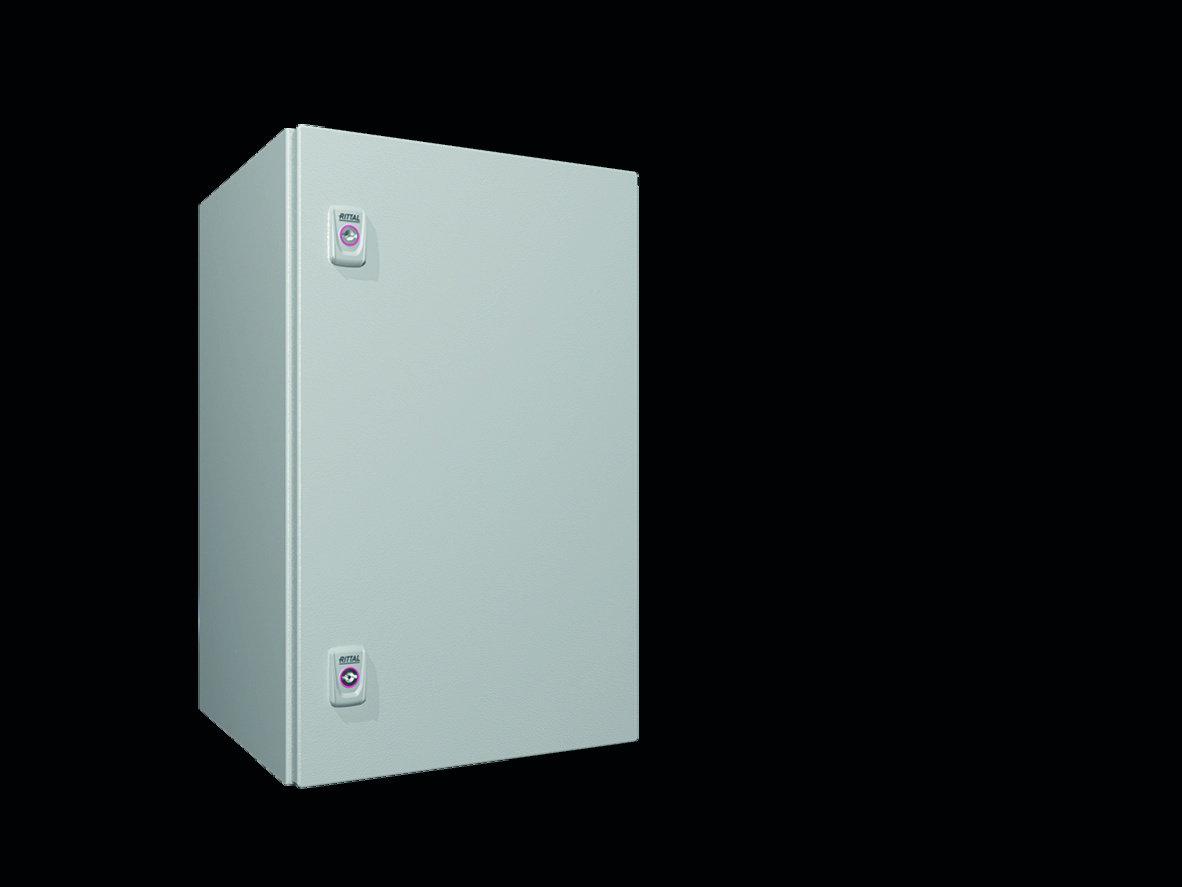

Rittal 1338000 Compact enclosure AX, 1-door, W x H x D 380x600x350 mm,
|
146,28 EUR |
|
|
( 174,07 EUR incl. VAT ) ≈ £122.44 | ≈ $160.76 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598134 |
| Mfg Part No: | 1338000 |
| UPC/EAN: | 4028177813182 |
| Weight: | 18.55 kg |
| Type: | AX 1338000 |
Product information for Rittal 1338000:
Applications
The enclosure is suitable for use in indoor and outdoor environments, particularly in areas with high requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures complete dust tightness and protection against strong splashing water from any direction. The NEMA protection ratings include NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, confirming suitability for dry indoor spaces, damp environments, protective enclosures against splashing water, and dusty areas. The type rating according to UL 50E includes Type 1, Type 3R, Type 4, and Type 12, confirming UL approval for various operating conditions. The IK code IK10 indicates high mechanical resistance against impact and shock. The integrated gland plate in the base enables secure mounting to walls or floors.
Functions and Equipment in Detail
The integrated enclosure lugs in a 25 mm grid allow the installation of internal components such as rails and accessories without drilling, preserving the protection rating. The mounting plate provides a stable mounting surface for electrical components. The door is fitted with a double-sided door hole strip, enabling secure attachment of locks and additional elements. The locks are designed as deadbolts and equipped with a 3 mm double-barrel lock insert, ensuring secure and robust locking. The door can be mounted on either side, allowing flexible installation at different locations. The opening angle is 130° according to VDI, with an option to upgrade to 180°.
Technology Explained Simply
The construction from sheet steel with a material thickness of 1.5 mm ensures high mechanical stability. The surface treatment with dip priming, powder coating, and textured lacquer provides high corrosion protection. The PU seal on the door ensures a tight seal against dust and water. The IP 66 protection rating means the enclosure is dust-tight and protected against strong splashing water from any direction, making it suitable for outdoor use. The NEMA protection ratings and UL approvals confirm suitability for various industrial environments. The IK10 rating indicates that the enclosure is protected against mechanical impacts such as shock and impact up to a certain energy level.
Compatibility and Accessories
The enclosure is compatible with the Rittal RiPanel configurator, enabling easy planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, KL, mounting rails for internal mounting level, knob handles, handles with safety cylinder, multitools, plastic handles, and floor mounting rail. The floor mounting rail provides an additional mounting level and increases load capacity. The integrated enclosure lugs allow mounting of system accessories without drilling.
Mounting and Installation
Mounting is done via the integrated gland plate in the enclosure base, enabling secure attachment to walls or floors. The internal mounting plate provides a stable mounting surface for electrical components. The door can be mounted on either side, allowing flexible installation at different locations. Internal components can be mounted using the integrated enclosure lugs and rails without drilling, preserving the protection rating.
Operational Advantages
The enclosure offers high mechanical and chemical resistance due to the sheet steel construction and surface treatment. The integrated enclosure lugs enable flexible and quick installation of internal components without drilling, reducing installation time and preserving the protection rating. The IP 66 protection rating and UL approvals ensure safe use in various industrial environments. The reversible door hinge direction and the option to upgrade to 180° opening angle increase installation flexibility. The integrated mounting plate and gland plate in the base simplify the mounting and installation of components and the enclosure itself.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 380 mm |
| Height | 600 mm |
| Depth | 350 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 330 mm x 575 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 5, quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 88.4 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
