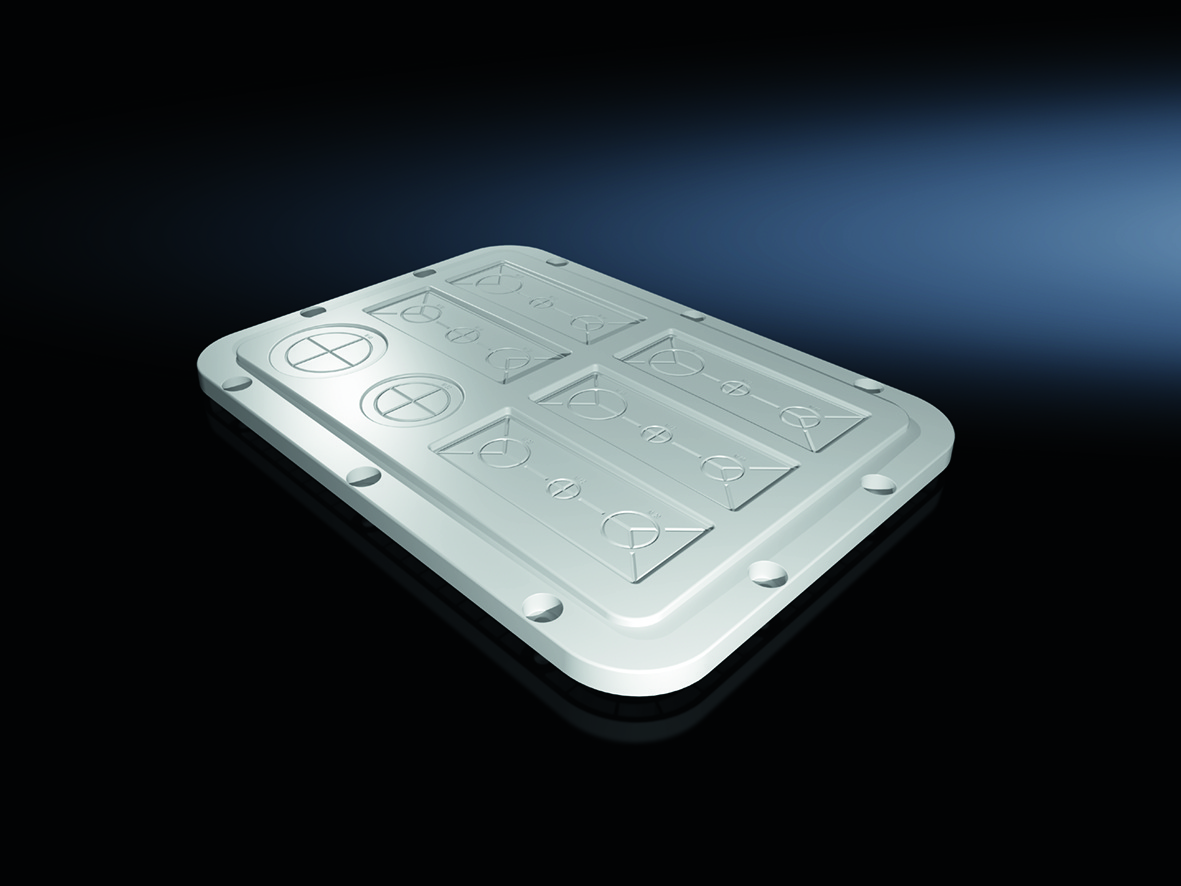

Rittal 2565200 Plastic gland plate, modular, metric pre-punching,

Your rating:
Average rating
product review for Rittal 2565200 Plastic gland plate, modular, metric pre-punching,
( 4.7 / 5 ) 6 ratings
Rittal 2565200
This image may differ from the desired article.
Rittal 2565200Rittal 2565200Rittal 2565200Rittal 2565200Rittal 2565200Rittal 2565200Rittal 2565200Rittal 2565200
20,24 EUR 20,46 EUR
( 24,09 EUR incl. VAT )
≈ £16.94  |  ≈ $22.24
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2565200 Plastic gland plate, modular, metric pre-punching,
Datasheet:file_download Download
Lieske Part No.:1598241
Mfg Part No: 2565200
UPC/EAN: 4028177938434
Weight:0.418 kg
Type:AX 2565200

Product information for Rittal 2565200:

The Rittal AX 2565200 is a plastic gland plate for use in enclosures of type AX. It serves as a modular component for secure and structured cable gland installation and provides pre-formed openings for direct mounting of cable entry plates. The gland plate is designed in size 5 and specifically fits enclosures of the AX series. Its material is plastic according to UL 94-V0, known for its high flame resistance and heat resistance. The colour corresponds to the standard RAL 7035, a grey tone commonly used in industrial environments.

Applications
The gland plate is used in industrial plants where secure and clean cable routing is required. It is particularly suitable for enclosures operated in environments with increased contamination risk, humidity, or mechanical stress. The modular design enables flexible adaptation to different cable entries and reduces installation time, as no additional drilling or machining is required.

Functions and Equipment in Detail
The plate features 5 rectangular cutouts, each providing space for up to 10 small sealing inserts. These enable a tight and secure gland connection for cables of various diameters. Additionally, metric pre-punchings are available: 4 x M12, 4 x M16, 4 x M20, 3 x M25, 1 x M32, and 1 x M40. These pre-punchings can be easily broken through to directly install cable glands. An integrated reinforcement frame ensures additional stability and prevents cracks or deformation during installation.

Technology Explained Simply
The protection rating IP 66 according to EN 60 529 is achieved with proper installation. This means the gland plate is dust-tight and protected against strong splashing water, making it suitable for outdoor use or in humid industrial plants. The operating temperature range is -40 °C to 80 °C, enabling use in extreme climatic conditions. The type rating according to UL 50E includes Type 1 and Type 12, confirming suitability for indoor and outdoor installations with limited contamination.

Compatibility and Accessories
The gland plate is specifically designed for enclosures of type AX and fits size 5. The assignment of gland plate size is based on the respective enclosure description. The modular construction allows combination with various cable entries, which can be installed into the pre-formed openings. The use of sealing inserts in the rectangular cutouts enables individual adaptation to different cable diameters.

Installation and Mounting
Installation is performed by breaking through the plastic pre-punchings at the desired locations. The pre-formed openings and reinforcement frame facilitate installation and ensure a stable connection. The gland plate is fastened at the designated mounting points within the enclosure. Proper installation is essential to ensure the specified protection rating IP 66.

Operational Advantages
The modular design reduces installation time and minimizes error sources. The pre-formed openings and reinforcement prevent damage during installation. The high temperature resistance and flame protection of the material ensure safe and reliable operation throughout the entire service life. The combination of plastic, IP 66, modular design, and metric pre-punchings makes the gland plate a universally applicable component in industrial electrical engineering.

General
MaterialPlastic according to UL 94-V0
ColourRAL 7035
Number of rectangular cutouts information1 rectangular cutout accepts 10 density inserts, small size
Number of rectangular cutouts5
NoteThe assignment of flange plate size can be found with the respective enclosures
Number of metric pre-forms4 x M12, 4 x M16, 4 x M20, 3 x M25, 1 x M32, 1 x M40
Width301 mm
Depth221 mm
Suitable forHousing type: AX
Flange plateSize: 5
Operating temperature range-40 °C...80 °C
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12


Product data sheet
Datasheet for Rittal 2565200, EAN: 4028177938434

Questions & answers

What is the delivery time of Rittal 2565200 Plastic gland plate, modular, metric pre-punching, ?

The article Rittal 2565200 Plastic gland plate, modular, metric pre-punching, is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2565200 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2565200 Plastic gland plate, modular, metric pre-punching, always at the best possible price. We can give you a discount of 2% on Rittal 2565200 Plastic gland plate, modular, metric pre-punching, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
