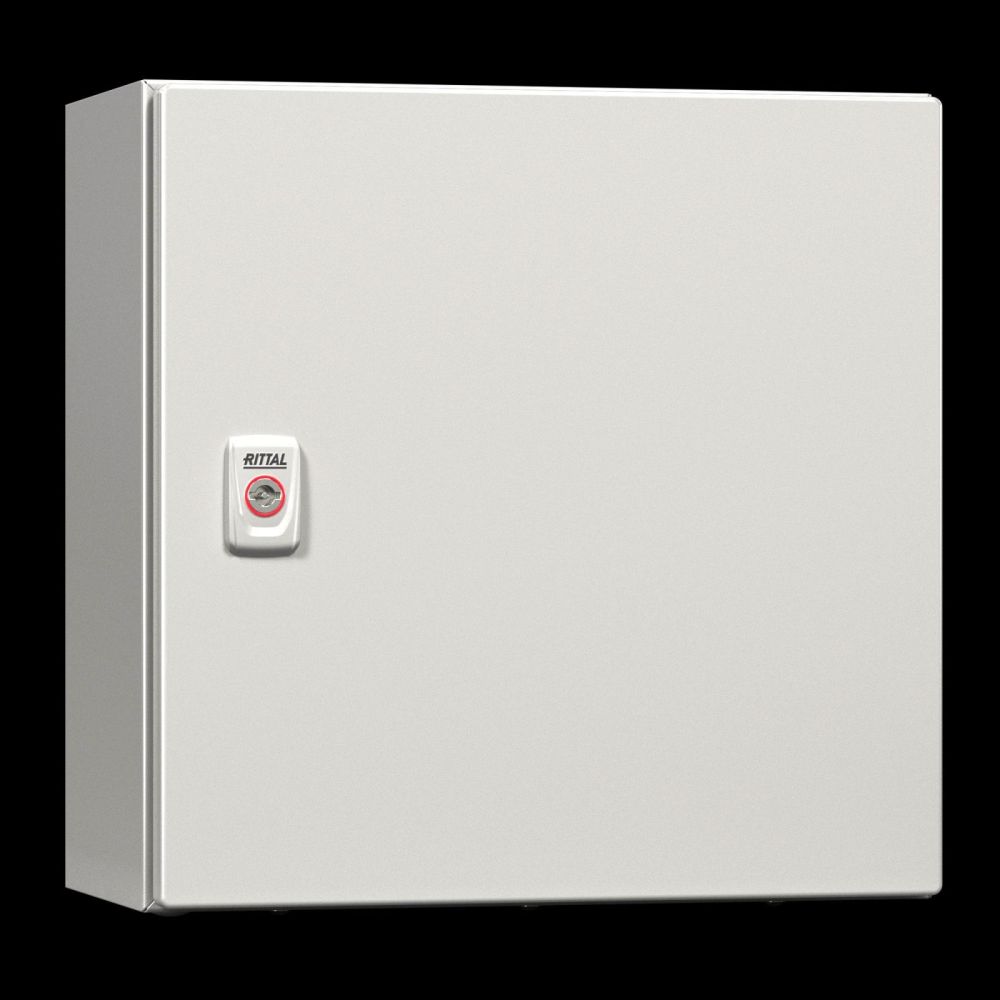

Rittal 1181000 Compact enclosure AX 800x1000x400 mm IP66 content_copy

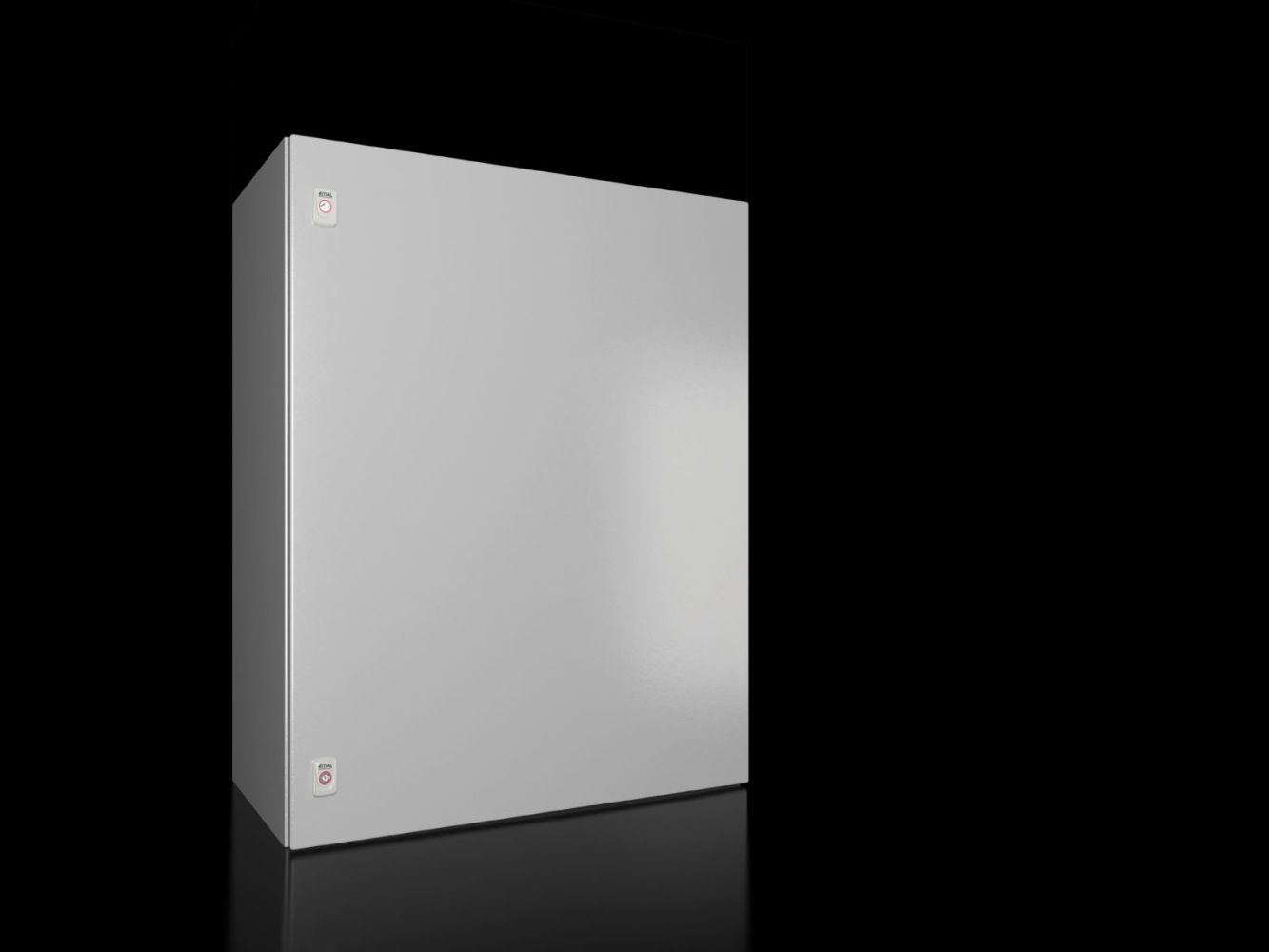

The Rittal AX 1181000 is a compact enclosure made of sheet steel, designed for use in industrial plants and technical installations. It has dimensions of 800 mm width, 1,000 mm height, and 400 mm depth, and is designed as a single-door enclosure. The door is fitted with a continuous foamed PU seal, which together with the enclosure construction ensures a high degree of protection. The surface of the enclosure and door is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, providing high corrosion resistance and resistance to external influences. The mounting plate is galvanized and offers a stable mounting surface for internal components.

Applications

The enclosure is suitable for use in indoor and outdoor environments, particularly in areas with increased requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures complete dust tightness and protection against strong splashing water, making it suitable for outdoor use or in humid industrial plants. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various industrial applications, including humid or dusty environments. The IK code IK10 guarantees high protection against mechanical impacts, such as shock or impact.

Functions and Equipment in Detail

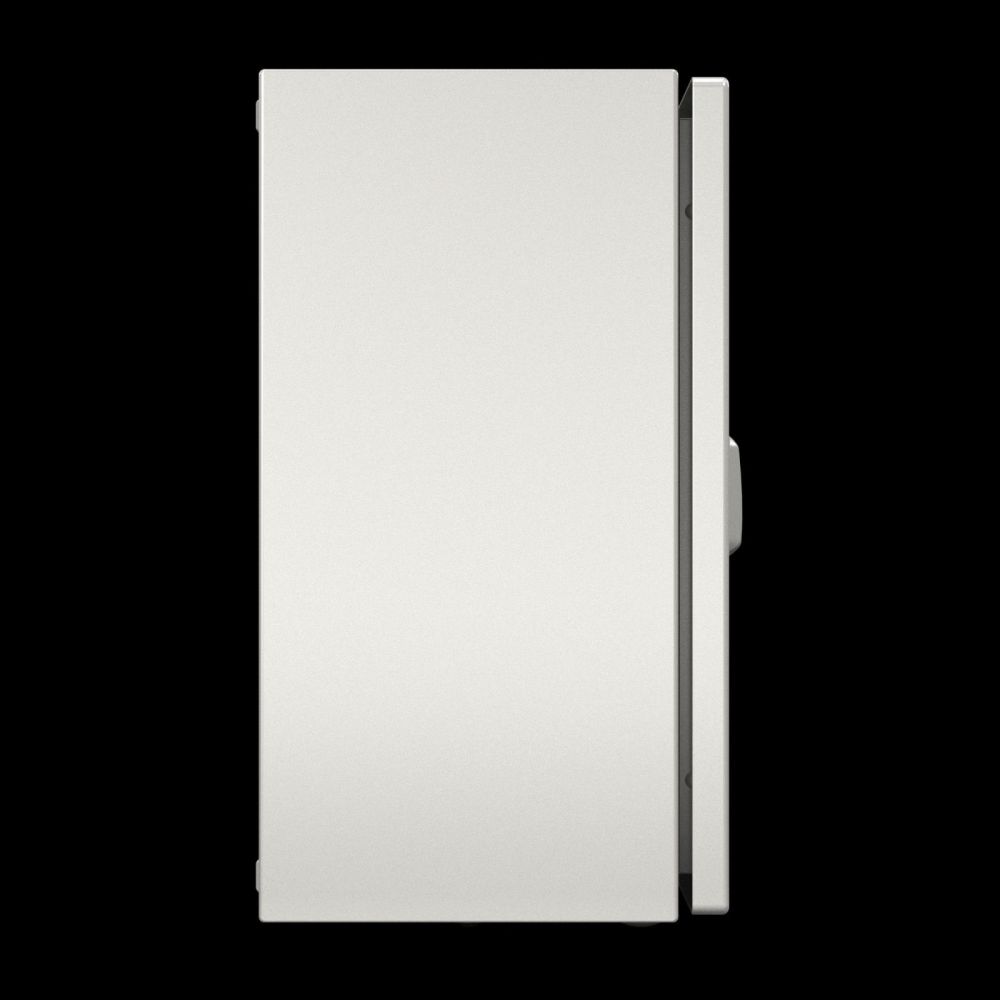

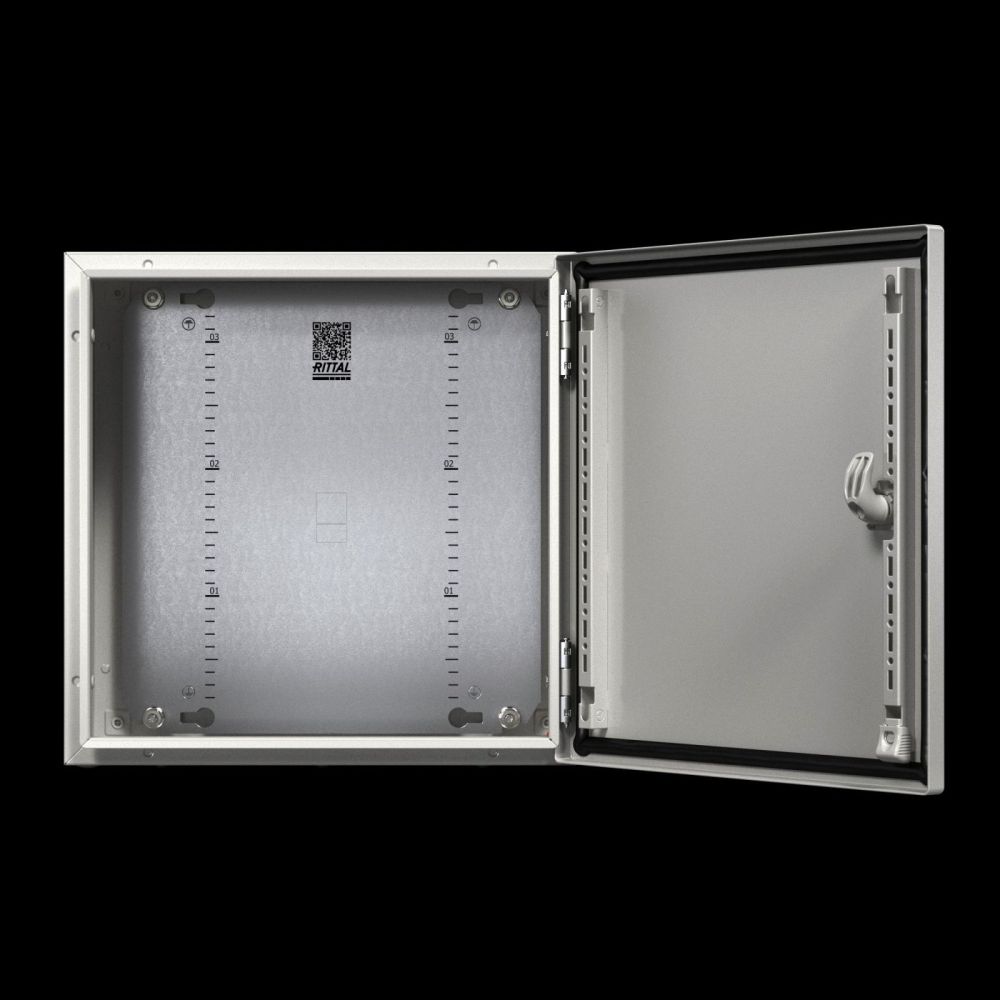

The enclosure is made of sheet steel with a material thickness of 1.5 mm; the door has a thickness of 2 mm, and the mounting plate is 2.5 mm thick. The mounting plate has dimensions of 745 mm (W) × 975 mm (H) and is equipped with grounding keyhole slots and dimension markings. The door is fitted with two latching locks that operate with a 3 mm double-barrel lock insert according to DIN 43668. The door hinges are reversible, allowing the door to be mounted on either the right or left side. The opening angle is 130° according to VDI, with an option to retrofit to 180°. Two gland plates of size 5 are integrated into the enclosure base for securing cable entry plates or other components.

Technology Explained Simply

A central feature of the AX enclosure is the integrated 25 mm system grid, realized through embossed enclosure lugs on the roof, base, and sides. This patented system allows for easy and secure mounting of internal components such as rails and accessories without drilling, thereby maintaining the protection rating (UL approval). The base mounting rail provides an additional mounting level and increases load capacity. Planning and configuration can be easily done using the Rittal configurator RiPanel, enabling individual adaptation to specific requirements.

Compatibility and Accessories

The enclosure is compatible with a wide range of accessories, enabling individual adaptation to various application scenarios. Compatible components include mounting rails VX/TS, lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, dust protection strips, baying sets, knob handles, handles with safety cylinder, plinth trim panels and elements, and mounting rails for the internal mounting level. These accessories can be added as needed to optimize the functionality and safety of the enclosure.

Mounting and Installation

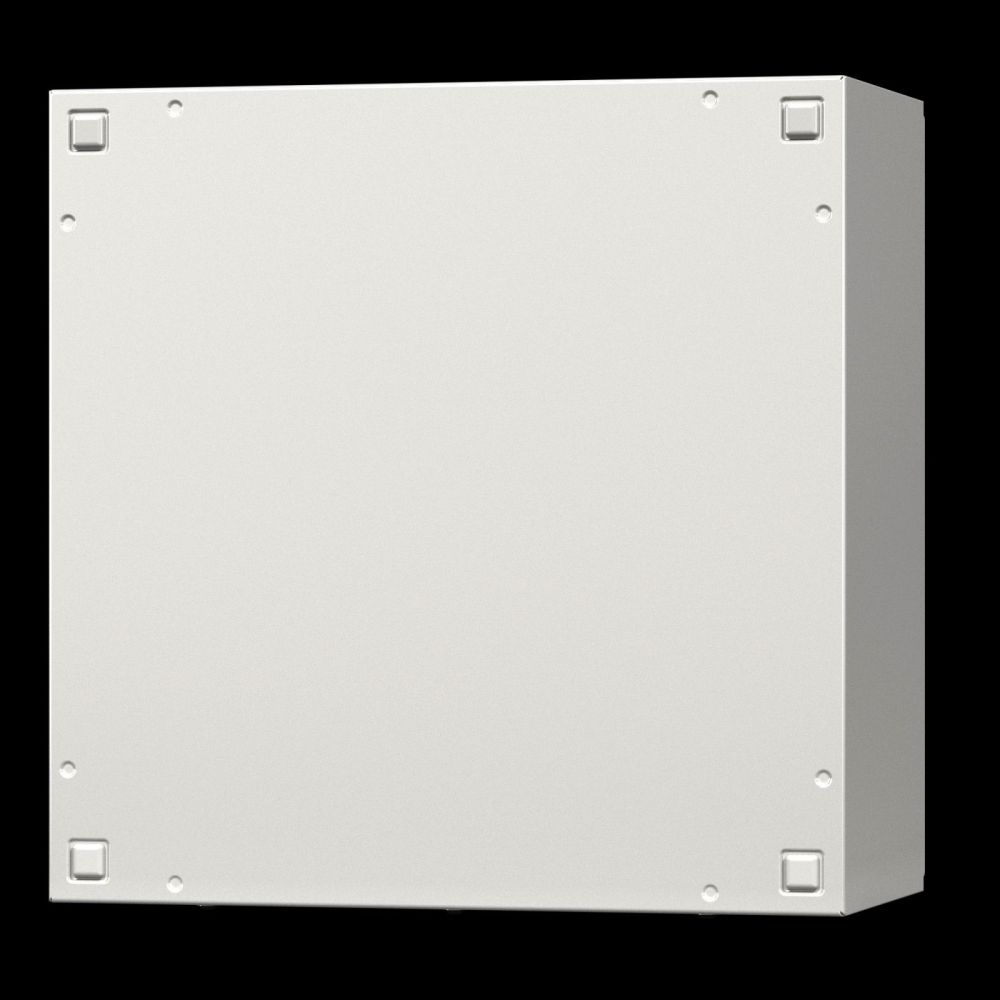

Mounting is done via the integrated gland plates in the enclosure base and the designated mounting points on the rear wall. The mounting plate is secured with ring weld nuts and provides a stable base for installing switching devices and other components. The door can be changed from right to left by replacing the hinges, enabling flexible installation at different locations. The integrated enclosure lugs facilitate the mounting of internal components without additional drilling.

Operational Advantages

The AX 1181000 offers high operational reliability due to its robust sheet steel construction and integrated IP 66 protection rating. The simple mounting and retrofitting of accessories without drilling reduces installation time and increases flexibility for modifications. The integrated QR coding on the enclosure body, door, and nameplate enables unique identification and easy access to product information and documentation, simplifying maintenance and traceability. The use of sheet steel with a powder-coated surface ensures long service life even in demanding environments.

General
Material	Housing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protection	Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
Colour	RAL 7035
Scope of delivery	Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar
NEMA degree of protection	NEMA 1, NEMA 3R, NEMA 4, NEMA 12
Degree of protection IP according to EN 60 529	IP 66
Type rating according to UL 50E	Type 1, Type 3R, Type 4, Type 12
IK code	IK10
Width	800 mm
Height	1.000 mm
Depth	400 mm
Door material thickness	2 mm
Plate thickness cabinet	1,5 mm
Mounting plate material thickness	2,5 mm
Mounting plate dimensions (W x H)	745 mm x 975 mm
Number of doors	1
Number of locks	2
Lock	Closure type: latch, number of closures: 2, closure insert: 3 mm double barb
Flange plate	Size: 5, quantity: 2
Base material	steel sheet
PCF/VE (Cradle-to-Gate)	195.74 kg CO2 eq (Cat B)
Note on PCF class	Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
Reversible door hinge

---
