Rittal 2830082 AX AX plinth trim panel 1=2 front/rear H:200 mm for W:800 mm

Your rating:
Average rating
product review for Rittal 2830082 AX AX plinth trim panel 1=2 front/rear H:200 mm for W:800 mm
( 4.3 / 5 ) 4 ratings
Rittal 2830082
This image may differ from the desired article.
Rittal 2830082Rittal 2830082Rittal 2830082
-8% 37,72 EUR 41,10 EUR
( 44,89 EUR incl. VAT )
≈ £31.57  |  ≈ $41.45
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 2830082 AX AX plinth trim panel 1=2 front/rear H:200 mm for W:800 mm
Datasheet:file_download Download
Lieske Part No.:684160
Mfg Part No: 2830082
UPC/EAN: 4028177037458
Weight:3.746 kg
Type:AX 2830082

Product information for Rittal 2830082:

The Rittal AX 2830082 plinth trim panel is a system accessory for enclosures of type AX with a width of 800 mm. It serves as a closing panel on the front and rear sides of the plinth unit and enables a secure and structured closure of the lower area of the enclosure. The panel is made of steel sheet and is finished in the color RAL 9005, ensuring a uniform visual appearance with other components of the AX system. The height is 200 mm, making it designed for standard plinth height. The panel features a large opening that facilitates access to the screwing point and enables easy cable entry. This is particularly important during the installation of cables and conduits in the lower area of the enclosure, where clear structure and accessibility are required.

Applications
The plinth trim panel is used in industrial environments where AX system enclosures are installed. It is specifically designed for enclosures with a width of 800 mm and serves as an optical and functional closure at the lower edge. The panel is mounted on the front and rear sides to ensure a closed and clean appearance. It is part of a modular system that allows flexible adaptation to different enclosure configurations. Its use is particularly beneficial in installations that require high standards for cable connection structuring and accessibility.

Functions and Equipment in Detail

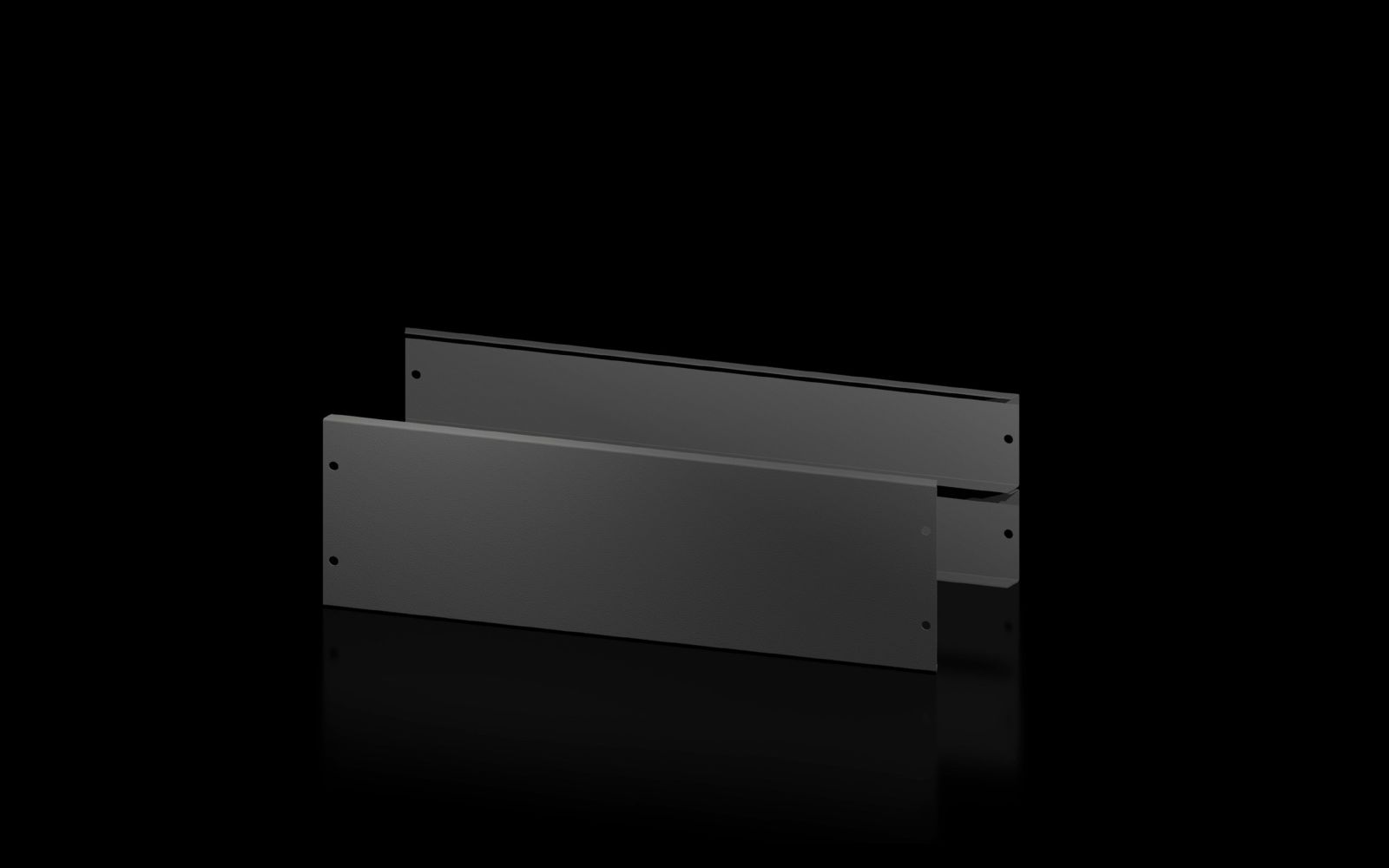

The panel is available in two sizes: one 200 mm high panel and two 100 mm high panels, which are included in the delivery scope together with the 200 mm panel. This combination allows flexible adaptation to different plinth heights within the AX system. The large opening in the panel ensures unobstructed access to the screwing point, simplifying the installation and maintenance of cables and conduits. The steel sheet material ensures high mechanical stability and durability, even under industrial conditions. The color RAL 9005 is a dark gray standard tone that integrates well into industrial environments.

Technology Explained Simply
The plinth trim panel is a passive component that does not perform any electrical or mechanical function, but serves purely structural and optical purposes. The use of steel sheet as material provides sufficient strength to withstand mechanical loads within the enclosure. The RAL 9005 color finish is an industry standard and ensures visual uniformity with other components of the AX system. The height of 200 mm is matched to the standard plinth height, allowing direct installation without additional adjustments. The opening in the panel is dimensioned to allow access to the screwing points on the plinth without compromising the panel’s stability.

Compatibility and Accessories
The plinth trim panel is specifically designed for enclosures of type AX with a width of 800 mm. It is part of a modular system that includes various accessories, such as levelling feet M12 with an adjustment height of 18 to 43 mm, support rails TH 35/15 according to EN 60715, C-profile rails with dimensions 800 mm width and 755 mm length, plinth adapters for double swivel castors and levelling feet, and VX cable strain relief rail in angle profile with a width of 800 mm. These components can be used additionally to enhance the functionality and stability of the enclosure. The plinth trim panel is delivered together with the 100 mm high panels, enabling flexible installation.

Installation and Mounting
The installation of the plinth trim panel is carried out on the front and rear sides of the plinth area of the enclosure. The panel is screwed into the designated mounting points, with the large opening facilitating access to the screwing point. The installation does not require special tools, although a screwdriver or suitable screwdriver is required. The panel is designed to directly connect to the plinth unit without additional modifications.

Operational Advantages
The plinth trim panel provides clear structuring of the lower area of the enclosure, simplifying maintenance and inspection of cables and conduits. The large opening allows easy access to the screwing point, reducing installation time. The steel sheet material ensures high mechanical stability, which remains durable even under industrial conditions. The RAL 9005 color finish ensures visual uniformity with other components of the AX system, improving the visual design of the enclosure. The combination of 200 mm and 100 mm high panels allows flexible adaptation to different plinth heights, increasing the product’s versatility.

General
MaterialFront/rear socket bezel: steel sheet
ColourRAL 9005
Scope of delivery1 base bezel front/back, 200 mm, 2 base bezels front/back, 100 mm
NoteTo complete a base unit, base elements are required on the sides
Height200 mm
Suitable forhousing type: AX, width: = 800 mm


Product data sheet
Datasheet for Rittal 2830082, EAN: 4028177037458
