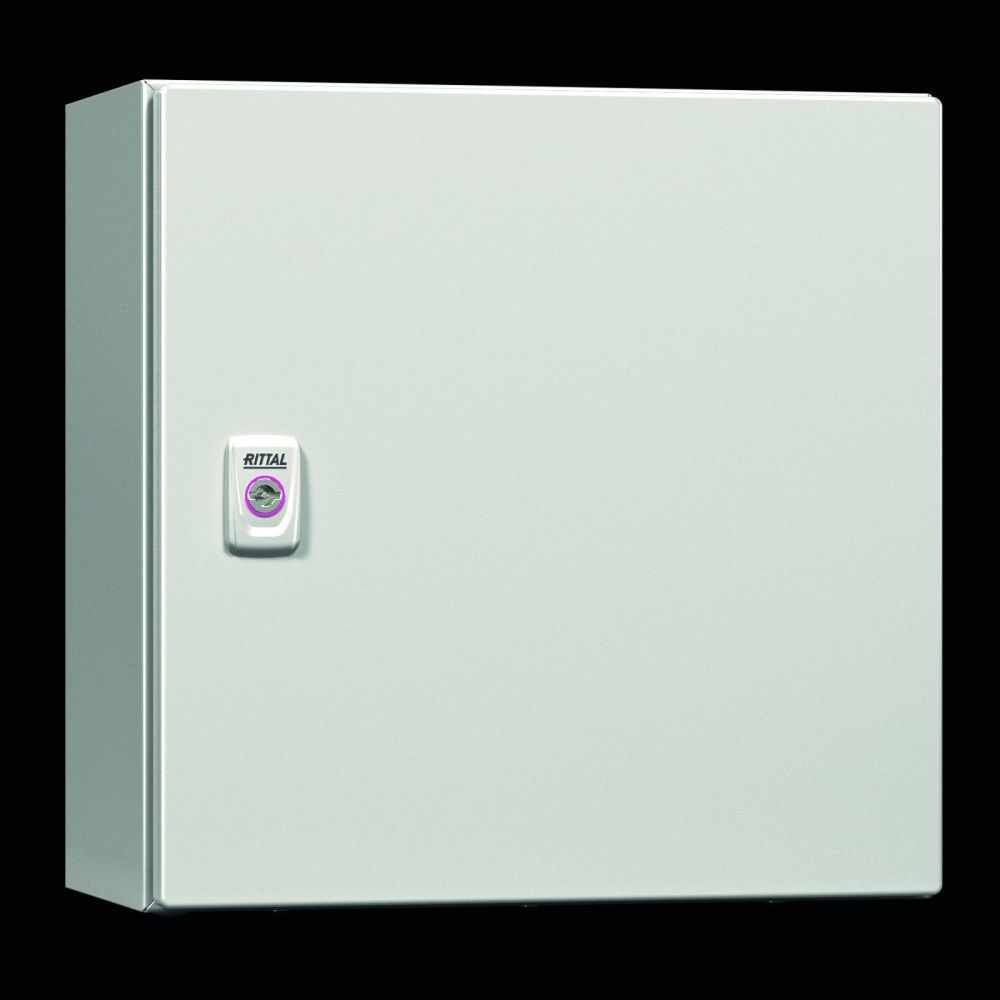

Rittal 1055000 Compact enclosure AX W x H x D 800x600x300 mm IP66 (freight shipping)
|
204,38 EUR 204,62 EUR |
|
|
( 243,21 EUR incl. VAT ) ≈ £171.07 | ≈ $224.61 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598215 |
| Mfg Part No: | 1055000 |
| UPC/EAN: | 4028177813250 |
| Weight: | 34.2 kg |
| Type: | AX 1055000 |
Product information for Rittal 1055000:
Applications
The enclosure is designed for use in industrial environments where high mechanical and environmental resistance is required. It is suitable for installations in the manufacturing industry, energy supply, automation technology and other areas where electrical components must be protected against dust, water, mechanical impacts and corrosion. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight sealing, even under heavy spray water conditions. The protection ratings NEMA 1, NEMA 3R, NEMA 4 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), enable use in various regions and under different environmental conditions. The IK code IK10 provides high protection against mechanical impacts.
Functions and Equipment in Detail
The enclosure features integrated enclosure lugs in the roof, base and side panels, replicating the 25 mm system grid of the VX25 large enclosure. This patented system enables flexible and quick installation of internal components without requiring drilling. The internal mounting plate provides a stable mounting surface for components. The door is equipped with two latch locks operating with a 3 mm double-barrel lock insert according to DIN 43668. The hinges are reversible, allowing the door to be mounted to open to the right or left. The opening angle is 130° according to VDI, with an option to retrofit to 180°. The door features vertical door hole strips on both sides and a protective conductor connection.
Technology Explained Simply
The integrated enclosure lugs in the 25 mm grid enable modular internal equipment. System accessories such as rails, mounting brackets or base mounting strips can be installed without drilling, preserving the protection rating (UL approval). The base mounting strip provides an additional mounting level and increases load capacity. The mounting plate is secured with ring weld nuts and offers a stable mounting surface. The PU seal ensures a tight seal against dust and water. The surface treatment consisting of dip priming, powder coating and textured lacquer ensures high corrosion resistance and mechanical strength.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories. These include mounting brackets VX/TS with width/depth 800 mm, lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, KL, TS, mounting brackets for internal mounting levels, knob handles, handles with security cylinder, plinth corner pieces, plinth trim panels, plinth elements and other mounting components. These accessories allow individual adaptation to specific requirements and extend the functionality of the enclosure.
Mounting and Installation
Mounting is done via the integrated gland plates in the enclosure base (size 5, quantity 2) and the mounting plate. The door can be mounted to open to the right or left as required. Internal equipment is done via the 25 mm system grid, allowing rails and mounting brackets to be installed without drilling. The mounting plate features keyhole slots for earthing and dimension markings to enable precise positioning of components. The fastening is done with ring weld nuts.
Operational Advantages
The enclosure offers high flexibility for internal equipment thanks to the 25 mm system grid. Mounting without drilling preserves the protection rating and reduces installation time. The robust sheet steel construction and the high protection rating IP 66 as well as IK10 ensure long service life and reliability in demanding environments. The integrated gland plates and mounting plate facilitate installation and maintenance. QR codes on the enclosure body, door and type plate enable unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 800 mm |
| Height | 600 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 750 mm x 575 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 5, quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 126.15 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
