Rittal 2565450 Metal gland plate two-piece, for AX, with elastic sealing ring,

Your rating:
Average rating
product review for Rittal 2565450 Metal gland plate two-piece, for AX, with elastic sealing ring,
( 4.8 / 5 ) 5 ratings

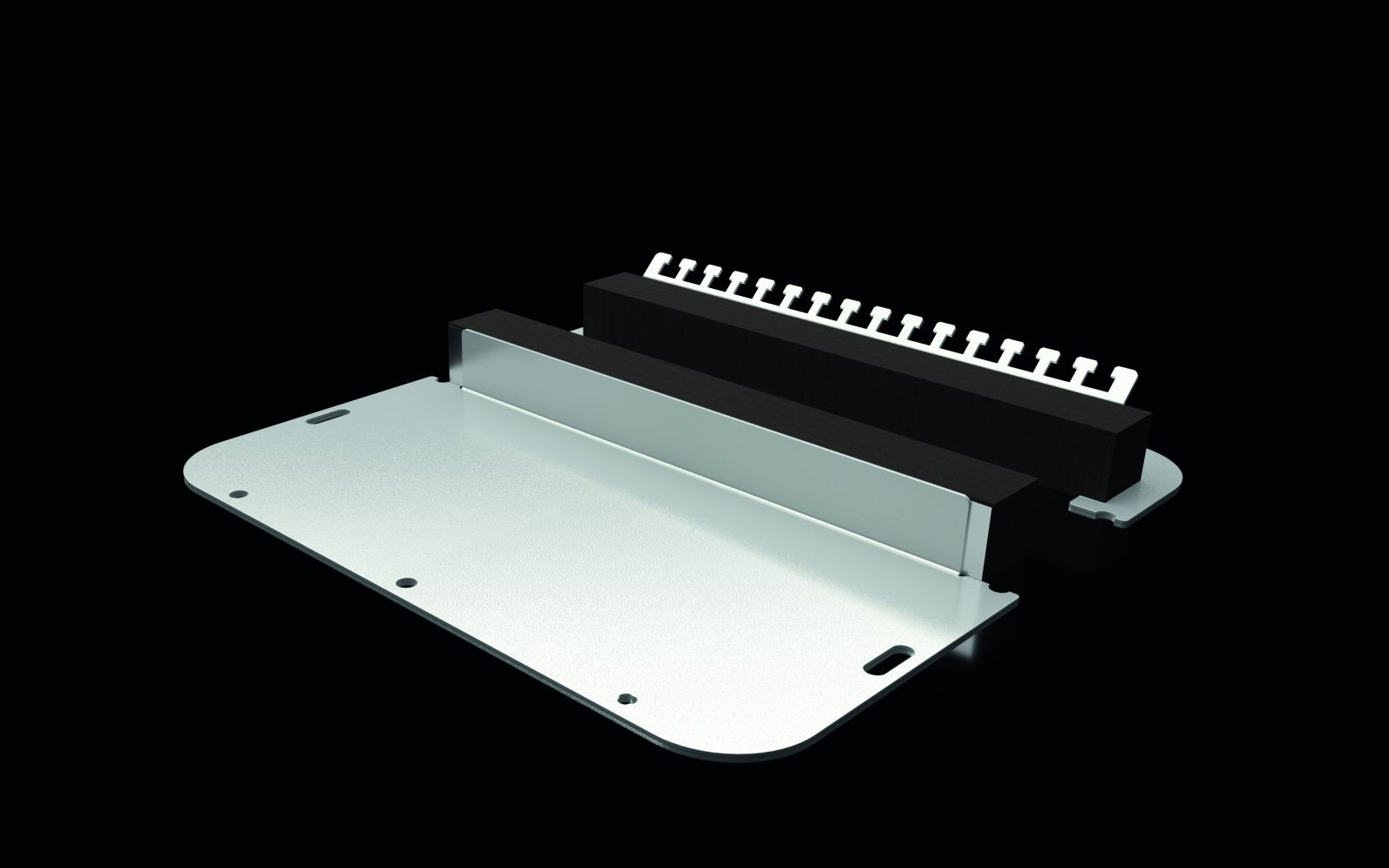

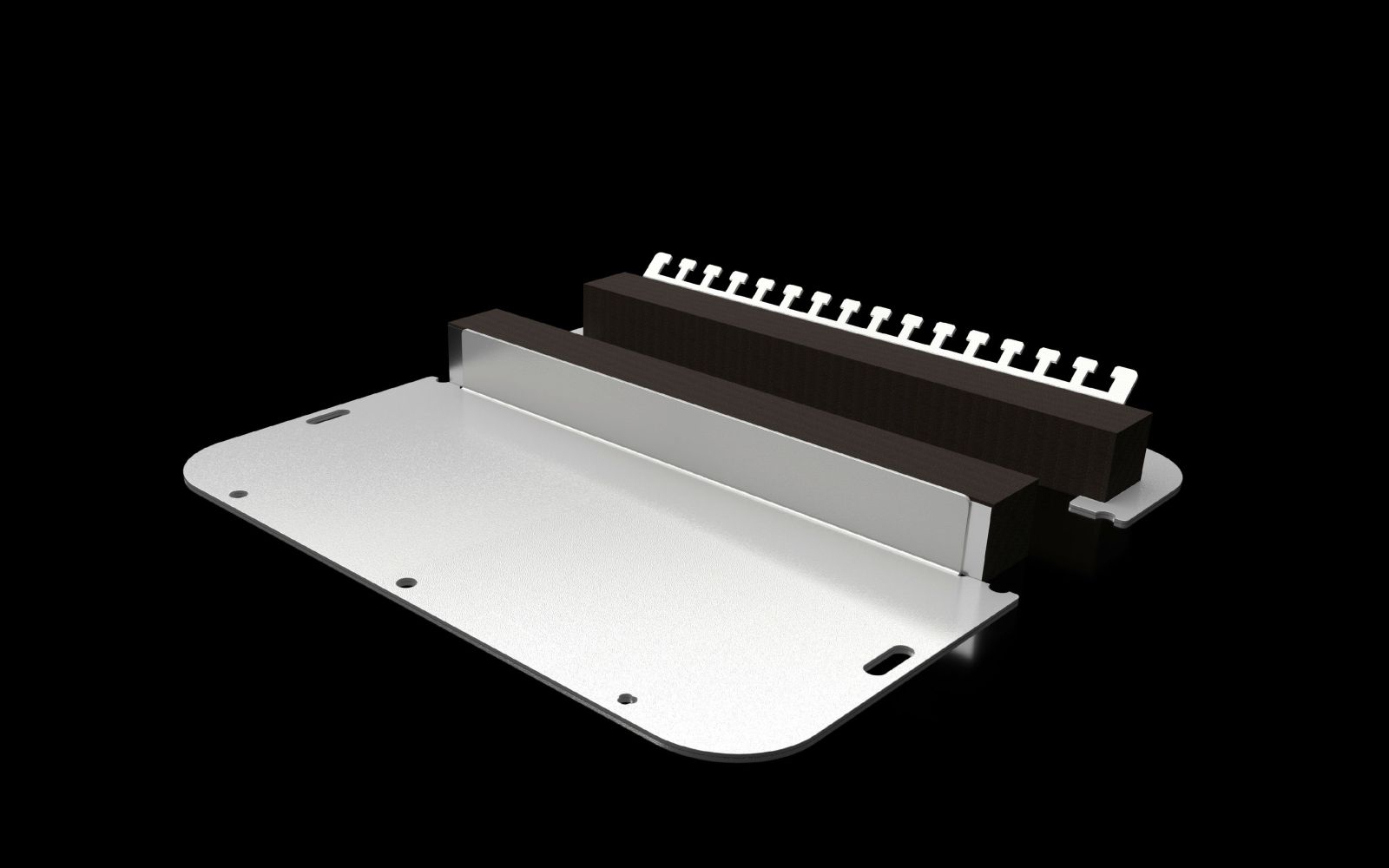

Rittal 2565450
This image may differ from the desired article.
37,84 EUR 39,34 EUR
( 45,03 EUR incl. VAT )
≈ £31.67  |  ≈ $41.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2565450 Metal gland plate two-piece, for AX, with elastic sealing ring,
Datasheet:file_download Download
Lieske Part No.:1062216
Mfg Part No: 2565450
UPC/EAN: 4028177973152
Weight:1.02 kg
Type:SZ 2565450

Product information for Rittal 2565450:

The Rittal SZ 2565450 is a metal gland plate in two-piece design, specifically designed for enclosures of the AX housing type. It serves as a mounting element for devices and modules inside enclosures, enabling secure and stable installation. The gland plate is made of sheet steel and painted in RAL 7035, ensuring visual harmony with other components in the enclosure. Dimensions are 301 mm in width and 221 mm in depth, corresponding to size 5.

Applications
The gland plate is primarily used in industrial electrical engineering and automation technology, where secure and reliable mounting of components inside enclosures is required. It is compatible with various AX housings, including part numbers 1037.000, 1055.000, 1073.000, 1180.000, 1280.000, 1338.000, 1181.000, and 1281.000. For enclosure widths exceeding 760 mm, two packaging units are required to cover the full width. Thus, the gland plate is suitable for use in medium to large enclosures where modular and flexible mounting strategies are necessary.

Functions and Equipment in Detail
The two-piece construction of the gland plate allows precise adaptation to the respective enclosure geometry. The integrated elastic clamp profile ensures a secure connection between the gland plate and the enclosure housing, effectively absorbing vibrations and mechanical loads. The clamp profile is designed for IP55 protection rating, providing some protection against dust and splashing water, but is not intended for outdoor use or extreme environmental conditions. The gland plate is supplied with fastening material sufficient for mounting in the enclosure.

Technology Explained Simply
The gland plate is made of sheet steel, offering high mechanical strength and long-term stability. The RAL 7035 color is a gray-beige standard paint finish widely used in industrial electrical engineering. The two-piece design enables better fit to enclosure walls, especially with larger enclosure widths. The elastic clamp profile acts as a connecting element, ensuring a secure yet easy-to-install fastening. Dimensions of 301 mm width and 221 mm depth are aligned with standard dimensions of AX housings.

Compatibility and Accessories
The gland plate is specifically developed for enclosures of type AX and fits the mentioned part numbers. As suitable accessory, an elastic clamp profile IP55 with a length of 3 m is offered, suitable for mounting in enclosures.

Mounting and Installation
Mounting is done by securing the gland plate to the inner wall of the enclosure using the included fastening material. The elastic clamp profile is inserted into the designated guide rails to ensure a secure connection. For enclosure widths exceeding 760 mm, two gland plates are required to cover the full width.

Operational Advantages
The gland plate provides a stable and reliable mounting solution for electrical components in enclosures. The two-piece design and elastic clamp profile ensure precise fit and reduce the risk of loosening due to vibrations. Compatibility with various AX housings increases flexibility in planning and mounting enclosures. The use of sheet steel and RAL 7035 paint ensures long service life and good visual integration into existing installations.

General
Modeltwo-piece
Materialsteel sheet
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
NoteThe assignment of flange plate size can be found in the respective housings. For installation in cabinet width >760 mm, 2 units are required.
Width301 mm
Depth221 mm
Suitable forHousing type: AX
Suitable for part no.1037.000, 1055.000, 1073.000, 1180.000, 1280.000, 1338.000, 1181.000, 1281.000
Flange plateSize: 5
PCF/VE (Cradle-to-Gate)3.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 2565450, EAN: 4028177973152
