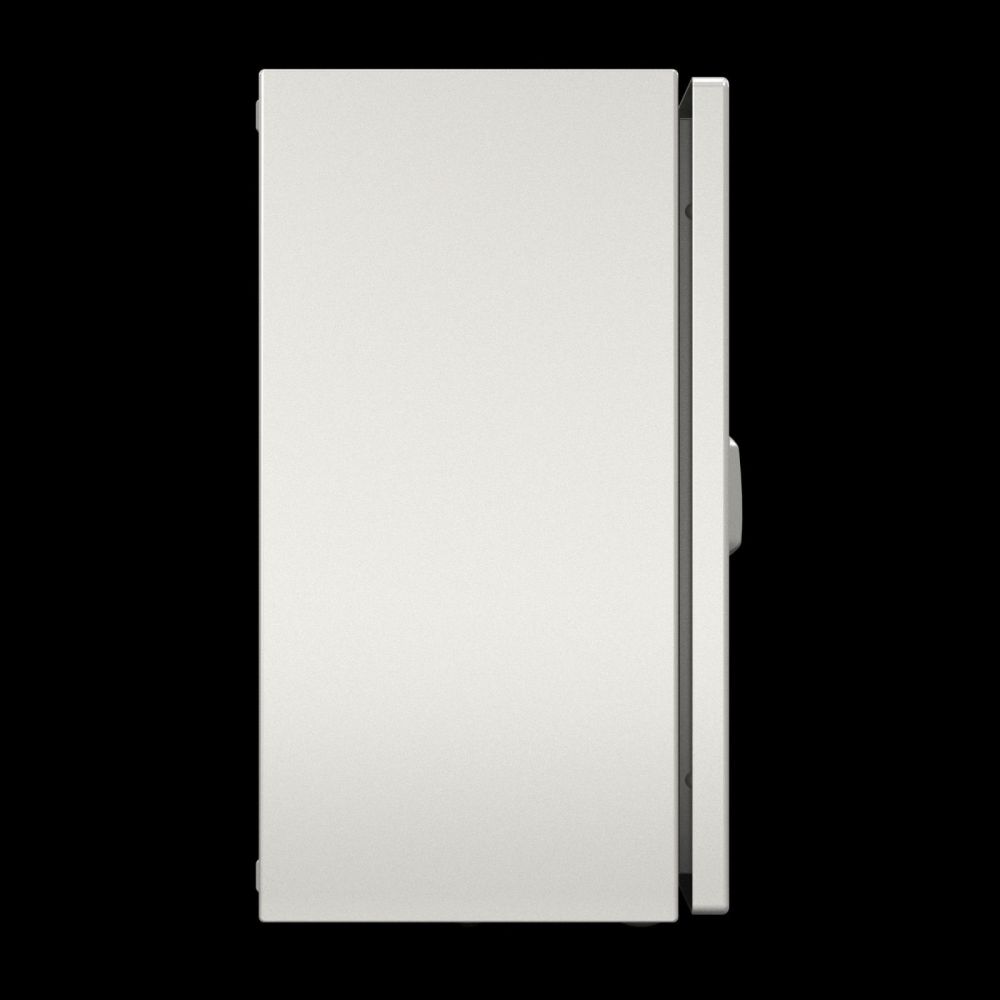

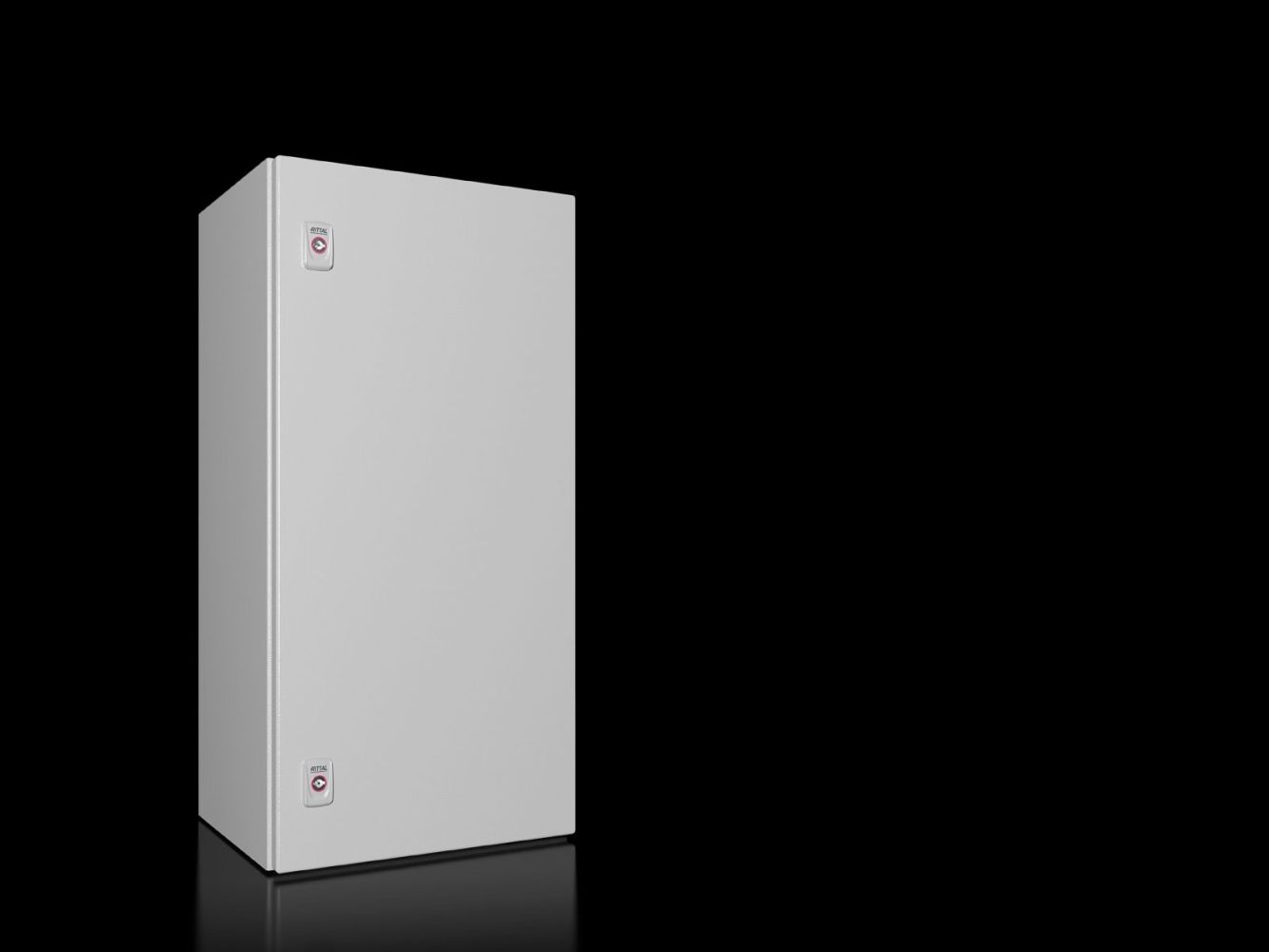

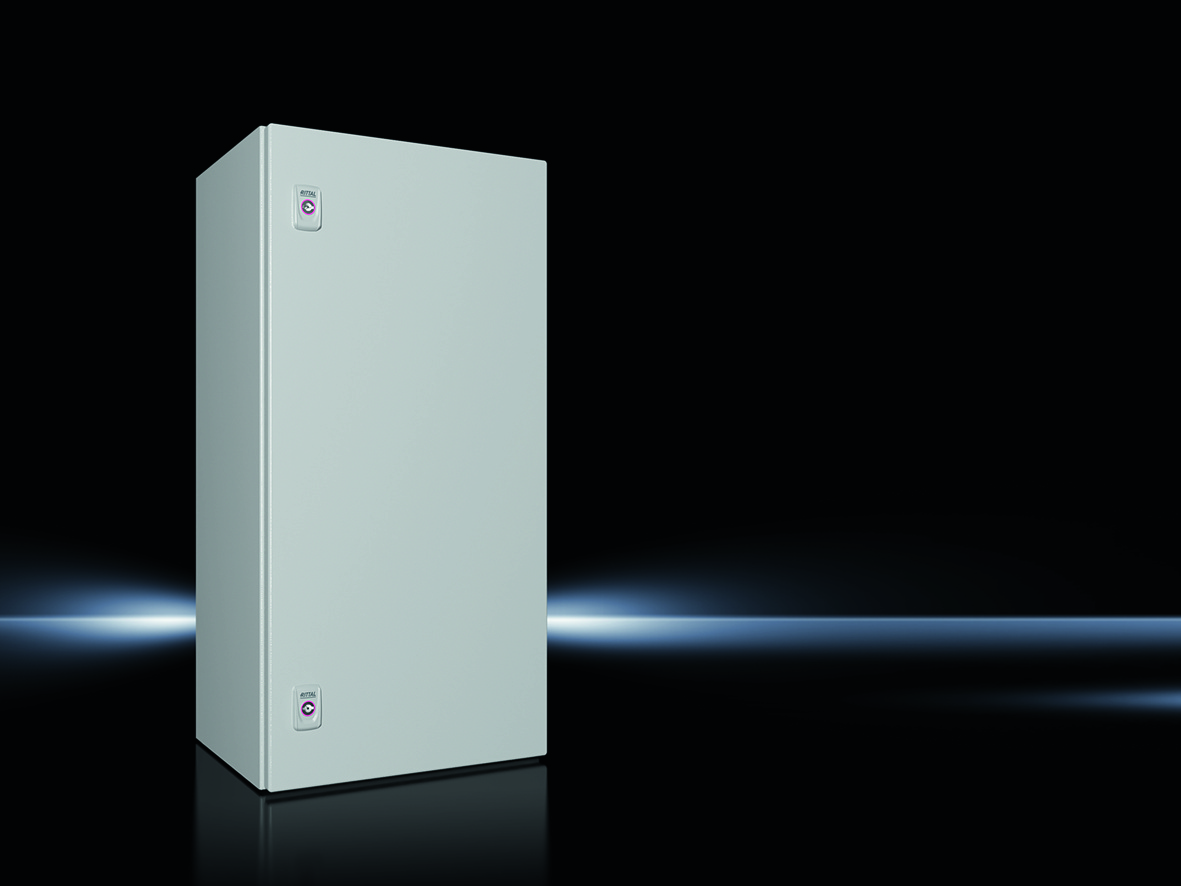

Rittal 1037000 Compact enclosure AX, 1-door, W x H x D: 400x800x300 mm,
|
-6% 164,68 EUR 174,56 EUR |
|
|
( 195,97 EUR incl. VAT ) ≈ £137.84 | ≈ $180.98 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598227 |
| Mfg Part No: | 1037000 |
| UPC/EAN: | 4028177813298 |
| Weight: | 24.9 kg |
| Type: | AX 1037000 |
Product information for Rittal 1037000:
Applications
This enclosure is suitable for use in indoor and outdoor environments, particularly in areas with increased requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures high protection against dust and heavy splashing water, making it suitable for outdoor use or in humid production environments. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm its suitability for various industrial applications, including humid or dusty environments. The IK code IK10 indicates high mechanical strength against impact and shock, making the enclosure suitable for more demanding operating conditions.
Functions and Equipment in Detail

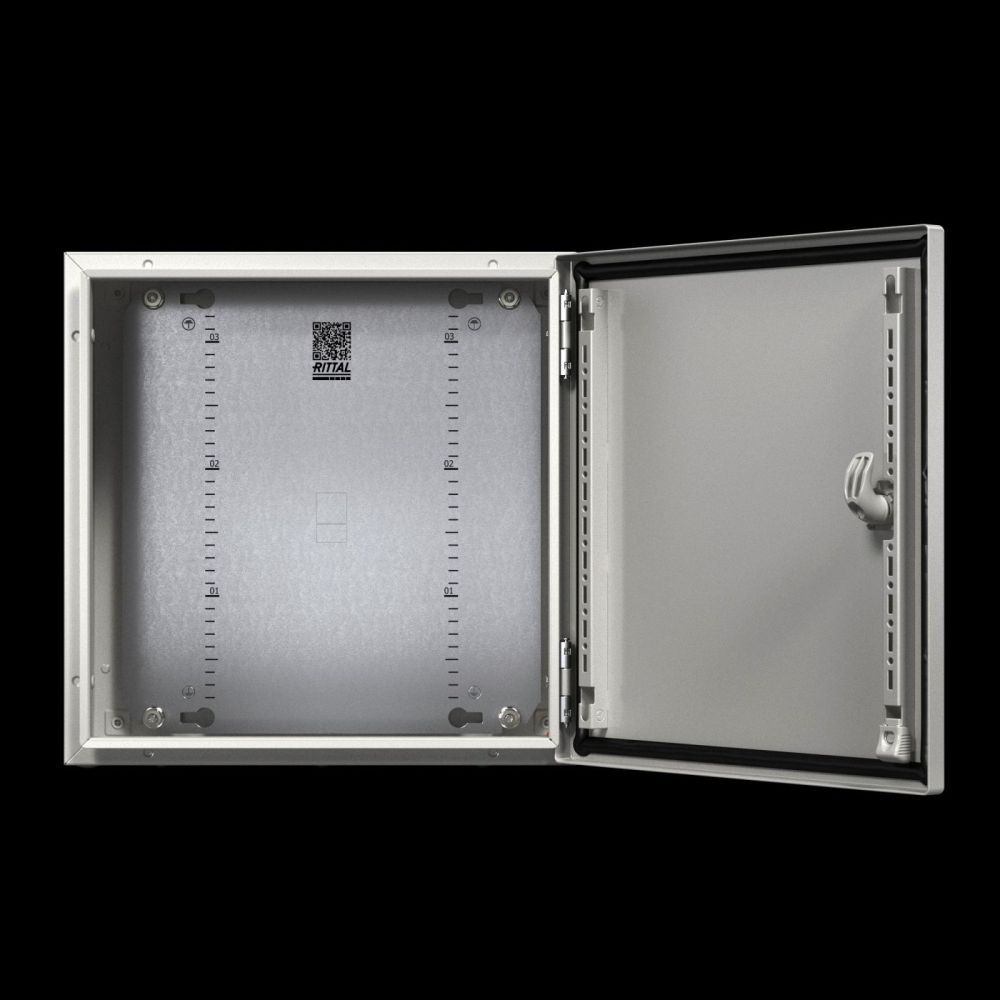

The enclosure features a single-door construction with reversible door hinge, allowing the door to be mounted to open on the right or left side. The door opens up to 130° according to VDI, with an option to retrofit to 180°. The door is equipped with two latching locks operating with a 3 mm double-barrel lock insert according to DIN 43668. These locks ensure secure and reliable locking. Also included in the delivery scope are a gland plate (size 5) in the enclosure base, a door hole strip, and the mounting plate. The mounting plate features keyhole slots for earthing and dimension markings and is secured with ring weld nuts.
Technology Explained Simply
A central feature of the AX enclosure is the integrated 25 mm system grid, realised through embossed mounting lugs in the roof, base, and sides. This patented system enables easy, drill-free mounting of internal mounting rails and other accessories. The base mounting rail provides an additional mounting level and increases load capacity. The rail can be mounted without drilling, thus maintaining the protection rating (UL approval). Planning and configuration can be easily done via the Rittal configurator RiPanel.
Compatibility and Accessories
The enclosure is compatible with a wide range of system accessories. Compatible components include lock inserts made of zinc die-cast, wall mounting brackets made of sheet steel, mounting rails for internal and external mounting levels, dust protection strips made of UV-resistant plastic, baying sets for AX, KX, AE, KL, lock box covers, knob handles, safety cylinder handles, and metal gland plates with an elastic sealing ring. These elements allow for flexible adaptation to specific requirements.
Mounting and Installation
Mounting is done via the integrated gland plate (size 5) in the enclosure base and the designated cable entries in the rear panel area for wall mounting brackets. The internal mounting plate is pre-installed and provides a stable mounting surface. The door can be installed to open on the right or left side as required. The locks are pre-mounted and enable secure locking.
Advantages in Operation
The enclosure offers a high mechanical and climatic protection class, making it suitable for demanding operating conditions. The integrated mounting system with 25 mm grid enables flexible and quick adaptation to different expansion and retrofit needs. The drill-free mounting of the internal mounting rail maintains the protection rating and reduces installation time. The use of high-quality materials and textured paint ensures long service life and high corrosion resistance. The QR code on the enclosure body, door, and nameplate enables unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 400 mm |
| Height | 800 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 345 mm x 775 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 5, quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 96.38 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
Questions & answers
What is the delivery time of Rittal 1037000 Compact enclosure AX, 1-door, W x H x D: 400x800x300 mm, ?
The article Rittal 1037000 Compact enclosure AX, 1-door, W x H x D: 400x800x300 mm, is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1037000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1037000 Compact enclosure AX, 1-door, W x H x D: 400x800x300 mm, always at the best possible price. We can give you a discount of 2% on Rittal 1037000 Compact enclosure AX, 1-door, W x H x D: 400x800x300 mm, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
