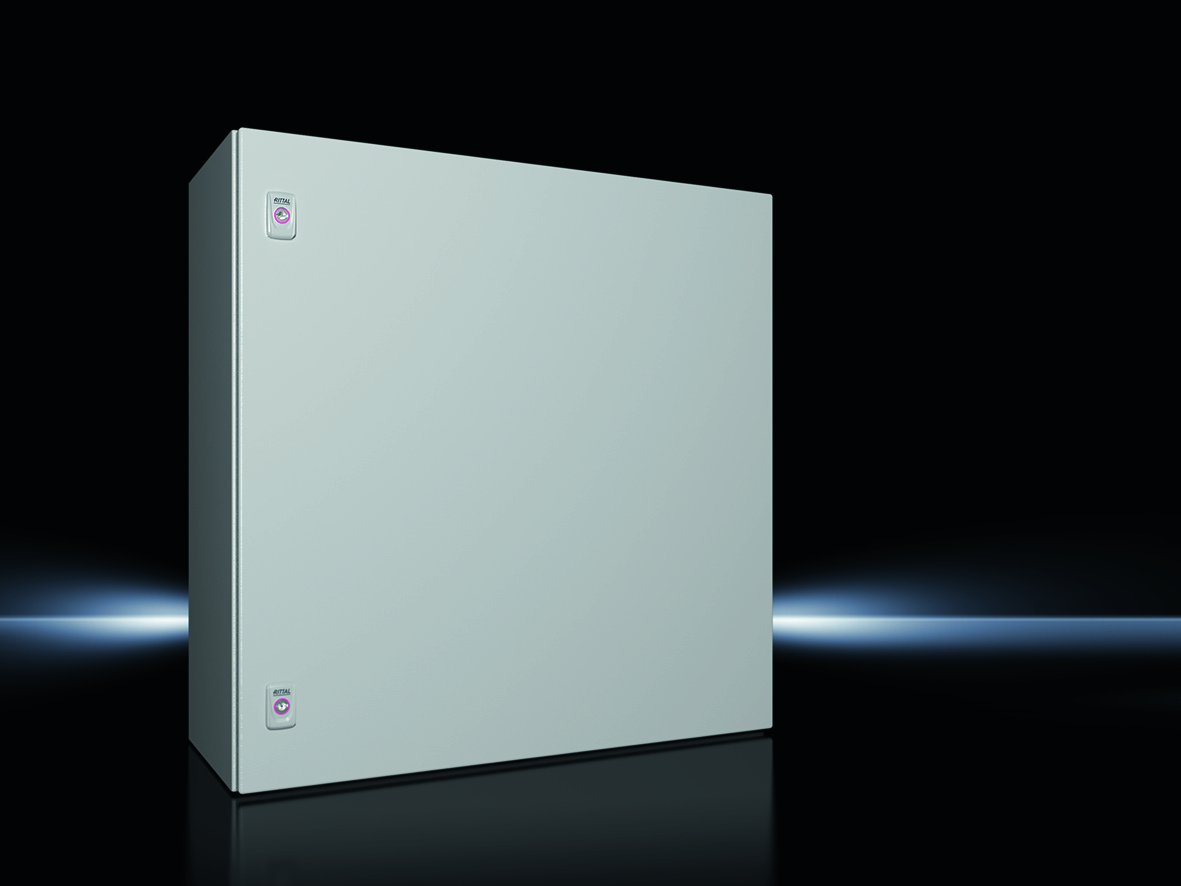

Rittal 1073000 Compact enclosure AX W x H x D 760x760x300 mm (freight shipping)
|
200,10 EUR 200,33 EUR |
|
|
( 238,12 EUR incl. VAT ) ≈ £167.48 | ≈ $219.91 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598225 |
| Mfg Part No: | 1073000 |
| UPC/EAN: | 4028177813267 |
| Weight: | 40.5 kg |
| Type: | AX 1073000 |
Product information for Rittal 1073000:
Applications
The enclosure is designed for use in industrial environments where high mechanical and environmental resistance is required. It is suitable for installations in manufacturing, energy supply, automation technology, and process industries. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight performance, even under heavy spray water conditions, making it suitable for outdoor use. The protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various environmental conditions, including humid or dusty rooms. The IK code IK10 indicates high mechanical strength against impacts such as shocks or vibrations.
Functions and Equipment in Detail
A central feature of the AX 1073000 is the integrated 25 mm system grid, realised through embossed enclosure lugs in the roof, base, and side panels. This system enables flexible and quick installation of internal components such as rails, cable entries, or accessories without drilling. The base mounting rail provides an additional mounting level and increases load capacity. The door is equipped with two padlock locks, ensuring secure closure. The locks are fitted with 3 mm double-barrel lock inserts according to DIN 43668, providing high security against unauthorised access. The mounting plate features keyhole slots for earthing and dimension markings and is secured with ring weld nuts.
Technology Explained Simply
The integrated enclosure lugs in the 25 mm grid enable modular and flexible internal outfitting. System components such as rails or accessories can be installed directly into the lugs without drilling, reducing installation time and maintaining the integrity of the protection rating. The continuous PU seal on the door ensures a tight seal against dust and water, supporting the IP 66 protection rating. The powder-coated surface provides high corrosion protection and is resistant to mechanical stress. The gland plates in the enclosure base serve as mounting elements for cable entries and other components.
Compatibility and Accessories
The enclosure is compatible with an extensive range of accessories offered by Rittal. These include lock inserts made of zinc die-cast, wall mounting brackets made of sheet steel, dust protection strips made of UV-resistant plastic, baying sets for AX, KX, AE, and KL, lock box covers, knob handles, handles with security cylinders, protective roofs made of stainless steel, multitools, metal gland plates, system lights, and plastic handles. These components can be added according to requirements to optimise the functionality and security of the enclosure.
Mounting and Installation
Installation is carried out via the integrated gland plates in the enclosure base and the mounting plate. The door can be hinged on either side, allowing for flexible placement. Internal outfitting is done using the 25 mm system grid, where rails and accessories are mounted without drilling. The mounting plate provides a stable mounting surface for electrical components. The door is secured with hinges, ensuring a secure attachment.
Operational Advantages
The AX 1073000 offers high flexibility in internal outfitting through the 25 mm system grid, simplifying planning and installation. The IP 66 protection rating and NEMA classification ensure reliable performance in demanding environments. The mechanical strength indicated by the IK10 code protects the unit against physical impacts. The integrated gland plates and mounting plate enable quick and secure installation of internal components. The use of sheet steel and high-quality surface treatment ensures long service life and high resistance to corrosion and mechanical stress.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 760 mm |
| Height | 760 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 705 mm x 735 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 5, quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 141.17 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
