Rittal 2474010 AX protection roof for W x D 760x300 mm stainless steel (freight shipping)

Your rating:
Average rating
product review for Rittal 2474010 AX protection roof for W x D 760x300 mm stainless steel (freight shipping)
( 4.6 / 5 ) 8 ratings
Rittal 2474010
This image may differ from the desired article.
Rittal 2474010Rittal 2474010Rittal 2474010Rittal 2474010Rittal 2474010Rittal 2474010Rittal 2474010Rittal 2474010
-32% 118,68 EUR 173,67 EUR
( 141,23 EUR incl. VAT )
≈ £99.34  |  ≈ $130.43
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 2474010 AX protection roof for W x D 760x300 mm stainless steel (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1054796
Mfg Part No: 2474010
UPC/EAN: 4028177938243
Weight:3.94 kg
Type:AX 2474010

Product information for Rittal 2474010:

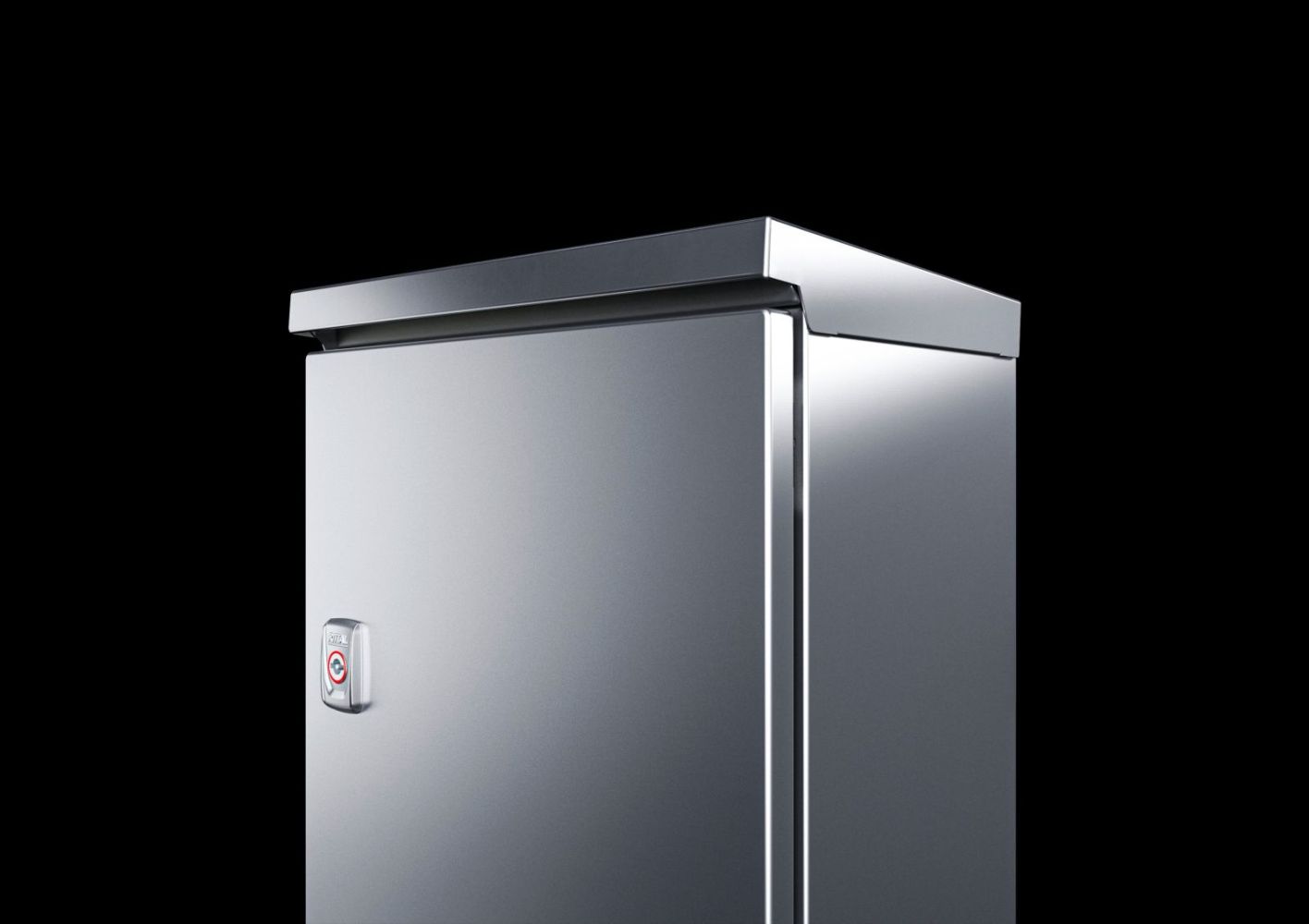

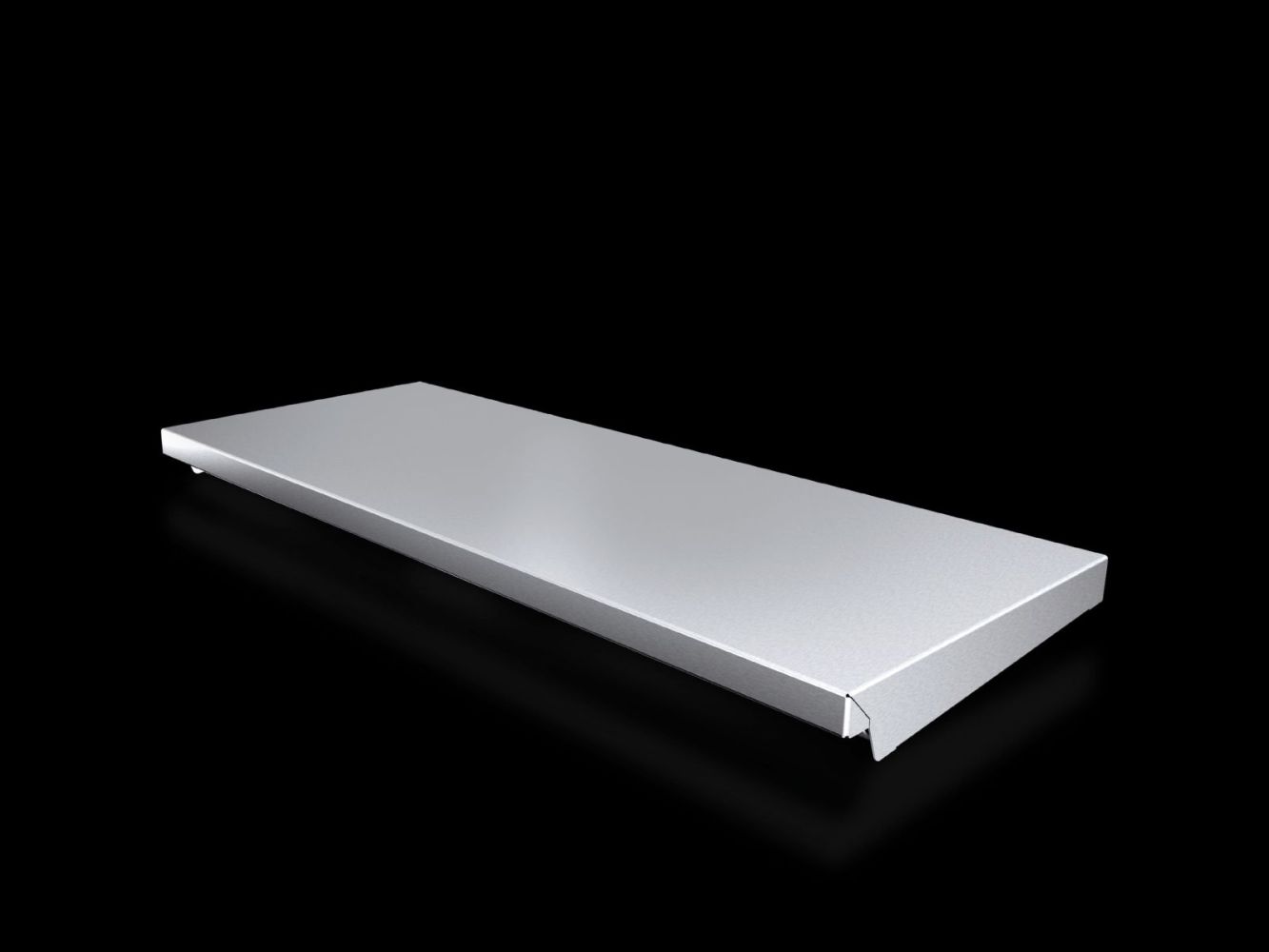

The Rittal AX 2474010 is a protective roof made of stainless steel, specifically designed for enclosures of type AX with a width of 760 mm and a depth of 300 mm. It provides protection for the enclosure against precipitation, standing moisture, and contamination from above, with the sloped shape of the roof enabling effective drainage of water and dirt. The product is made of stainless steel 1.4301 (AISI 304), a material known for its corrosion resistance and mechanical strength in industrial environments. The surface features a brushed finish with grit 240, resulting in a uniform, easy-to-clean, and aesthetically pleasing texture.

Applications
This protective roof is suitable for use in industrial plants, manufacturing technology, and environments with increased humidity or contamination risk. It is particularly used in areas where enclosures are installed outdoors or in damp indoor spaces, to ensure the functionality and service life of the electrical components housed within. The construction is designed for dynamic loads, making it suitable for installations subject to vibrations or movement.

Features and Equipment in Detail
The roof has a height of 43 mm and is mounted by screwing, with the fastening materials included in the delivery scope. The screwing enables a secure and durable fixation, even under dynamic loads. The choice of stainless steel 1.4301 ensures high resistance to corrosion, which is particularly advantageous in damp or aggressive environments. The surface finish with brushed grit 240 offers good cleanability and reduces dirt accumulation.

Technology Explained Simply
The sloped shape of the protective roof ensures that rainwater and other liquids drain quickly, preventing accumulation on the surface. This prevents moisture from entering the enclosure and protects the installed electrical components. The use of stainless steel 1.4301 (AISI 304) provides high corrosion resistance, especially against atmospheric humidity, salt spray, and weak acids. The brushed finish with grit 240 ensures a uniform, easy-to-clean, and robust surface.

Compatibility and Accessories
The protective roof is specifically designed for enclosures of type AX with dimensions width 760 mm and depth 300 mm. It is not suitable for other enclosure types or dimensions. Mounting is done by screwing, with the required fastening materials included in the delivery scope.

Installation and Mounting
Mounting is done by screwing to the designated attachment points on the enclosure. The included fastening materials enable a secure and durable connection. The installation is designed for dynamic loads, meaning the roof remains stable even in environments with vibrations or movement. No additional tools or installation instructions are required, as the fastening materials are standardized.

Operational Advantages
The protective roof provides reliable protection against moisture and contamination, increasing the service life and reliability of the enclosure. The use of stainless steel 1.4301 ensures high corrosion resistance, extending maintenance and replacement intervals. The sloped shape and surface finish facilitate cleaning and prevent dirt accumulation. Compliance with UL 50E Type Ratings (Type 1, Type 3R, Type 4, Type 4X, Type 12) ensures suitability for various environmental conditions, including damp and dusty areas.

Type Rating according to UL 50E
The product meets the requirements of UL 50E Type Ratings, including Type 1 (for indoor use), Type 3R (for outdoor use with protection against rain and splashing water), Type 4 (for protection against splashing and spraying water), Type 4X (for protection against splashing and spraying water in aggressive environments), and Type 12 (for protection against dust and splashing water). These certifications confirm suitability for a wide range of industrial operating conditions.

Delivery Scope
The product is delivered with fastening materials required for mounting on the enclosure.

Material and Surface
The protective roof is made of stainless steel 1.4301 (AISI 304), a high-quality material with high corrosion resistance. The surface is finished with a brushed texture in grit 240, resulting in a uniform, easy-to-clean, and robust surface.

Dimensions
The height of the protective roof is 43 mm. It is specifically designed for enclosures with a width of 760 mm and a depth of 300 mm.

Certifications
The product complies with UL 50E Type Ratings Type 1, Type 3R, Type 4, Type 4X, and Type 12, confirming suitability for various industrial environments. The certifications include protection against splashing water, rain, dust, and aggressive environments.

Operating Conditions
The protective roof is suitable for use in industrial plants, manufacturing environments, and outdoor applications, particularly in areas with increased humidity or contamination risk. The material and surface selection ensure high resistance to corrosion and contamination.

General
MaterialStainless steel 1.4301 (AISI 304)
Surface protectionLinear finish, grit 240
Scope of deliveryIncluding mounting hardware
Mounting optionsScrewable under dynamic loads
Height43 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
Suitable forEnclosure type: AX, width: = 760 mm, depth: = 300 mm


Product data sheet
Datasheet for Rittal 2474010, EAN: 4028177938243
