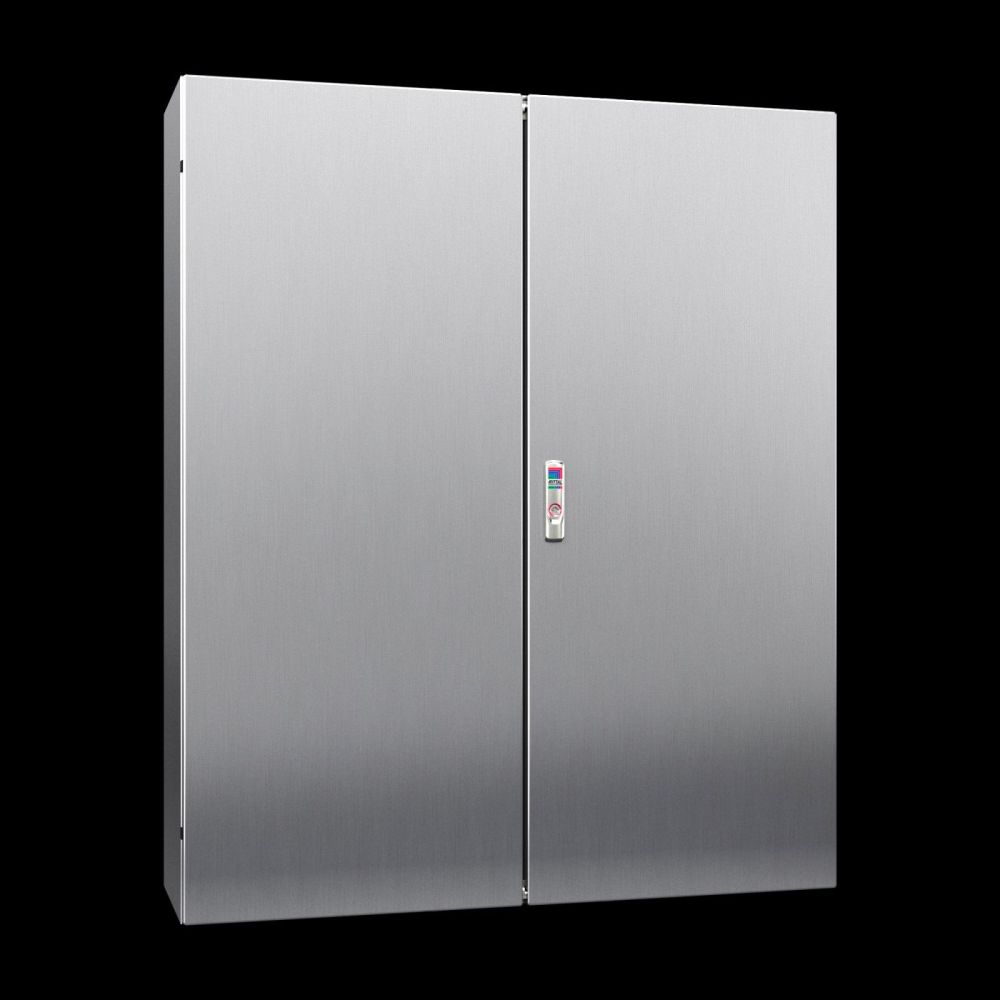

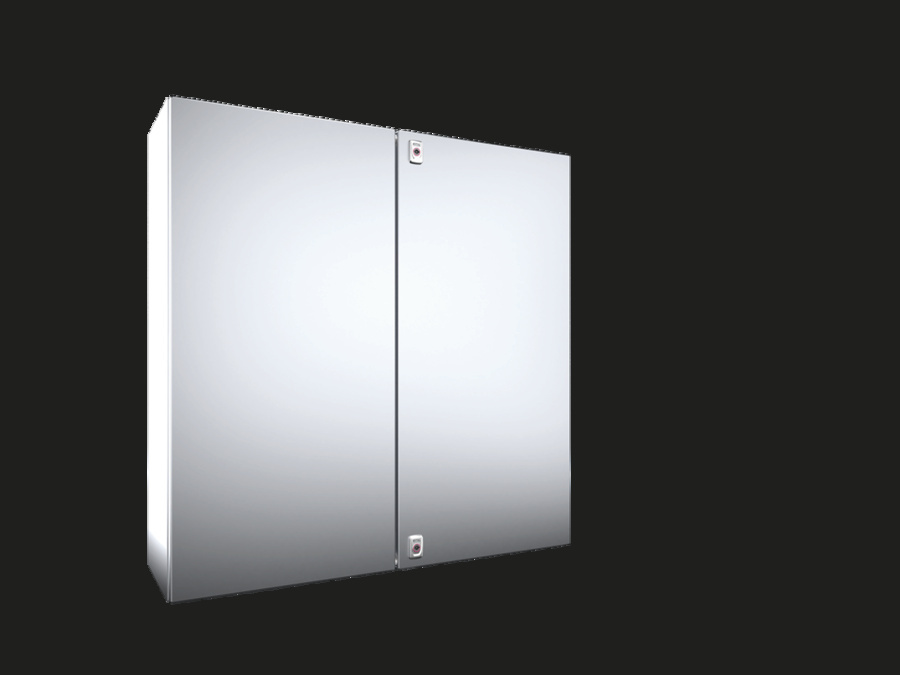

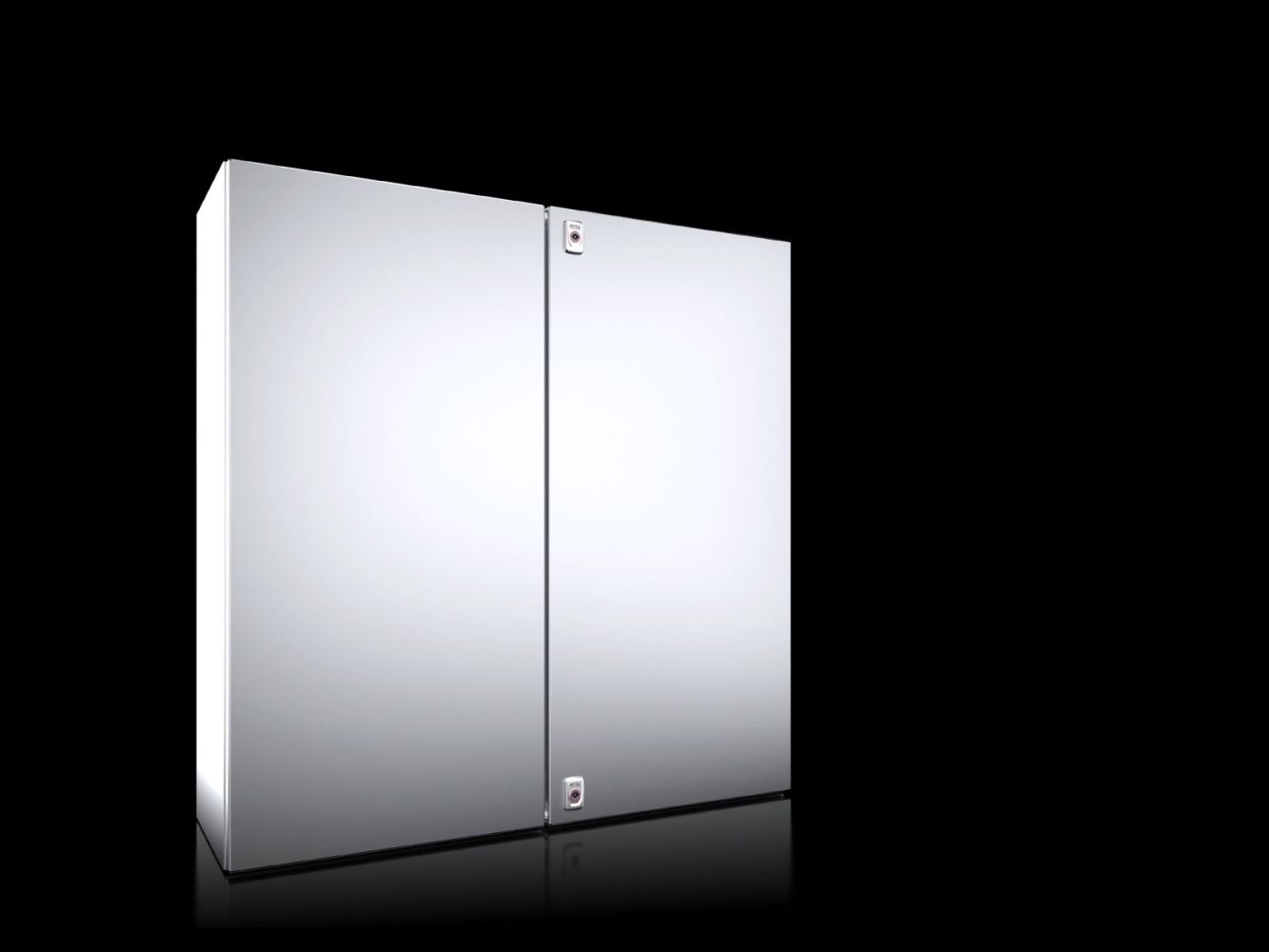

Rittal 1018000 Compact enclosure AX, 2-door, 1000x1000x300 mm
|
978,65 EUR 982,18 EUR |
|
|
( 1.164,59 EUR incl. VAT ) ≈ £819.13 | ≈ $1,075.54 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980354 |
| Mfg Part No: | 1018000 |
| UPC/EAN: | 4028177815049 |
| Weight: | 64 kg |
| Type: | AX 1018000 |
Product information for Rittal 1018000:
Applications
This enclosure is suitable for use in industrial plants, such as machine building, manufacturing technology, or process automation. The use of stainless steel 1.4301 makes it particularly suitable for environments with moisture, aggressive chemicals, or high mechanical loads. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for outdoor areas or damp indoor spaces. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry and damp indoor environments as well as environments with slight contamination risk. The IK code IK10 provides high protection against mechanical impacts, such as shock or impact.
Functions and Equipment in Detail

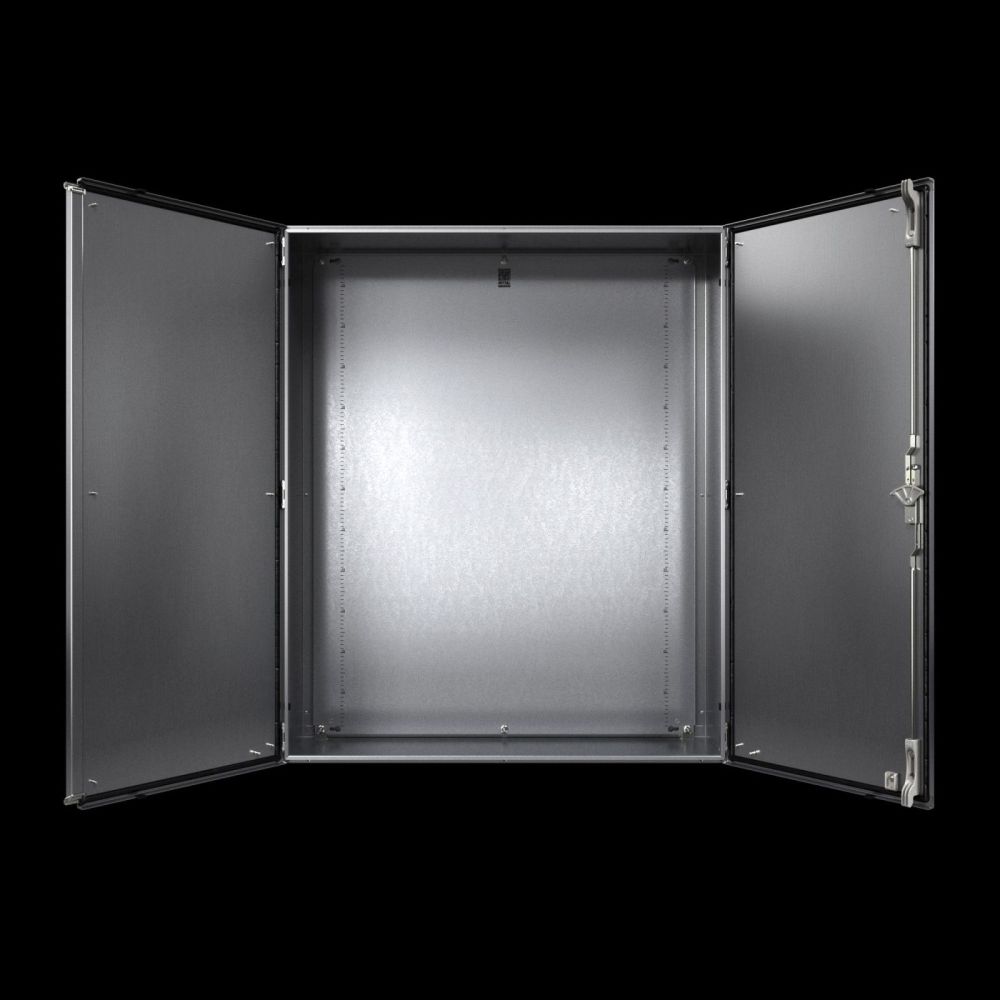

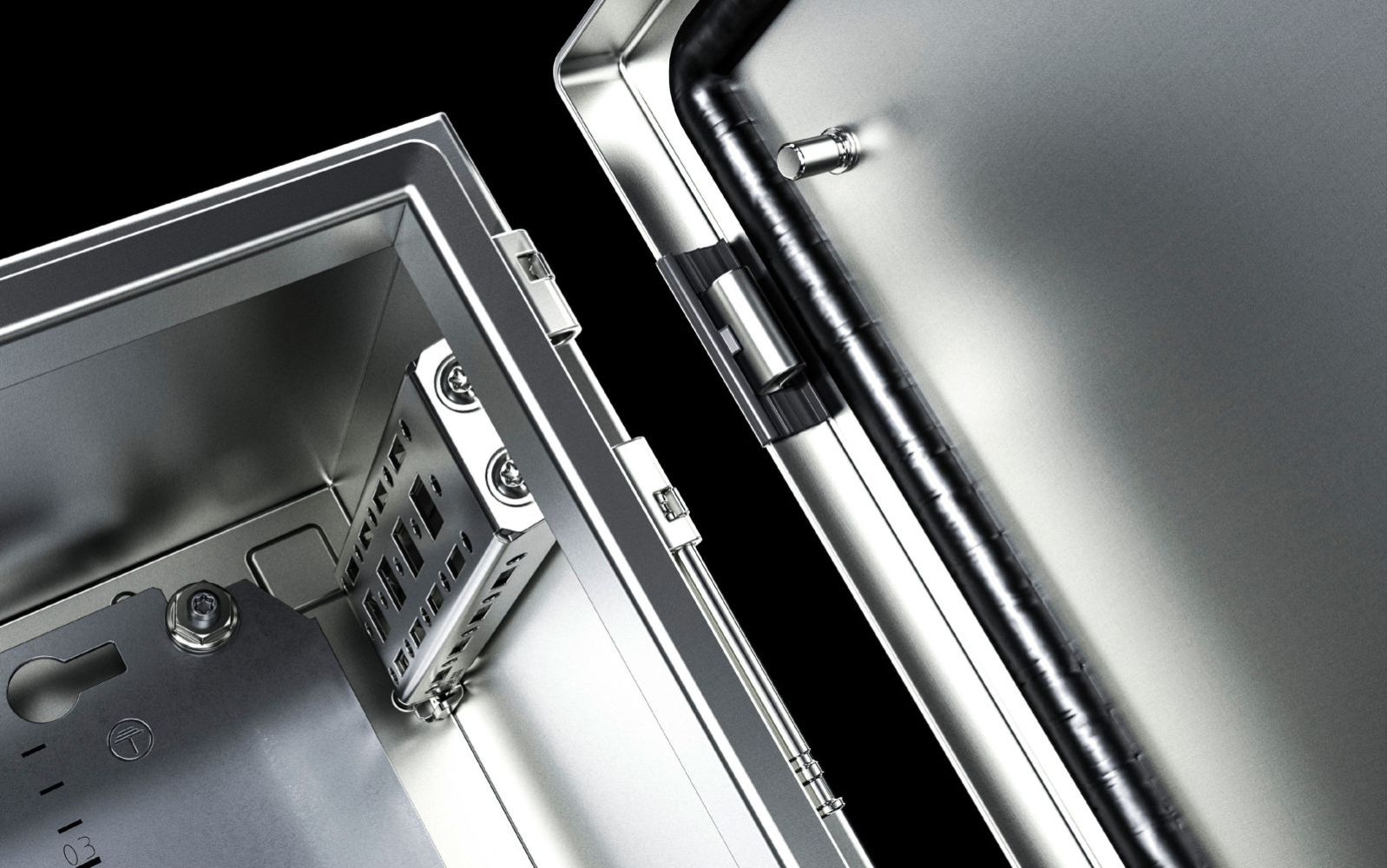

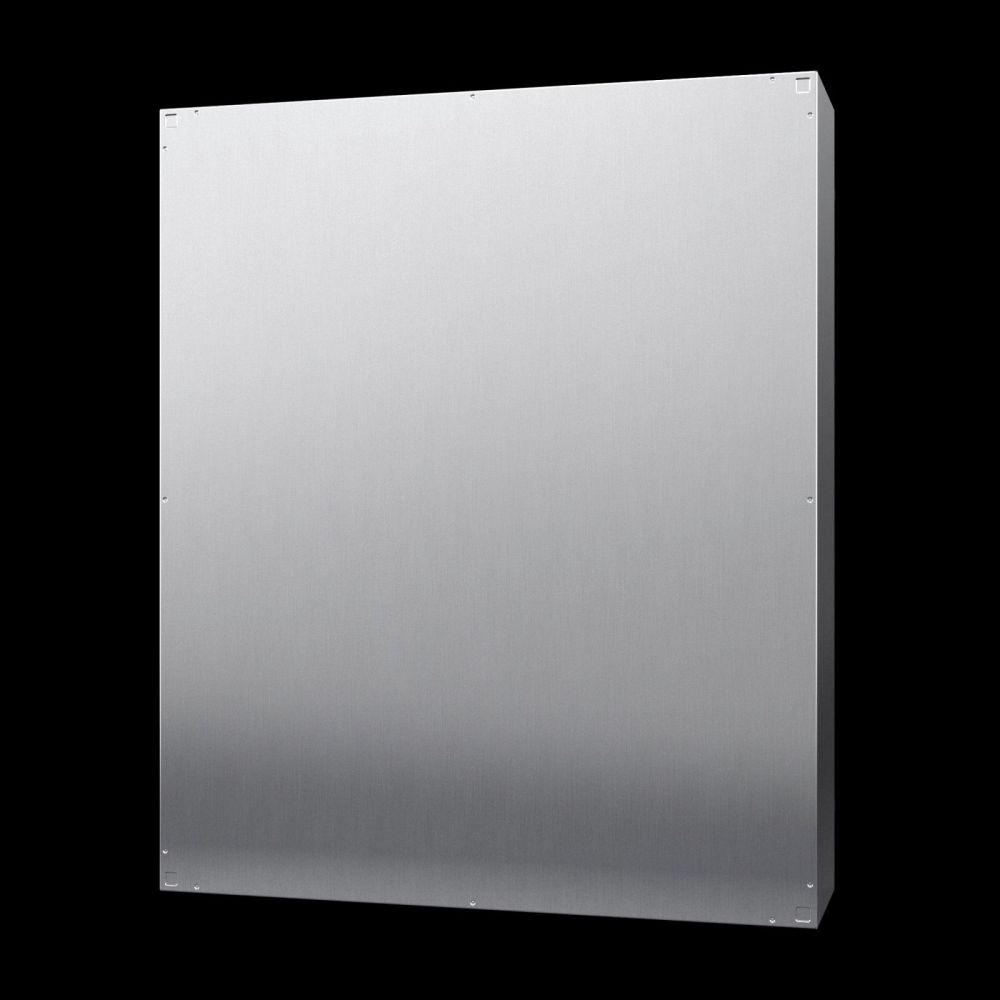

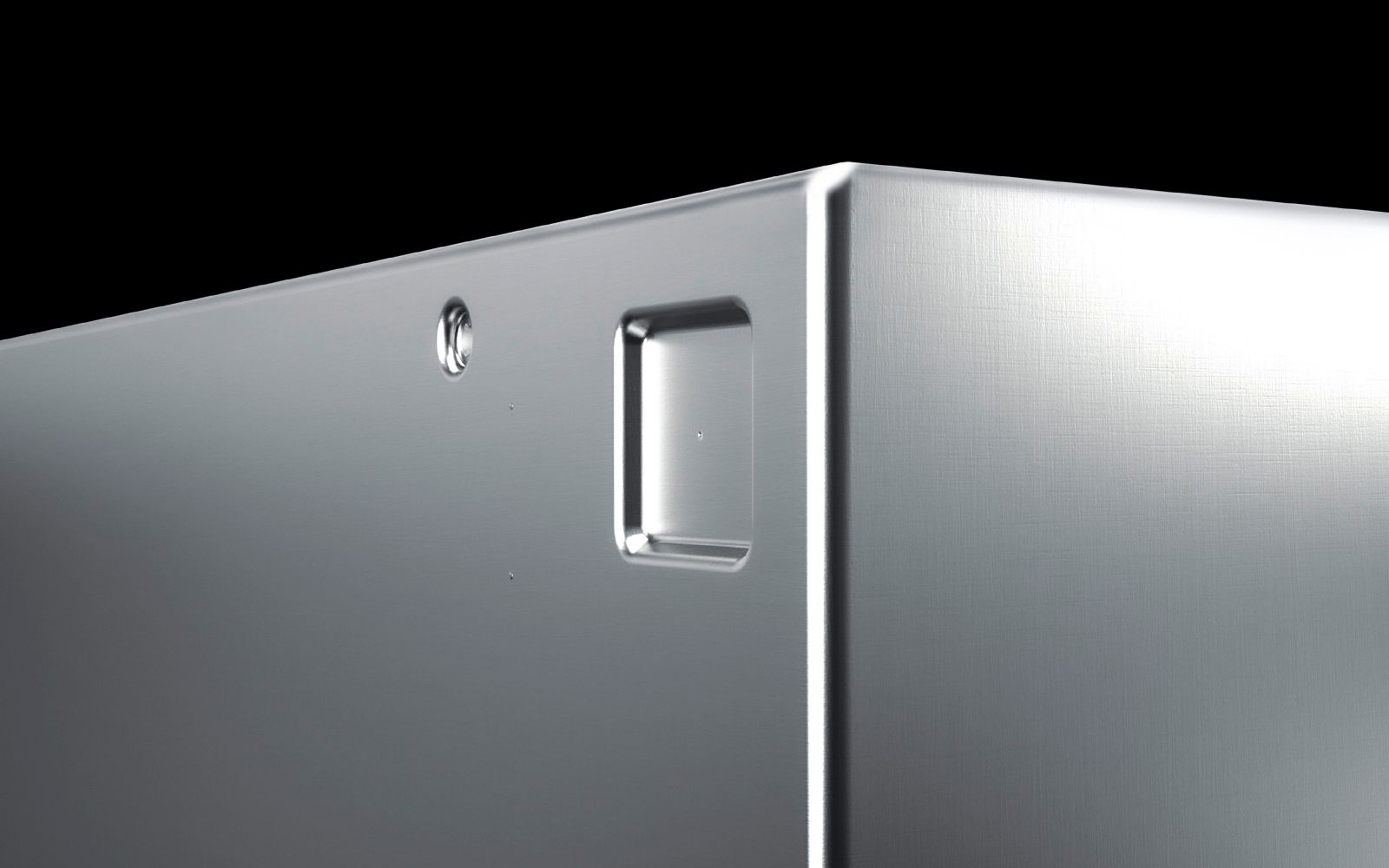

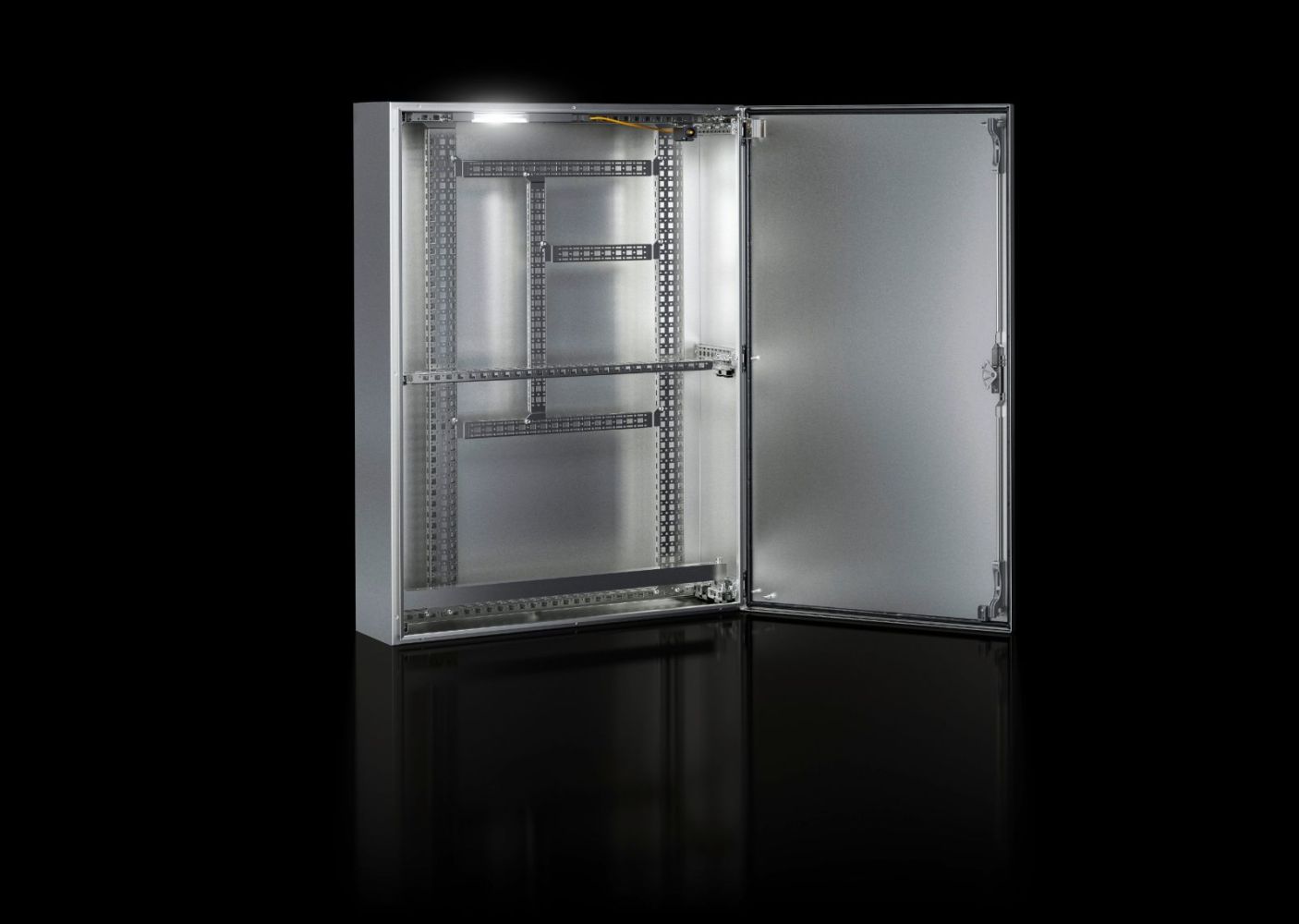

The enclosure is made of a single piece of bent and welded stainless steel, with a closed rear wall featuring embossing for wall mounting brackets. The doors are fitted with a continuous foamed PU seal, ensuring a tight seal. The hinges are welded, providing high mechanical stability. The mounting plate is equipped with keyhole slots for earthing and dimension markings and is fastened with Limbach nuts. Two latch locks with 3 mm double bar inserts according to DIN 43668 ensure secure locking. The locks are made of zinc die-cast and are robust against mechanical stress.
Technology Explained Simply
The material thickness of the enclosure is 1.5 mm, that of the doors is 2 mm, and that of the mounting plate is 2.5 mm, ensuring high strength and long-term stability. The brush-finished surface (grit 400) offers good corrosion resistance and is easy to clean. The integrated latches enable modular internal equipment without the need for drilling. The continuous PU seal ensures a tight seal, supporting the IP 55 protection rating. The locks with double bar inserts are protected against tampering and allow secure fastening.
Compatibility and Accessories

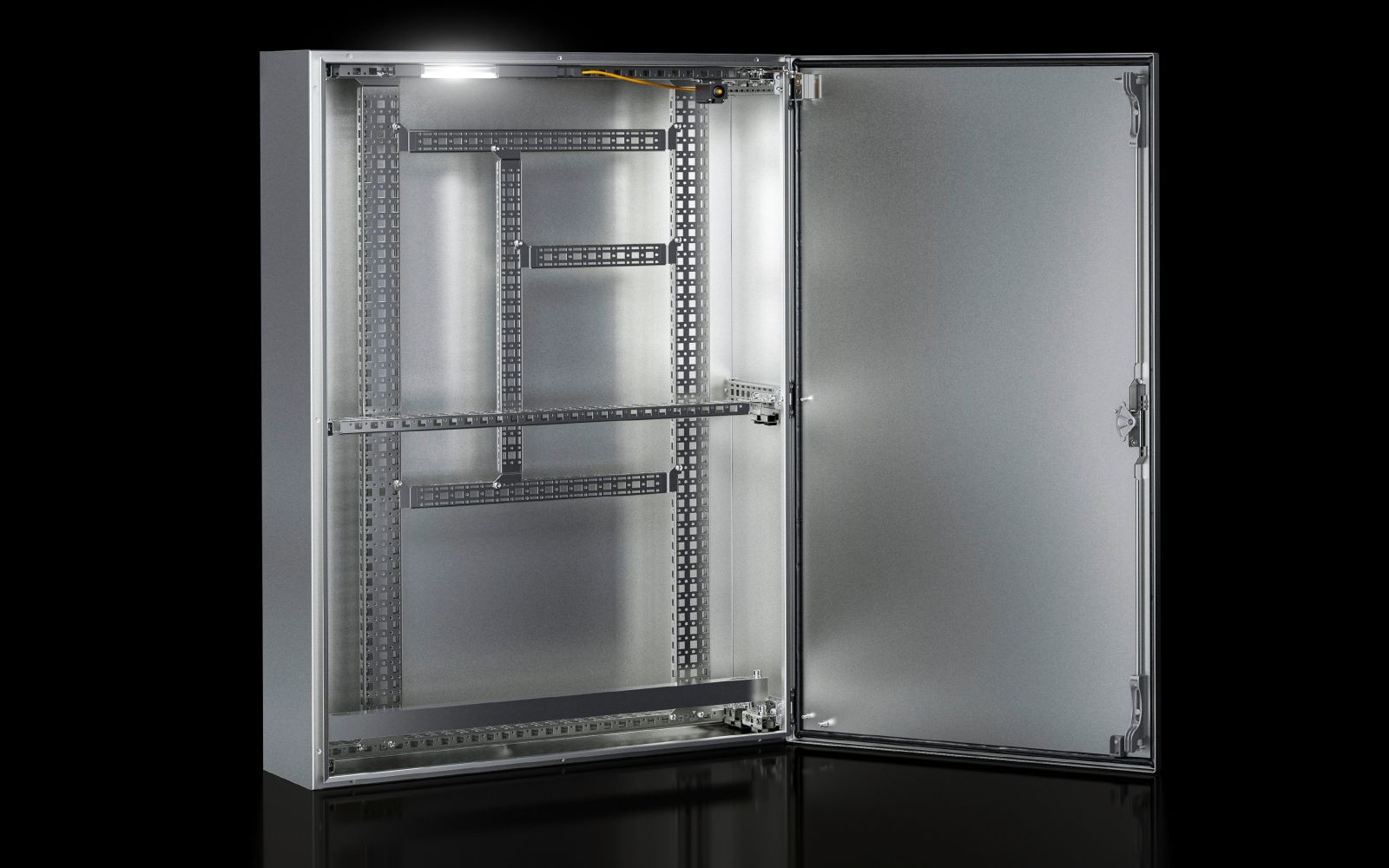

Various accessories are available for this enclosure, extending its functionality. These include mounting rails VX/TS, cable glands in various sizes (e.g. M12x1.5, M25x1.5, M40x1.5) made of brass or polyamide, baying sets for AX, KX, AE, KL, wall mounting brackets made of stainless steel 1.4301, protective roofs, LED system lights, and floor mounting rails. These components enable flexible adaptation to specific operational requirements.
Mounting and Installation

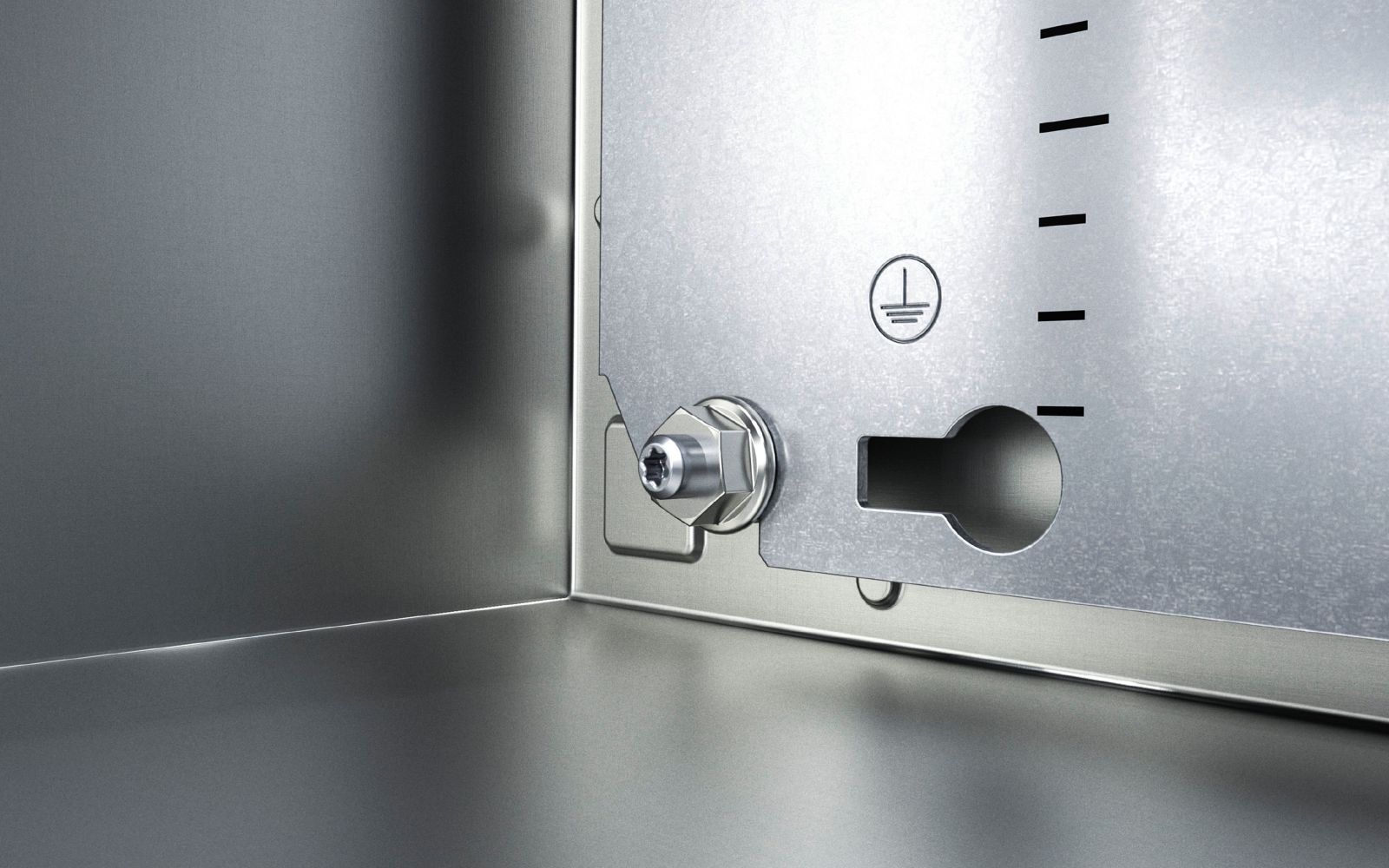

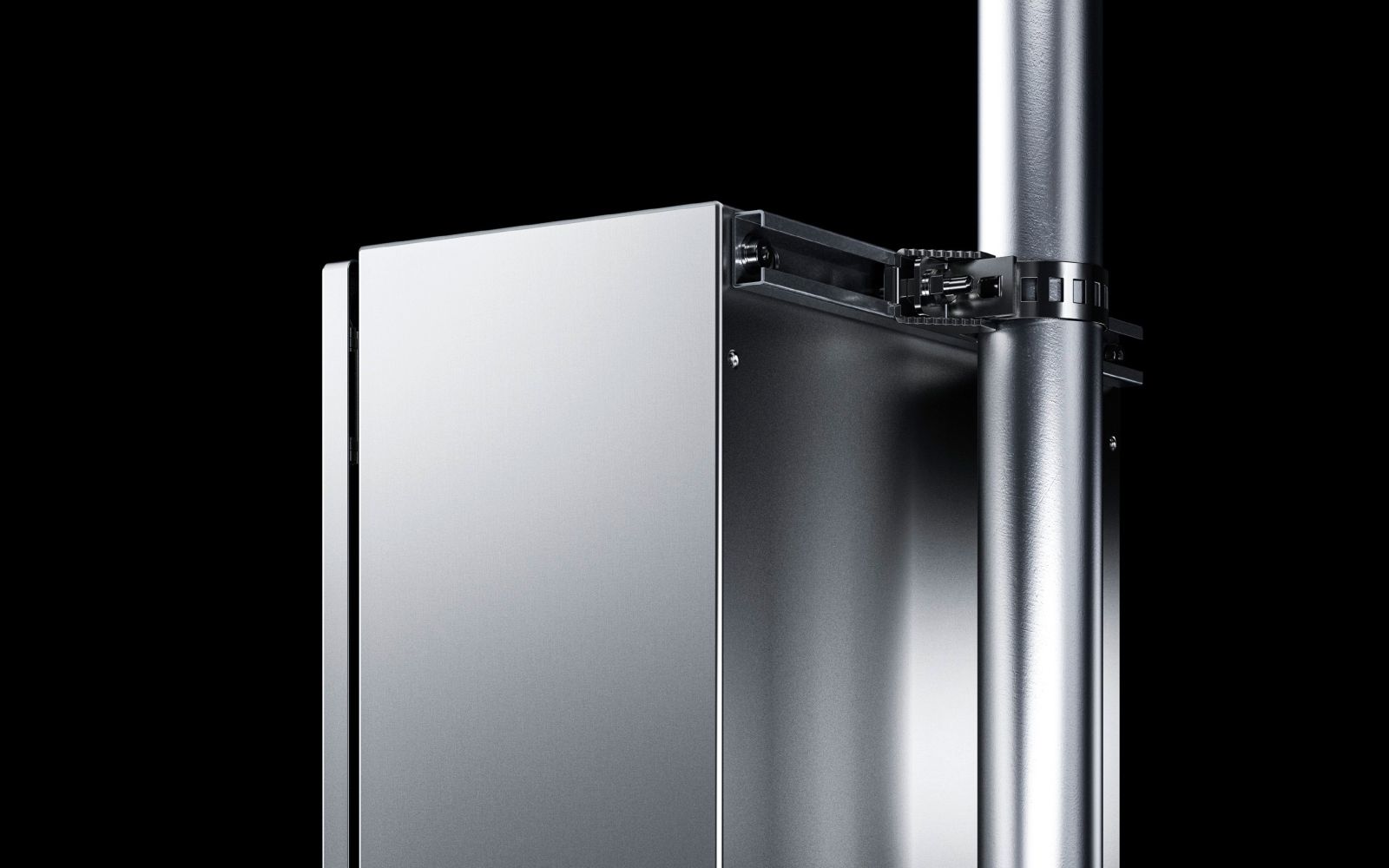

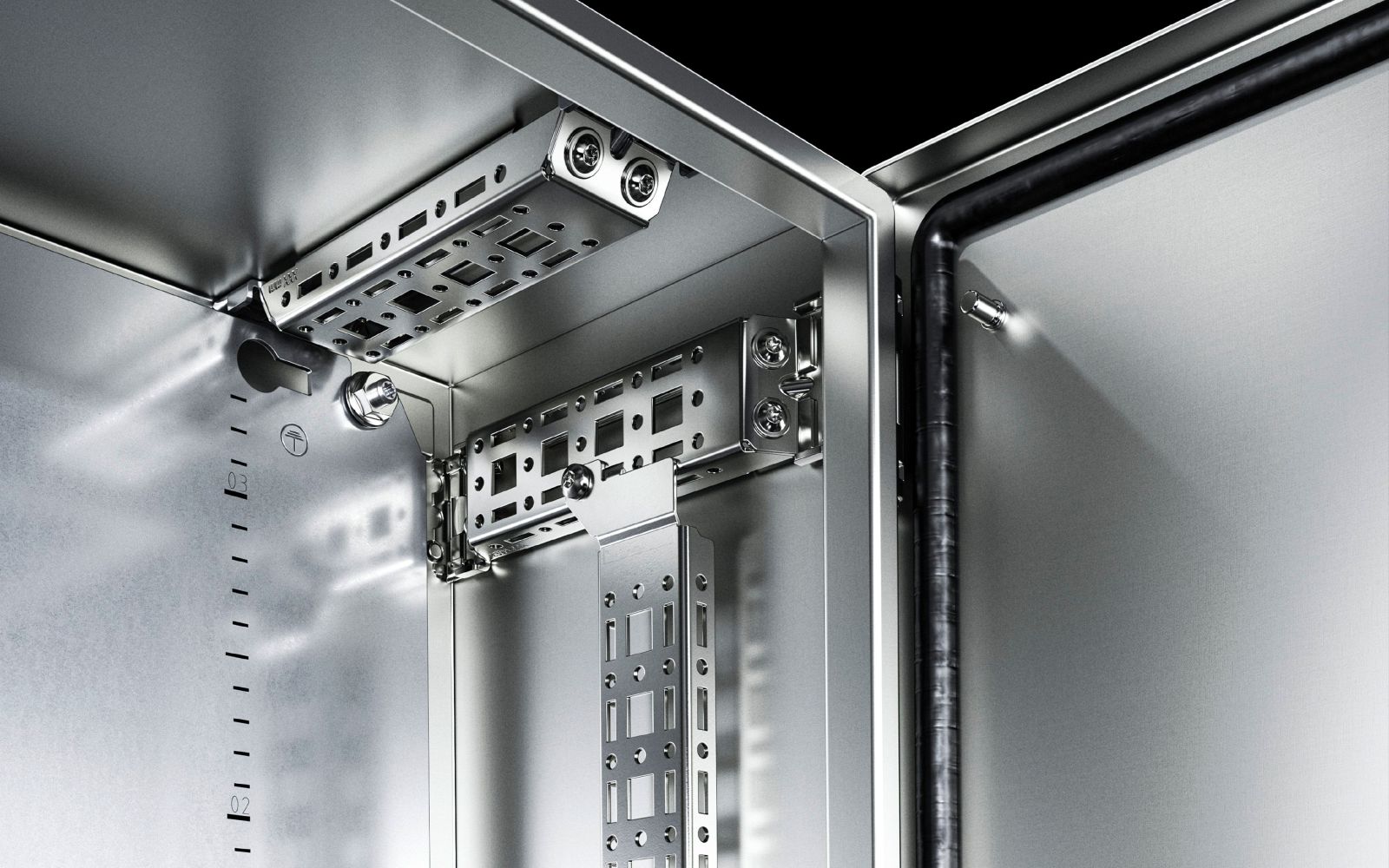

Mounting is done via the pre-embossed mounting brackets on the rear wall. The mounting plate is fastened with Limbach nuts, ensuring a secure and durable connection. The doors open to an angle of 130°, providing good access to the interior. The integrated latches facilitate the installation of internal components such as control panels or controls.
Advantages in Operation
The enclosure offers high mechanical stability, corrosion resistance, and protection against dust and water. The modular internal equipment without drilling accelerates installation and maintenance. The integrated earthing via keyhole slots on the mounting plate and the secure locks increase operational safety. The use of stainless steel 1.4301 ensures a long service life even in demanding environments. QR codes on the enclosure, door, and nameplate enable unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 1.000 mm |
| Height | 1.000 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 945 mm x 975 mm |
| Number of doors | 2 |
| Lock | Locking mechanism type: push-button, number of locks: 2, lock insert: 3 mm double barb, lock material: zinc die-cast |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 209,29 |
Questions & answers
What is the delivery time of Rittal 1018000 Compact enclosure AX, 2-door, 1000x1000x300 mm?
The article Rittal 1018000 Compact enclosure AX, 2-door, 1000x1000x300 mm is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1018000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1018000 Compact enclosure AX, 2-door, 1000x1000x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 1018000 Compact enclosure AX, 2-door, 1000x1000x300 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
