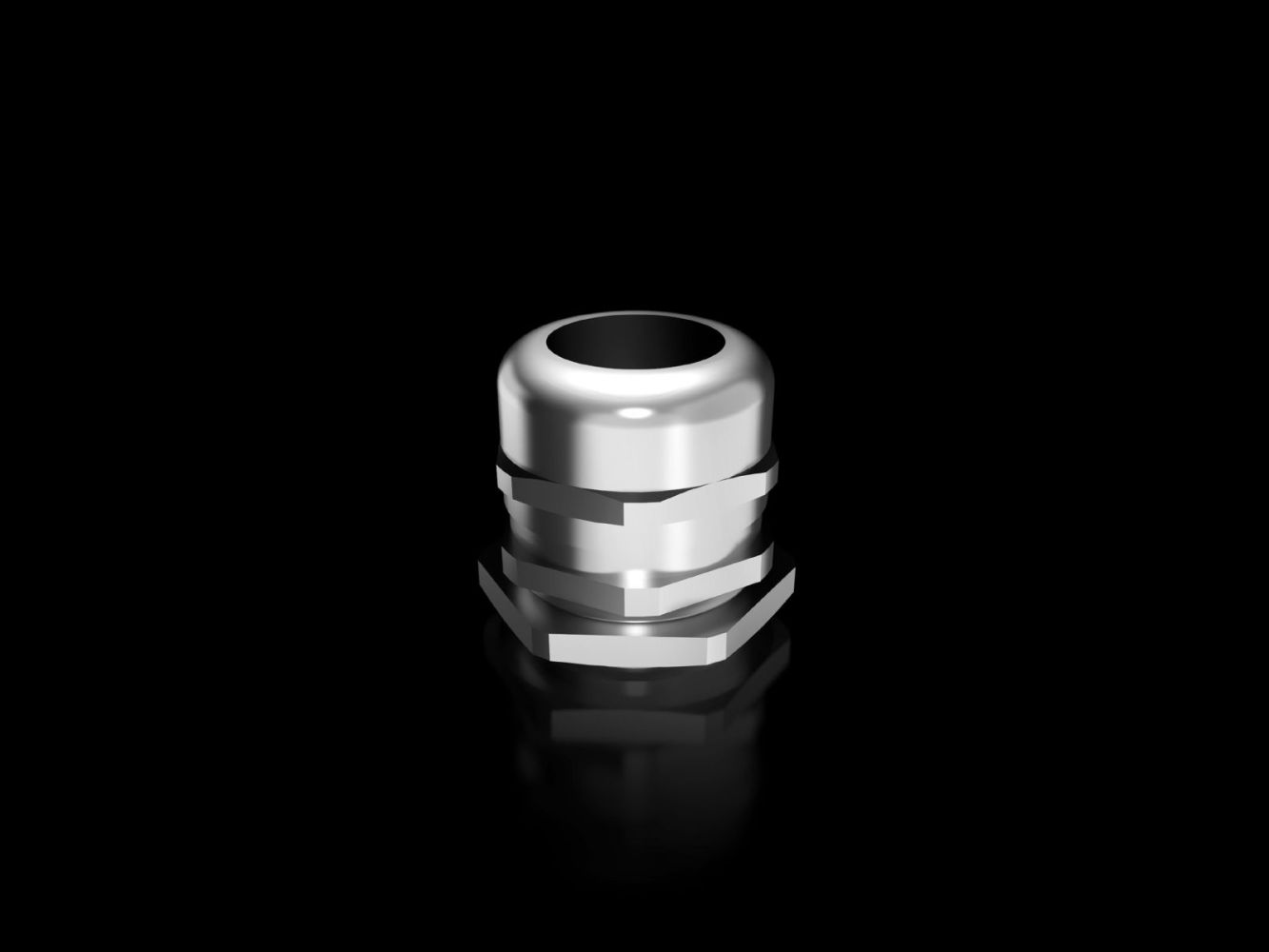

Rittal 2411831 Cable gland brass M25x1.5

Your rating:
Average rating
product review for Rittal 2411831 Cable gland brass M25x1.5
( 4.6 / 5 ) 24 ratings
Rittal 2411831
This image may differ from the desired article.
Rittal 2411831Rittal 2411831Rittal 2411831
-10% 21,62 EUR 24,13 EUR
( 25,73 EUR incl. VAT )
≈ £18.10  |  ≈ $23.76
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2411831 Cable gland brass M25x1.5
Datasheet:file_download Download
Lieske Part No.:532688
Mfg Part No: 2411831
UPC/EAN: 4028177810068
Weight:0.571 kg
Type:SZ 2411831

Product information for Rittal 2411831:

The Rittal SZ 2411831 is a cable gland made of brass, designed for use in industrial plants and enclosures. It is used for secure and tight fixation of cables with a diameter between 11 mm and 17 mm in the enclosure. The gland features a nickel-plated surface, ensuring high corrosion resistance and good electrical conductivity. The integrated clamping lamellae ensure even clamping and cable-friendly strain relief, reducing mechanical stress on the cable. The packaging unit contains 10 pieces, thus saving additional ordering effort and storage space.

Applications
The cable gland is suitable for use in environments with high requirements for protection rating. It is particularly intended for use in industrial electrotechnics, automation technology, as well as in enclosures and distribution boxes, where a tight and mechanically stable cable connection is required. The high protection rating also allows use in outdoor areas or in humid, dust-laden environments.

Functions and Equipment in Detail
The gland features a thread M25 x 1.5 with a thread length of 8 mm. The spanner size is 27 mm, enabling installation with a suitable wrench. The specified torque of 14 Nm ensures a secure and tight connection without overloading the material. The integrated clamping lamellae ensure that tensile forces are evenly distributed across the cable, preventing mechanical damage.

Technology Explained Simply
The protection rating IP 68 according to IEC 60 529 means that the gland is dust-tight and waterproof, even under prolonged immersion under pressure (5 bar, 30 minutes). This makes it suitable for use in humid, dusty, or even wet environments. The sealing made of CR/NBR ensures reliable sealing against dust, water, and other environmental influences. The operating temperature range of -40 °C to 100 °C enables use in extreme climatic conditions, as found in industrial plants or outdoor applications.

Compatibility and Accessories
The gland is designed for cables with a diameter of 11 mm to 17 mm. The combination of gland and lock nut in one packaging unit simplifies installation and reduces ordering and storage effort. The type rating according to UL 50E includes categories Type 1, Type 4, Type 4X, Type 12, and Type 13, confirming suitability for various industrial environments, including humid, dusty, or slightly corrosive areas.

Installation and Mounting
Installation is carried out by inserting the cable into the gland and then tightening the gland with a wrench to the specified torque of 14 Nm. The integrated clamping lamellae ensure that the cable is not damaged during tightening. The gland is designed for simple and quick installation in enclosures and housings.

Operational Advantages
The cable gland provides a reliable, tight, and mechanically stable connection that withstands even harsh operating conditions. The high protection rating IP 68 and the wide temperature range increase operational safety. The integrated clamping lamellae protect the cable from mechanical stress, extending the service life of the installation. The packaging unit with 10 pieces reduces ordering and storage effort for the user.

General
MaterialBrass, seal: CR/NBR
Surface protectionnickel-plated
Degree of protection IP according to IEC 60 529IP 68 (5 bar, 30 min)
Height30,5 mm
ThreadM25 x 1.5
Thread length8 mm
Minimum cable diameter11 mm
Max. cable diameter17 mm
Operating temperature range-40 °C...100 °C
Torque14 Nm
Wrench width27 mm
Type rating according to UL 50EType 1, Type 4, Type 4X, Type 12, Type 13


Product data sheet
Datasheet for Rittal 2411831, EAN: 4028177810068
