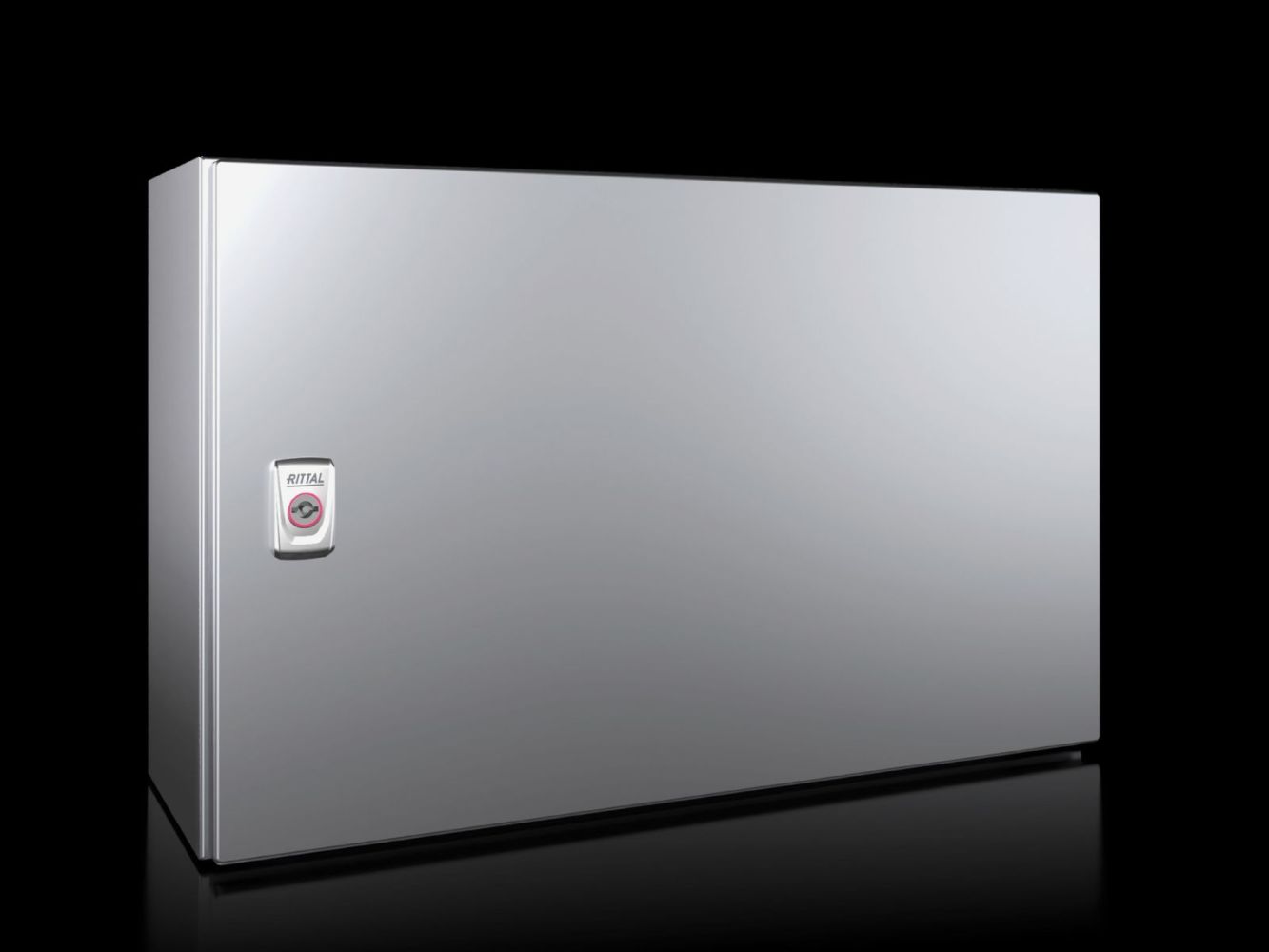

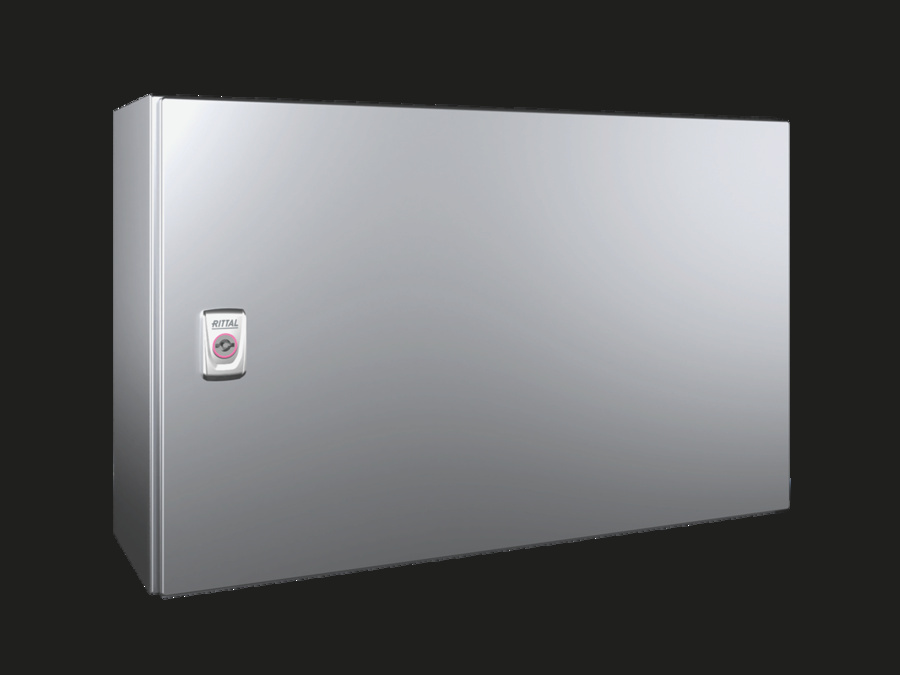

Rittal 1009000 Compact enclosure AX, 1-door, 600x380x210 mm,
|
313,30 EUR 313,31 EUR |
|
|
( 372,83 EUR incl. VAT ) ≈ £262.23 | ≈ $344.32 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980349 |
| Mfg Part No: | 1009000 |
| UPC/EAN: | 4028177814981 |
| Weight: | 13.935 kg |
| Type: | AX 1009000 |
Product information for Rittal 1009000:
Applications
The enclosure is intended for use in industrial plants, such as machine building, conveyor technology, packaging technology, or process automation. The IP 66 protection rating and IK10 rating make it particularly suitable for environments with mechanical impacts, such as shock or impact loads, as well as for areas with increased humidity or splashing water. The NEMA protection ratings 1, 3R, 4, 4X, and 12, as well as the UL 50E Type Ratings 1, 3R, 4, 4X, and 12, confirm its suitability for use in various regions and compliance with standards, especially in the USA and Canada.
Functions and Equipment in Detail

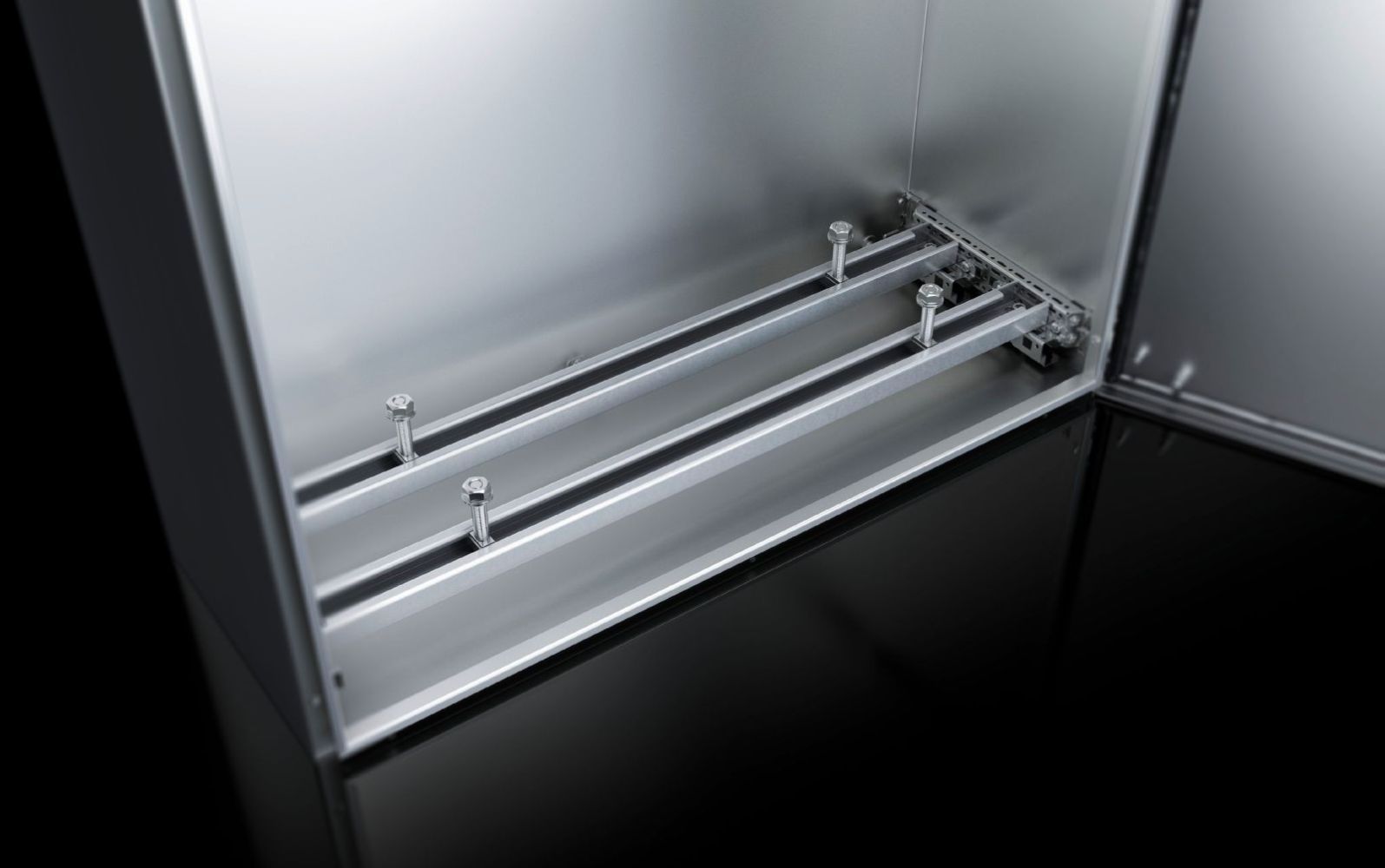

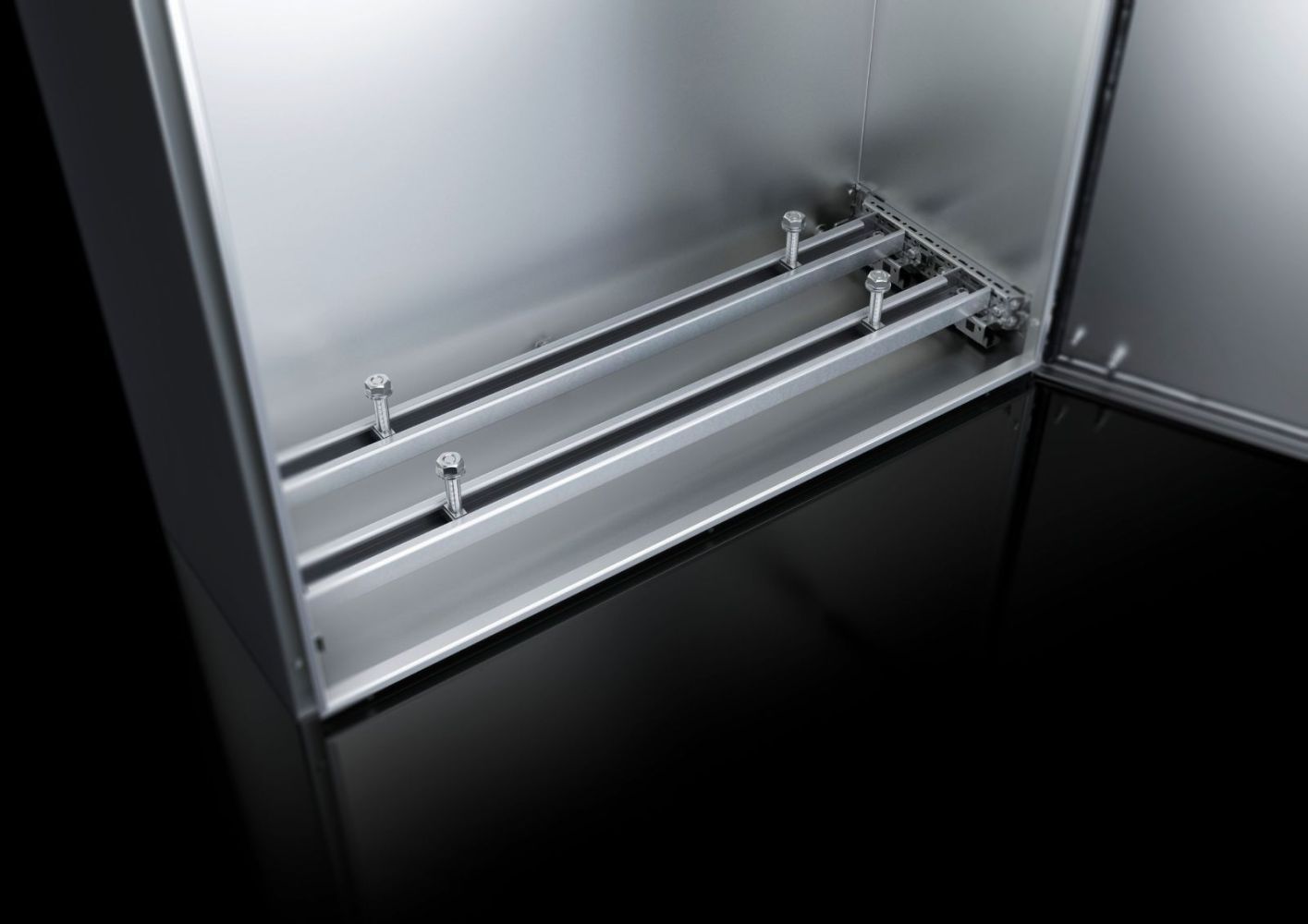

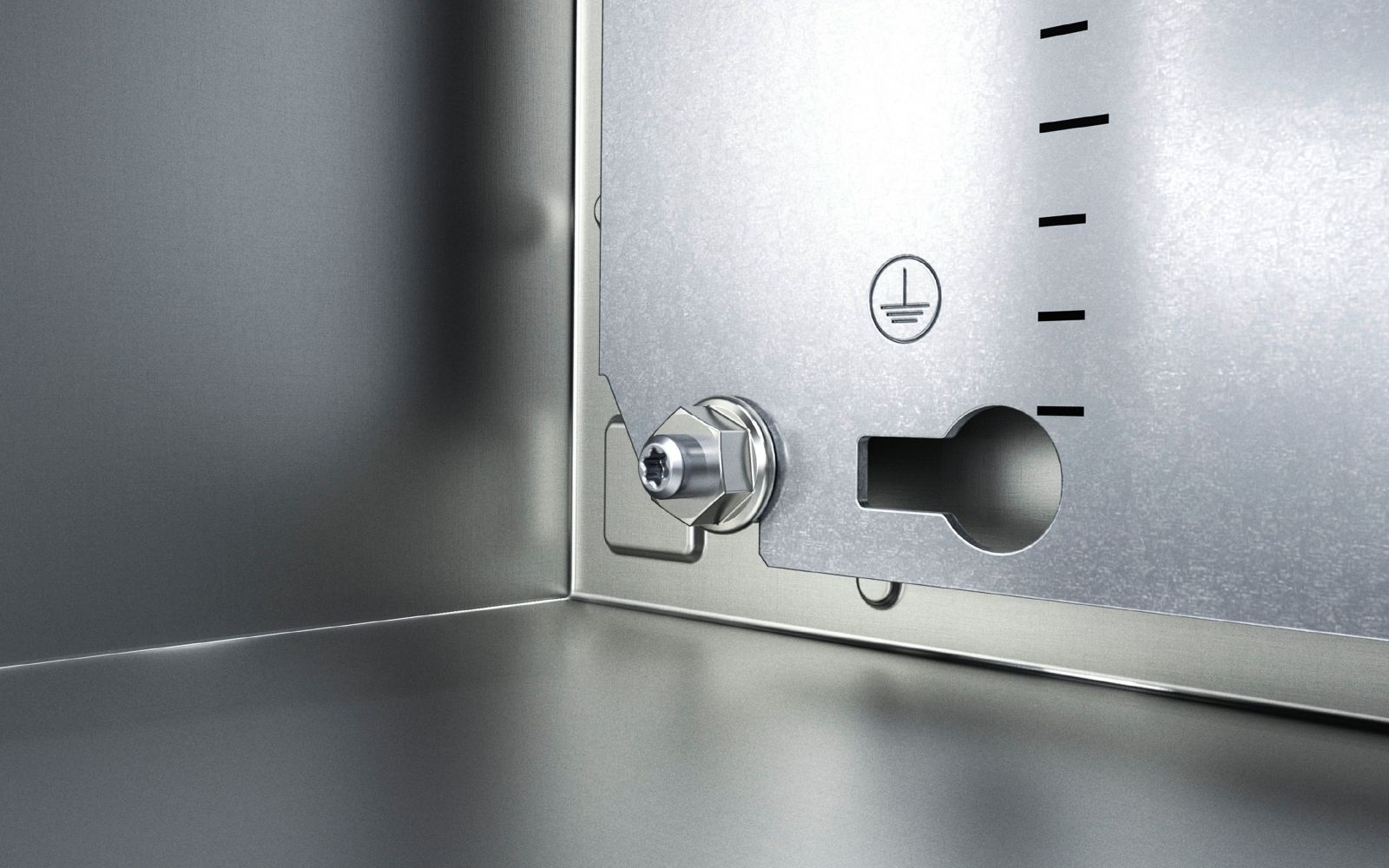

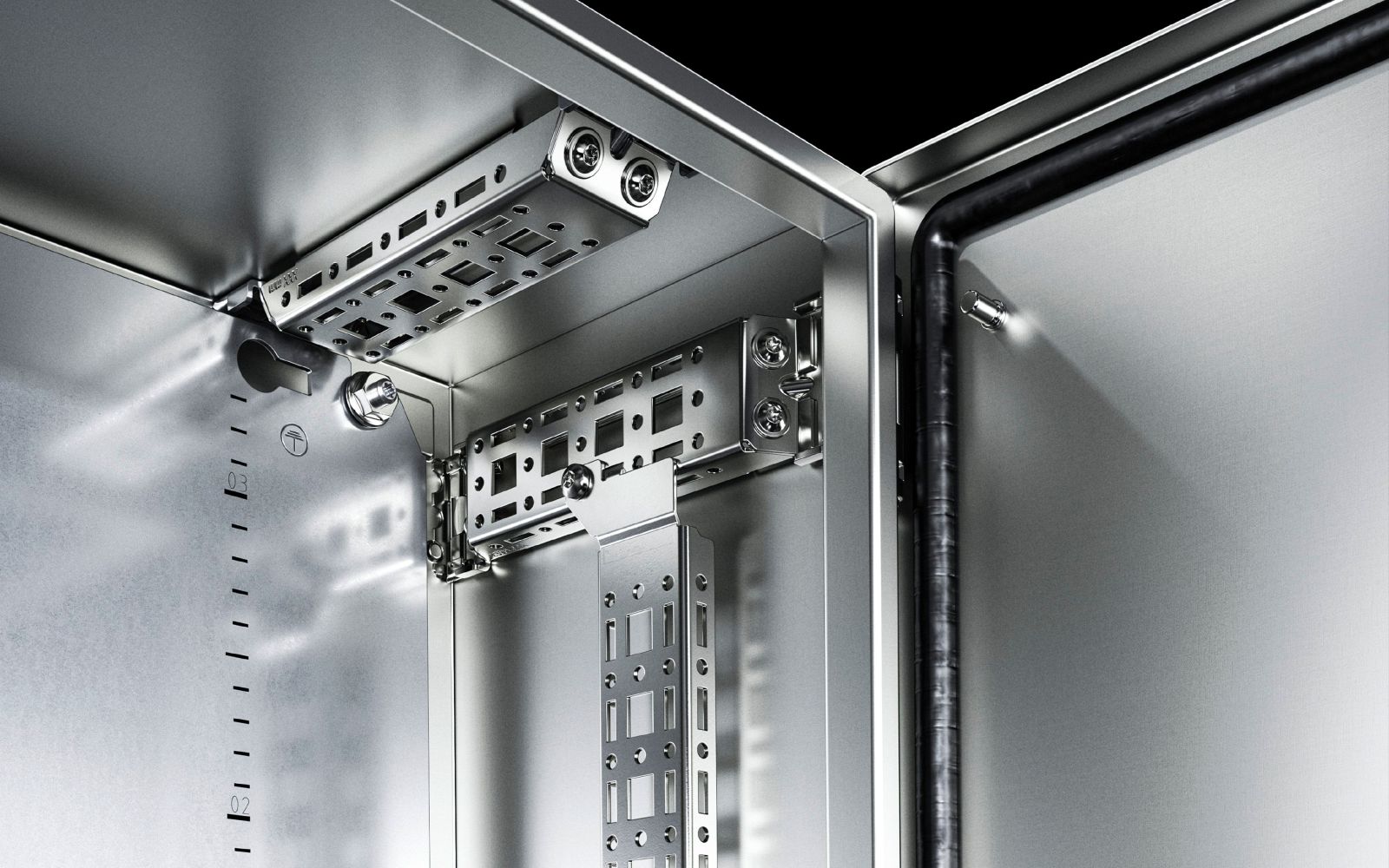

The enclosure features an integrated cam system that enables systematic internal installation without drilling. The mounting plate made of galvanized steel sheet with dimensions 550 mm x 355 mm is equipped with keyhole slots for earthing and dimension markings, and is fastened with Limbach nuts. The door is fitted with welded hinges that allow right-hand mounting, with the option to convert to left-hand mounting. A deadbolt lock with a 3 mm double-barrel insert according to DIN 43668 ensures secure locking. The lock material is zinc die-cast, providing high mechanical stability.
Technology Explained Simply
The wall thickness of the enclosure is 1.25 mm, the door thickness is 1.5 mm, and the mounting plate thickness is 2.5 mm, ensuring high strength and long-term stability. The surface of the enclosure and door is finished with a brushed finish (grit 400), providing a uniform, easy-to-clean, and corrosion-resistant surface. The continuous PU gasket ensures a tight seal, supporting the IP 66 protection rating. The IK10 rating means the enclosure can withstand mechanical impacts up to 10 joules, which is relevant for use in environments with high mechanical loads.
Compatibility and Accessories
Various accessories are available for this enclosure, extending its use in different application scenarios. These include cable glands made of brass and polyamide in various diameters (e.g. M12x1.5, M20x1.5, M40x1.5), wall mounting brackets made of stainless steel 1.4301, a base mounting rail for AX enclosures, a system light LED 400 (100–240 V, length 262 mm), and VX system chassis in various sizes (e.g. 23 x 64 mm, 14 x 39 mm). These components allow flexible adaptation to specific mounting and switching requirements.
Mounting and Installation

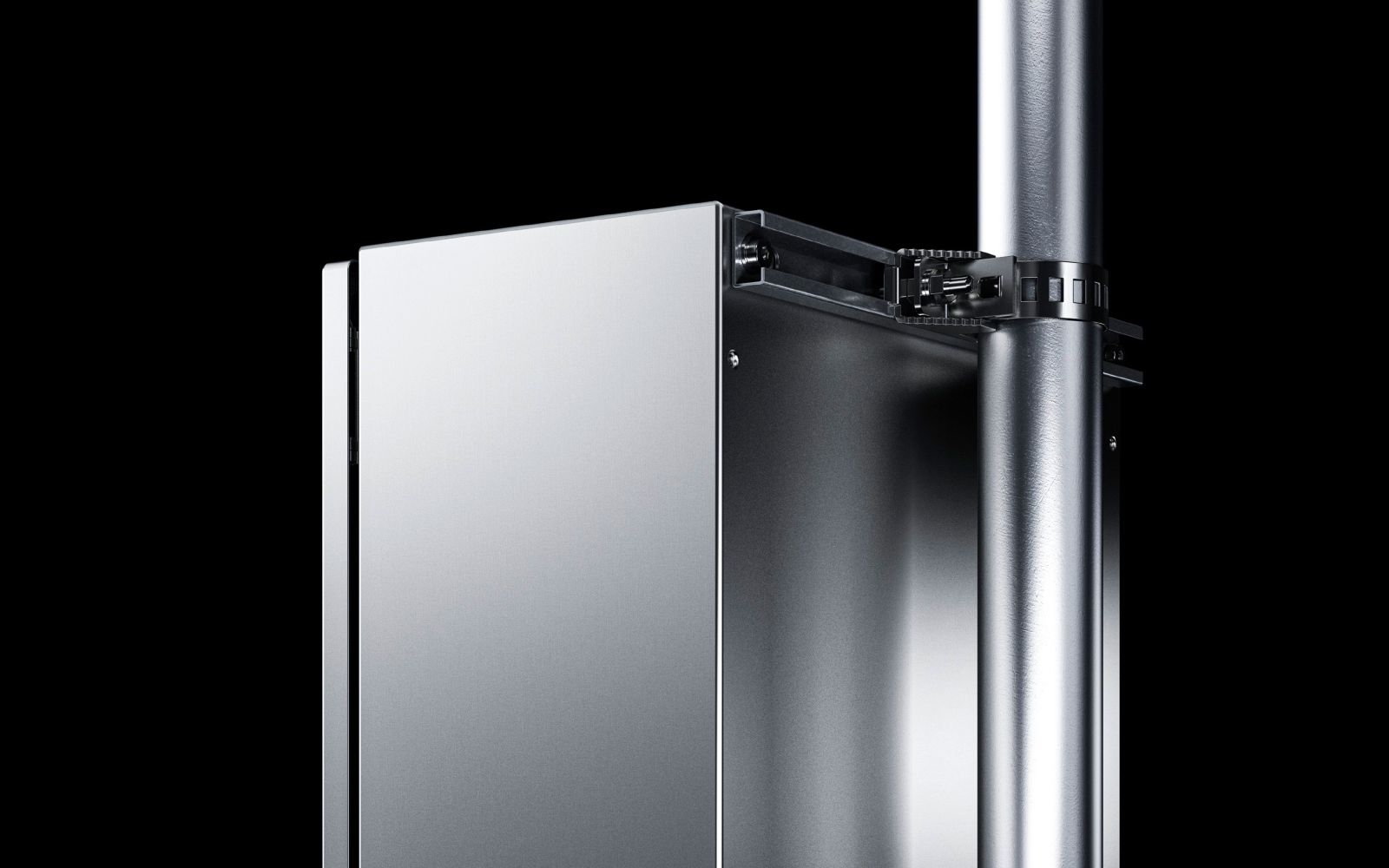

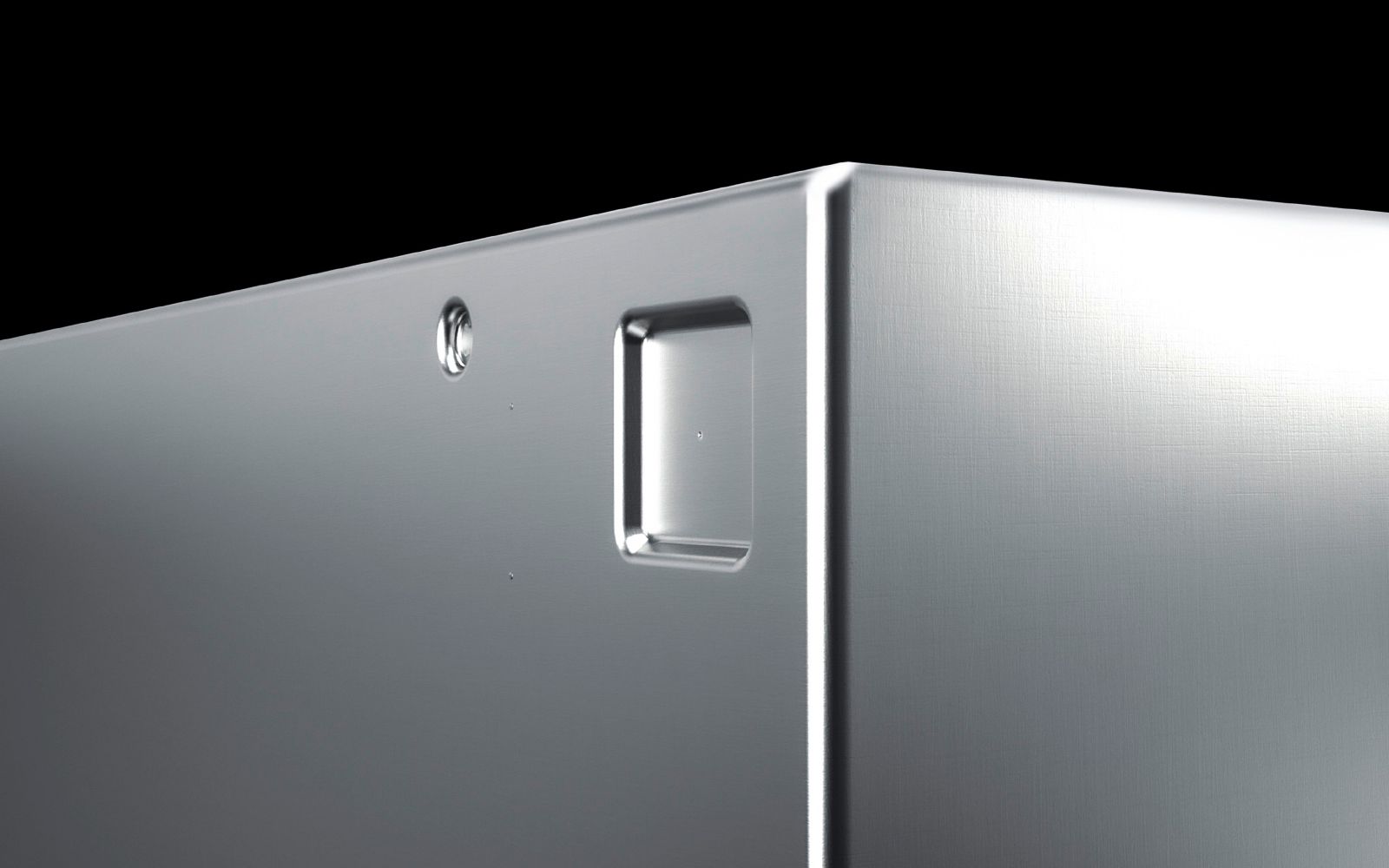

Mounting is done via the integrated embossments for wall mounting brackets on the enclosure. The mounting plate is included in the delivery scope and is fastened with Limbach nuts. The door can be secured with a deadbolt lock, enabling simple and secure operation. The integrated cams in the enclosure allow quick and tool-free installation of internal units without requiring drilling.
Advantages in Operation
The enclosure offers high mechanical stability, durable corrosion resistance due to the use of stainless steel 1.4301, and reliable protection against dust, water, and mechanical impacts. The integrated mounting platform and cam system simplify the installation and maintenance of electrical components. The uniform surface treatment and robust construction ensure a long service life and low maintenance costs. The QR codes on the body, door, and nameplate enable unique identification and easy access to product information and documentation, supporting traceability and maintenance.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 380 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 550 mm x 355 mm |
| Number of doors | 1 |

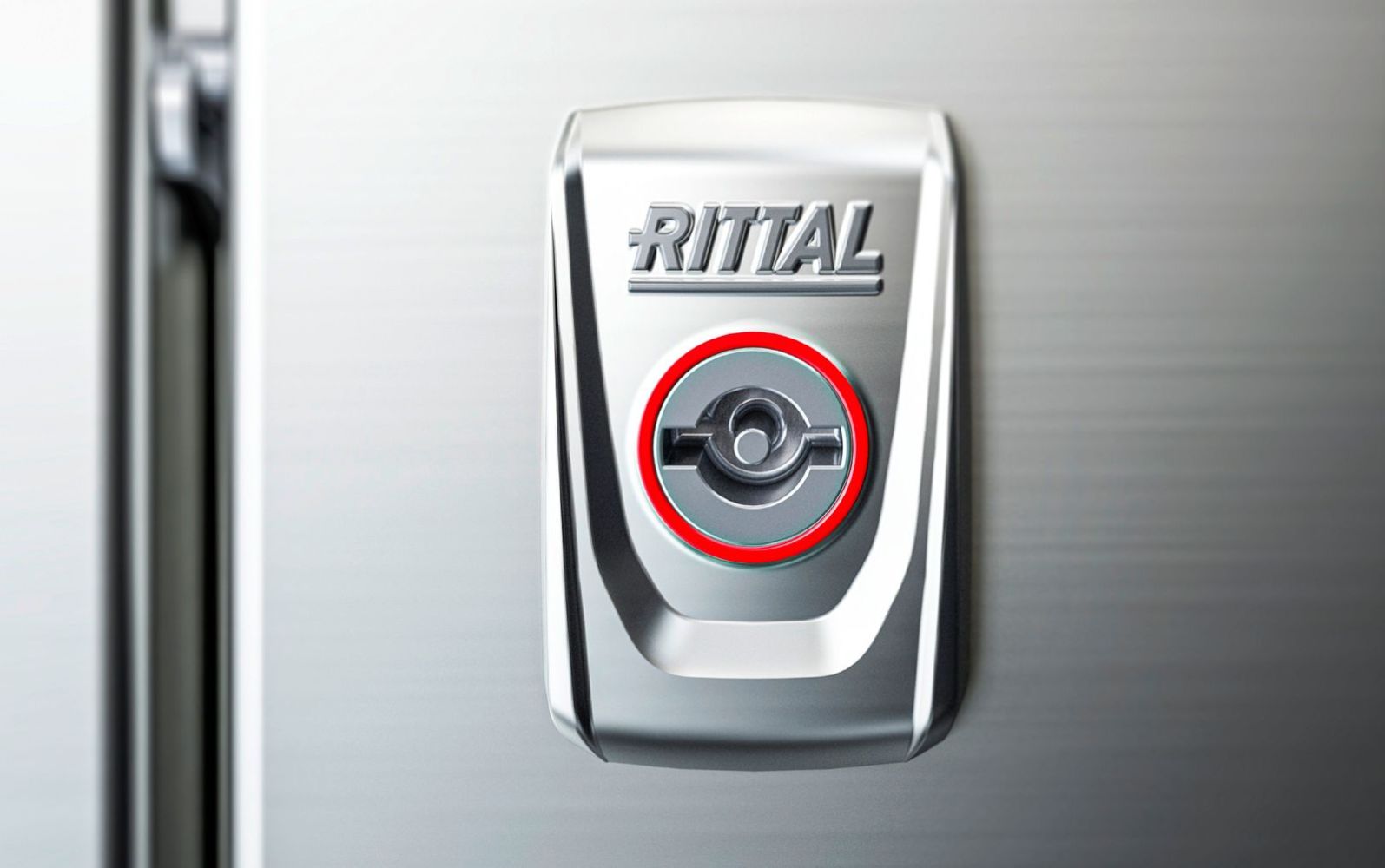

| Lock | Closure type: latch, number of closures: 1, closure insert: 3 mm double barb, closure material: zinc die-cast |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 48,75 |
