Rittal 2411841 Cable gland brass M32x1.5

Your rating:
Average rating
product review for Rittal 2411841 Cable gland brass M32x1.5
( 4.5 / 5 ) 19 ratings
Rittal 2411841
This image may differ from the desired article.
Rittal 2411841Rittal 2411841Rittal 2411841
17,71 EUR
( 21,07 EUR incl. VAT )
≈ £14.82  |  ≈ $19.46
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2411841 Cable gland brass M32x1.5
Datasheet:file_download Download
Lieske Part No.:541100
Mfg Part No: 2411841
UPC/EAN: 4028177810051
Weight:0.495 kg
Type:SZ 2411841

Product information for Rittal 2411841:

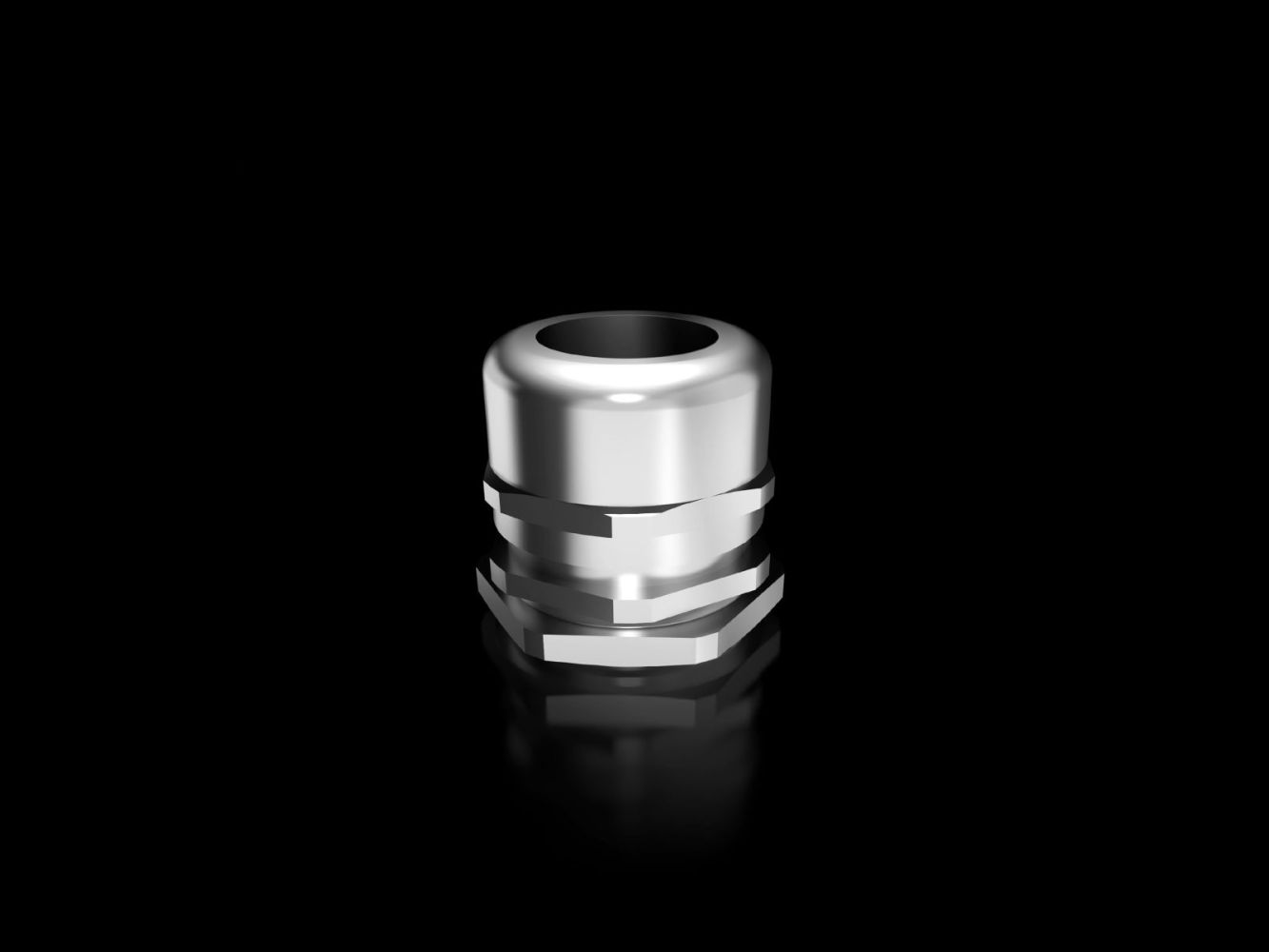

The Rittal SZ 2411841 is a cable gland made of brass with a nickel-plated surface, designed for use in industrial enclosures and housings. It is intended for secure and tight fixation of cables with a diameter range of 15 to 21 mm to a threaded connection M32 x 1.5. The gland is designed for use in demanding environments where high mechanical loads, moisture, or chemical influences may occur. The integrated clamping lamellae ensure even clamping pressure and cable-friendly strain relief, thereby extending the service life of the cables.

Applications
The cable gland is suitable for use in industrial plants, such as in manufacturing automation, power supply, or process control. It is frequently used in enclosures, distribution boxes, or other closed housings where tight and mechanically stable cable routing is required. The protection rating IP 68 (5 bar, 30 min) makes it suitable for outdoor use or wet environments, as it is dust-tight and waterproof, and can withstand short-term immersion up to 5 bar pressure and 30 minutes duration. The operating temperature range of -40 °C to 100 °C enables use in extreme climatic conditions.

Functions and Equipment in Detail
The gland features an integrated clamping lamellae construction that applies even pressure on the cable, ensuring secure and cable-friendly fixation. The seal is made of CR/NBR material, offering high chemical resistance and elasticity to ensure a tight seal even under temperature fluctuations. The thread length is 8 mm, allowing sufficient anchoring in corresponding threaded holes. The wrench size of 34 mm enables secure installation with a suitable ring spanner.

Technology Explained Simply
The protection rating IP 68 means the gland is completely dust-tight and protected against continuous water exposure such as submersion up to a pressure of 5 bar and a duration of 30 minutes. This makes it particularly suitable for locations where high humidity, splashing water, or short-term underwater exposure occurs. The nickel-plated surface offers high corrosion resistance and good protection against oxidation. The brass material ensures high mechanical strength and good electrical conductivity, which is important for connecting lines in electrical installations.

Compatibility and Accessories
The gland is designed for cables with a diameter between 15 mm and 21 mm. It is supplied together with a locknut, reducing ordering and storage effort. The packaging unit contains 5 pieces. The gland is designed for threaded connections M32 x 1.5, which are standard in many industrial enclosures and housings. The type rating according to UL 50E includes categories Type 1, Type 4, Type 4X, Type 12, and Type 13, confirming suitability for various environments, including damp, dusty, or lightly contaminated areas.

Installation and Mounting
Installation is carried out by inserting the cable into the gland and then tightening the gland with a ring spanner to the specified torque of 15 Nm. The integrated clamping lamellae ensure the cable is fixed evenly and without damage. The locknut is also tightened with the spanner to ensure a secure connection. The height of the gland is 36 mm, which should be considered when planning the enclosure depth.

Operational Advantages
The cable gland provides reliable and tight cable routing that remains stable even under high mechanical loads. The integrated clamping lamellae protect the cable from damage due to tensile forces. The high protection rating IP 68 and the wide operating temperature range from -40 °C to 100 °C enable use in demanding environments. The supply of gland and locknut in one packaging unit reduces ordering and storage effort. The nickel-plated surface ensures high corrosion resistance and long service life.

General
MaterialBrass, seal: CR/NBR
Surface protectionnickel-plated
Degree of protection IP according to IEC 60 529IP 68 (5 bar, 30 min)
Height36 mm
ThreadM32 x 1.5
Thread length8 mm
Minimum cable diameter15 mm
Max. cable diameter21 mm
Operating temperature range-40 °C...100 °C
Torque15 Nm
Wrench width34 mm
Type rating according to UL 50EType 1, Type 4, Type 4X, Type 12, Type 13


Product data sheet
Datasheet for Rittal 2411841, EAN: 4028177810051

Questions & answers

What is the delivery time of Rittal 2411841 Cable gland brass M32x1.5?

The article Rittal 2411841 Cable gland brass M32x1.5 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2411841 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2411841 Cable gland brass M32x1.5 always at the best possible price. We can give you a discount of 2% on Rittal 2411841 Cable gland brass M32x1.5 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
