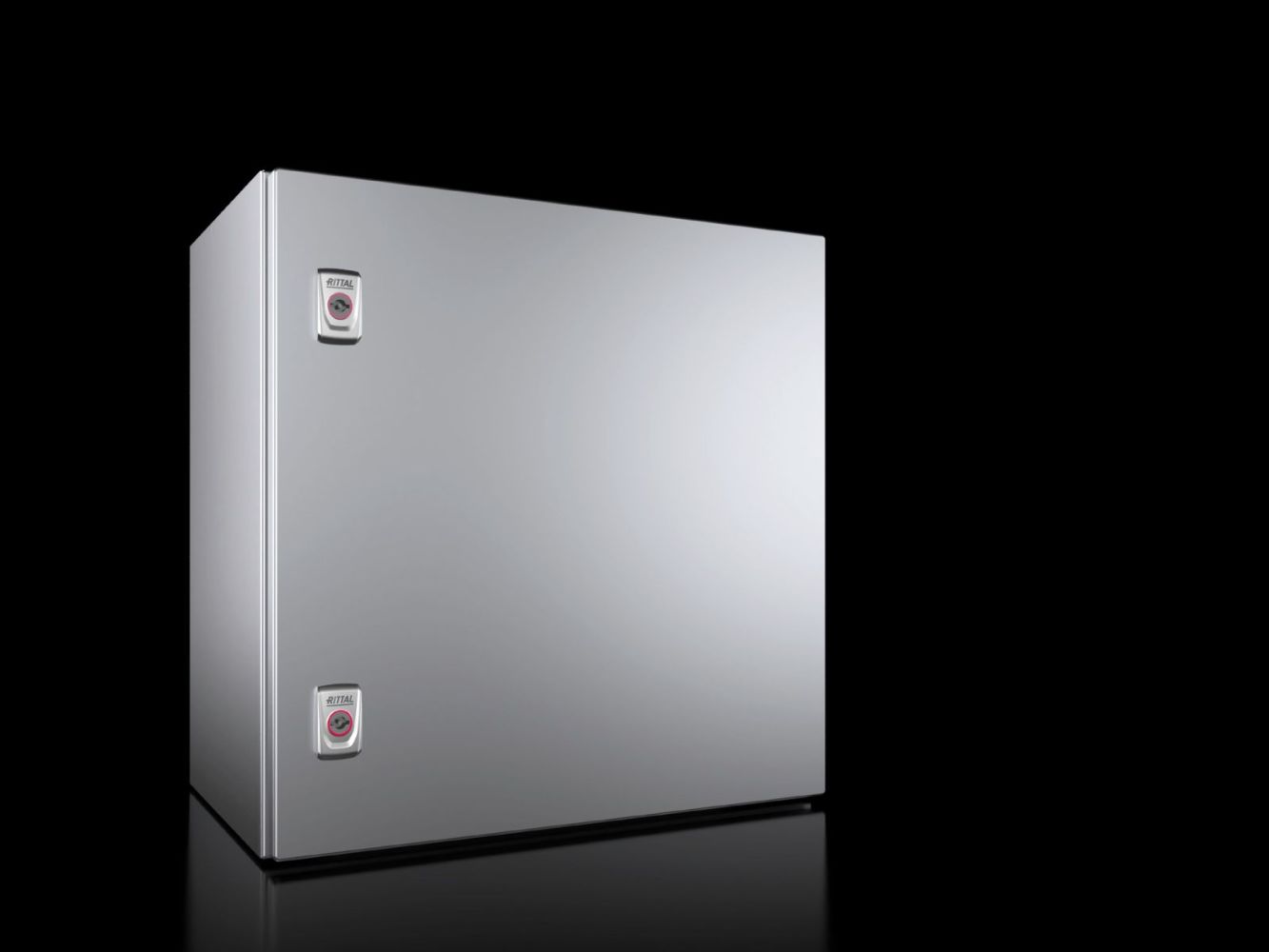

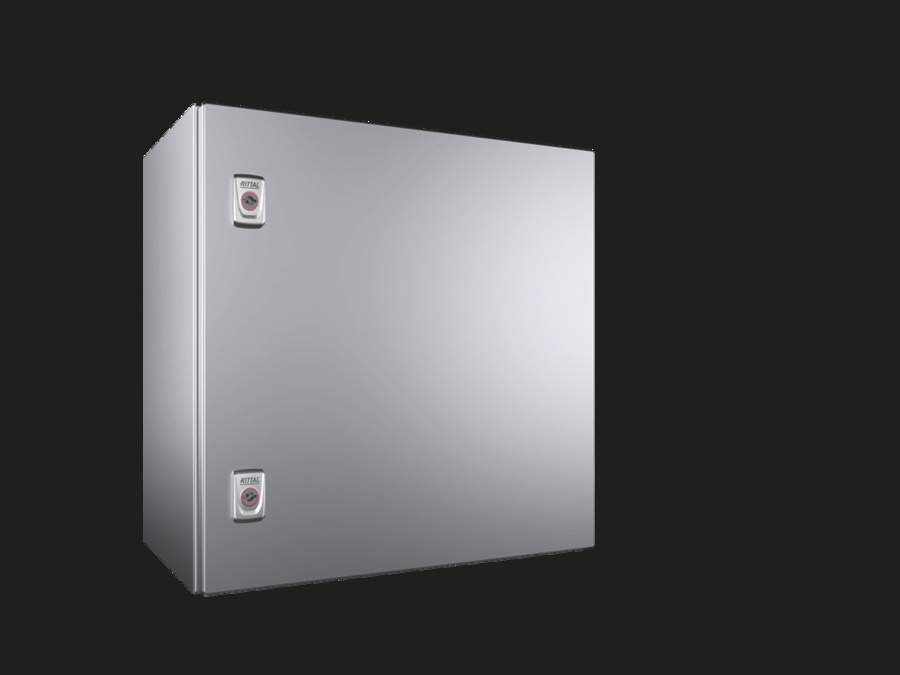

Rittal 1013000 Compact enclosure AX, 1-door, 500x500x300 mm
|
395,64 EUR |
|
|
( 470,81 EUR incl. VAT ) ≈ £331.15 | ≈ $434.81 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980351 |
| Mfg Part No: | 1013000 |
| UPC/EAN: | 4028177815131 |
| Weight: | 16.6 kg |
| Type: | AX 1013000 |
Product information for Rittal 1013000:
Applications
This enclosure is suitable for use in industrial plants, machine building, process automation, and manufacturing technology. The high protection rating IP 66 makes it suitable for outdoor use or in damp, dusty environments. The protection rating NEMA 4X and Type 4X according to UL 50E ensures protection against splashing water, dust, and corrosion. The IK10 rating protects the enclosure against mechanical impacts such as shocks or vibrations. The use of stainless steel 1.4301 ensures high corrosion resistance, especially in damp or aggressive environments.
Functions and Equipment in Detail

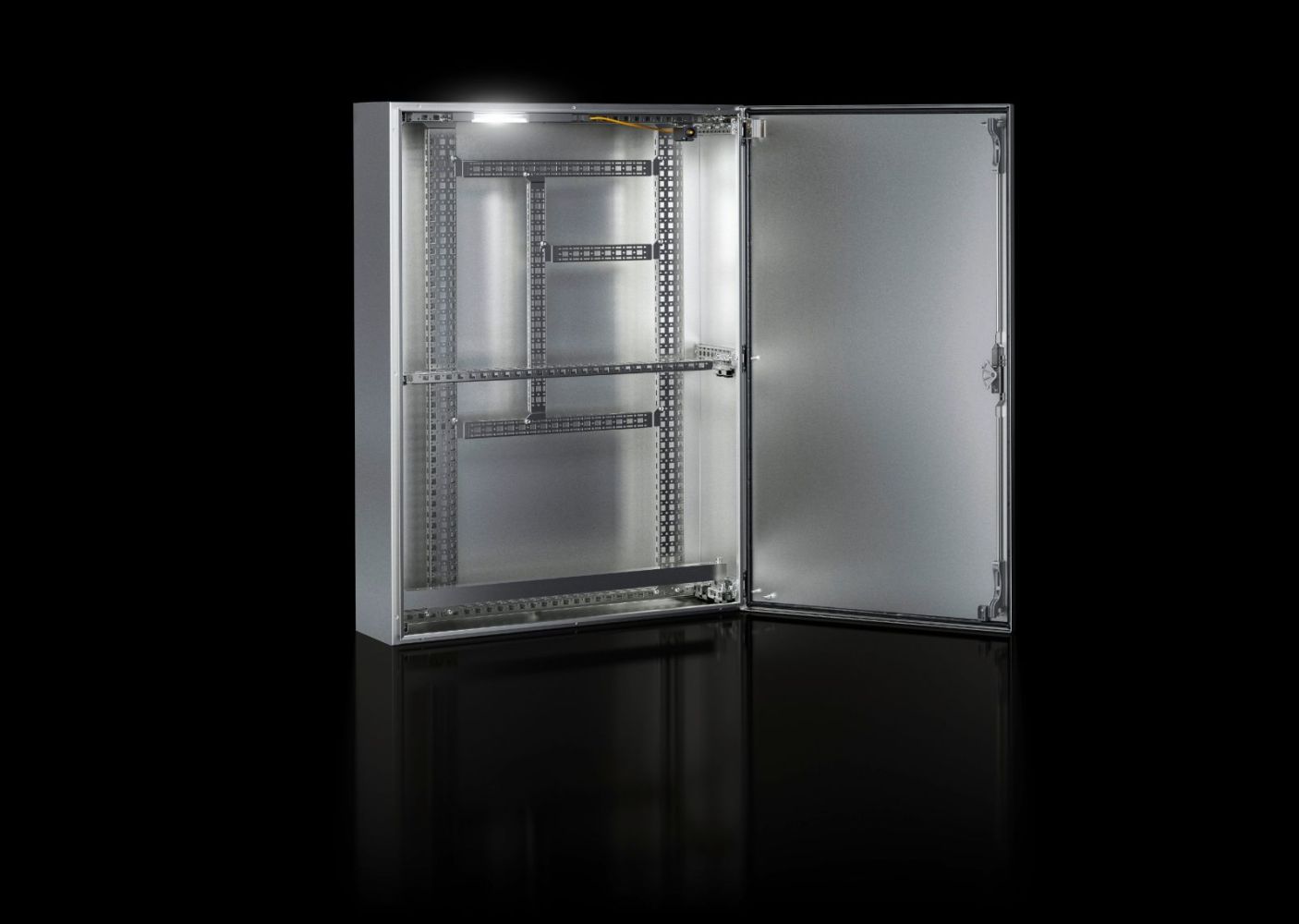

The enclosure is made of stainless steel with a material thickness of 1.25 mm; the door has a thickness of 1.5 mm. The steel sheet mounting plate has a thickness of 2.5 mm and dimensions 450 mm x 475 mm. It is galvanized and features a grounding hole and a dimension marking. The latches are made of zinc die-cast and have a 3 mm double-bolt insert. The surface of the enclosure and door is brush-finished with grit 400, providing a uniform, robust, and easy-to-clean surface. A QR code is printed on the body, door, and nameplate to enable unique identification and traceability of the parts.
Technology Explained Simply
The IP 66 protection rating means the enclosure is dust-tight and protected against heavy splashing water, making it suitable for outdoor use or in damp production environments. The NEMA classification includes Types 1, 3R, 4, 4X, and 12, with Type 4X providing protection against splashing water, dust, and corrosion in outdoor environments. The IK10 rating protects the enclosure against mechanical impacts such as shocks with an energy of up to 10 Joules. The integrated cam system allows for easy, hole-free interior installation, enabling quick and secure mounting of components and circuit boards.
Compatibility and Accessories

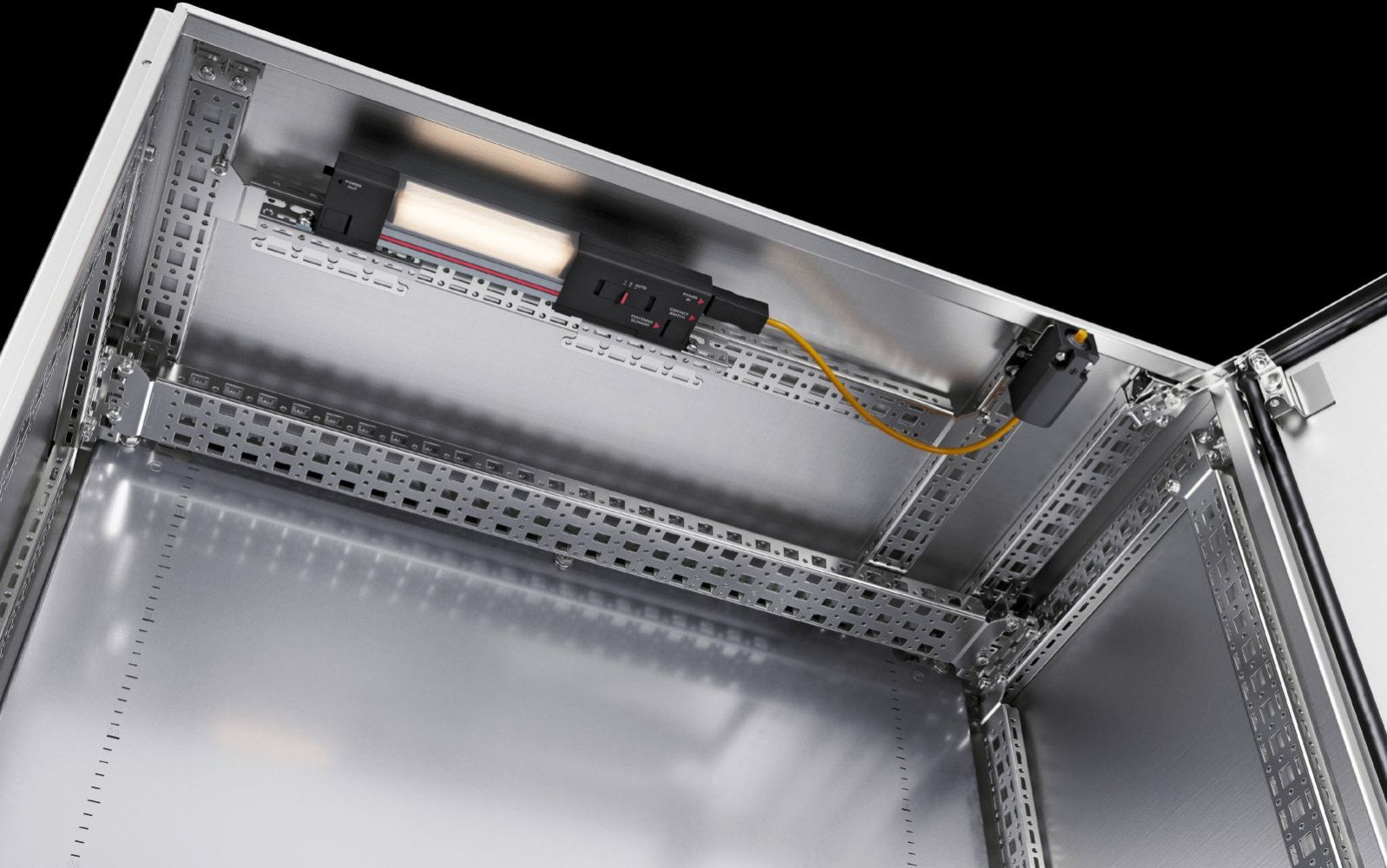

Various accessories are available for the AX enclosure to support use in different application scenarios. These include cable glands made of brass and polyamide in various sizes (e.g. M12x1.5, M25x1.5, M40x1.5), wall mounting brackets made of stainless steel 1.4301, floor mounting rails for AX, VX system chassis in various dimensions, and circuit diagram pockets made of steel sheet. These components allow flexible adaptation of the enclosure to specific mounting and cabling requirements.
Mounting and Installation

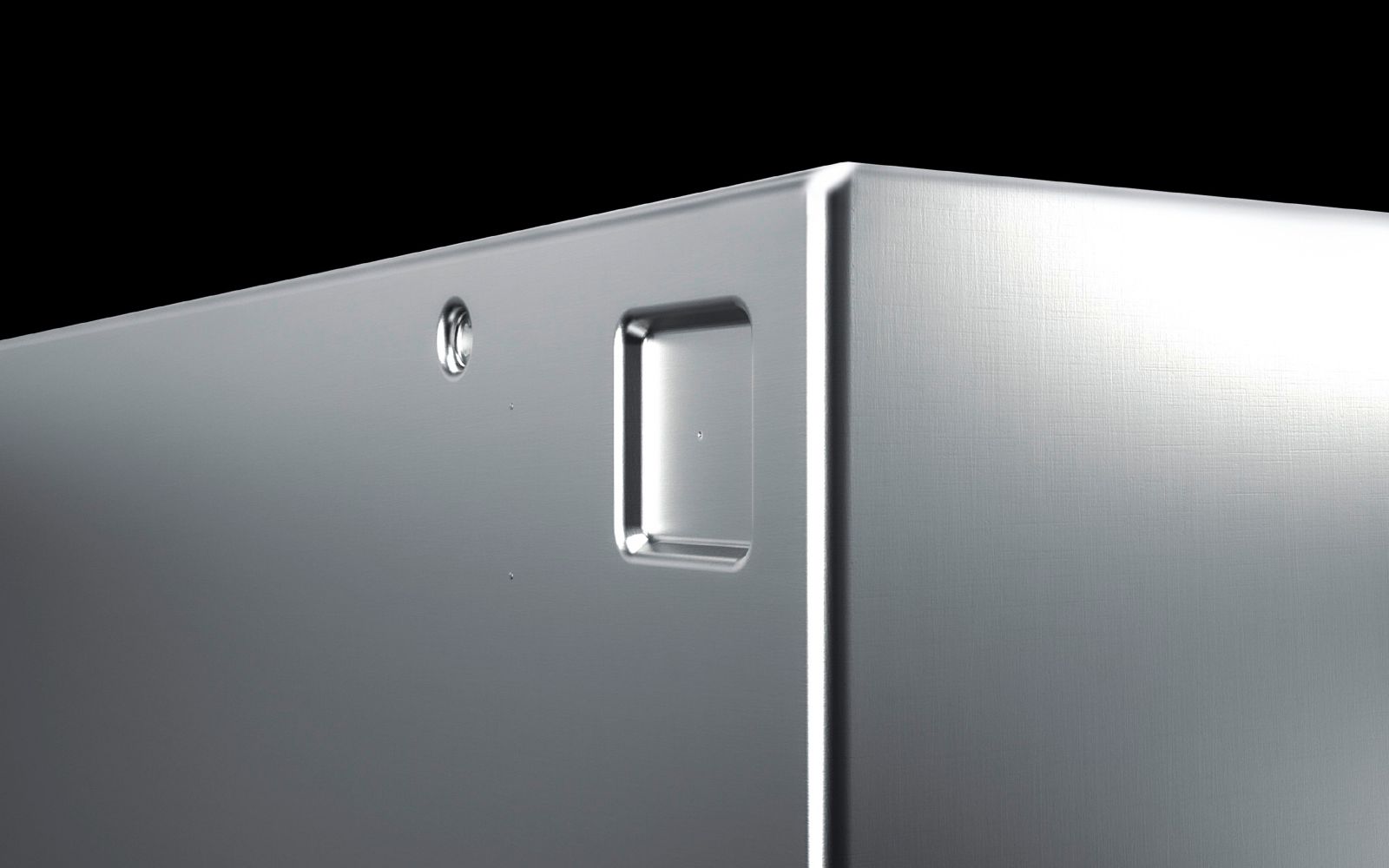

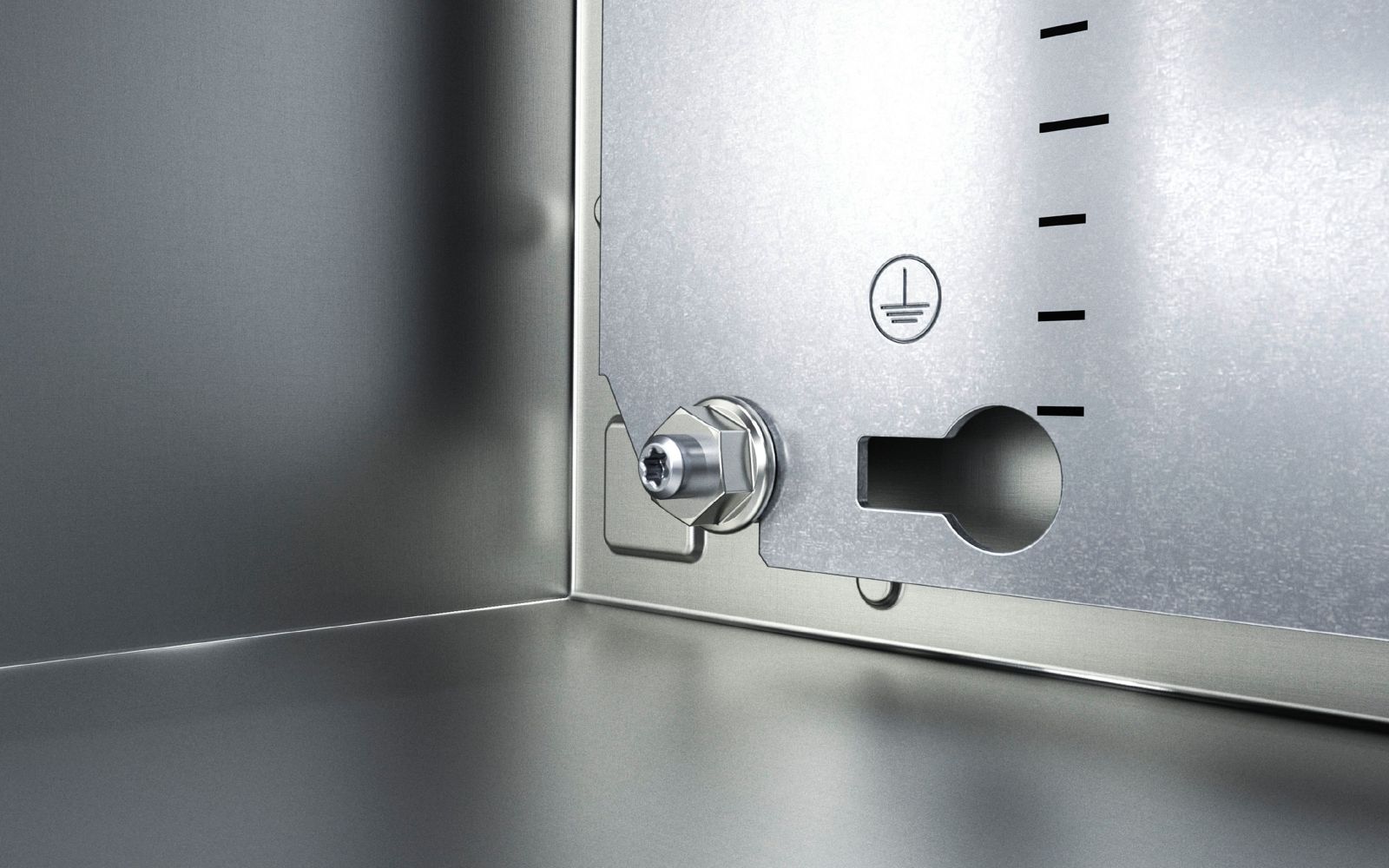

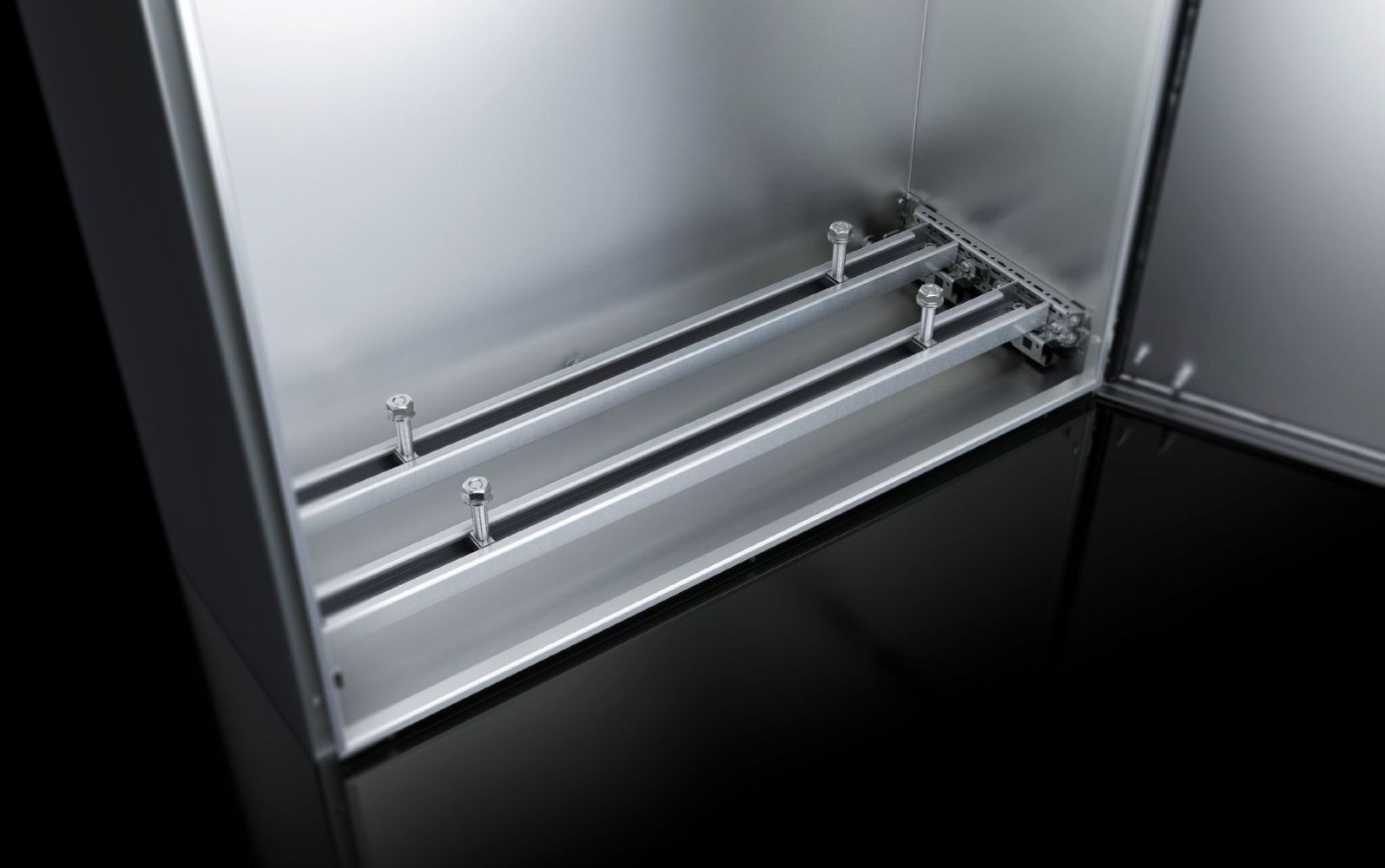

Mounting is done via the integrated mounting plate, secured with Limbach nuts. The embossing for wall mounting brackets allows secure attachment to walls or other supports. The door can be mounted on the left or right side as required, with welded hinges. Grounding is achieved via a bolt on the door and the grounding hole on the mounting plate. The 130° door opening ensures good access to the interior for installation and maintenance.
Operational Advantages
The enclosure offers high mechanical and chemical resistance due to the use of stainless steel 1.4301. The IP 66 and NEMA 4X protection ratings ensure reliable protection against environmental influences. The integrated cams enable quick, hole-free interior installation, reducing mounting time. The brush-finished surface is easy to clean and resistant to contamination. The use of zinc die-cast latches ensures durable and secure locking. The mounting plate with dimension marking and grounding attachment simplifies installation and maintenance.
Accessories and Alternatives
Various accessories are available for this enclosure to support use in different application scenarios. These include cable glands made of brass and polyamide in various sizes (e.g. M12x1.5, M25x1.5, M40x1.5), wall mounting brackets made of stainless steel 1.4301, floor mounting rails for AX, VX system chassis in various dimensions, and circuit diagram pockets made of steel sheet. These components allow flexible adaptation of the enclosure to specific mounting and cabling requirements.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 500 mm |
| Height | 500 mm |
| Depth | 300 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 450 mm x 475 mm |
| Number of doors | 1 |

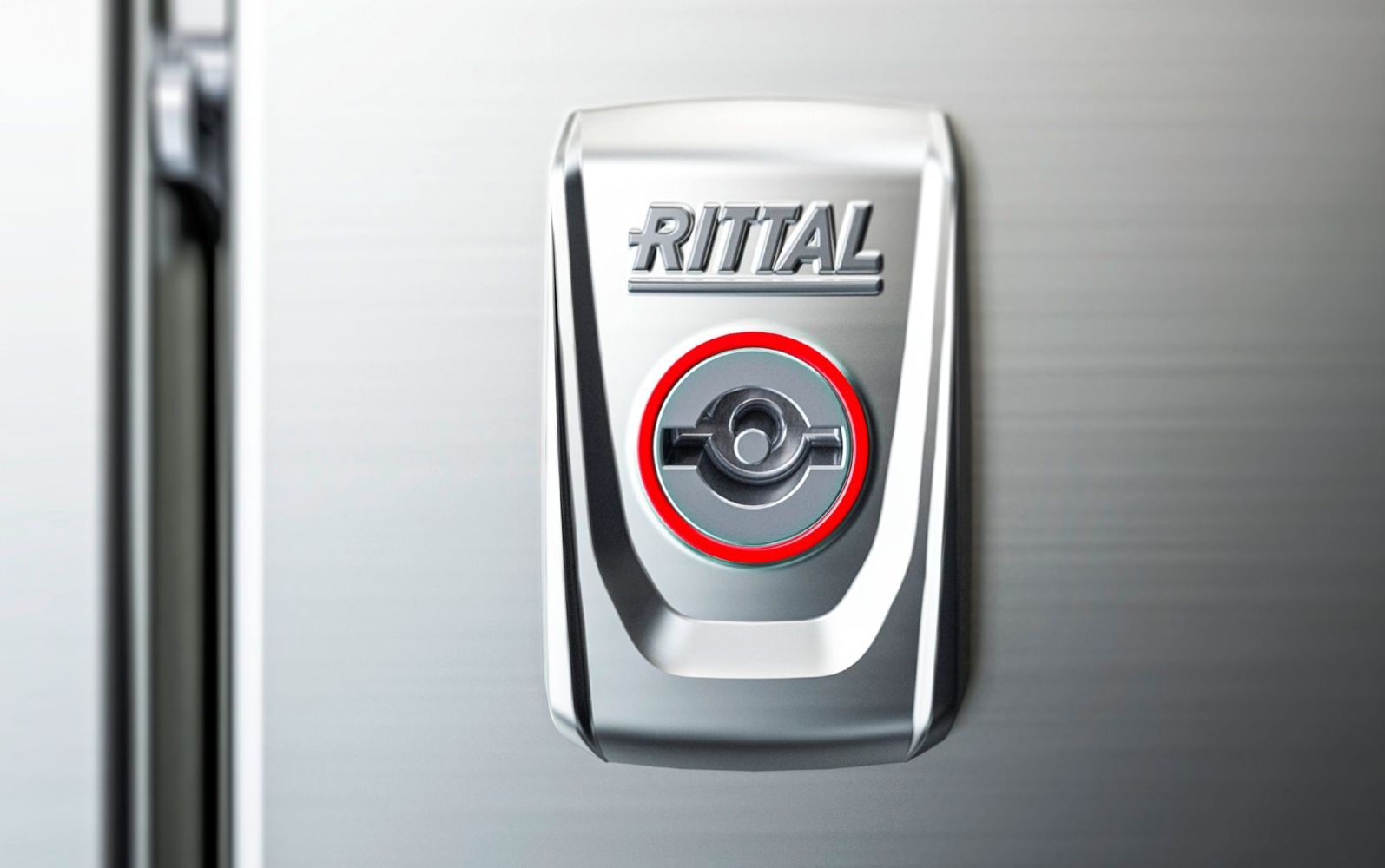

| Lock | Locking mechanism type: push-button, number of locks: 2, lock insert: 3 mm double barb, lock material: zinc die-cast |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 63,6 |
