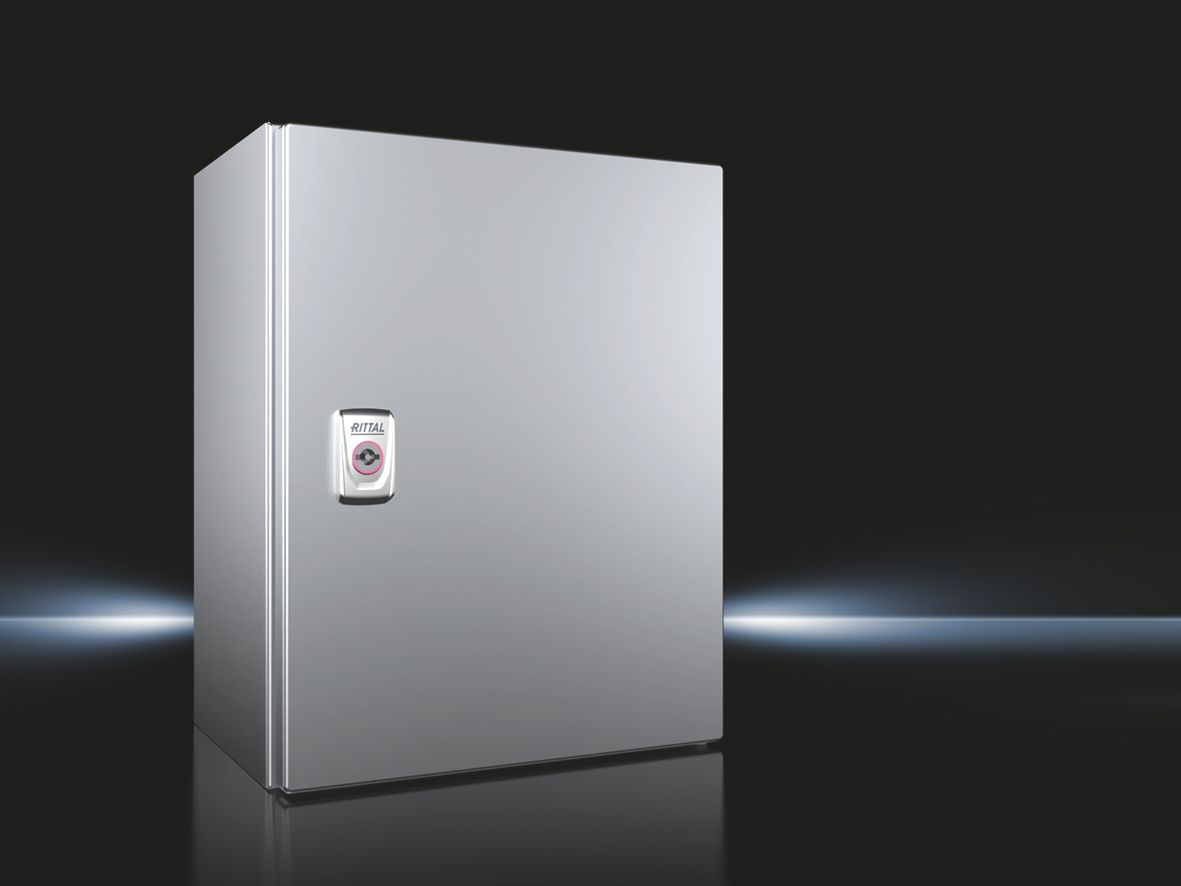

Rittal 1303000 Compact enclosure AX, 1-door, 380x380x210 mm
|
417,65 EUR 417,67 EUR |
|
|
( 497,00 EUR incl. VAT ) ≈ £349.57 | ≈ $459.00 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980357 |
| Mfg Part No: | 1303000 |
| UPC/EAN: | 4028177815087 |
| Weight: | 10.29 kg |
| Type: | AX 1303000 |
Product information for Rittal 1303000:
Applications
This enclosure is suitable for use in indoor and outdoor environments, particularly in areas with high humidity, dust exposure or chemical influence. The protection rating IP 66 according to EN 60 529 ensures dust-tight and watertight sealing, protecting the contents even against heavy splashing water or short-term submersion. The NEMA protection ratings 1, 3R, 4, 4X and 12, as well as UL Type Ratings 1, 3R, 4, 4X and 12, confirm suitability for various industrial requirements, including weather-resistant outdoor mounting. The IK code IK10 indicates high mechanical strength against impacts or vibrations.
Functions and Equipment in Detail
The enclosure features a single door with an opening angle of 130°, providing good access to the interior. The door is fitted with a continuous foamed PU seal that supports sealing effectiveness when closed and ensures long-term sealing. The locking mechanism consists of a latch with a 3 mm double-barrel insert made of stainless steel 1.4404, ensuring secure and durable locking. The mounting plate is equipped with grounding hole slots and is fastened to the enclosure using Limbach nuts.
Technology Explained Simply
The construction of the enclosure allows for easy and quick internal assembly without drilling, thanks to an integrated latching system. This system enables the mounting of accessories such as control panels, heaters or filter fans at predefined positions. The material thickness of 1.5 mm for the enclosure and door, and 2 mm for the mounting plate, ensures high stability and longevity. Dimensions are 380 mm width, 380 mm height and 210 mm depth, with the mounting plate measuring 330 mm wide and 355 mm high.
Compatibility and Accessories
Various accessories are available for this enclosure, extending its functionality. These include wall mounting brackets and angles made of stainless steel 1.4301, cable glands made of brass or polyamide in various sizes (e.g. M12x1.5, M25x1.5, M40x1.5), an AX protective roof made of stainless steel (600x350 mm), floor mounting rail, and mast mounting. These components enable flexible mounting and adaptation to different operating conditions.
Mounting and Installation
The enclosure can be mounted on walls, masts or other supports. Integrated mounting elements and pre-markings for wall mounting brackets facilitate installation. The mounting plate is included in the delivery scope and serves as the base for securing electrical components. The use of Limbach nuts ensures secure and durable fastening.
Operational Advantages
The enclosure offers high reliability due to its robust construction and use of high-quality materials. The IP 66 protection rating and IK10 rating ensure long-term operation even under difficult conditions. The integrated latching system allows for flexible and quick adaptation to individual requirements. The uniform surface treatment and material selection ensure high corrosion resistance, reducing maintenance and extending service life. A QR code on the enclosure, door and type plate enables unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4404 (AISI 316L) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 380 mm |
| Height | 380 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2 mm |
| Mounting plate dimensions (W x H) | 330 mm x 355 mm |
| Number of doors | 1 |
| Lock | Closure type: Push-button, Number of closures: 1, Closure insert: 3 mm double barb, Closure material: Stainless steel 1.4404 (AISI 316L) |
| Base material | Stainless steel 1.4404 (AISI 316L) |
| PCF/VE (Cradle-to-Gate) | 38,08 |
