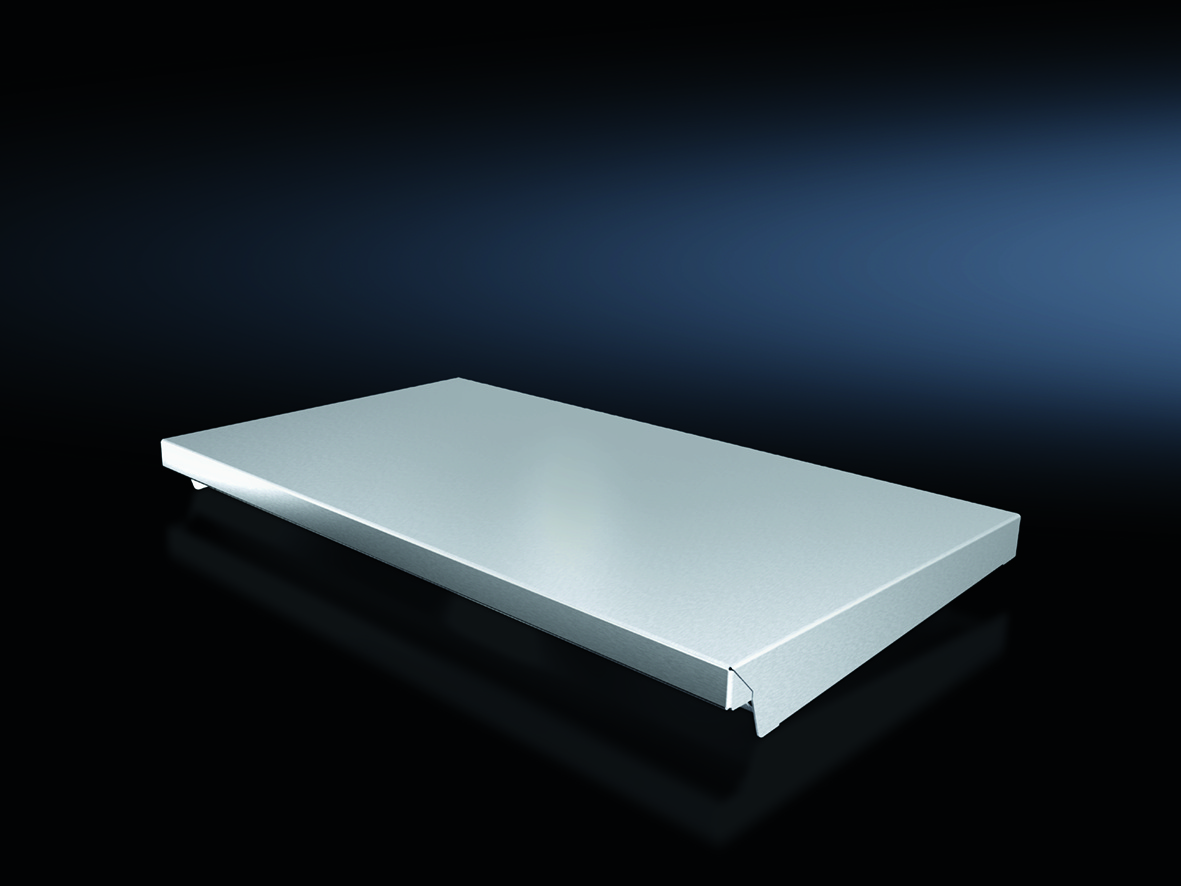

Rittal 2476010 AX protective roof, W x D: 600x350 mm, stainless steel

Your rating:
Average rating
product review for Rittal 2476010 AX protective roof, W x D: 600x350 mm, stainless steel
( 4.5 / 5 ) 2 ratings
Rittal 2476010
This image may differ from the desired article.
Rittal 2476010Rittal 2476010Rittal 2476010Rittal 2476010Rittal 2476010Rittal 2476010Rittal 2476010
-12% 105,23 EUR 119,81 EUR
( 125,22 EUR incl. VAT )
≈ £88.08  |  ≈ $115.65
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 2476010 AX protective roof, W x D: 600x350 mm, stainless steel
Datasheet:file_download Download
Lieske Part No.:1054797
Mfg Part No: 2476010
UPC/EAN: 4028177938267
Weight:3.68 kg
Type:AX 2476010

Product information for Rittal 2476010:

The Rittal AX 2476010 is a protective roof made of stainless steel, specifically designed for enclosures of type AX with a width of 600 mm and a depth of 350 mm. It provides protection for the enclosure surface against precipitation, standing moisture, and contamination from above. The sloped shape of the roof ensures that water can drain off and does not collect on the surface, thereby increasing the longevity and functionality of the enclosure.

Applications
The protective roof is intended for use in industrial environments, particularly where enclosures are exposed to increased stress from weather influences, humidity, or contamination. It is suitable for outdoor installations, production halls with high humidity levels, or areas where dust particles or splashing water may occur. The construction ensures reliable protection without impairing the accessibility of the enclosure.

Functions and Equipment in Detail
The roof is made of stainless steel 1.4301 (AISI 304), a material known for its corrosion resistance and mechanical strength. The surface is finished with a brushed finish, grain 240, providing a uniform, easy-to-clean, and aesthetically pleasing appearance. The height of the roof is 47 mm, which is sufficient to ensure adequate coverage without hindering the installation or operation of the enclosure. The product is delivered including mounting hardware, simplifying installation.

Technology Explained Simply
The sloped shape of the protective roof is crucial for functionality: it enables efficient drainage of rainwater and prevents the accumulation of dirt or dust. The use of stainless steel 1.4301 ensures high resistance to corrosion, which is particularly advantageous in humid or aggressive environments. The brushed finish, grain 240, offers good mechanical durability and facilitates cleaning. The mounting is done by screwing, and the construction is designed for dynamic loads, meaning the roof remains securely in place even under vibrations or movements.

Compatibility and Accessories
The protective roof is specifically designed for enclosures of type AX with a width of 600 mm and a depth of 350 mm. It is not suitable for other enclosure types or dimensions.

Mounting and Installation
Mounting is done by screwing, using the included mounting hardware. The installation is designed for dynamic loads, meaning the roof can be securely fastened even in environments with vibrations or movements. It is important to use the designated mounting points on the enclosure to ensure a stable connection.

Operational Advantages
The protective roof extends the service life of the enclosure by protecting it from weather influences and contamination. The use of stainless steel 1.4301 ensures high corrosion resistance, reducing maintenance requirements. The sloped shape promotes water drainage and prevents dirt accumulation, making cleaning easier.

Type rating according to UL 50E
The product meets the type ratings according to UL 50E: Type 1, Type 3R, Type 4, Type 4X, and Type 12. These certifications refer to protection against dust, water, splashing water, and other environmental conditions. For example, Type 4X means the enclosure is protected against splashing water and dirt, which is relevant for industrial applications. The certifications confirm suitability for various industrial use cases.

Material and Surface
The material stainless steel 1.4301 (AISI 304) is a non-rusting steel with high strength and corrosion resistance. The brushed finish, grain 240, provides a uniform, easy-to-clean, and robust surface. This combination ensures long service life and low maintenance requirements.

Mounting Hardware
The product is delivered including mounting hardware for screwing the roof onto the enclosure. The mounting is designed for dynamic loads, meaning the roof remains securely in place even under vibrations or movements.

Dimensions
The height of the protective roof is 47 mm. It is specifically designed for enclosures with a width of 600 mm and a depth of 350 mm. These dimensions are critical for correct fit and function.

Approvals and Standards
The product complies with the type ratings according to UL 50E: Type 1, Type 3R, Type 4, Type 4X, and Type 12. These certifications refer to protection against dust, water, splashing water, and other environmental conditions. The approvals confirm suitability for various industrial applications.

Packaging Unit
The protective roof is delivered in a packaging unit of 1 piece. The packaging is designed to protect the product during transport.

Weight
The net weight is 3.48 kg, and the gross weight is 3.68 kg. These values refer to the product including packaging and mounting hardware.

Manufacturer and Manufacturer Number
The manufacturer is Rittal, and the manufacturer number is 2476010. The product is part of the AX series and is specifically offered for enclosures of this type.

Customs Tariff Number
The customs tariff number is 94039910.

EAN
The EAN number is 4028177938267. This number is used for product identification in trade.

ETIM and ECLASS
The product is classified with ETIM numbers EC000744 (ETIM 9 and ETIM 8) and ECLASS number 27182405 (ECLASS 8.0). These classifications serve for uniform product description in industry.

Approvals
The product is certified with approvals UL + C-UL - FTTA. These certifications refer to the safety and quality of the product.

General
MaterialStainless steel 1.4301 (AISI 304)
Surface protectionLinear finish, grit 240
Scope of deliveryIncluding mounting hardware
Mounting optionsScrewable under dynamic loads
Height47 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
Suitable forEnclosure type: AX, Width: = 600 mm, Depth: = 350 mm


Product data sheet
Datasheet for Rittal 2476010, EAN: 4028177938267
