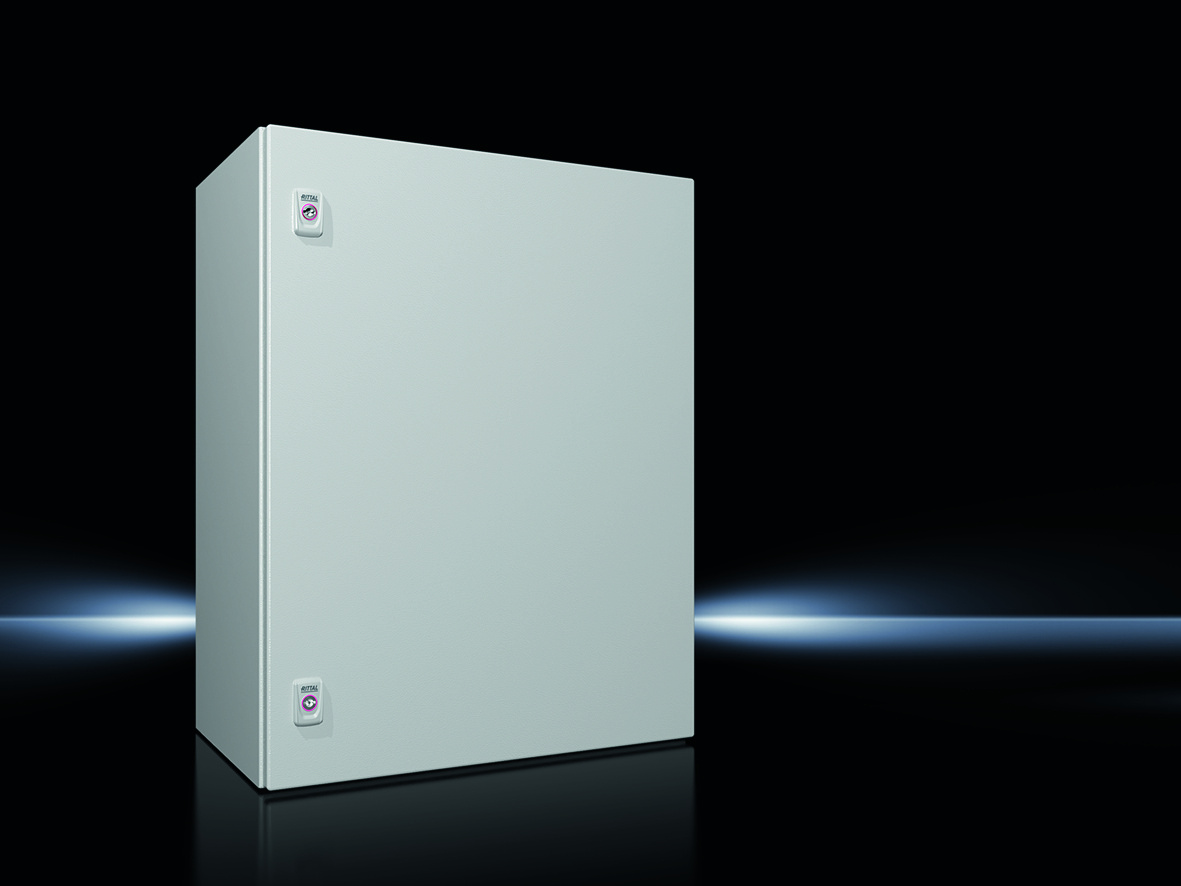

Rittal 1376000 Compact enclosure AX, 1-door, W x H x D: 600x760x350 mm
|
-6% 202,75 EUR 214,91 EUR |
|
|
( 241,27 EUR incl. VAT ) ≈ £169.70 | ≈ $222.82 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598130 |
| Mfg Part No: | 1376000 |
| UPC/EAN: | 4028177813151 |
| Weight: | 34 kg |
| Type: | AX 1376000 |
Product information for Rittal 1376000:
Applications
The enclosure is suitable for use in indoor and outdoor environments, particularly in areas with high humidity, dust exposure, or mechanical stress. The IP 66 protection rating safeguards against dust and heavy splashing water, while the IK10 rating ensures high mechanical strength against impact and shock. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the UL 50E Type Ratings Type 1, Type 3R, Type 4, and Type 12, confirm suitability for various industrial applications, including humid or dusty environments.
Functions and Equipment in Detail
The enclosure features integrated enclosure lugs on a 25 mm system grid, enabling easy and drill-free mounting of internal mounting rails and accessories. The door is single-door, with interchangeable door hinges (right or left hinge) and an opening angle of 130° according to VDI (retrofittable to 180°). The door is equipped with two deadbolt latches operating with a 3 mm double-barrel lock insert according to DIN 43668. The gland plate in the enclosure base is size 7 and serves for cable entry.
Technology Explained Simply
The integrated enclosure lugs on the 25 mm grid allow modular internal equipment without drilling, preserving the protection rating (UL approval). The base mounting rail provides an additional mounting level and increases load capacity. The PU seal ensures a tight seal, supporting the IP 66 protection rating. The powder-coated surface offers corrosion protection and resistance to environmental influences. The QR code on the enclosure body, door, and type plate enables unique identification and easy access to product information and documentation.
Compatibility and Accessories
The enclosure is compatible with the Rittal configurator RiPanel, enabling simple planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, VX system chassis, baying sets, knob and plastic handles, mounting brackets, protective hoods made of stainless steel, and multitools. These components extend the functionality and customisation options of the enclosure.
Mounting and Installation
Mounting is performed via the integrated gland plate in the enclosure base and the wall mounting brackets located in the rear panel area. The mounting plate is included in the delivery scope and enables secure attachment of internal components. The door can be mounted on the right or left side as required, allowing flexible installation at different locations.
Operational Advantages
The enclosure offers high mechanical stability, reliable protection rating, and modular internal equipment options. Drill-free mounting of system components reduces installation time and increases safety. The integrated mounting plate and gland plate simplify installation and maintenance. The use of sheet steel and a robust surface coating ensures long service life even under demanding operating conditions.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 760 mm |
| Depth | 350 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 550 mm x 735 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 7, Quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 129.42 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
