Rittal 2732010 viewing window, 597x757x34 mm, incl. plastic handle

Your rating:
Average rating
product review for Rittal 2732010 viewing window, 597x757x34 mm, incl. plastic handle
( 4.5 / 5 ) 4 ratings
Rittal 2732010
This image may differ from the desired article.
Rittal 2732010Rittal 2732010Rittal 2732010Rittal 2732010Rittal 2732010Rittal 2732010Rittal 2732010
-10% 201,71 EUR 225,01 EUR
( 240,03 EUR incl. VAT )
≈ £168.83  |  ≈ $221.68
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 2732010 viewing window, 597x757x34 mm, incl. plastic handle
Datasheet:file_download Download
Lieske Part No.:1593419
Mfg Part No: 2732010
UPC/EAN: 4028177938489
Weight:4.04 kg
Type:AX 2732010

Product information for Rittal 2732010:

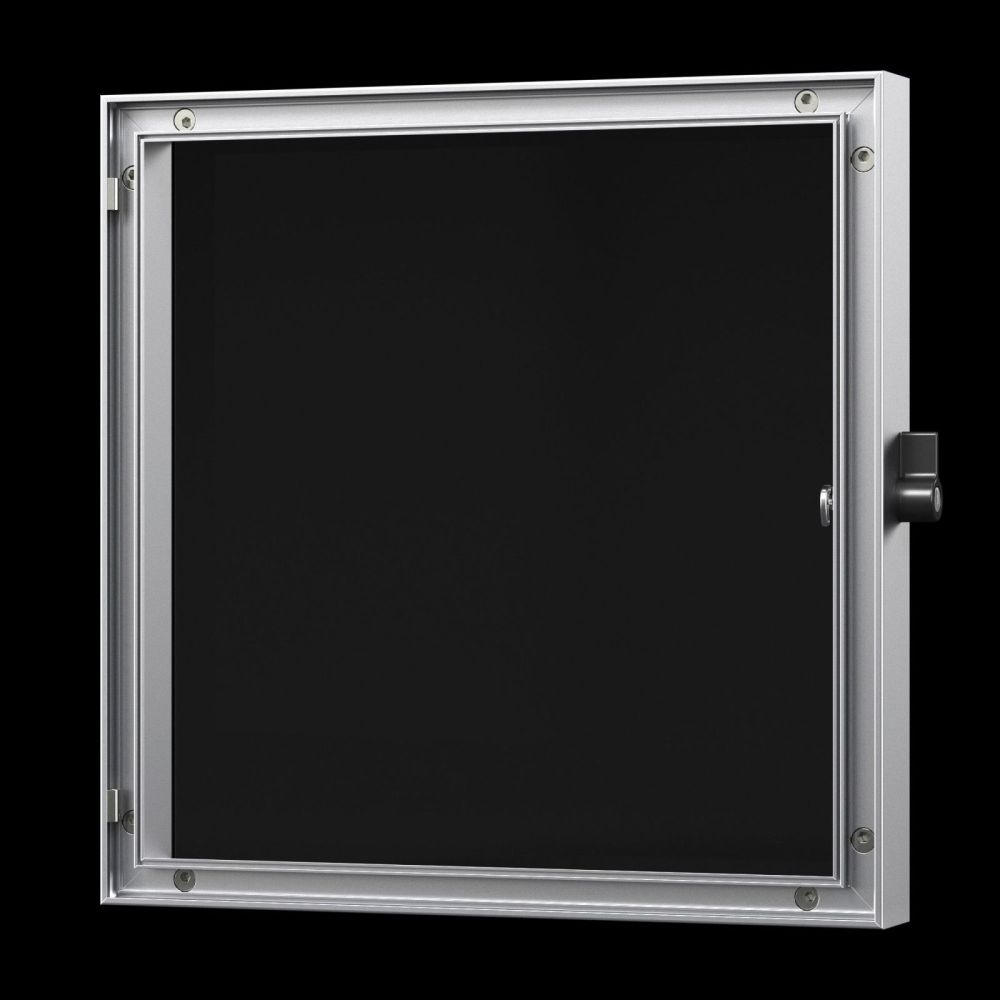

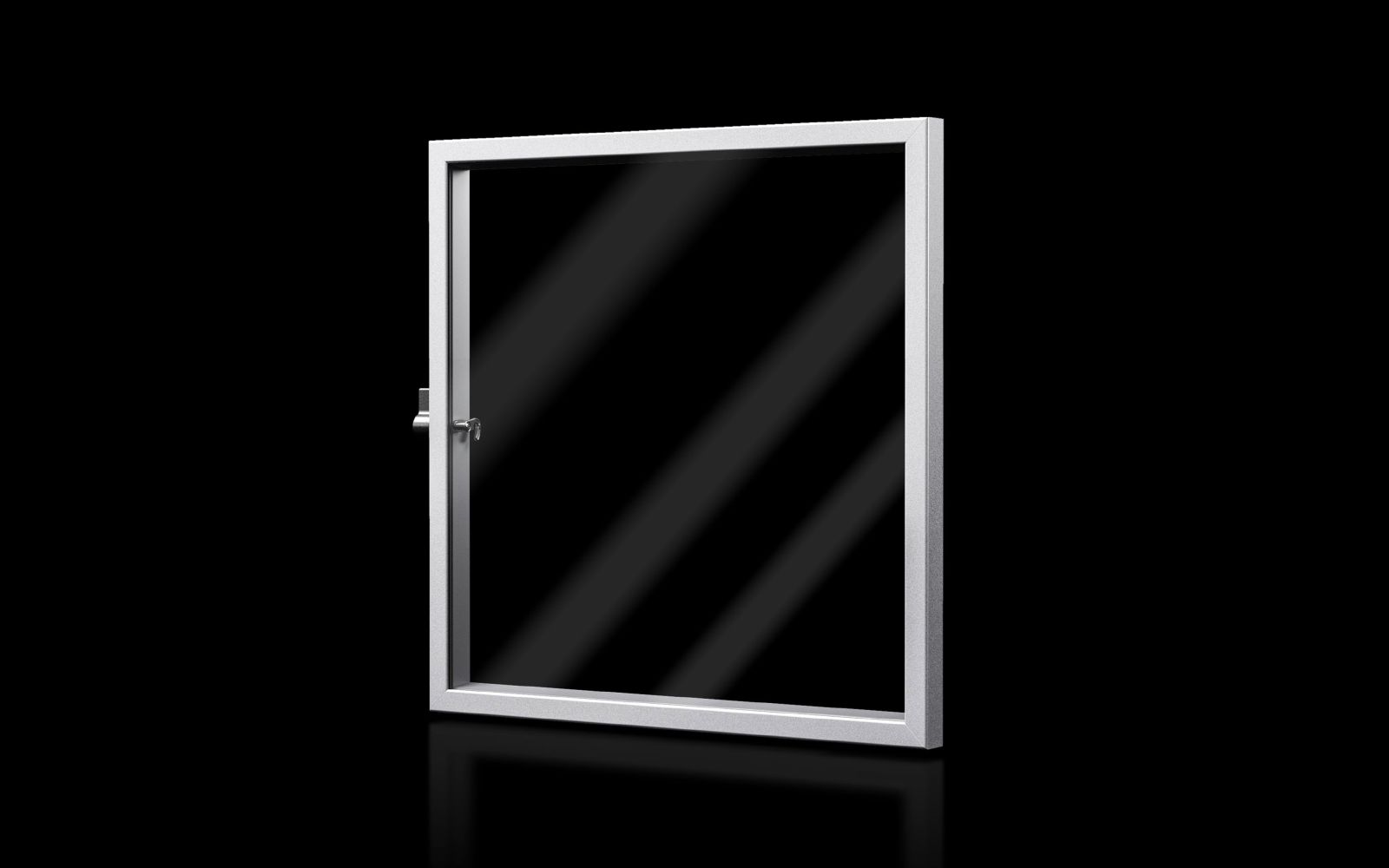

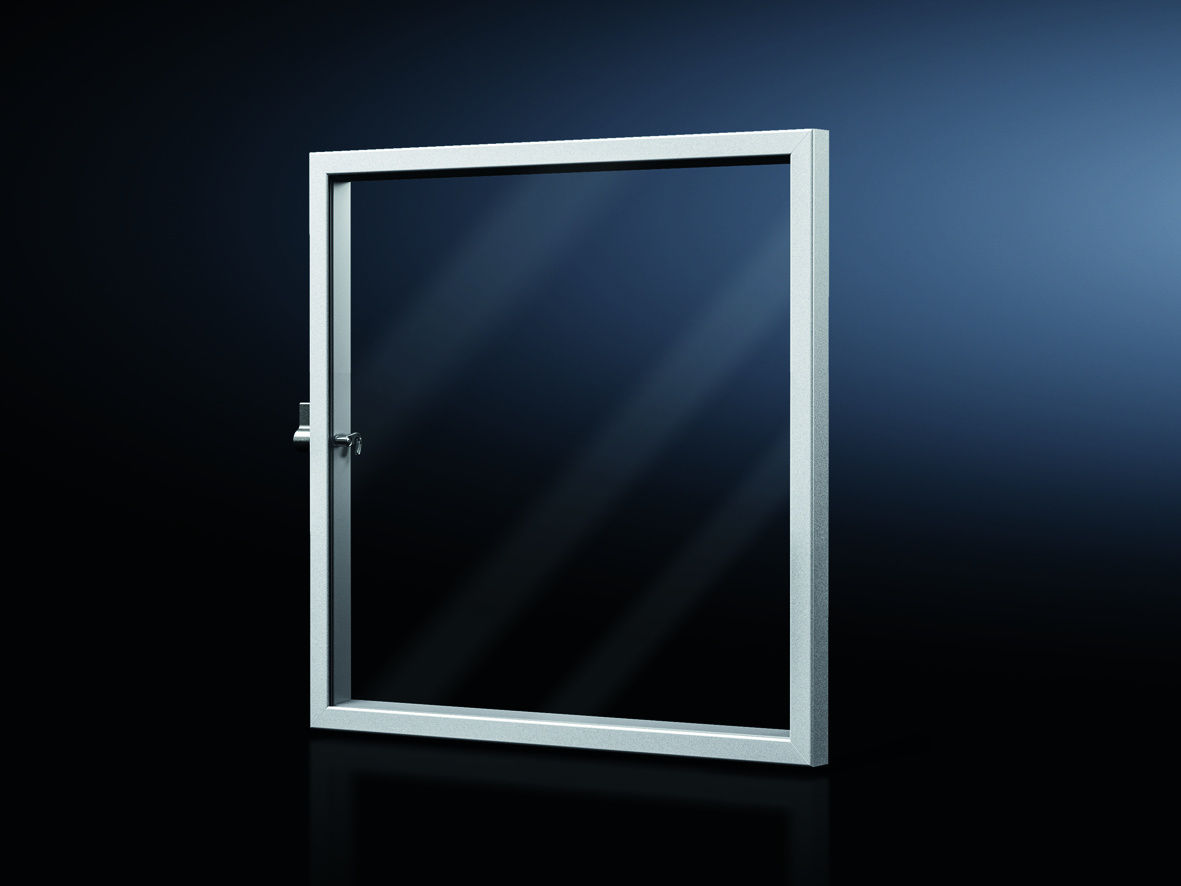

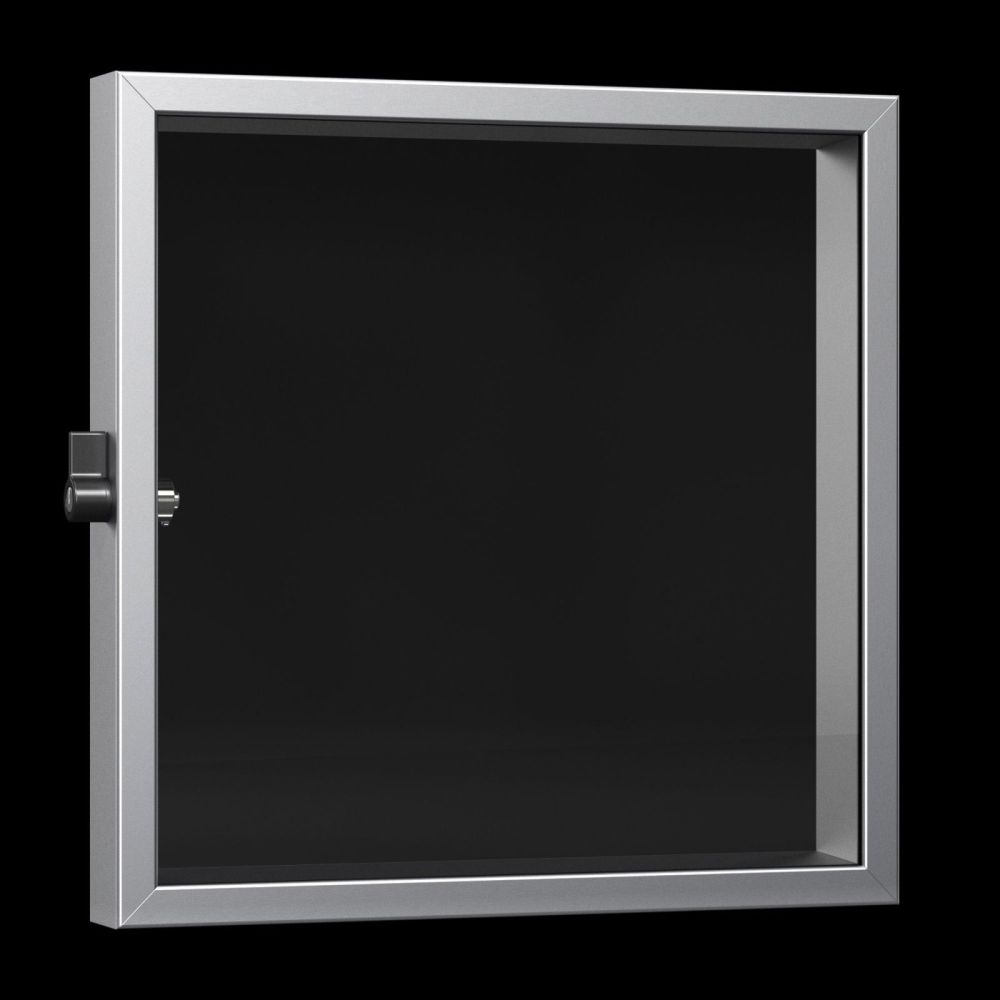

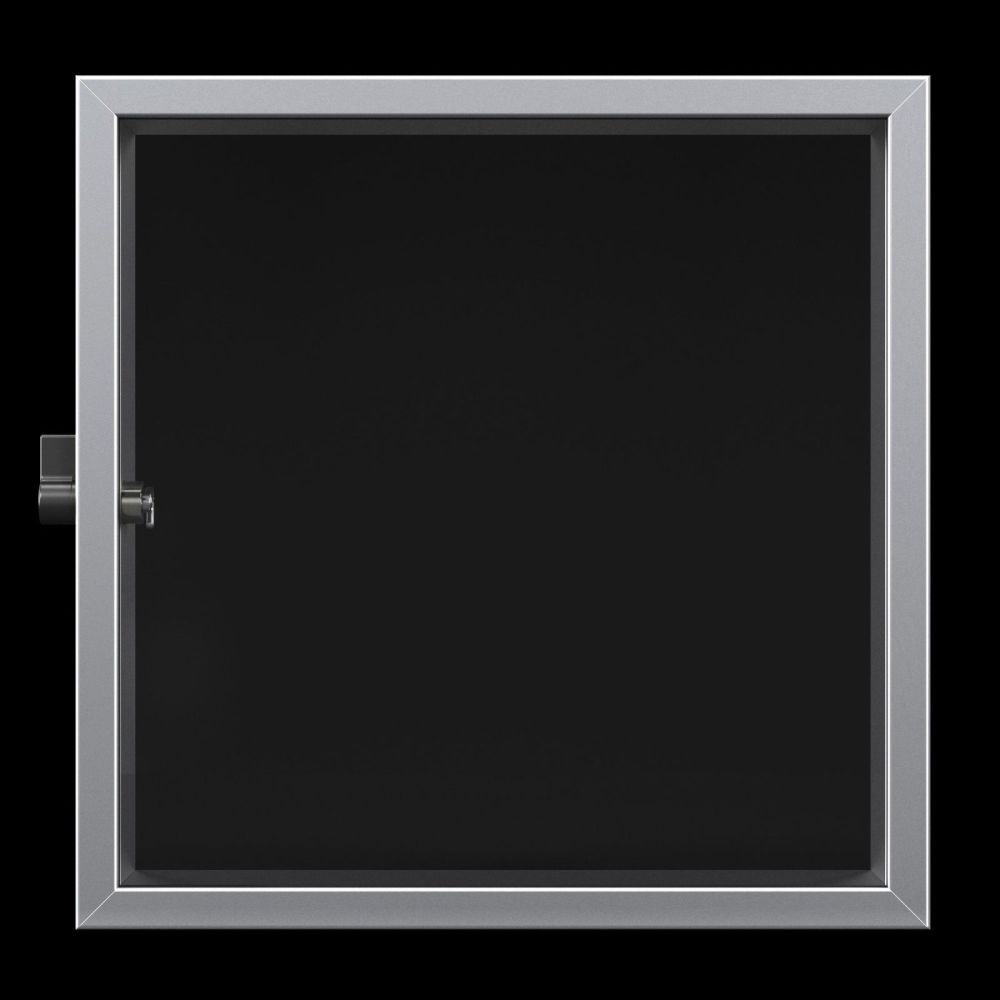

The Rittal FT viewing window, type AX 2732010, is a system accessory for industrial enclosures of the AX housing type. It serves as a replacement for an enclosure door or as an insert in panels, enabling visual access to internal components without completely removing the enclosure cover. The viewing window is manufactured in the 30-series profile and is specifically designed for housings with a width of 600 mm and a height of 760 mm. The dimensions of the viewing window are 597 mm (width) × 757 mm (height) × 36 mm (depth), with a visible area of 537 mm (width) × 697 mm (height). The maximum mounting depth for components is 32 mm, allowing the installation of control elements or displays behind the window.

Applications

The viewing window is designed for use in industrial environments where continuous monitoring of enclosure contents is required, for example in automation technology, manufacturing industry, or control systems. It replaces the standard door on AX housings with article numbers 1012.000, 1076.000, and 1376.000 and can also be integrated into panels where a door is not necessary. It is used instead of a door, enabling visual monitoring of internal components without opening the enclosure cover.

Functions and Equipment in Detail

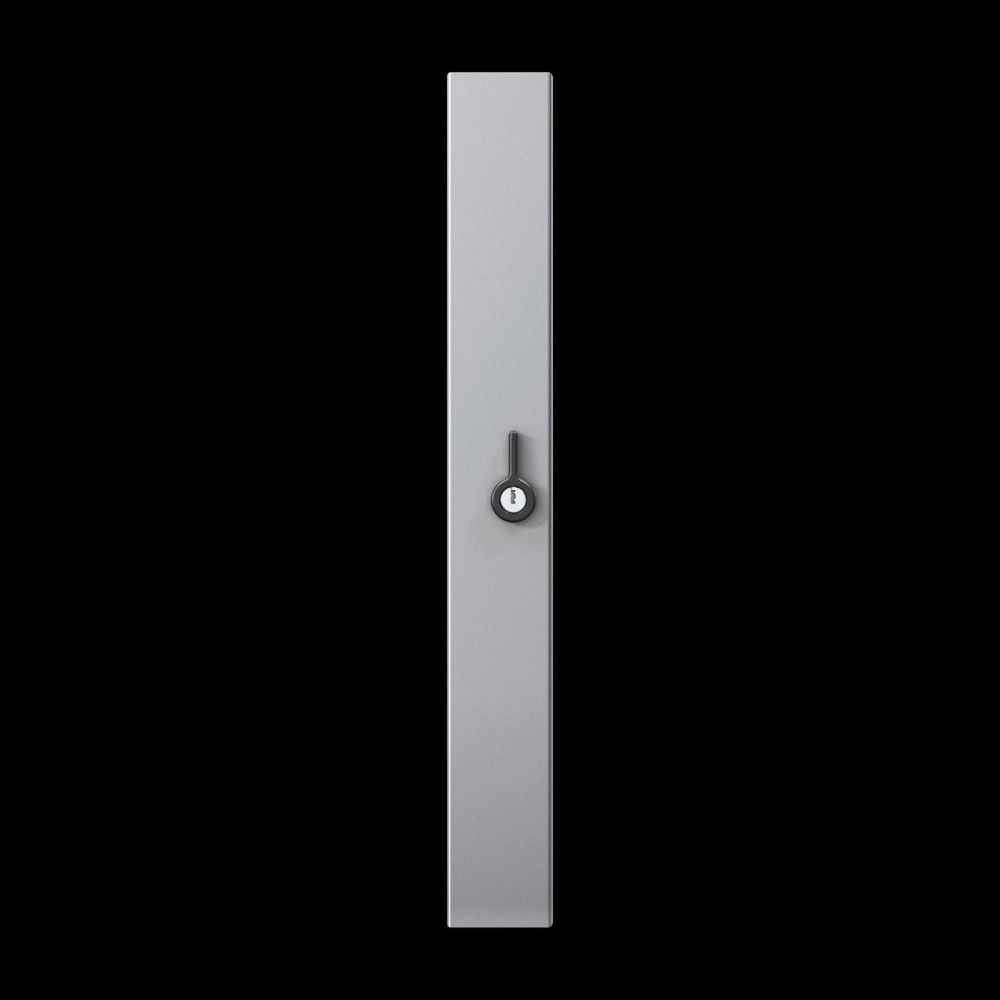

The viewing window consists of an aluminium frame, naturally anodized, and an acrylic glass panel. The combination of aluminium and acrylic glass ensures high mechanical stability and good visibility. The frame is manufactured in a 30-series profile, enabling standardized mounting in AX housings. The delivery includes a plastic handle with safety insert No. 3524 E, enabling safe and convenient operation of the viewing window. The handle is designed for use in industrial installations and supports secure mounting and dismounting.

Technology Explained Simply

The protection rating IP 54 according to EN 60 529 protects the viewing window against dust and splashing water. This makes it suitable for use in environments where some contamination or moisture may occur, for example in production halls or outdoor installations. The IP protection rating IP 54 means the device is protected against dust (no harmful ingress of dust) and against splashing water from any direction. The acrylic glass panel offers clear visibility, is shatter-resistant, and resistant to mechanical stress. The maximum mounting depth of 32 mm allows the installation of control elements, displays, or other components behind the viewing window, enabling direct operation through the window.

Compatibility and Accessories

The viewing window is specifically designed for AX housings with a width of 600 mm and a height of 760 mm. It is compatible with housing article numbers 1012.000, 1076.000, and 1376.000. Installation is carried out in place of the standard door or in panels, with the 30-series profile ensuring secure and standardized fastening. The accessories included in the delivery comprise the plastic handle with safety insert No. 3524 E, ensuring safe operation of the viewing window.

Mounting and Installation

Mounting is carried out at the designated attachment points of the AX housing. The viewing window is inserted into the 30-series profile and secured with the included plastic handle. Installation requires no additional tools or components, as the viewing window fits directly into the housing profile. The maximum mounting depth of 32 mm allows the installation of control elements behind the window, enabling direct operation through the viewing window. The mounting is designed to be carried out without additional modifications or adaptations to the housing.

Advantages in Operation

The viewing window enables continuous visual monitoring of enclosure contents without opening the enclosure cover. This reduces the risk of disturbances or incorrect operation and increases operational safety. The IP 54 protection rating ensures reliable performance in contaminated or moist environments. The use of acrylic glass provides clear visibility and resistance to mechanical stress. The included plastic handle with safety insert No. 3524 E ensures safe and convenient operation. Compatibility with the specified AX housings and the standardized 30-series profile facilitate integration into existing systems.

General
Model30-series profile
MaterialFrame: aluminium, natural anodized, glass panel: acrylic glass
Scope of deliveryIncluding plastic handle with safety insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54
Suitable for part no.1012.000, 1076.000, 1376.000
Suitable forCabinet type: AX, width: = 600 mm, height: = 760 mm
Width597 mm
Height757 mm
Depth36 mm
Visible surface areaView window width: 537 mm, view window height: 697 mm
Depth for components (max.)32 mm


Product data sheet
Datasheet for Rittal 2732010, EAN: 4028177938489
