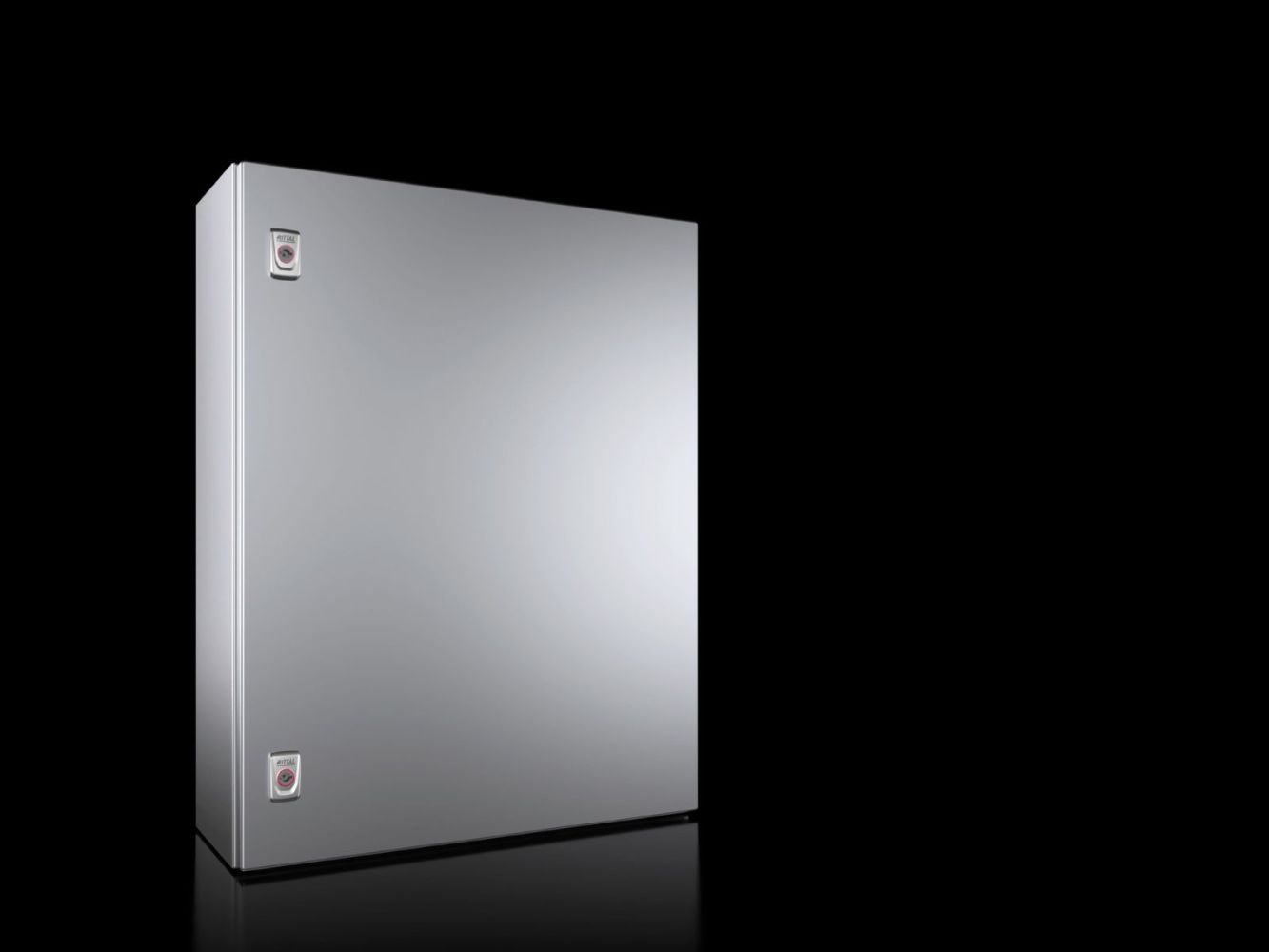

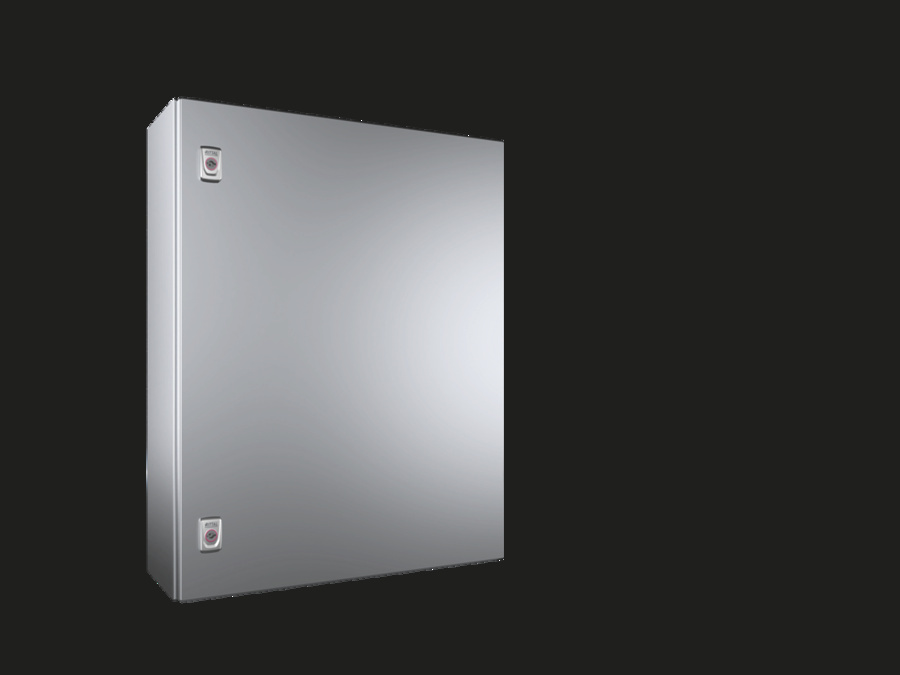

Rittal 1012000 Compact enclosure AX, 1-door, 600x760x210 mm
|
-10% 457,70 EUR 505,92 EUR |
|
|
( 544,66 EUR incl. VAT ) ≈ £383.09 | ≈ $503.01 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1778585 |
| Mfg Part No: | 1012000 |
| UPC/EAN: | 4028177815001 |
| Weight: | 28.57 kg |
| Type: | AX 1012000 |
Product information for Rittal 1012000:
Applications
This enclosure is suitable for use in industrial environments, particularly in manufacturing and process industries, where protection against dust, splashing water, and mechanical impacts is required. The protection rating IP 66 according to EN 60 529 ensures high protection against dust and heavy splashing water, even under direct irrigation. The protection rating NEMA 4X and Type 4X according to UL 50E makes it suitable for outdoor use or in humid indoor areas where chemical influences may occur. The IK code IK10 guarantees high mechanical protection against impact and shock, making it suitable for areas with high mechanical stress.
Functions and Equipment in Detail

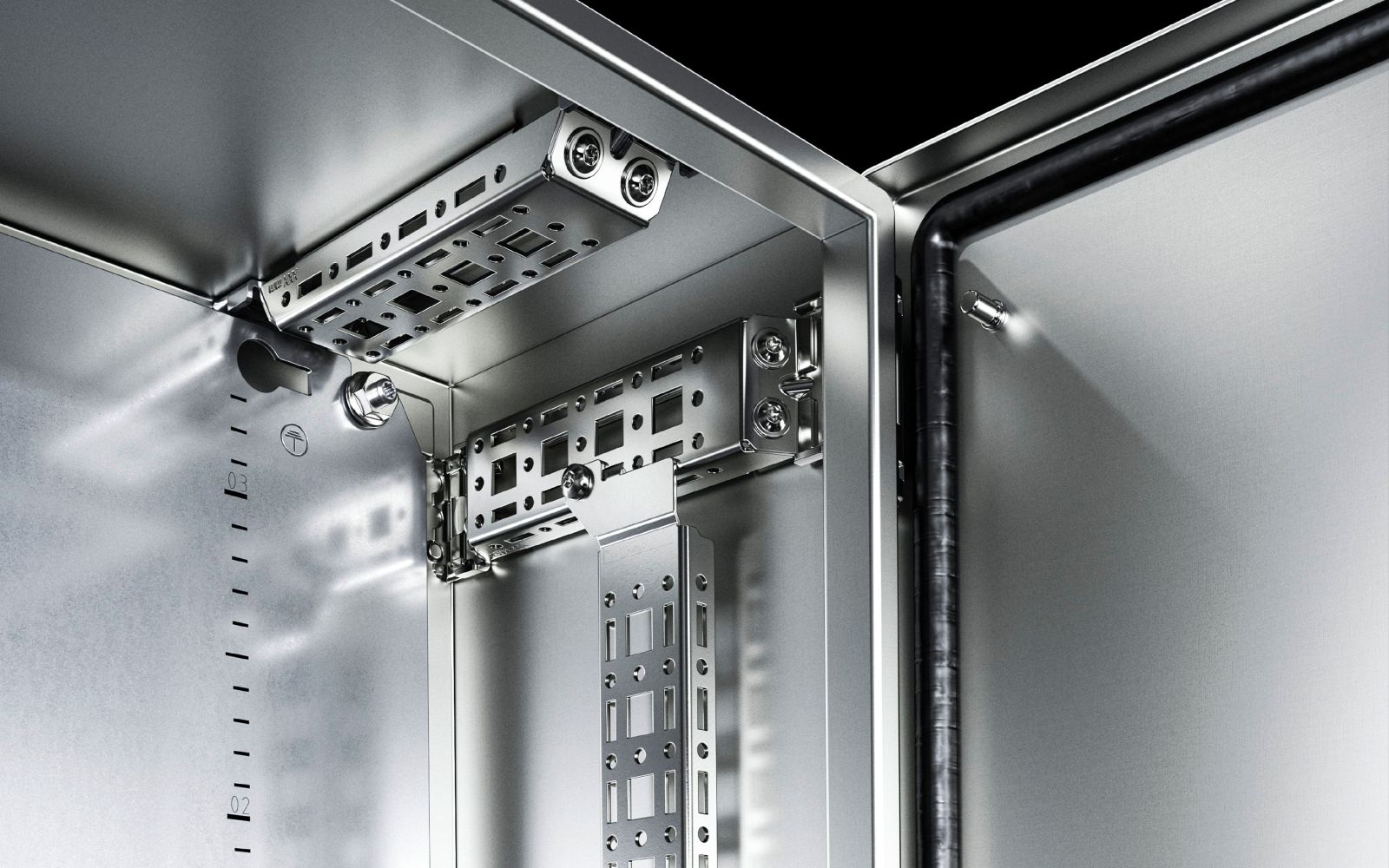

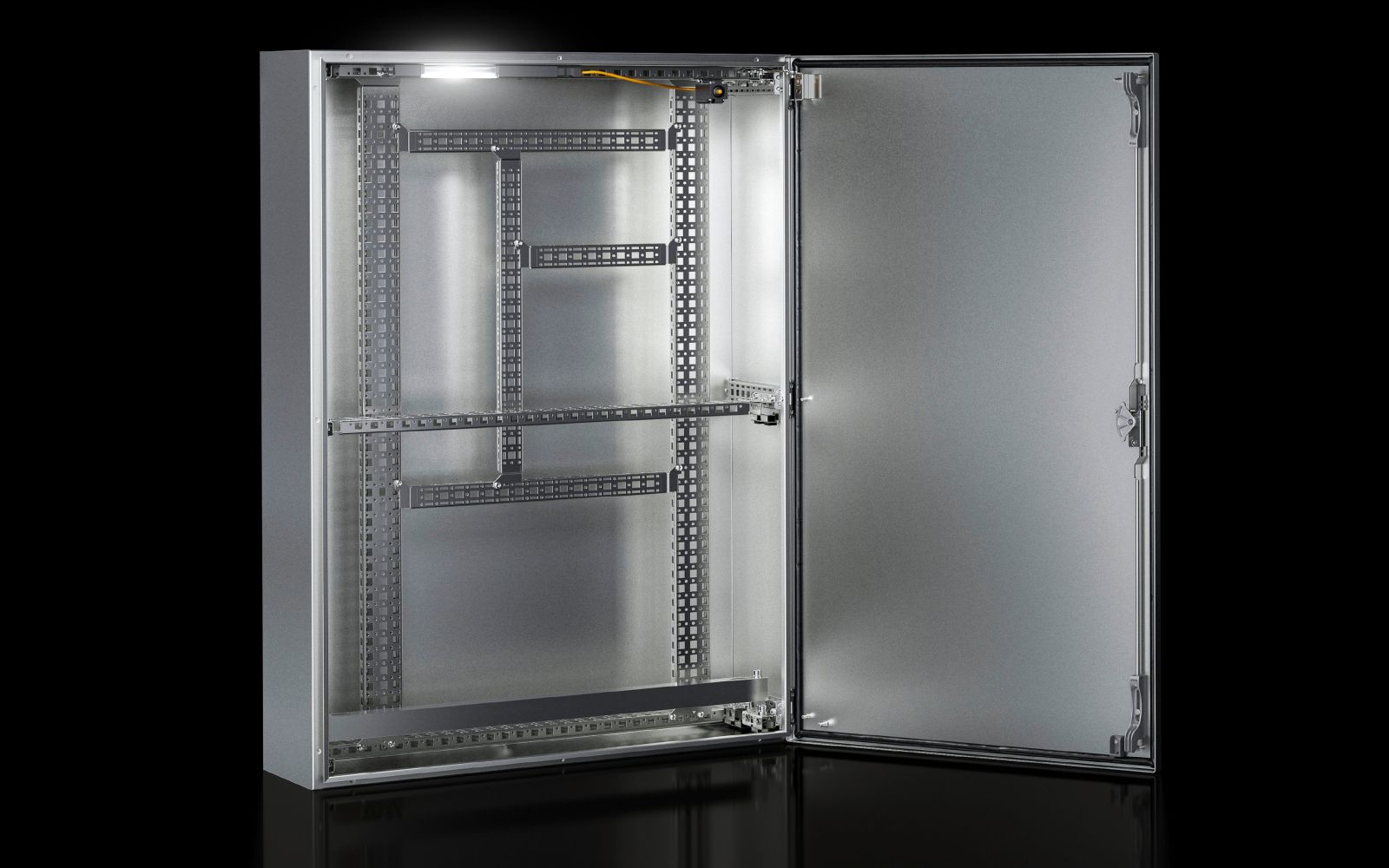

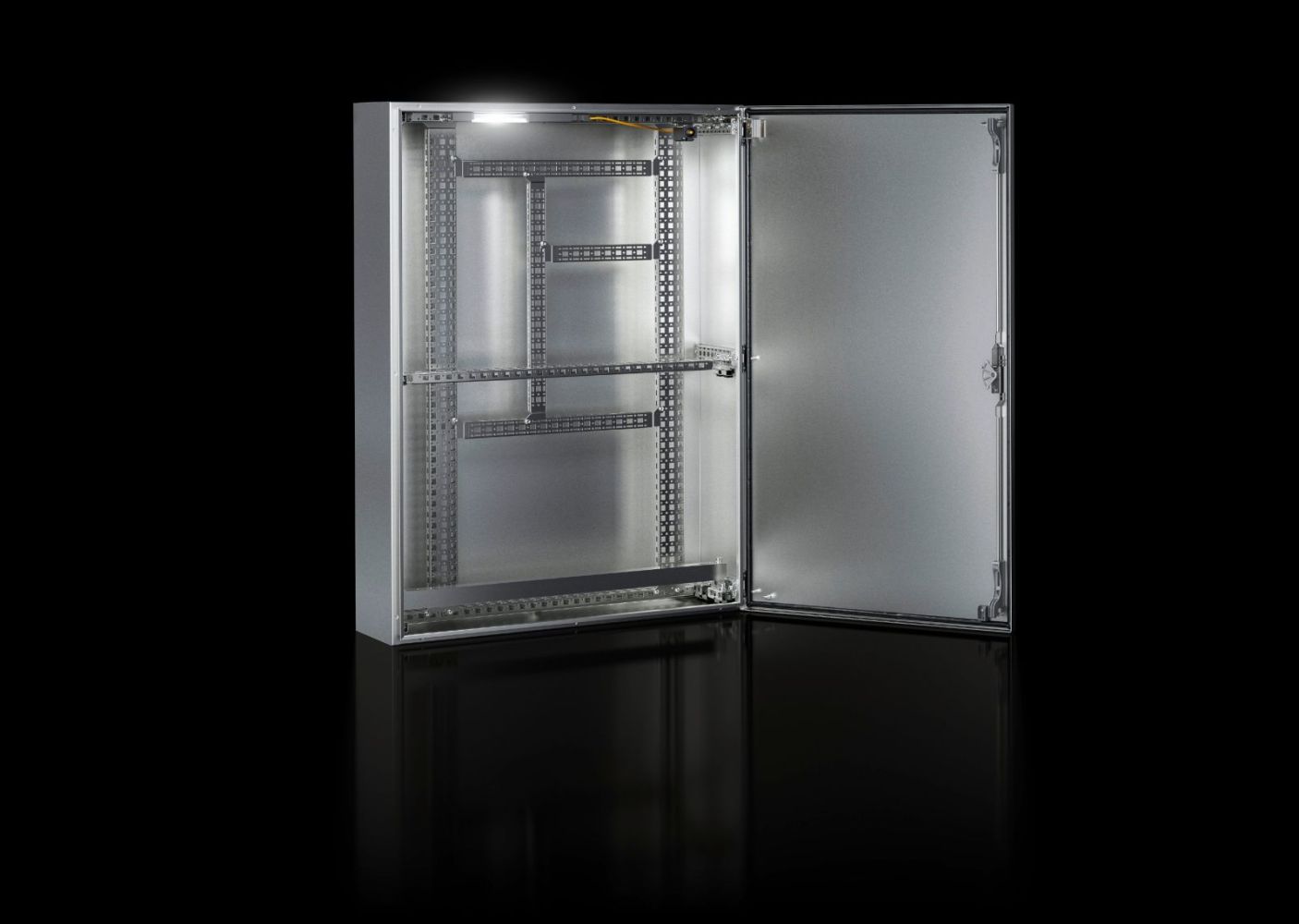

The enclosure features an integrated cam system that enables easy and quick internal installation without drilling. The door is equipped with two latching locks fitted with 3 mm double-barrel inserts made of zinc die-cast. These locks ensure a secure and tight closure. The mounting plate is equipped with grounding keyhole slots and is fastened with Limbach nuts. A QR code is printed on the enclosure, door, and nameplate to enable unique identification and traceability of individual parts.
Technical Explanation
The IP 66 protection rating means the enclosure is dust-tight and protected against splashing water from any direction, even under heavy splashing. The NEMA 4X and Type 4X protection rating according to UL 50E corresponds to a high level of protection against water, dust, and chemical influences, making it suitable for outdoor use or in humid indoor environments. The IK code IK10 guarantees that the enclosure is resistant to mechanical impacts such as shock or impact up to a certain energy level. The door thickness is 2 mm, and the enclosure thickness is 1.5 mm, ensuring a stable construction.
Compatibility and Accessories
Various accessories are available for this enclosure, expanding its use in different application scenarios. These include an AX protective roof, an LED 400 system light, an AX mast mounting, a mini comfort handle, an AX rail for internal installation, lock inserts, a VX system chassis, a condensate drain, an SZ 2572010 knob handle without safety cylinder insert, stainless steel 1.4301 wall mounting brackets, and a mounting bridge for various systems. These accessories allow flexible adaptation to specific requirements, such as mounting on masts, installing lighting, or expanding internal installation.
Mounting and Installation

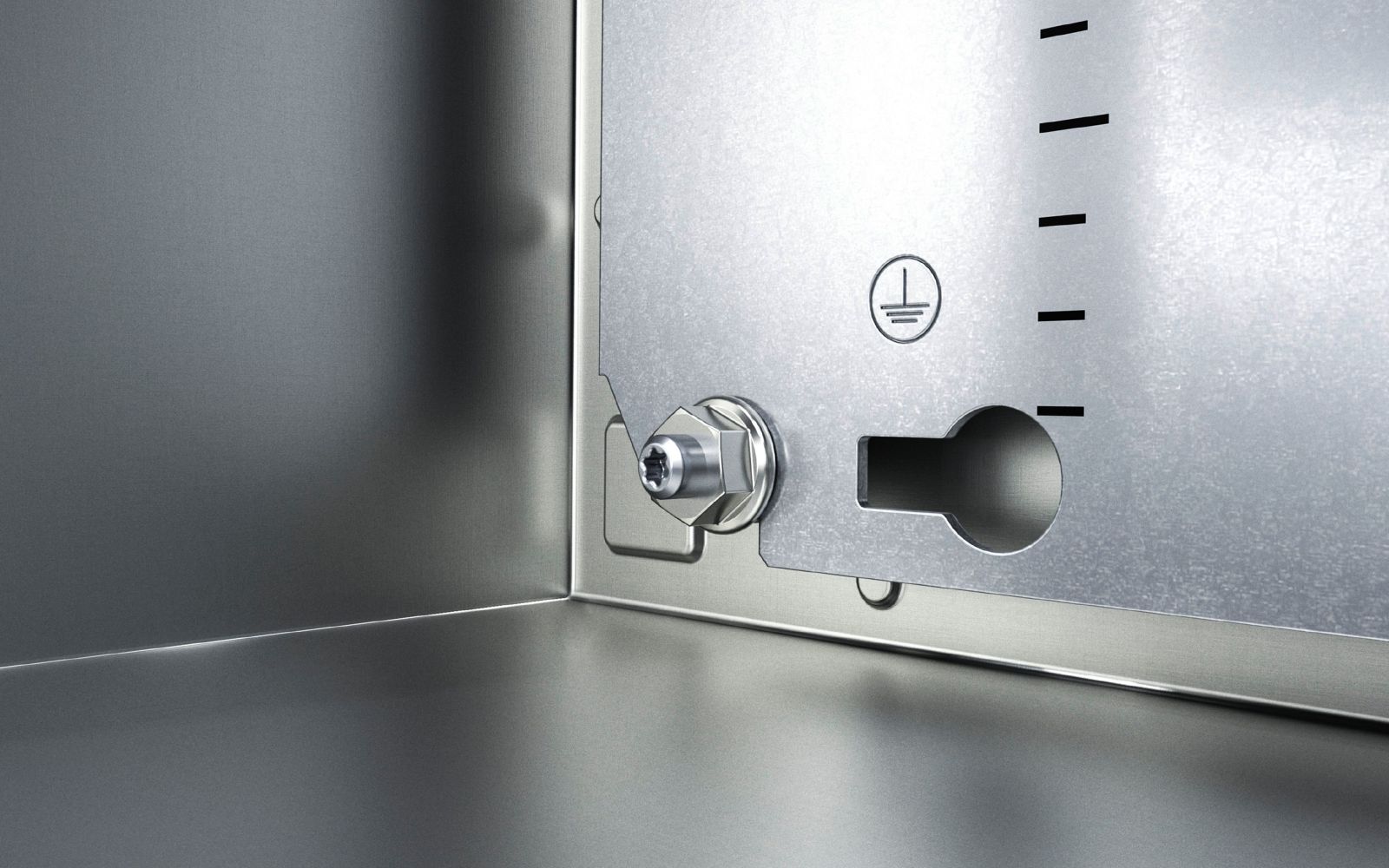

Mounting is done using the designated fastening elements on the rear wall of the enclosure. The mounting plate is marked with dimensions to enable precise positioning of components. The door can be attached using the designated hinges, which are welded. The locks are pre-installed and provide a secure closure. Grounding is achieved via the designated keyhole slots on the mounting plate.
Operational Advantages
The enclosure offers high mechanical and chemical resistance due to the use of stainless steel 1.4301. The integrated seal and IP 66 protection rating ensure reliable protection against environmental influences. The cam system enables quick and easy internal installation without drilling. The pre-installed locks and mounting plate simplify installation and maintenance. Unique identification via QR codes enables easy traceability and documentation of individual parts.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 760 mm |
| Depth | 210 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 550 mm x 735 mm |
| Number of doors | 1 |
| Lock | Locking mechanism type: push-button, number of locks: 2, lock insert: 3 mm double barb, lock material: zinc die-cast |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 96,15 |
Questions & answers
What is the delivery time of Rittal 1012000 Compact enclosure AX, 1-door, 600x760x210 mm?
The article Rittal 1012000 Compact enclosure AX, 1-door, 600x760x210 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1012000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1012000 Compact enclosure AX, 1-door, 600x760x210 mm always at the best possible price. We can give you a discount of 2% on Rittal 1012000 Compact enclosure AX, 1-door, 600x760x210 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Rittal 1012000 Compact enclosure AX, 1-door, 600x760x210 mm
|
Rittal 2463000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023826 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 191196 Mfg Part No: 2463000 Type: SZ 2463000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2307000 Lock inserts, zinc die-cast, length 27 mm, outer dimension 27 mm
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177020849 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 236156 Mfg Part No: 2307000 Type: SZ 2307000 |
2,98 EUR
![]() ≈ £2.49 | ≈ $3.28
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2465000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023864 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 251997 Mfg Part No: 2465000 Type: SZ 2465000 |
-11% 2,62 EUR 2,93 EUR
![]() ≈ £2.19 | ≈ $2.88
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2460000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023765 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 400490 Mfg Part No: 2460000 Type: SZ 2460000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 8619760 VX system chassis 14 x 39 mm, for height: 700 mm
The Rittal System-Chassis VX 8619760 is a metallic mounting component made of sheet steel, specifically developed for use in enclosures of the AX system. It is designed for the secure mounting of ...Lieske Part No.: 469331 Mfg Part No: 8619760 Type: VX 8619760 |
47,84 EUR
![]() ≈ £40.04 | ≈ $52.58
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2459000 SZ Condensate discharge
For reliable discharge from the inside and protection against splashes from the outside (labyrinth effect). A hole diameter of 16 mm is required. (With AE sheet steel, the holes are already provided ...Lieske Part No.: 469525 Mfg Part No: 2459000 Type: SZ 2459000 |
10,88 EUR
![]() ≈ £9.11 | ≈ $11.96
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2460650 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177220331 Customs tariff number: 83024900 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 499708 Mfg Part No: 2460650 Type: SZ 2460650 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 1199100 Baying set for AX, KX, AE, KL
Supports baying and sealing between KL/KL and AE/AE.Benefits: Special screws and nuts limit compression of the seal to a predefined level, to ensure a long-lasting, permanent seal between enclosures ... Lieske Part No.: 583514 Mfg Part No: 1199100 Type: SZ 1199100 |
32,32 EUR 33,69 EUR
![]() ≈ £27.05 | ≈ $35.52
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 2572010 SZ knob handle without safety cylinder insert for AX
The Rittal SZ 2572010 is a knob handle designed as a replacement or supplement for enclosures and housings, particularly for models with cam or latch locking systems. The handle is manufactured in ...Lieske Part No.: 612034 Mfg Part No: 2572010 Type: SZ 2572010 |
-6% 17,02 EUR 18,20 EUR
![]() ≈ £14.25 | ≈ $18.70
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
|
Rittal 2461000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023789 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 661058 Mfg Part No: 2461000 Type: SZ 2461000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2464000 lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023840 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 724120 Mfg Part No: 2464000 Type: SZ 2464000 |
2,46 EUR
![]() ≈ £2.06 | ≈ $2.70
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2583010 Wall mounting bracket, stainless steel 1.4301
The Rittal SZ 2583010 is a wall mounting bracket made of stainless steel 1.4301 (AISI 304), specifically developed for mounting sheet metal and stainless steel enclosures to walls. It serves as a ...Lieske Part No.: 796959 Mfg Part No: 2583010 Type: SZ 2583010 |
19,44 EUR 20,21 EUR
![]() ≈ £16.27 | ≈ $21.36
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 4696000 Mounting bracket for VX, TS, VX SE, TP, AX 540 mm, pack of 20 pcs
Applications: For attachment ofCable ducts Cable conduit holder Contact hazard protection covers Equipment installed on the door Cable clamping and attachment Material: Sheet steel Surface finish: ... Lieske Part No.: 816498 Mfg Part No: 4696000 Type: TS 4696000 |
90,15 EUR
![]() ≈ £75.46 | ≈ $99.07
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2462000 lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023802 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 889854 Mfg Part No: 2462000 Type: SZ 2462000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 2466000 lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023888 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 975920 Mfg Part No: 2466000 Type: SZ 2466000 |
2,67 EUR
![]() ≈ £2.23 | ≈ $2.93
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 2473010 AX protection roof, W x D: 600x210 mm, stainless steel
The Rittal AX 2473010 is a protective roof made of stainless steel, specifically designed for enclosures of type AX with a width of 600 mm and a depth of 210 mm. It serves as a protective cover for ...Lieske Part No.: 1054795 Mfg Part No: 2473010 Type: AX 2473010 |
96,03 EUR
![]() ≈ £80.38 | ≈ $105.54
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 4052000 AS Multitool AX/VX
The Rittal AS 4052000 is a multifunctional tool, specifically developed for handling and mounting AX enclosures as well as VX doors in the field of enclosure technology. It combines several useful ...Lieske Part No.: 1055448 Mfg Part No: 4052000 Type: AS 4052000 |
29,65 EUR
![]() ≈ £24.82 | ≈ $32.59
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2394100 floor extension rail, for AX
The Rittal AX 2394100 is a floor expansion rail made of sheet steel with a zinc-coated surface, specifically developed for use in the AX compact enclosure system. It serves as an additional mounting ...Lieske Part No.: 1101816 Mfg Part No: 2394100 Type: AX 2394100 |
17,92 EUR
![]() ≈ £15.00 | ≈ $19.69
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 4000300 SZ pressure equalization plug, stainless steel, 1.4305
The Rittal SZ 4000300 is a pressure equalization plug made of stainless steel 1.4305 (AISI 303), specifically designed for use in enclosures and housings exposed to changing climatic conditions. It ...Lieske Part No.: 1101878 Mfg Part No: 4000300 Type: SZ 4000300 |
-6% 163,42 EUR 174,72 EUR
![]() ≈ £136.78 | ≈ $179.60
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|

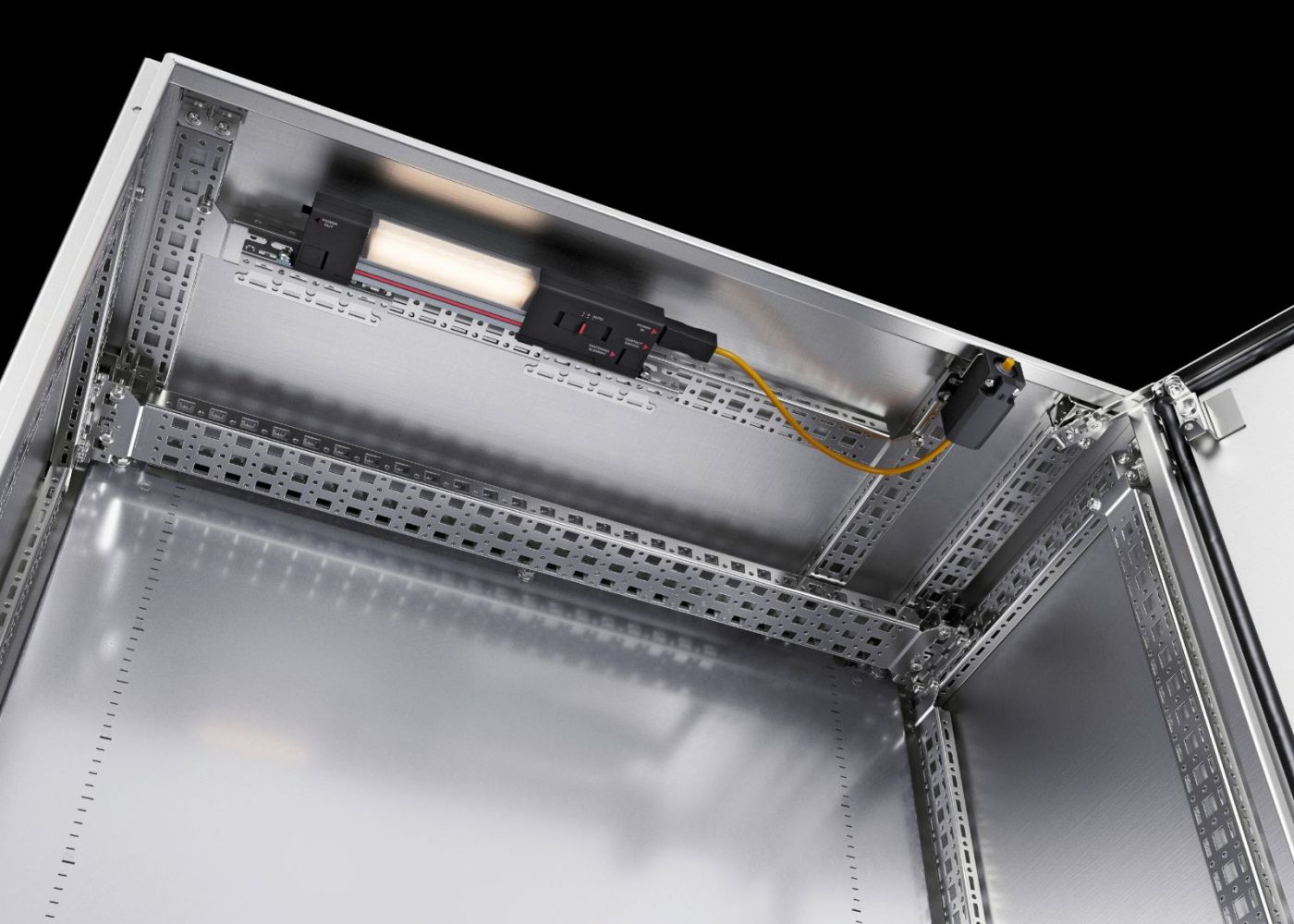

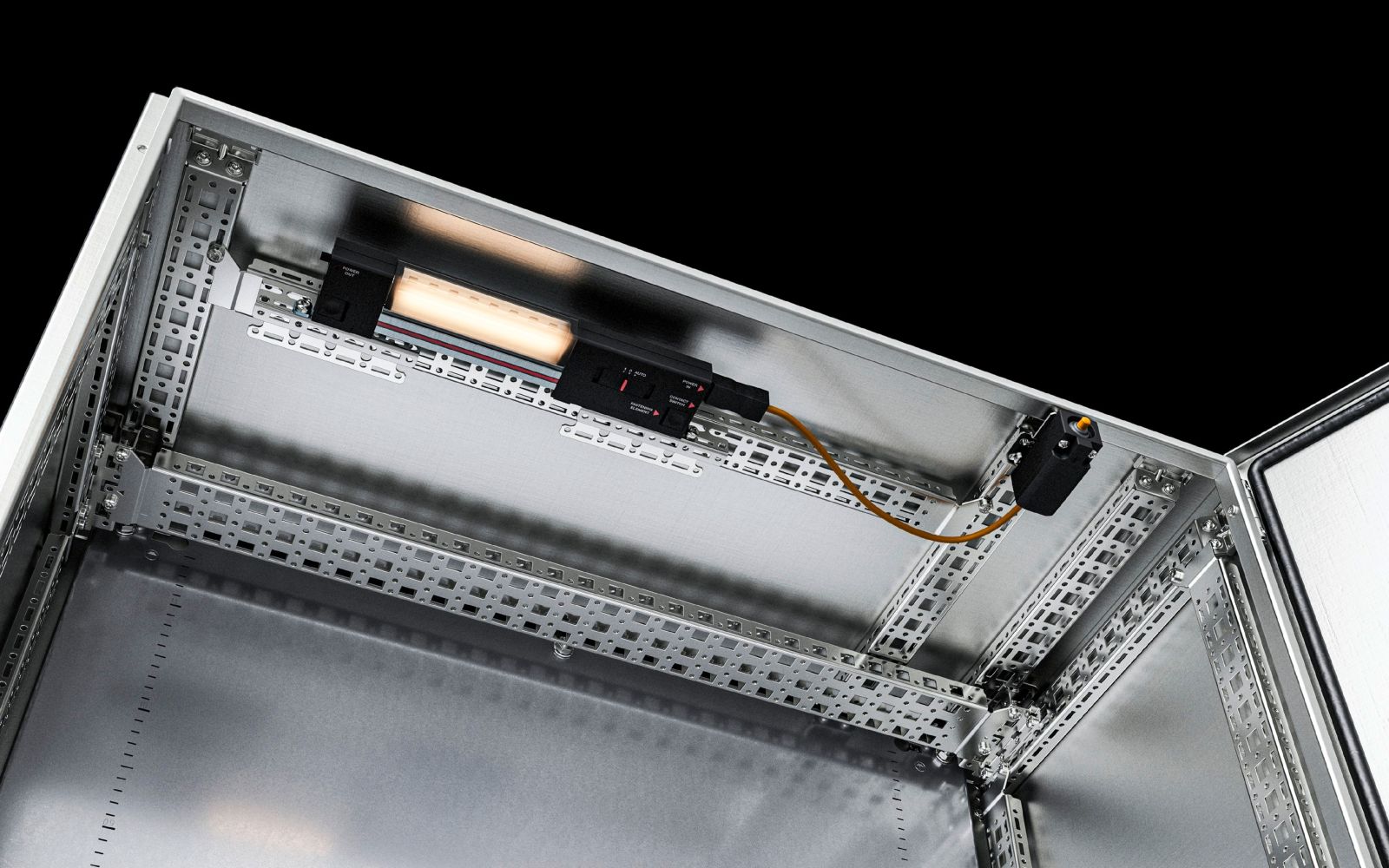

Rittal 2500100 System light LED 400, 100-240 V, L: 262 mm
The Rittal SZ 2500100 is an LED system light, specifically developed for use in enclosures. It provides uniform and sufficient illumination of the entire interior space and is available in the version ...Lieske Part No.: 1130322 Mfg Part No: 2500100 Type: SZ 2500100 |
57,80 EUR
![]() ≈ £48.38 | ≈ $63.52
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 8617130 VX System-Chassis 23 x 64 mm W x H x D: 600 mm
The Rittal VX System Chassis 8617130 is a modular mounting component made of sheet steel with a galvanized surface, specifically designed for internal installation in enclosures. It serves as a ...Lieske Part No.: 1349694 Mfg Part No: 8617130 Type: VX 8617.130 |
48,08 EUR
![]() ≈ £40.24 | ≈ $52.84
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 8617800 VX support rail 48 x 26 mm, W: 600 mm
The Rittal VX support rail 8617.800 is a robust mounting rail made of sheet steel with a zinc-coated surface, specifically designed for use in enclosures and housings with a width of 600 mm. It serves ...Lieske Part No.: 1440920 Mfg Part No: 8617800 Type: VX 8617.800 |
47,50 EUR
![]() ≈ £39.76 | ≈ $52.20
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 8619720 VX system chassis 14 x 39 mm, door width: 600 mm
The Rittal VX 8619.720 is a system chassis made of sheet steel with a galvanised surface, specifically designed for mounting cable ducts, cable conduit holders, door inserts and similar components in ...Lieske Part No.: 1441073 Mfg Part No: 8619720 Type: VX 8619.720 |
42,99 EUR
![]() ≈ £35.98 | ≈ $47.25
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 8619410 VX cable strain relief rail angle profile, W: 600 mm
The Rittal VX 8619.410 is a cable strain relief rail in angle profile, specifically designed for tension relief during cable entry into enclosures and plinth systems. The product is made of steel and ...Lieske Part No.: 1441180 Mfg Part No: 8619410 Type: VX 8619.410 |
33,81 EUR
![]() ≈ £28.30 | ≈ $37.16
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2575010 SZ knob handle with safety cylinder insert for AX
The SZ 2575010 from Rittal is a knob handle with integrated security cylinder insert, specifically designed for enclosures and housings with pull-out systems. The product serves as a locking component ...Lieske Part No.: 1571616 Mfg Part No: 2575010 Type: SZ 2575010 |
29,01 EUR 30,28 EUR
![]() ≈ £24.28 | ≈ $31.88
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
|
Rittal 2584100 AX mast mounting
Rittal AX 2584100 is a mast mounting for enclosures and housings of the series AX, KX, AX plastic, AX IT, CS wall-mounted enclosures, AX outdoor housing, AE, KL, EB, as well as wall-mounted enclosures ...Lieske Part No.: 1593407 Mfg Part No: 2584100 Type: AX 2584100 |
66,45 EUR 66,47 EUR
![]() ≈ £55.62 | ≈ $73.03
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2732010 viewing window, 597x757x34 mm, incl. plastic handle
The Rittal FT viewing window, type AX 2732010, is a system accessory for industrial enclosures of the AX housing type. It serves as a replacement for an enclosure door or as an insert in panels, ...Lieske Part No.: 1593419 Mfg Part No: 2732010 Type: AX 2732010 |
-10% 201,71 EUR 225,01 EUR
![]() ≈ £168.83 | ≈ $221.68
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2762010 viewing window, 597x757x60 mm, incl. plastic handle
The Rittal viewing window AX 2762010 is a FT viewing window for use with AX enclosures. It serves as a replacement for a door or panel and enables visual inspection of components inside the enclosure ...Lieske Part No.: 1593448 Mfg Part No: 2762010 Type: AX 2762010 |
202,86 EUR
![]() ≈ £169.79 | ≈ $222.94
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2537100 Mini comfort handle AX
The Rittal AX 2537100 is a Mini-Comfort Handle for enclosures and housings, specifically designed for use with AX- and KX-housings with latch. It serves as a mechanical locking handle, securely ...Lieske Part No.: 1598253 Mfg Part No: 2537100 Type: AX 2537100 |
-6% 34,39 EUR 36,44 EUR
![]() ≈ £28.78 | ≈ $37.79
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
|

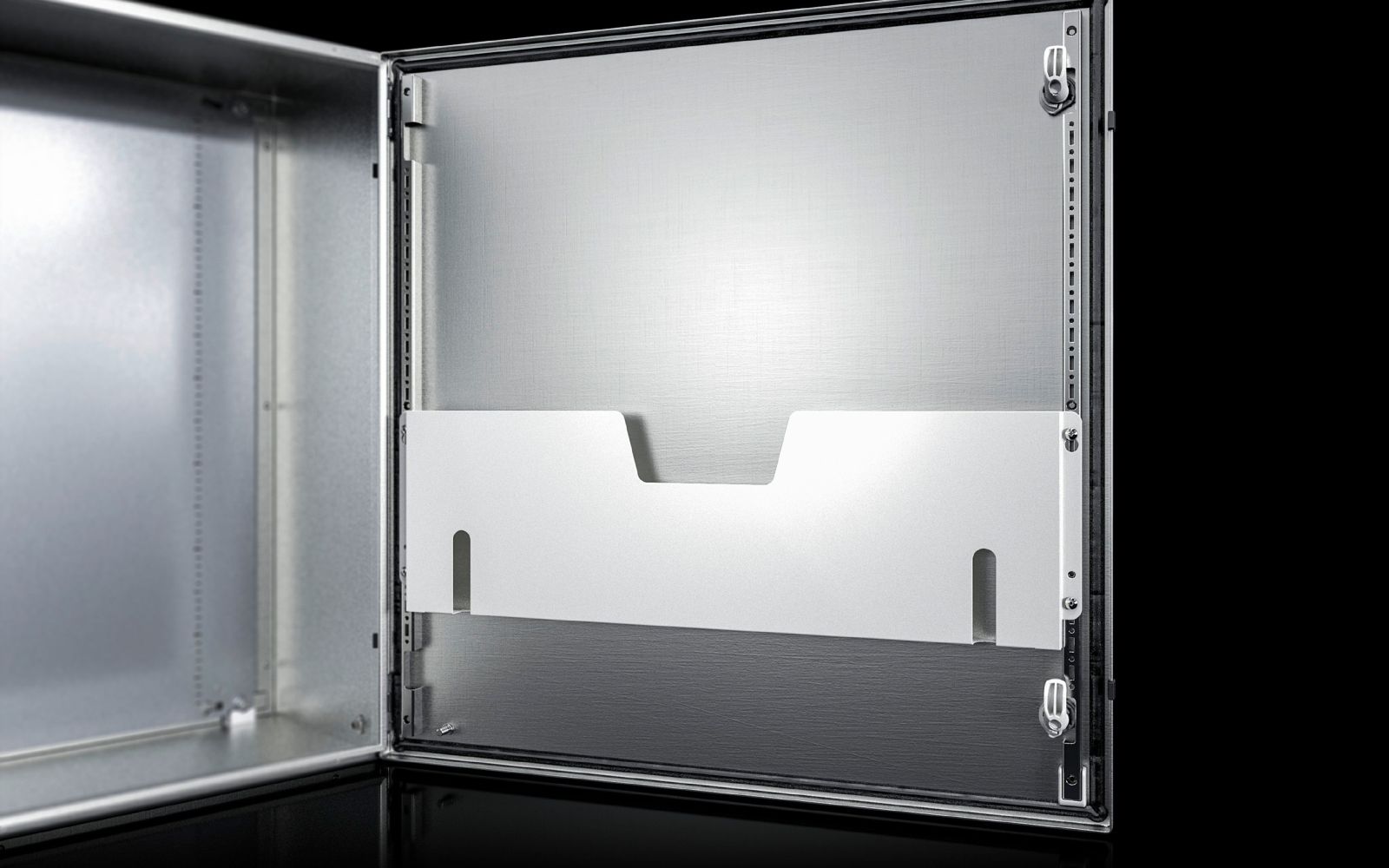

Rittal 2515300 AX circuit diagram pocket made of sheet metal, width: 475 - 575 mm,
