Rittal 2473010 AX protection roof, W x D: 600x210 mm, stainless steel

Your rating:
Average rating
product review for Rittal 2473010 AX protection roof, W x D: 600x210 mm, stainless steel
( 4.5 / 5 ) 2 ratings
Rittal 2473010
This image may differ from the desired article.
Rittal 2473010Rittal 2473010Rittal 2473010Rittal 2473010Rittal 2473010Rittal 2473010Rittal 2473010
96,03 EUR
( 114,28 EUR incl. VAT )
≈ £80.38  |  ≈ $105.54
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2473010 AX protection roof, W x D: 600x210 mm, stainless steel
Datasheet:file_download Download
Lieske Part No.:1054795
Mfg Part No: 2473010
UPC/EAN: 4028177938236
Weight:2.34 kg
Type:AX 2473010

Product information for Rittal 2473010:

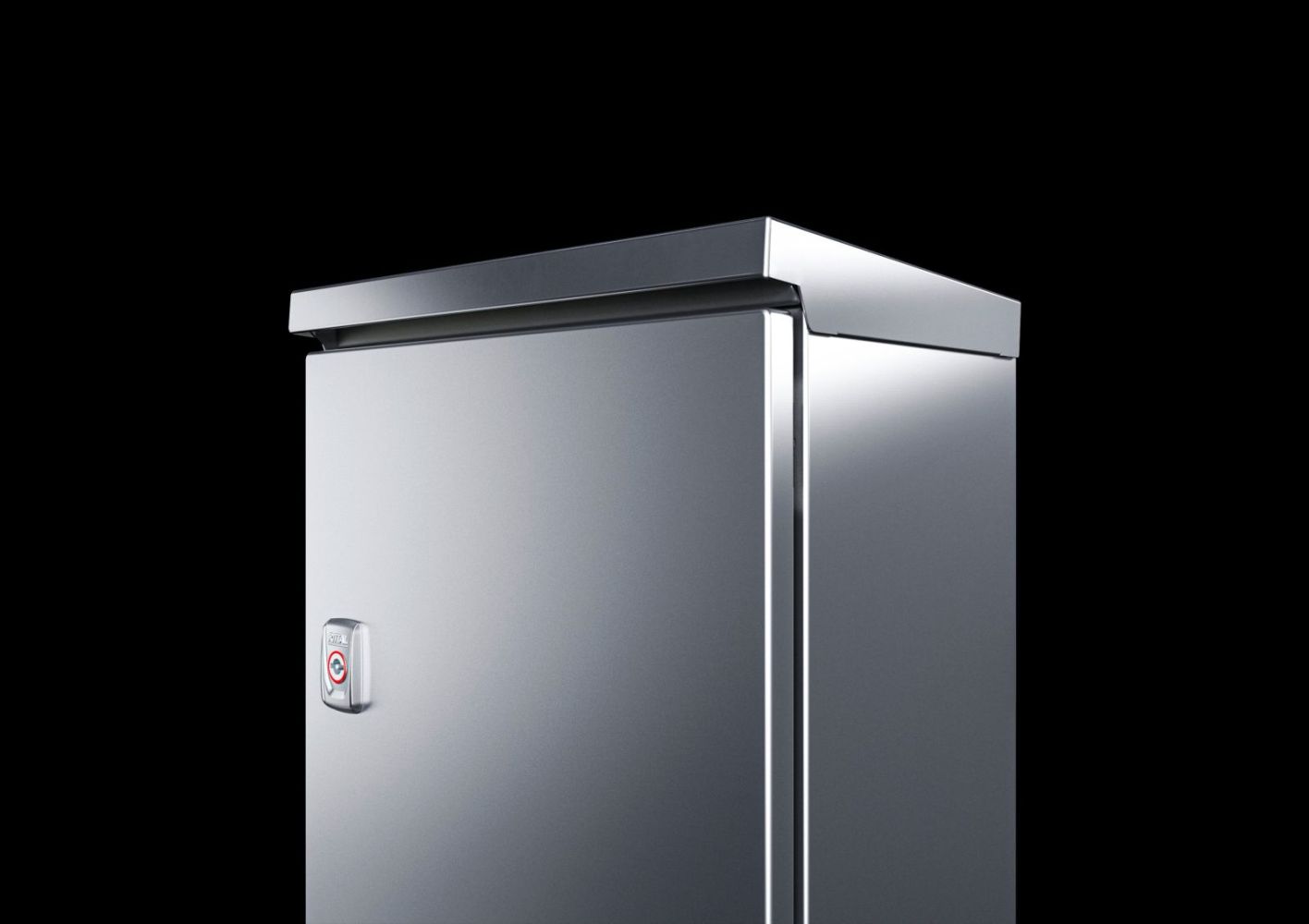

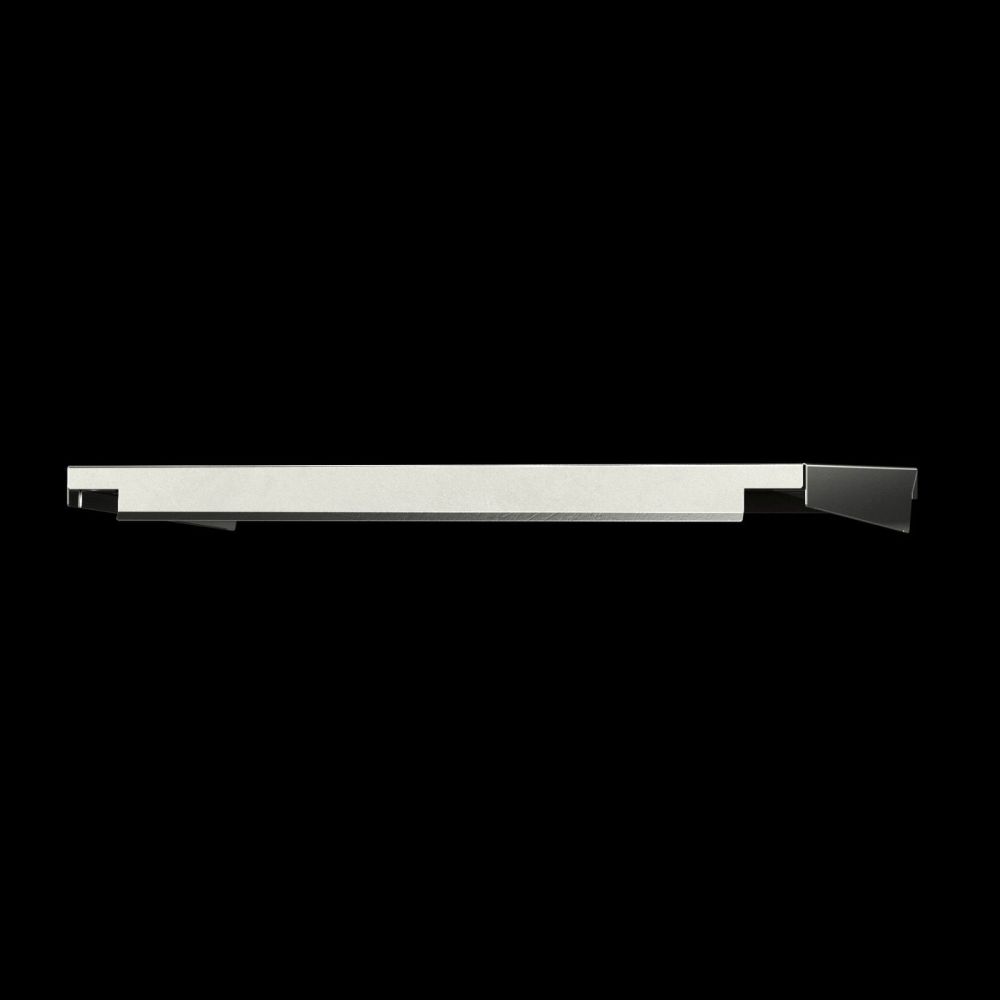

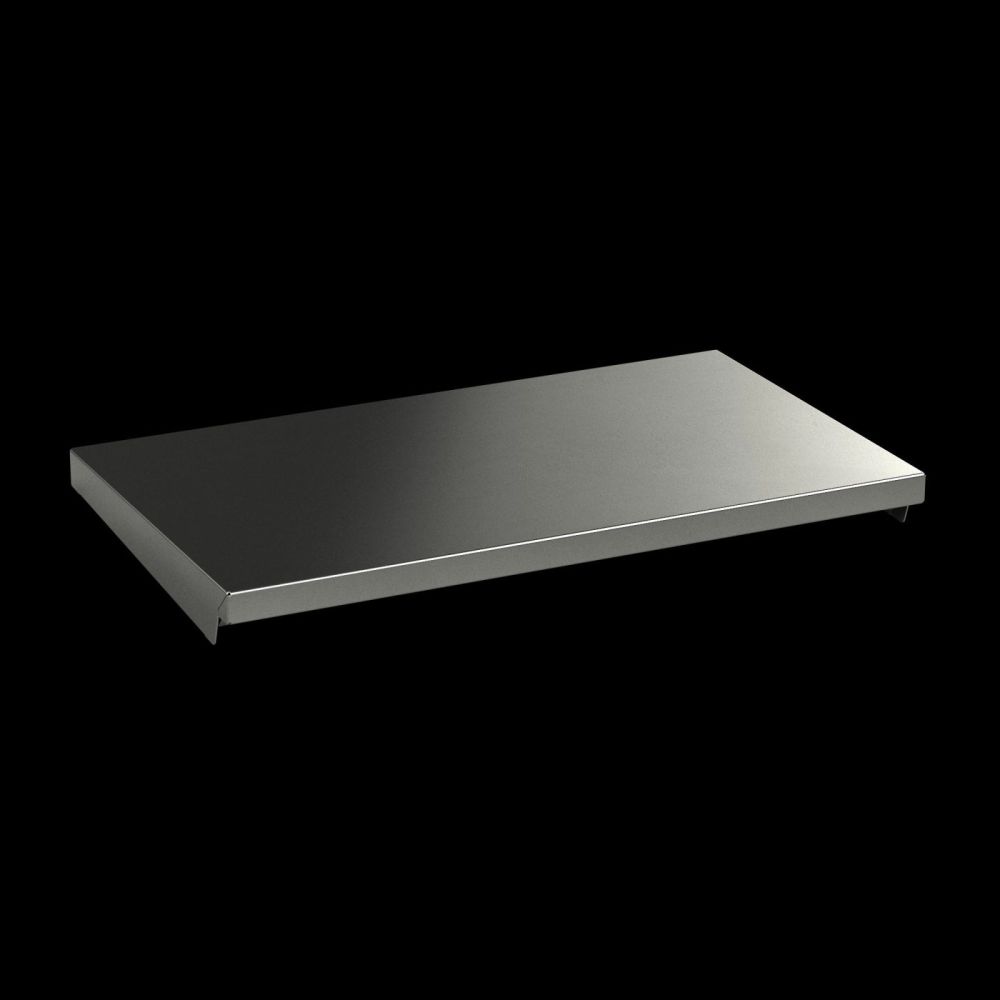

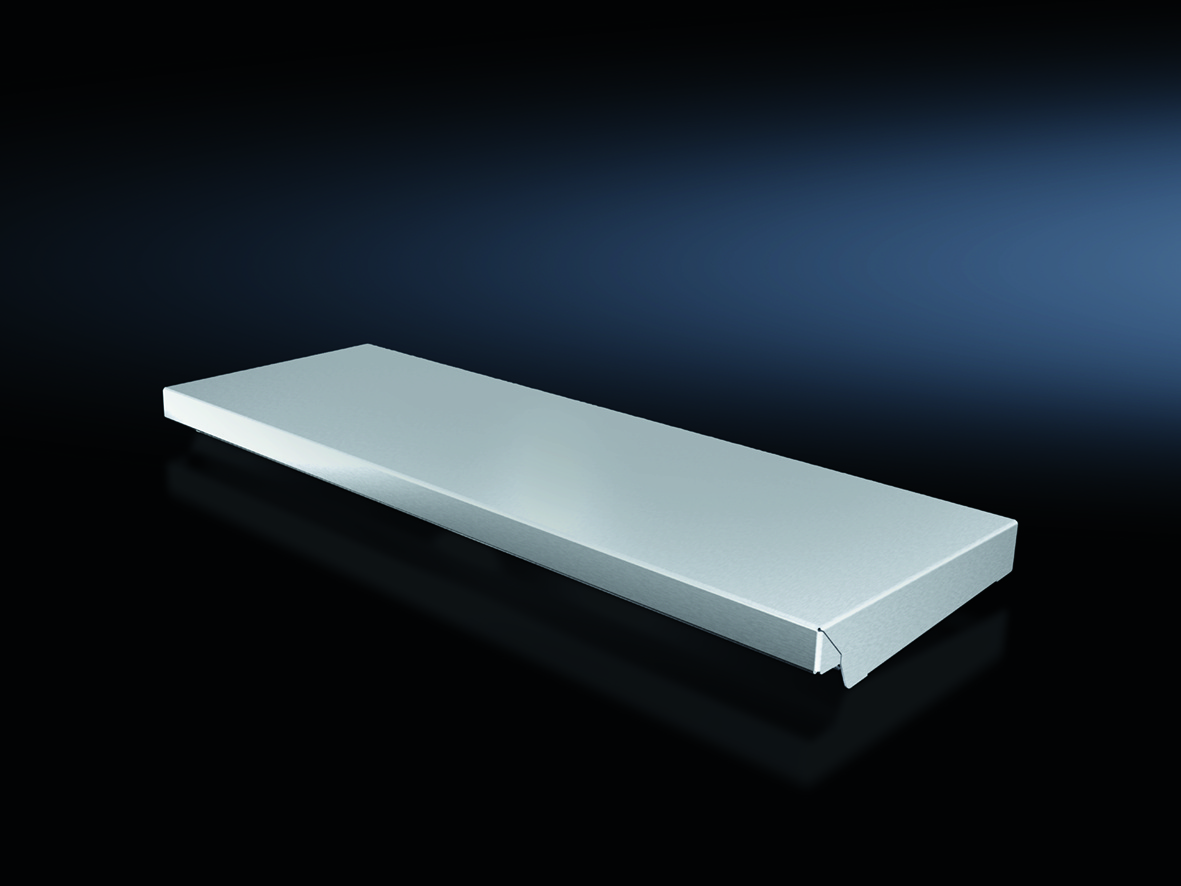

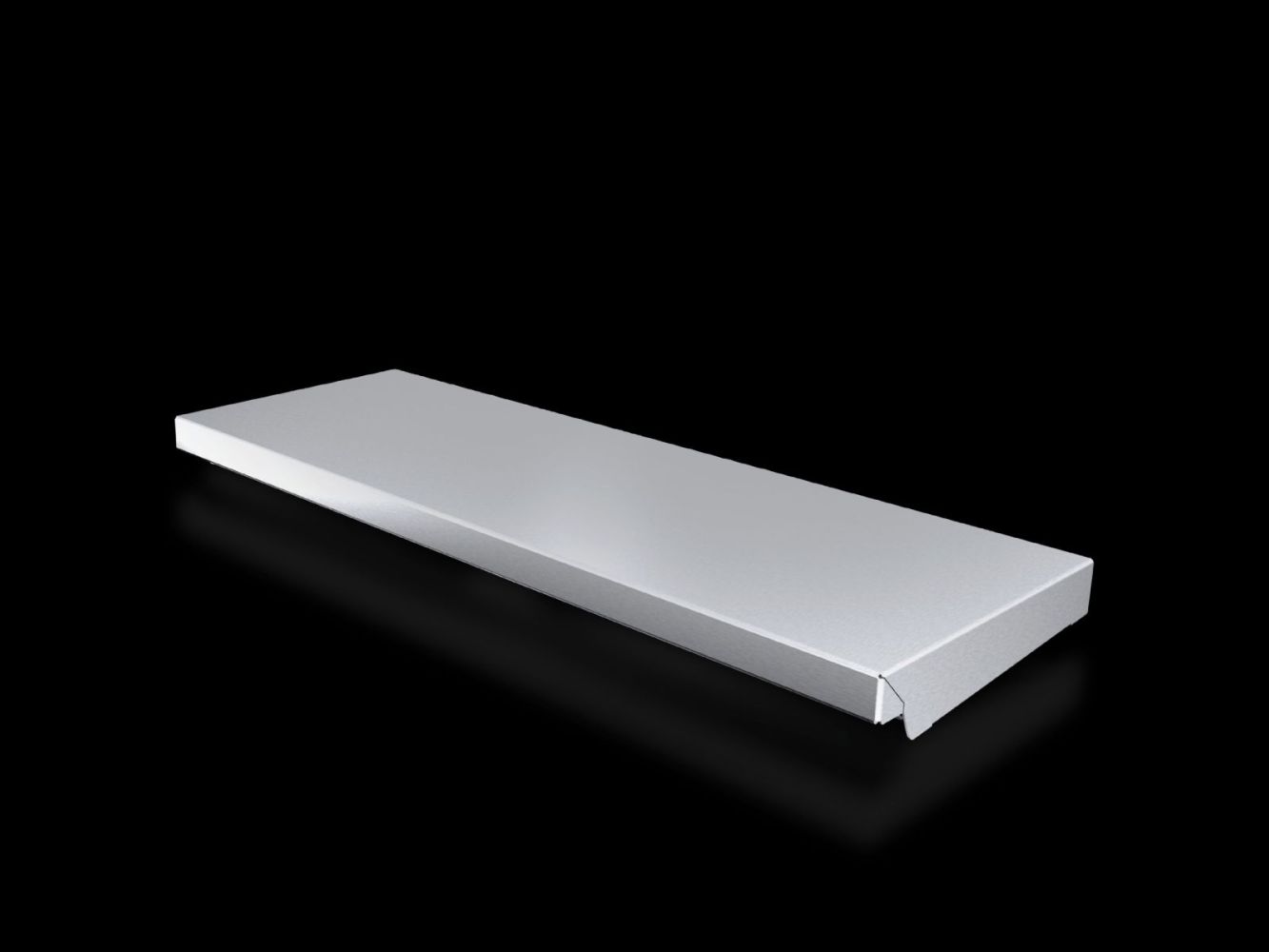

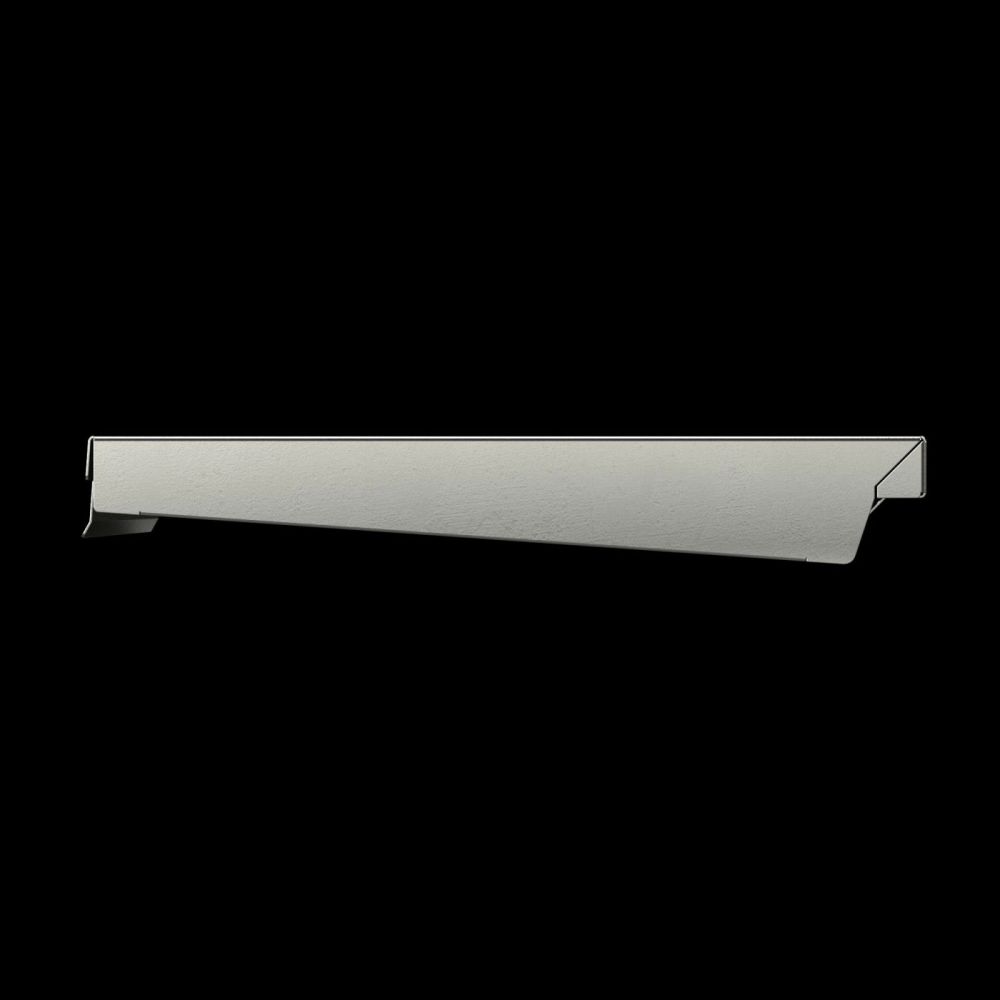

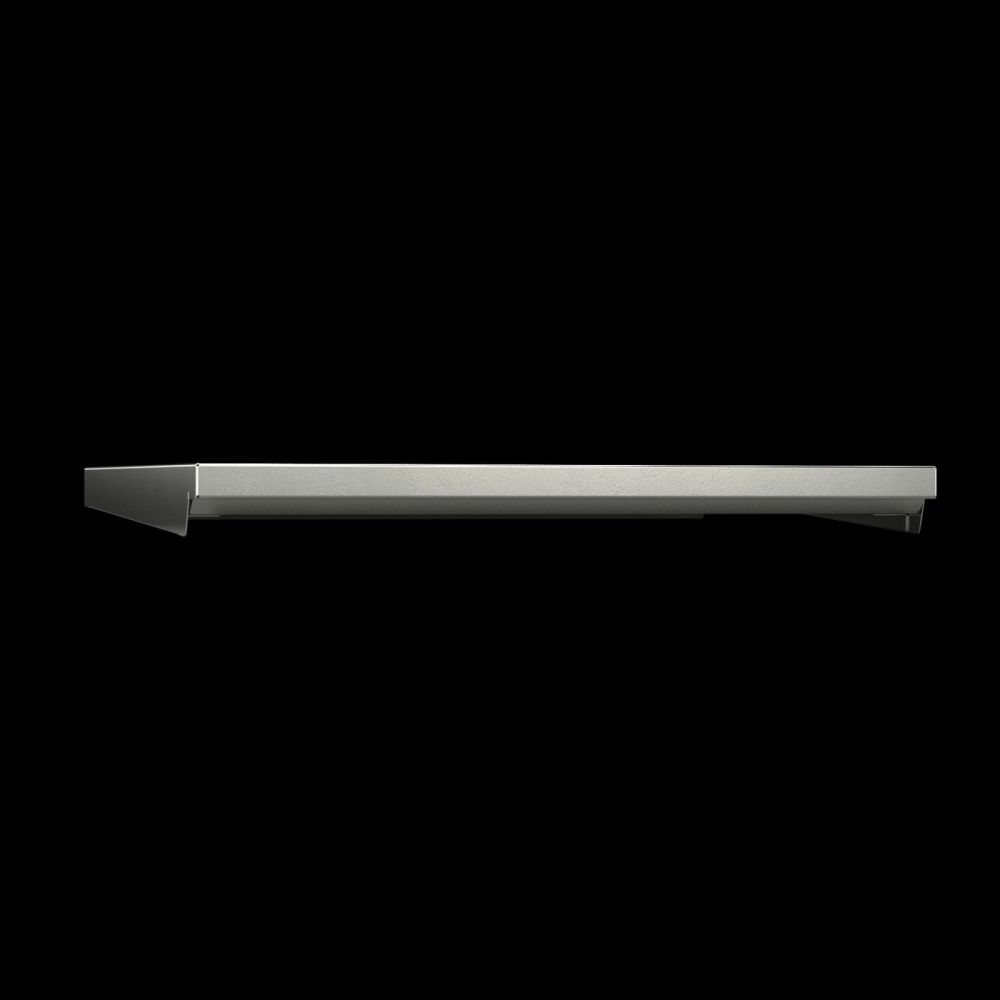

The Rittal AX 2473010 is a protective roof made of stainless steel, specifically designed for enclosures of type AX with a width of 600 mm and a depth of 210 mm. It serves as a protective cover for the top of the enclosure, repelling standing moisture and contaminants from above due to its sloped design. The product is made of stainless steel 1.4301 (AISI 304), a material known for its corrosion resistance and mechanical strength in industrial environments. The surface features a brushed finish with grit 240, providing a uniform, easy-to-clean, and aesthetically pleasing surface.

Applications
This protective roof is intended for use in industrial installations where enclosures are exposed to increased stress from weather influences, dust, or splashing water. The sloped design ensures that precipitation runs off quickly and no water accumulates on the top surface, extending the service life of the enclosure and its contents. It is particularly suitable for outdoor installations or areas with high humidity.

Functions and Equipment in Detail
The protective roof is mounted by screwing and is designed for dynamic loads, meaning it remains securely fastened even under vibrations or mechanical stress. The height of the protective roof is 37 mm, providing sufficient coverage for most standard enclosures of these dimensions.

Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) offers high resistance to corrosion, even in moist or slightly aggressive environments. The brushed surface (grit 240) is not only visually appealing but also easy to clean and resistant to contamination. The sloped shape of the roof ensures that precipitation and dirt particles do not remain on the surface but run off, enhancing the functionality and hygiene of the enclosure.

Compatibility and Accessories
The protective roof is specifically designed for enclosures of type AX with dimensions width 600 mm and depth 210 mm. It is not suitable for other enclosure types or dimensions. Compatibility is limited to these specific dimensions to ensure secure and functional mounting. It is used in conjunction with the AX enclosure system, which is widely used in many industrial applications.

Mounting and Installation
Installation is done by screwing, using the included mounting hardware. The fastening is designed for dynamic loads, meaning the protective roof remains securely in place even under vibrations or mechanical stress. Installation requires no special tools other than a screwdriver or screw clamp, which are typically available in workshop inventories.

Advantages in Operation
The use of stainless steel and the sloped design extends the service life of the enclosure by protecting the top from moisture and contamination. The simple mounting and included fastening materials reduce installation time. Compliance with UL 50E Type Ratings (Type 1, Type 3R, Type 4, Type 4X, Type 12) ensures suitability for various environments, including moist or dusty areas, and guarantees conformity with international safety standards.

General
MaterialStainless steel 1.4301 (AISI 304)
Surface protectionLinear finish, grit 240
Scope of deliveryIncluding mounting hardware
Mounting optionsScrewable under dynamic loads
Height37 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
Suitable forEnclosure type: AX, width: = 600 mm, depth: = 210 mm


Product data sheet
Datasheet for Rittal 2473010, EAN: 4028177938236

Questions & answers

What is the delivery time of Rittal 2473010 AX protection roof, W x D: 600x210 mm, stainless steel?

The article Rittal 2473010 AX protection roof, W x D: 600x210 mm, stainless steel is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2473010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2473010 AX protection roof, W x D: 600x210 mm, stainless steel always at the best possible price. We can give you a discount of 2% on Rittal 2473010 AX protection roof, W x D: 600x210 mm, stainless steel if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
