Rittal 1060000 Compact enclosure AX W x H x D 600x600x210 mm IP66 (freight shipping)

Your rating:
Average rating
product review for Rittal 1060000 Compact enclosure AX W x H x D 600x600x210 mm IP66 (freight shipping)
( 4.6 / 5 ) 8 ratings

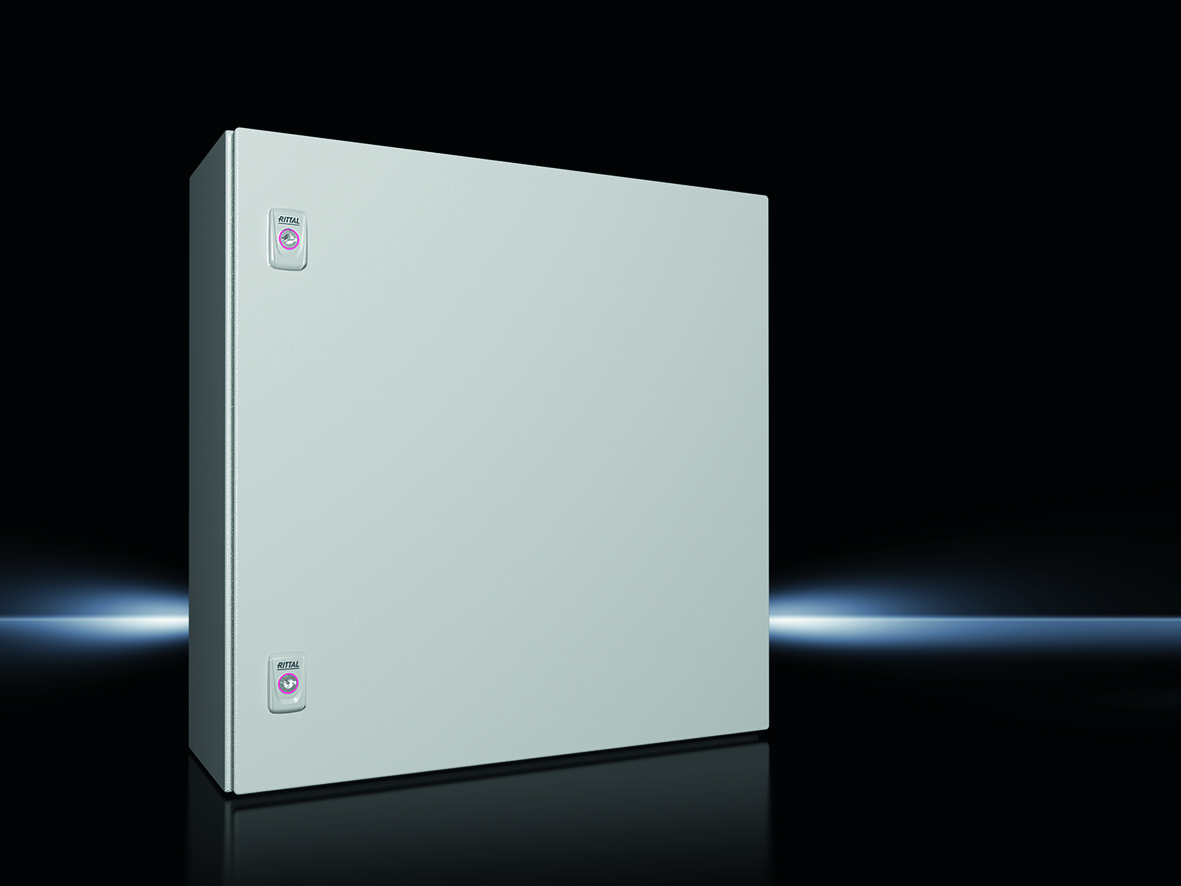

Rittal 1060000
This image may differ from the desired article.
Rittal 1060000Rittal 1060000Rittal 1060000Rittal 1060000Rittal 1060000Rittal 1060000Rittal 1060000
110,39 EUR
( 131,36 EUR incl. VAT )
≈ £92.40  |  ≈ $121.32
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1060000 Compact enclosure AX W x H x D 600x600x210 mm IP66 (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1598181
Mfg Part No: 1060000
UPC/EAN: 4028177813373
Weight:22.3 kg
Type:AX 1060000

Product information for Rittal 1060000:

The Rittal AX 1060000 is a compact enclosure made of sheet steel with dimensions width 600 mm, height 600 mm and depth 210 mm. It serves as a compact control system for industrial and technical applications where a high mechanical and environmental protection class is required. The enclosure is made of sheet steel with a material thickness of 1.5 mm for both the enclosure and the door, while the mounting plate has a material thickness of 2.5 mm. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, ensuring high corrosion resistance and mechanical strength. The door is fitted with a continuous foamed PU seal, contributing to achieving the protection rating.

Applications

The enclosure is designed for use in industrial environments where protection against dust, splashing water and mechanical impacts is required. It is suitable for installations in the manufacturing industry, energy supply, automation technology, as well as outdoor areas, as it meets the protection rating IP 66 according to EN 60 529. This protection rating means that the enclosure is dust-tight and protected against heavy splashing water. Additionally, it meets the NEMA protection ratings 1, 3R, 4 and 12, as well as UL Type Ratings 1, 3R, 4 and 12, confirming its suitability for various regional and industrial requirements. The IK code IK10 indicates high mechanical resistance against impact and shock.

Functions and Equipment in Detail

The enclosure features an integrated mounting plate with dimensions 550 mm x 575 mm, equipped with keyhole slots for earthing and dimension markings. The mounting plate is secured with ring weld nuts. The door is single-door and can be converted to right- or left-hinged, with an opening angle of 130° according to VDI (retrofittable to 180°). The door is fitted with two latching locks operating with a 3 mm double-barrel lock insert according to DIN 43668. An integrated gland plate size 4 is located in the enclosure base for cable entry. The door features vertical door hole strips on both sides.

Technology Explained Simply

A key feature of the AX 1060000 is the integrated 25 mm system grid through embossed enclosure lugs in the roof, base and sides. This patented system enables simple, drill-free mounting of internal mounting rails and other system accessories. Mounting is done without drilling, thus maintaining the protection rating (UL approval). The base mounting rail provides an additional mounting level and increases load capacity. Planning and configuration are easily done via the Rittal configurator RiPanel.

Compatibility and Accessories

The enclosure is compatible with an extensive range of accessories, enabling individual adaptation. These include lock inserts made of zinc die-cast, wall mounting brackets, lock box covers, dust protection strips, baying sets, mounting brackets, knob handles, handles with security cylinder, metal gland plates, and protective roofs. These components extend the functionality and adaptability of the enclosure.

Mounting and Installation

Mounting is done via the integrated mounting plate with keyhole slots and dimension markings. The gland plate in the enclosure base enables cable entry. The door can be installed as right- or left-hinged as required. Internal mounting components can be attached drill-free to the integrated enclosure lugs, reducing installation time and maintaining the protection rating.

Advantages in Operation

The AX 1060000 offers a high mechanical and environmental protection class, making it suitable for demanding operating conditions. Drill-free mounting of internal components reduces installation time and increases reliability. The integrated mounting plate and gland plate simplify installation and maintenance. The surface coating ensures long service life and resistance to corrosion. QR codes on the enclosure body, door and type plate enable unique identification and easy access to product information and documentation.

General
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK10
Width600 mm
Height600 mm
Depth210 mm
Door material thickness1,5 mm
Plate thickness cabinet1,5 mm
Mounting plate material thickness2,5 mm
Mounting plate dimensions (W x H)550 mm x 575 mm
Number of doors1
Number of locks2
LockClosure type: latch, number of closures: 2, closure insert: 3 mm double barb
Flange plateSize: 4, Quantity: 1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)88.19 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
Reversible door hingeJa


Product data sheet
Datasheet for Rittal 1060000, EAN: 4028177813373
