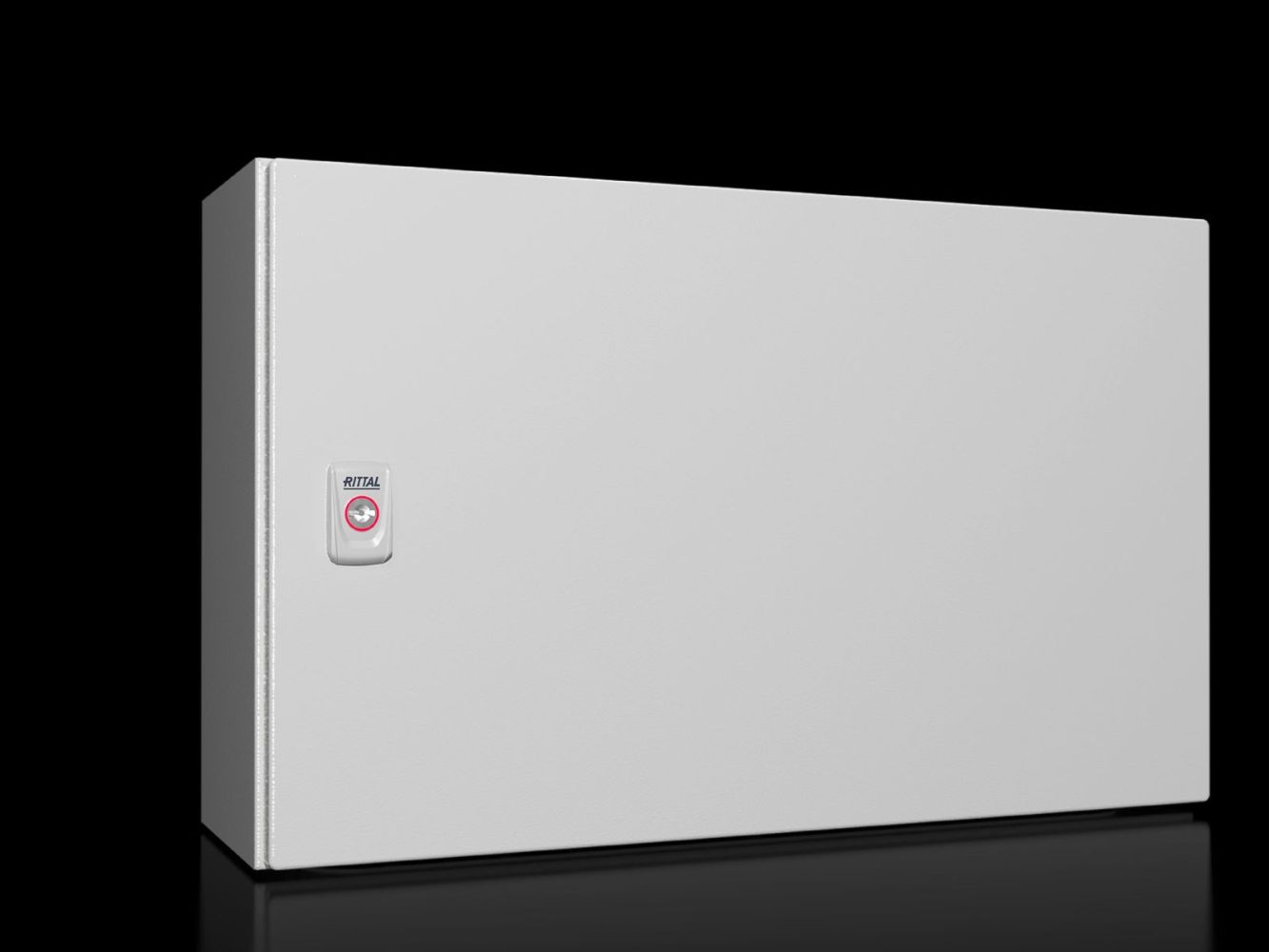

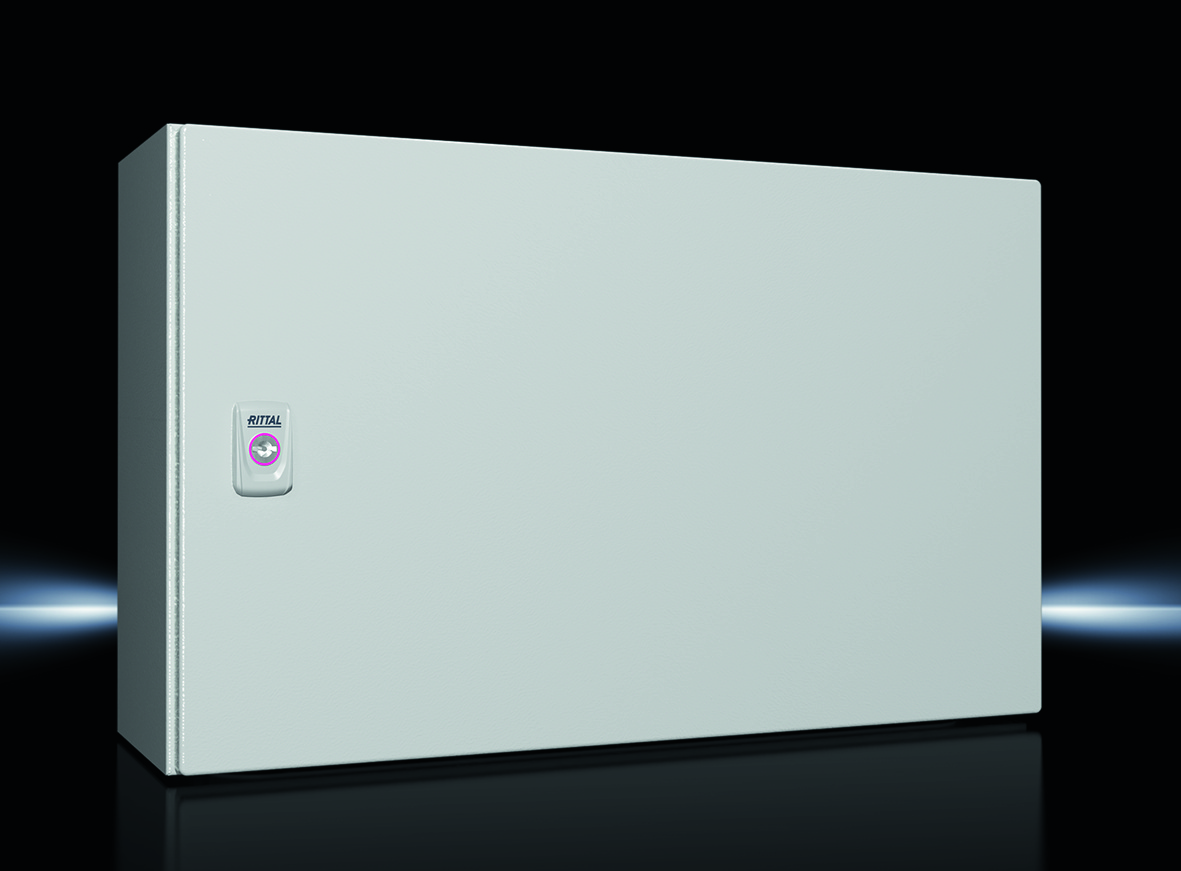

Rittal 1039000 Compact enclosure AX, 1-door, W x H x D: 600x380x210 mm

Your rating:
Average rating
product review for Rittal 1039000 Compact enclosure AX, 1-door, W x H x D: 600x380x210 mm
( 4.4 / 5 ) 7 ratings
Rittal 1039000
This image may differ from the desired article.
Rittal 1039000Rittal 1039000Rittal 1039000Rittal 1039000Rittal 1039000Rittal 1039000Rittal 1039000
91,30 EUR
( 108,65 EUR incl. VAT )
≈ £76.42  |  ≈ $100.34
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1039000 Compact enclosure AX, 1-door, W x H x D: 600x380x210 mm
Datasheet:file_download Download
Lieske Part No.:1598209
Mfg Part No: 1039000
UPC/EAN: 4028177813380
Weight:14.4 kg
Type:AX 1039000

Product information for Rittal 1039000:

The Rittal AX 1039000 is a compact enclosure made of sheet steel with dimensions width 600 mm, height 380 mm and depth 210 mm. It serves as a compact enclosure solution for industrial applications, particularly in environments requiring high mechanical strength and protection against dust, water and external influences. The enclosure is single-door, with an interchangeable door hinge direction and a cam lock with 3 mm double-barrel lock insert, ensuring secure closure. The door is fitted with a continuously foamed PU seal, contributing to achieving the protection rating.

Applications

The enclosure is designed for use in industrial environments where high mechanical strength and environmental protection are required. It is suitable for applications in manufacturing, power supply or machine building. The protection rating IP 66 guarantees dust-tight and watertight sealing, even under heavy spray water exposure, making it suitable for outdoor use or humid indoor environments. The NEMA protection ratings 1, 3R, 4 and 12, as well as UL Type Ratings 1, 3R, 4 and 12, confirm suitability for various environments, including humid, dusty or slightly contaminated areas. The IK code IK10 indicates high mechanical resistance against impacts or vibrations.

Functions and Equipment in Detail

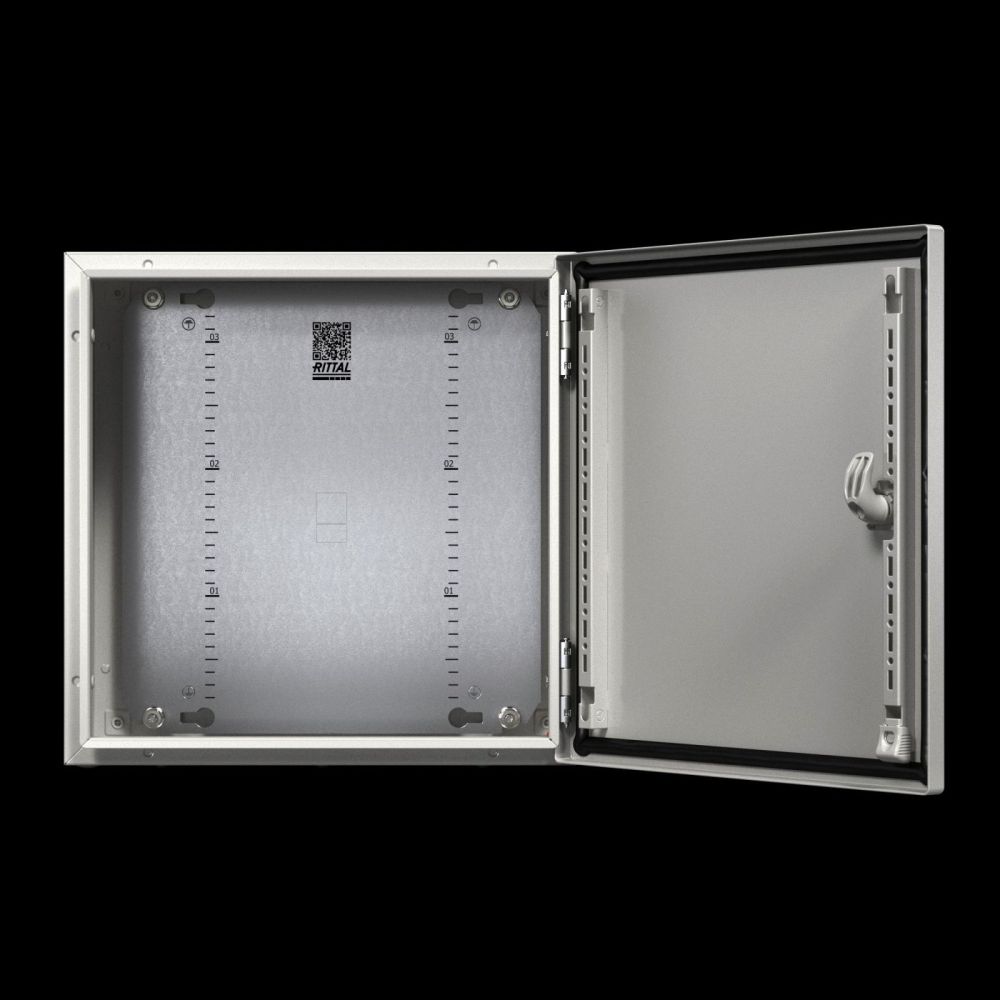

The enclosure is made of sheet steel with a material thickness of 1.25 mm, the door of 1.5 mm sheet steel. The mounting plate is made of 2.5 mm thick galvanized sheet steel and provides a stable mounting surface for internal components. The surface of the enclosure and door is dip-primed and externally powder-coated with textured paint, ensuring high corrosion resistance and durability. The colour corresponds to RAL 7035. The scope of delivery includes the enclosure with door, a gland plate in the enclosure base, the mounting plate, a door hole strip and the cam lock with 3 mm double-barrel lock insert.

Technology Explained Simply

A central feature of the AX enclosure is the integrated 25 mm system grid through embossed enclosure lugs on the roof, base and sides. This patented system enables easy, drill-free mounting of internal mounting rails and other system components. The base mounting rail provides an additional mounting level and increases load capacity. The protection rating IP 66 is achieved through the continuous PU seal on the door and the constructive design of the enclosure. The protection ratings NEMA 4 and UL Type 4 confirm suitability for outdoor or humid environments.

Compatibility and Accessories

The enclosure can be easily planned and configured using the Rittal RiPanel configurator. Compatible accessories include lock inserts made of zinc die-cast, wall mounting brackets, lock box covers, knob handles, handles with security cylinder, mounting bracket, metal gland plates, stainless steel protection hoods and the AS Multitool AX/VX. These components extend the functionality and adaptability of the enclosure to specific requirements.

Mounting and Installation

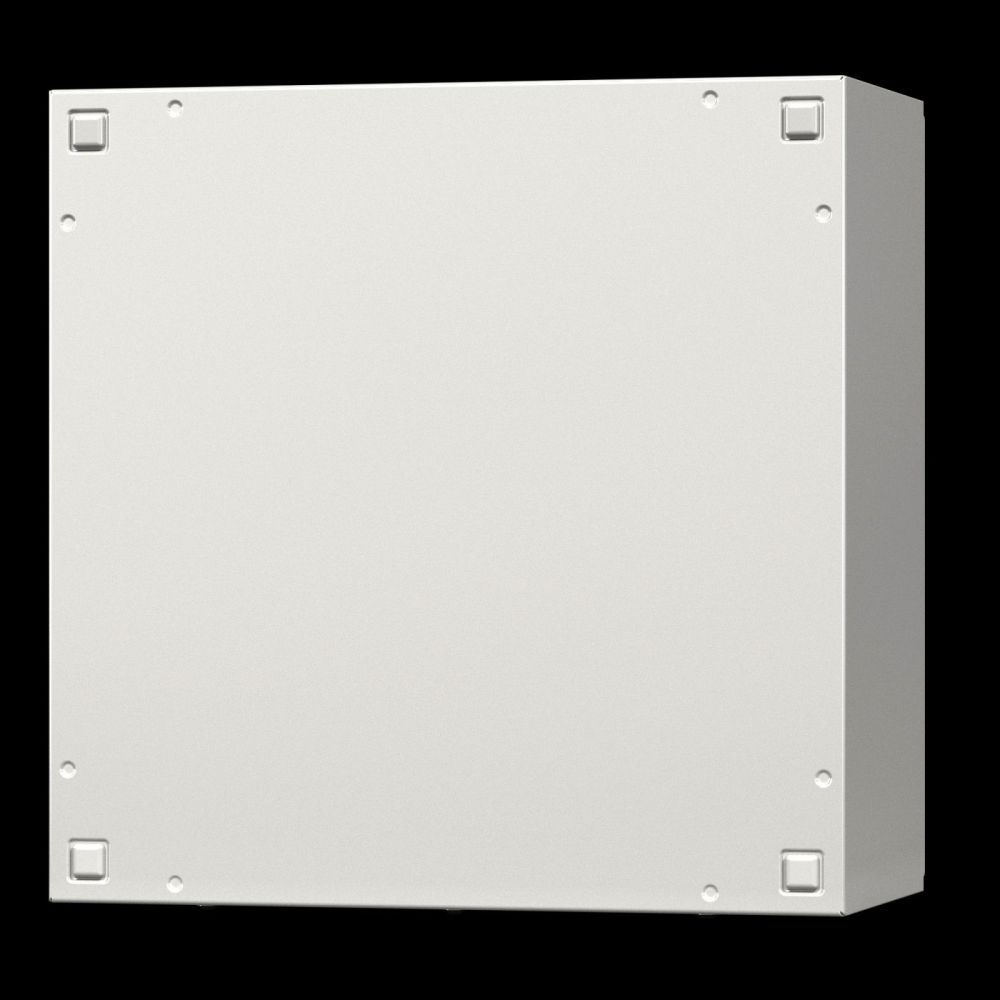

Mounting is done via the integrated enclosure lugs and the base mounting rail, avoiding drilling in the enclosure. The mounting plate is equipped with keyhole slots for earthing and dimension marking and is fastened with ring weld nuts. The door can be reversed from right to left, enabling flexible installation at different locations. The door opens up to 130° according to VDI, with an option to retrofit to 180°.

Advantages in Operation

The enclosure offers high mechanical stability and protection through the IP 66 and IK10 ratings. Drill-free mounting of internal mounting rails and accessories reduces installation time and increases flexibility for modifications or expansions. The integrated QR code identification on the enclosure, door and nameplate enables easy identification and traceability of individual parts, as well as quick access to relevant product information and documentation. The robust construction from sheet steel and high-quality surface treatment ensure long service life even under demanding operating conditions.

General
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK10
Width600 mm
Height380 mm
Depth210 mm
Door material thickness1,5 mm
Plate thickness cabinet1,25 mm
Mounting plate material thickness2,5 mm
Mounting plate dimensions (W x H)550 mm x 355 mm
Number of doors1
Number of locks1
LockLocking mechanism type: latch, number of locks: 1, lock insert: 3 mm double barb
Flange plateSize: 4, Quantity: 1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)65.43 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
Reversible door hingeJa


Product data sheet
Datasheet for Rittal 1039000, EAN: 4028177813380

Questions & answers

What is the delivery time of Rittal 1039000 Compact enclosure AX, 1-door, W x H x D: 600x380x210 mm?

The article Rittal 1039000 Compact enclosure AX, 1-door, W x H x D: 600x380x210 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1039000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1039000 Compact enclosure AX, 1-door, W x H x D: 600x380x210 mm always at the best possible price. We can give you a discount of 2% on Rittal 1039000 Compact enclosure AX, 1-door, W x H x D: 600x380x210 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 1039000 Compact enclosure AX, 1-door, W x H x D: 600x380x210 mm

Rittal 2463000 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2463000 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023826
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 191196
Mfg Part No: 2463000
Type: SZ 2463000
2,63 EUR
Rittal 2463000 plus VAT
≈ £2.20  |  ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2307000 Lock inserts, zinc die-cast, length 27 mm, outer dimension 27 mm Rittal LogoRittal 2307000 Lock inserts, zinc die-cast, length 27 mm, outer dimension 27 mm Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177020849
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 236156
Mfg Part No: 2307000
Type: SZ 2307000
2,98 EUR
Rittal 2307000 plus VAT
≈ £2.49  |  ≈ $3.28
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2465000 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2465000 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023864
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 251997
Mfg Part No: 2465000
Type: SZ 2465000
-11% 2,62 EUR 2,93 EUR
Rittal 2465000 plus VAT
≈ £2.19  |  ≈ $2.88
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2493000 SZ lock box cover zinc die-cast chromated Rittal LogoRittal 2493000 SZ lock box cover zinc die-cast chromated The SZ 2493000 from Rittal is a lock box cover designed specifically for retrofitted installation on compact enclosures made of sheet steel with a latch lock. It serves as a protective and mounting ...

Lieske Part No.: 302215
Mfg Part No: 2493000
Type: SZ 2493000
27,83 EUR
Rittal 2493000 plus VAT
≈ £23.29  |  ≈ $30.59
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2505510 Wall mounting bracket, sheet metal Rittal LogoRittal 2505510 Wall mounting bracket, sheet metal Rittal wall mounting bracket SZ 2505510 is specifically designed for mounting steel sheet and stainless steel enclosures to walls. The product serves as a mechanical connection between the enclosure ...

Lieske Part No.: 360153
Mfg Part No: 2505510
Type: SZ 2505510
11,04 EUR 11,35 EUR
Rittal 2505510 plus VAT
≈ £9.24  |  ≈ $12.13
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 2460000 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2460000 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023765
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 400490
Mfg Part No: 2460000
Type: SZ 2460000
2,63 EUR
Rittal 2460000 plus VAT
≈ £2.20  |  ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8619760 VX system chassis 14 x 39 mm, for height: 700 mm Rittal LogoRittal 8619760 VX system chassis 14 x 39 mm, for height: 700 mm The Rittal System-Chassis VX 8619760 is a metallic mounting component made of sheet steel, specifically developed for use in enclosures of the AX system. It is designed for the secure mounting of ...

Lieske Part No.: 469331
Mfg Part No: 8619760
Type: VX 8619760
47,84 EUR
Rittal 8619760 plus VAT
≈ £40.04  |  ≈ $52.58
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2460650 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2460650 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177220331
Customs tariff number: 83024900
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 499708
Mfg Part No: 2460650
Type: SZ 2460650
2,63 EUR
Rittal 2460650 plus VAT
≈ £2.20  |  ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2426500 Dust protection strip, plastic, UV-resistant, for AE/C Rittal LogoRittal 2426500 Dust protection strip, plastic, UV-resistant, for AE/C To protect against deposits on the upper edge of the door and between the enclosure and the door/lid. Cut the dust guard trim to length according to the enclosure width.
Material: Plastic, resistant ...

Lieske Part No.: 579749
Mfg Part No: 2426500
Type: SZ 2426500
21,93 EUR 21,94 EUR
Rittal 2426500 plus VAT
≈ £18.36  |  ≈ $24.10
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
Rittal 1199100 Baying set for AX, KX, AE, KL Rittal LogoRittal 1199100 Baying set for AX, KX, AE, KL Supports baying and sealing between KL/KL and AE/AE.
Benefits: Special screws and nuts limit compression of the seal to a predefined level, to ensure a long-lasting, permanent seal between enclosures ...

Lieske Part No.: 583514
Mfg Part No: 1199100
Type: SZ 1199100
32,32 EUR 33,69 EUR
Rittal 1199100 plus VAT
≈ £27.05  |  ≈ $35.52
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 2572010 SZ knob handle without safety cylinder insert for AX Rittal LogoRittal 2572010 SZ knob handle without safety cylinder insert for AX The Rittal SZ 2572010 is a knob handle designed as a replacement or supplement for enclosures and housings, particularly for models with cam or latch locking systems. The handle is manufactured in ...

Lieske Part No.: 612034
Mfg Part No: 2572010
Type: SZ 2572010
-6% 17,02 EUR 18,20 EUR
Rittal 2572010 plus VAT
≈ £14.25  |  ≈ $18.70
Made to order · Delivery time approx. 5 workdaysinfo_outline
Rittal 2461000 Lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2461000 Lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023789
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 661058
Mfg Part No: 2461000
Type: SZ 2461000
2,63 EUR
Rittal 2461000 plus VAT
≈ £2.20  |  ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2577000 SZ handle plastic AX/KX No.3524E with safety cylinder Rittal LogoRittal 2577000 SZ handle plastic AX/KX No.3524E with safety cylinder The Rittal SZ 2577000 is a plastic handle for latching locks, specifically designed as an alternative to the standard lock insert with integrated security cylinder insert. It is used for secure ...

Lieske Part No.: 677302
Mfg Part No: 2577000
Type: SZ 2577000
-6% 19,67 EUR 21,03 EUR
Rittal 2577000 plus VAT
≈ £16.46  |  ≈ $21.62
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Rittal 2464000 lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2464000 lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023840
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 724120
Mfg Part No: 2464000
Type: SZ 2464000
2,46 EUR
Rittal 2464000 plus VAT
≈ £2.06  |  ≈ $2.70
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 4696000 Mounting bracket for VX, TS, VX SE, TP, AX 540 mm, pack of 20 pcs Rittal LogoRittal 4696000 Mounting bracket for VX, TS, VX SE, TP, AX 540 mm, pack of 20 pcs Applications: For attachment of
Cable ducts
Cable conduit holder
Contact hazard protection covers
Equipment installed on the door
Cable clamping and attachment
Material: Sheet steel
Surface finish: ...

Lieske Part No.: 816498
Mfg Part No: 4696000
Type: TS 4696000
90,15 EUR
Rittal 4696000 plus VAT
≈ £75.46  |  ≈ $99.07
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 2462000 lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2462000 lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023802
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 889854
Mfg Part No: 2462000
Type: SZ 2462000
2,63 EUR
Rittal 2462000 plus VAT
≈ £2.20  |  ≈ $2.89
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
Rittal 2564450 SZ metal flange plate two-piece for AX with elastic clamp profile Rittal LogoRittal 2564450 SZ metal flange plate two-piece for AX with elastic clamp profile The Rittal SZ 2564450 is a two-piece metal flange plate, specifically designed for enclosures of the AX housing type. It serves as an installation component for structured and secure cable routing ...

Lieske Part No.: 895252
Mfg Part No: 2564450
Type: SZ 2564450
55,20 EUR 57,60 EUR
Rittal 2564450 plus VAT
≈ £46.20  |  ≈ $60.66
Made to order · Delivery time approx. 5 workdaysinfo_outline
Rittal 2466000 lock inserts, zinc die-cast, length 27 mm, version Rittal LogoRittal 2466000 lock inserts, zinc die-cast, length 27 mm, version Material: Die-cast zinc
Packs of: 1 pc(s).
EAN: 4028177023888
Customs tariff number: 83015000
eCl@ss 5.1: 27189256
eCl@ss 7.0: 27409218
ETIM 6.0: EC000743

Design: A
To fit: Enclosure type: EB ...

Lieske Part No.: 975920
Mfg Part No: 2466000
Type: SZ 2466000
2,67 EUR
Rittal 2466000 plus VAT
≈ £2.23  |  ≈ $2.93
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 2473010 AX protection roof, W x D: 600x210 mm, stainless steel Rittal LogoRittal 2473010 AX protection roof, W x D: 600x210 mm, stainless steel The Rittal AX 2473010 is a protective roof made of stainless steel, specifically designed for enclosures of type AX with a width of 600 mm and a depth of 210 mm. It serves as a protective cover for ...

Lieske Part No.: 1054795
Mfg Part No: 2473010
Type: AX 2473010
96,03 EUR
Rittal 2473010 plus VAT
≈ £80.38  |  ≈ $105.54
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 4052000 AS Multitool AX/VX Rittal LogoRittal 4052000 AS Multitool AX/VX The Rittal AS 4052000 is a multifunctional tool, specifically developed for handling and mounting AX enclosures as well as VX doors in the field of enclosure technology. It combines several useful ...

Lieske Part No.: 1055448
Mfg Part No: 4052000
Type: AS 4052000
29,65 EUR
Rittal 4052000 plus VAT
≈ £24.82  |  ≈ $32.59
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 2533100 AX plastic handle Rittal LogoRittal 2533100 AX plastic handle The article AX 2533100 from Rittal is a plastic handle for cam locks of type AX and KX. It serves as an alternative to the standard lock insert and is supplied without an integrated safety cylinder ...

Lieske Part No.: 1101233
Mfg Part No: 2533100
Type: AX 2533100
-10% 14,36 EUR 16,04 EUR
Rittal 2533100 plus VAT
≈ £12.02  |  ≈ $15.78
Made to order · Delivery time approx. 5 workdaysinfo_outline
Rittal 2577010 AX plastic handle AX/KX VW E1 Rittal LogoRittal 2577010 AX plastic handle AX/KX VW E1 The Rittal AX 2577010 is a plastic handle for latch locks of type AX and KX, equipped with a safety insert and locking E1. It serves as an alternative to the standard lock insert and can optionally be ...

Lieske Part No.: 1101234
Mfg Part No: 2577010
Type: AX 2577010
-10% 20,80 EUR 23,23 EUR
Rittal 2577010 plus VAT
≈ £17.41  |  ≈ $22.86
Made to order · Delivery time approx. 5 workdaysinfo_outline
Rittal 2394100 floor extension rail, for AX Rittal LogoRittal 2394100 floor extension rail, for AX The Rittal AX 2394100 is a floor expansion rail made of sheet steel with a zinc-coated surface, specifically developed for use in the AX compact enclosure system. It serves as an additional mounting ...

Lieske Part No.: 1101816
Mfg Part No: 2394100
Type: AX 2394100
17,92 EUR
Rittal 2394100 plus VAT
≈ £15.00  |  ≈ $19.69
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
Rittal 2420010 SZ pre-lubricated lock for AX, plastic, with double Rittal LogoRittal 2420010 SZ pre-lubricated lock for AX, plastic, with double The Rittal SZ 2420010 is a plastic latch designed specifically for enclosures of type AX sheet steel with a latch system. It serves as a mechanical locking mechanism to securely close the front door ...

Lieske Part No.: 1101817
Mfg Part No: 2420010
Type: SZ 2420010
7,33 EUR
Rittal 2420010 plus VAT
≈ £6.14  |  ≈ $8.06
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
Rittal 2500100 System light LED 400, 100-240 V, L: 262 mm Rittal LogoRittal 2500100 System light LED 400, 100-240 V, L: 262 mm The Rittal SZ 2500100 is an LED system light, specifically developed for use in enclosures. It provides uniform and sufficient illumination of the entire interior space and is available in the version ...

Lieske Part No.: 1130322
Mfg Part No: 2500100
Type: SZ 2500100
57,80 EUR
Rittal 2500100 plus VAT
≈ £48.38  |  ≈ $63.52
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
Rittal 8617130 VX System-Chassis 23 x 64 mm W x H x D: 600 mm Rittal LogoRittal 8617130 VX System-Chassis 23 x 64 mm W x H x D: 600 mm The Rittal VX System Chassis 8617130 is a modular mounting component made of sheet steel with a galvanized surface, specifically designed for internal installation in enclosures. It serves as a ...

Lieske Part No.: 1349694
Mfg Part No: 8617130
Type: VX 8617.130
48,08 EUR
Rittal 8617130 plus VAT
≈ £40.24  |  ≈ $52.84
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8617800 VX support rail 48 x 26 mm, W: 600 mm Rittal LogoRittal 8617800 VX support rail 48 x 26 mm, W: 600 mm The Rittal VX support rail 8617.800 is a robust mounting rail made of sheet steel with a zinc-coated surface, specifically designed for use in enclosures and housings with a width of 600 mm. It serves ...

Lieske Part No.: 1440920
Mfg Part No: 8617800
Type: VX 8617.800
47,50 EUR
Rittal 8617800 plus VAT
≈ £39.76  |  ≈ $52.20
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8619410 VX cable strain relief rail angle profile, W: 600 mm Rittal LogoRittal 8619410 VX cable strain relief rail angle profile, W: 600 mm The Rittal VX 8619.410 is a cable strain relief rail in angle profile, specifically designed for tension relief during cable entry into enclosures and plinth systems. The product is made of steel and ...

Lieske Part No.: 1441180
Mfg Part No: 8619410
Type: VX 8619.410
33,81 EUR
Rittal 8619410 plus VAT
≈ £28.30  |  ≈ $37.16
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2575010 SZ knob handle with safety cylinder insert for AX Rittal LogoRittal 2575010 SZ knob handle with safety cylinder insert for AX The SZ 2575010 from Rittal is a knob handle with integrated security cylinder insert, specifically designed for enclosures and housings with pull-out systems. The product serves as a locking component ...

Lieske Part No.: 1571616
Mfg Part No: 2575010
Type: SZ 2575010
29,01 EUR 30,28 EUR
Rittal 2575010 plus VAT
≈ £24.28  |  ≈ $31.88
Made to order · Delivery time approx. 5 workdaysinfo_outline
Rittal 2730010 viewing window, 597x377x34 mm, incl. plastic handle Rittal LogoRittal 2730010 viewing window, 597x377x34 mm, incl. plastic handle The Rittal viewing window AX 2730010 is a system accessory for industrial enclosures of the AX housing type. It serves as a replacement for a door or panel and enables visual inspection of components ...

Lieske Part No.: 1593406
Mfg Part No: 2730010
Type: AX 2730010
161,81 EUR 163,76 EUR
Rittal 2730010 plus VAT
≈ £135.43  |  ≈ $177.83
Made to order · Delivery time approx. 5 workdaysinfo_outline
Searching
Search is performed.
Please be patient ...
Fehlende Felder
Close
Product in the shopcart

The following item has been put into your shopping cart by our system:

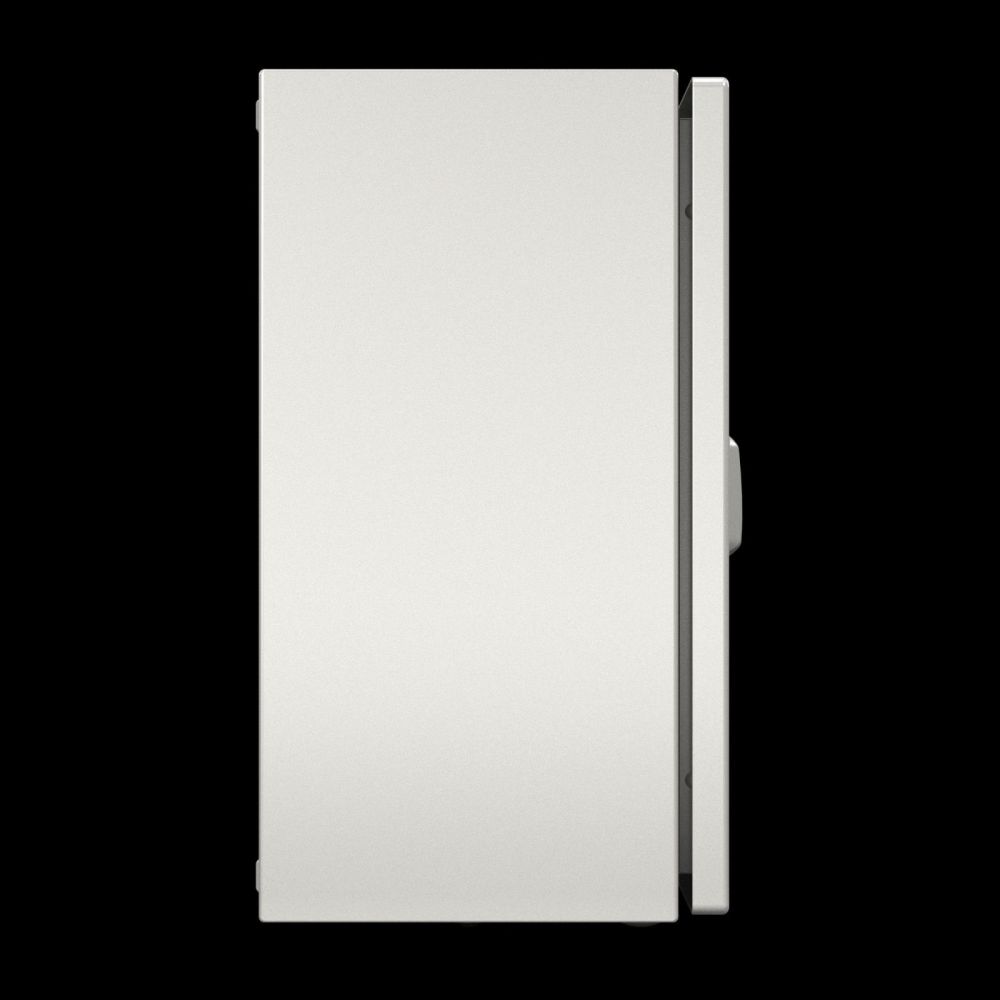

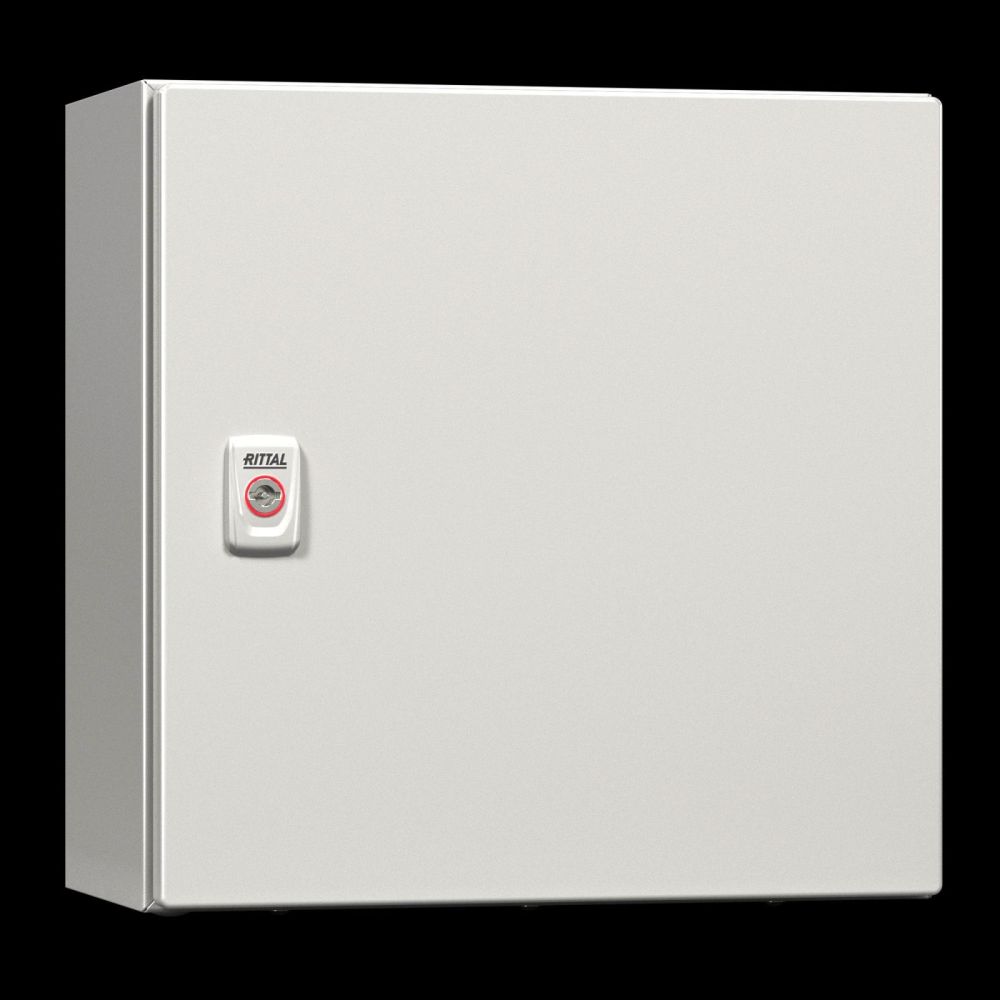

1x Rittal 1039000 Control Cabinet AX 1-door 600x380x210
Rittal 1039000 Compact enclosure AX, 1-door, W x H x D: 600x380x210 mm
91,30 EUR
Sum of all articles in cart
plus VAT
You can continue shopping and open your cart at any time from the top menu bar or now directly by clicking the button.
Enquiry: Rittal 1039000 Control Cabinet AX 1-door 600x380x210
Company name
Name
Homepage
Street
ZIP-Code City
Country
Telephone
Desired quantity
Comment
2 + 2 =
Data protection notice: The data entered here will only be electronically stored and processed for the purpose of responding to your inquiry in accordance with Art. 6 GDPR para. 1b. The basis for this is our privacy policy.
Name and email address are the only mandatory fields.

We use cookies. Some are required to run the shop (e.g. shopping cart and login), others help us improve it (Google Analytics). Statistics cookies are only used with your consent. See our privacy policy for details.
