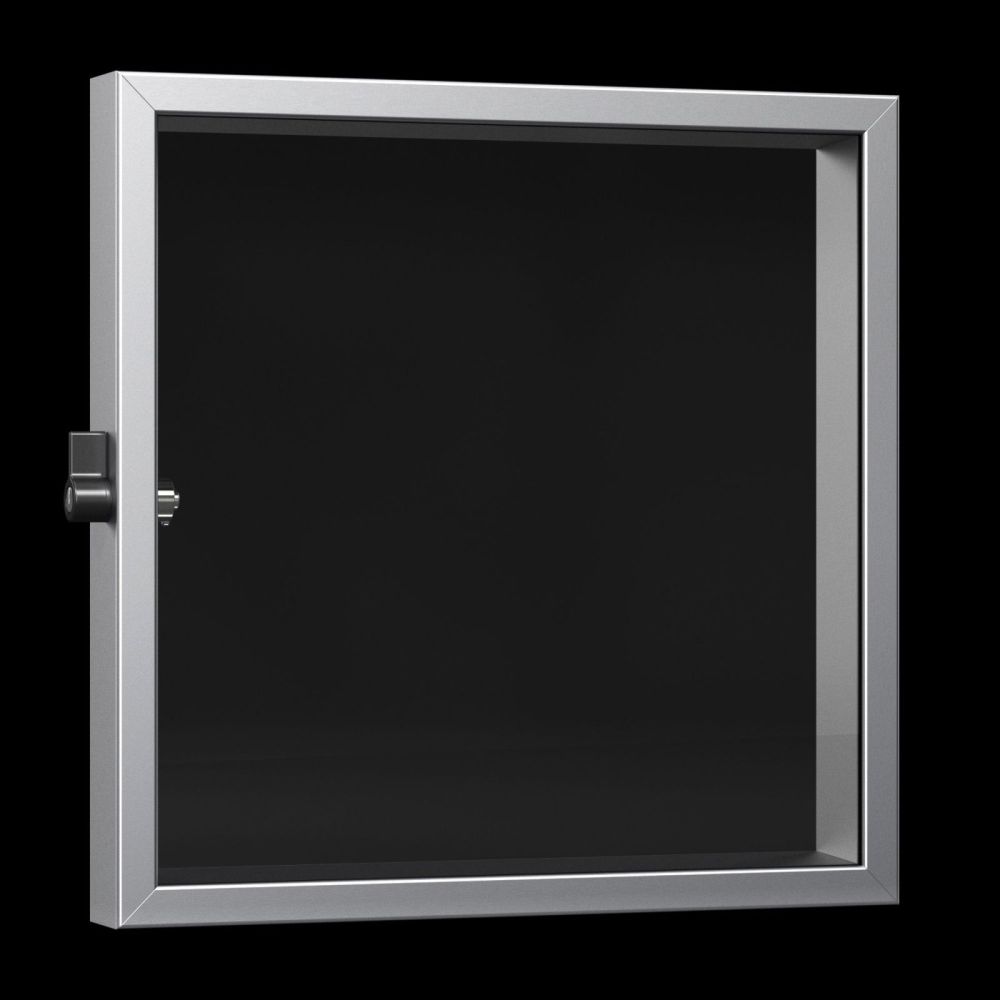

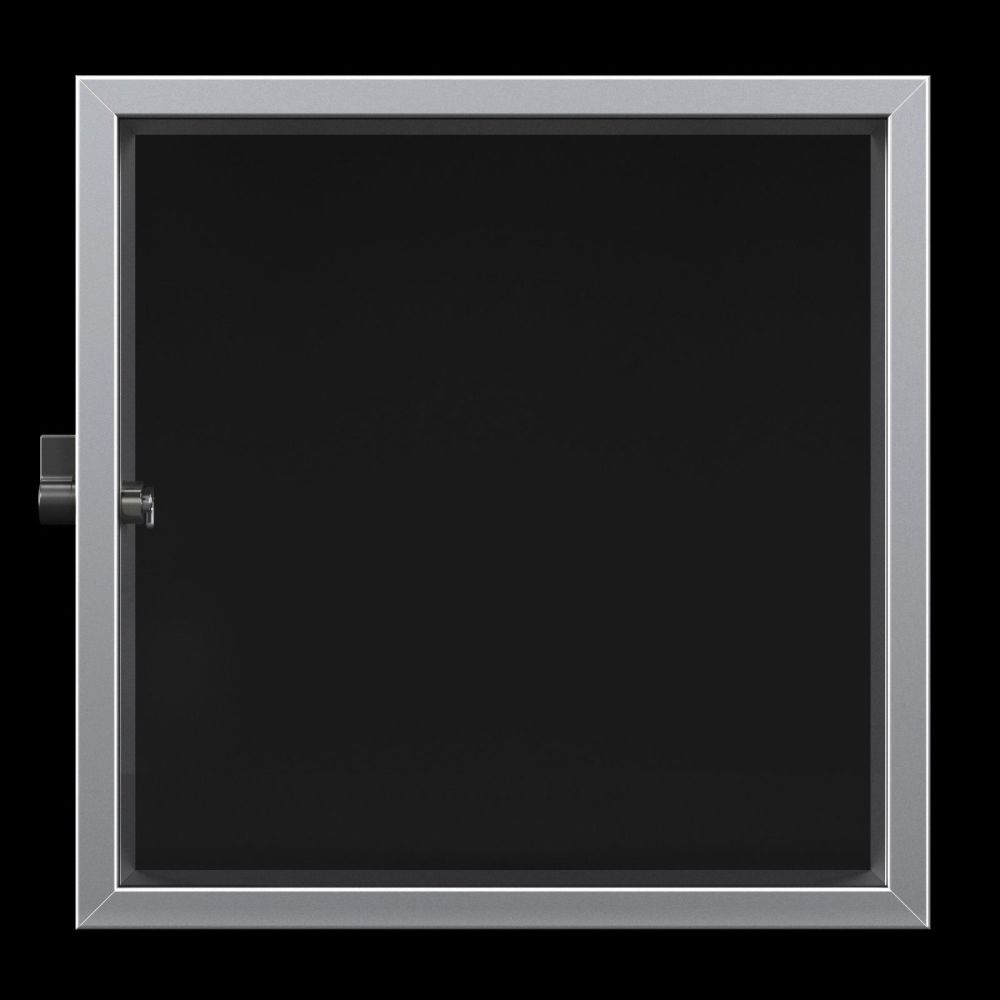

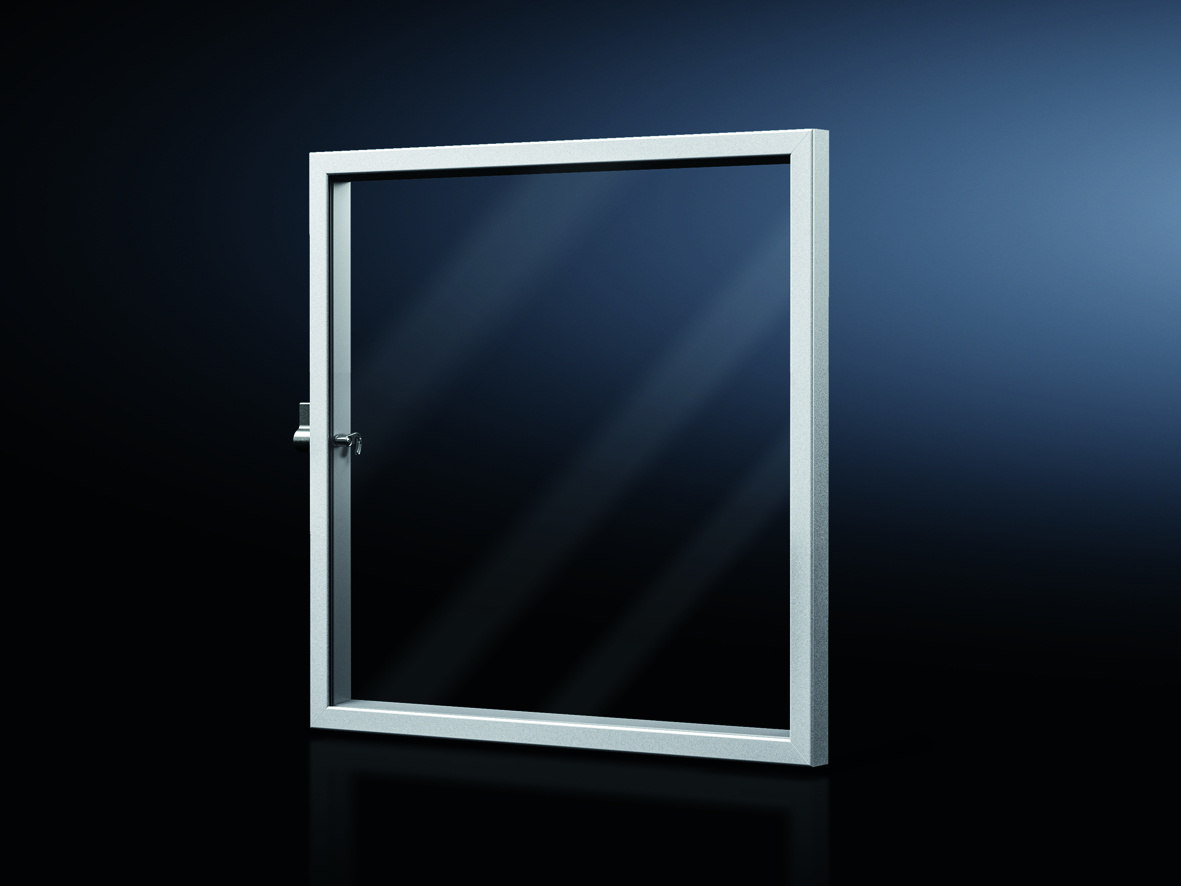

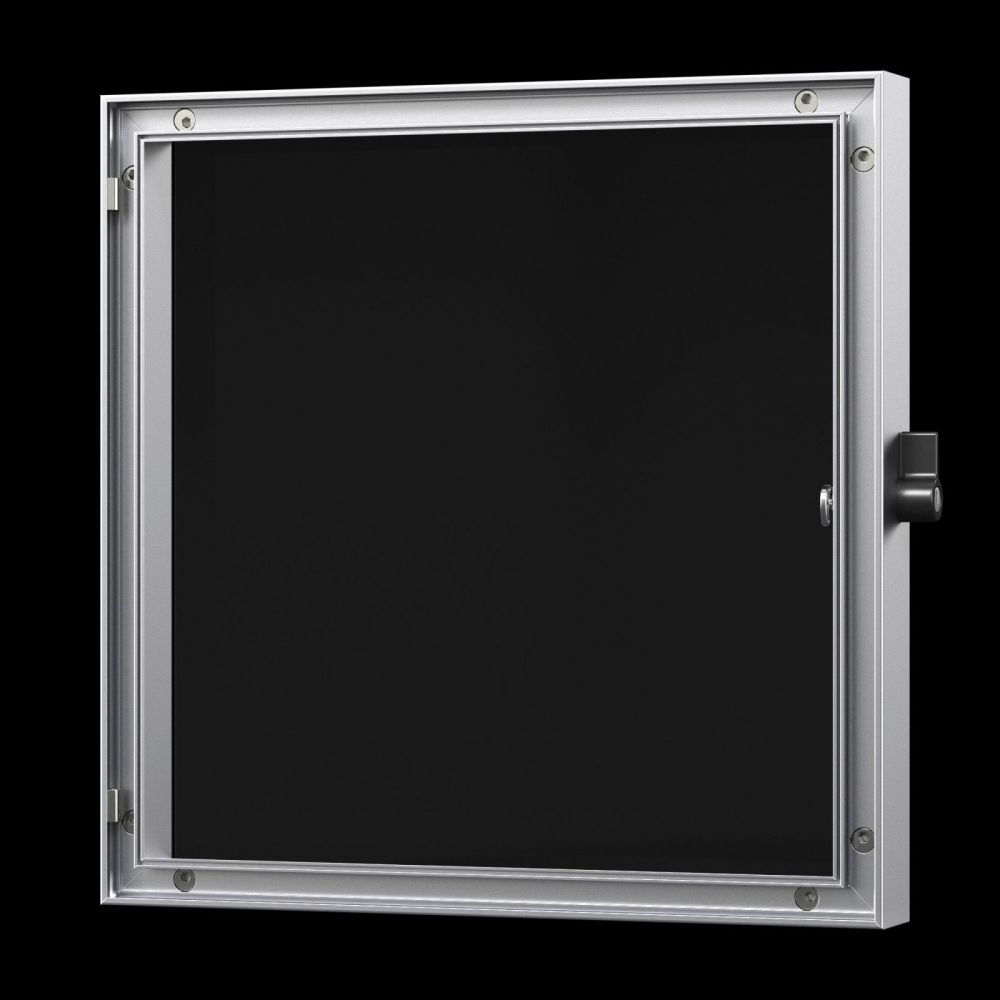

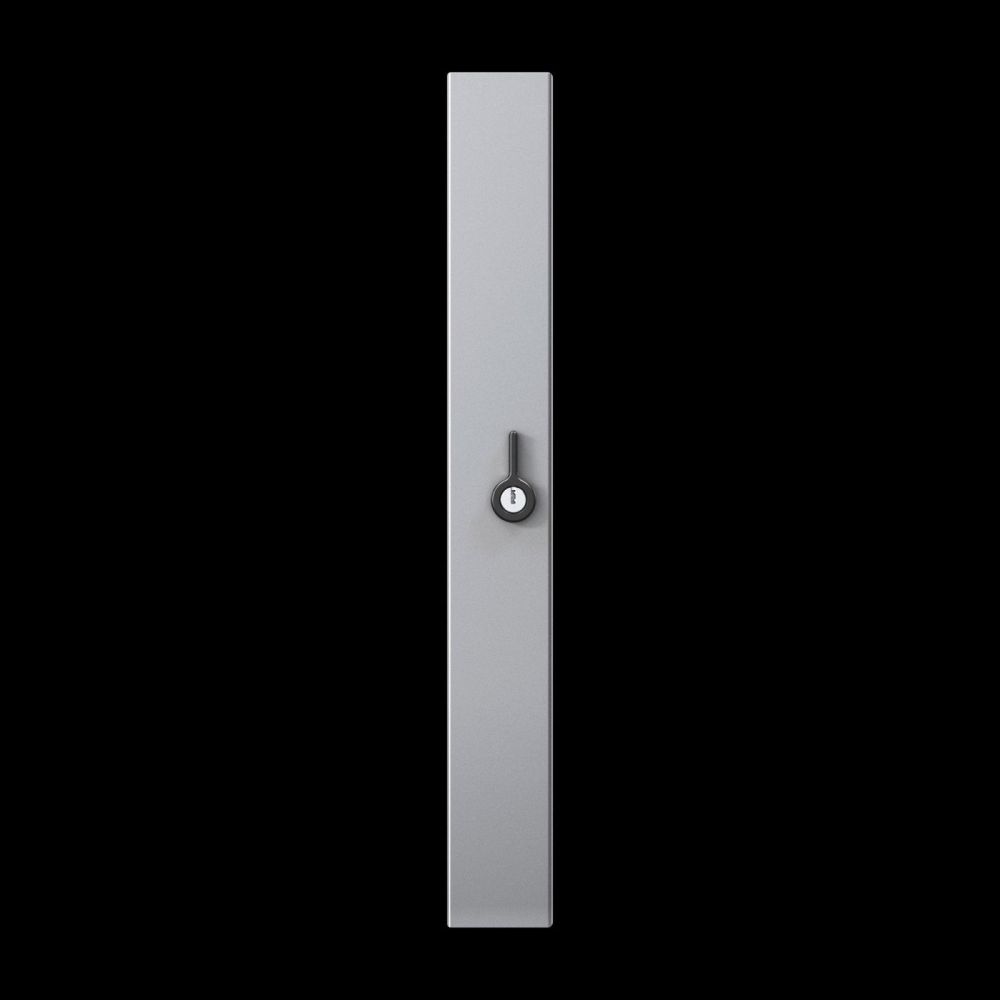

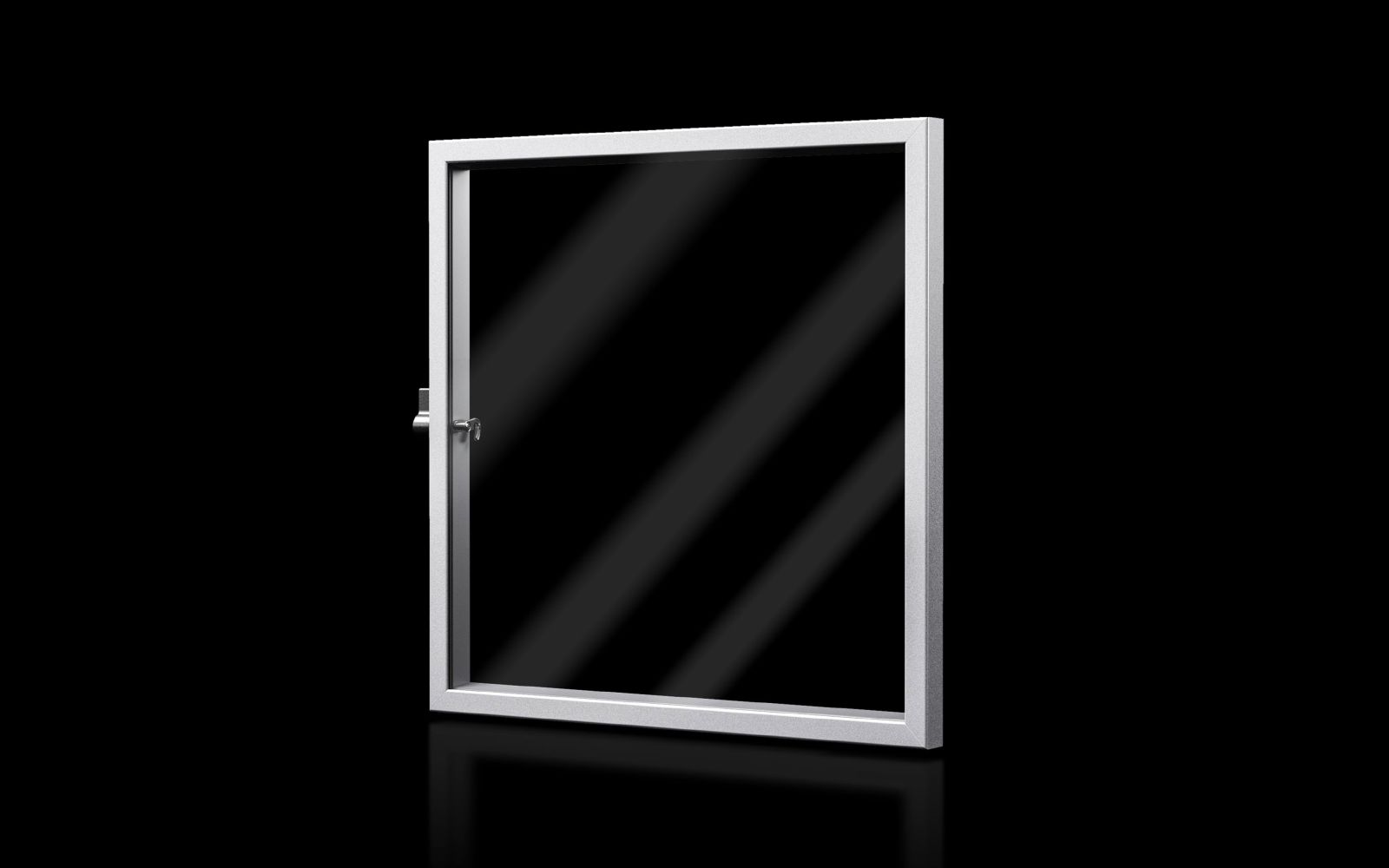

Rittal 2730010 viewing window, 597x377x34 mm, incl. plastic handle

Your rating:
Average rating
product review for Rittal 2730010 viewing window, 597x377x34 mm, incl. plastic handle
( 4.6 / 5 ) 5 ratings
Rittal 2730010
This image may differ from the desired article.
Rittal 2730010Rittal 2730010Rittal 2730010Rittal 2730010Rittal 2730010Rittal 2730010Rittal 2730010
161,81 EUR 163,76 EUR
( 192,55 EUR incl. VAT )
≈ £135.43  |  ≈ $177.83
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2730010 viewing window, 597x377x34 mm, incl. plastic handle
Datasheet:file_download Download
Lieske Part No.:1593406
Mfg Part No: 2730010
UPC/EAN: 4028177938465
Weight:2.72 kg
Type:AX 2730010

Product information for Rittal 2730010:

The Rittal viewing window AX 2730010 is a system accessory for industrial enclosures of the AX housing type. It serves as a replacement for a door or panel and enables visual inspection of components inside the enclosure without having to open the cover. The product is specifically designed for enclosures with a width of 600 mm and a height of 380 mm and is compatible with article numbers 1039.000, 1339.000, and 1009.000. Dimensions are 597 mm (width) × 377 mm (height) × 36 mm (depth), with the visible area of the acrylic glass window measuring 537 mm (width) × 317 mm (height). The maximum mounting depth for components is 32 mm, allowing installation of parts behind the viewing window.

Applications

The viewing window is intended for use on AX enclosures, particularly at locations where a door or panel is removed and replaced with a transparent cover. It is suitable, for example, for installations requiring continuous visual monitoring of switching devices, indicators, or status lights without opening the enclosure. Installation is on the front side of the enclosure, with dimensions matched to the standard sizes of the AX series.

Features and Equipment in Detail

The viewing window consists of an aluminium frame, naturally anodized, and an acrylic glass panel. The use of acrylic glass ensures high transparency and resistance to mechanical stress. The frame is designed in a 30 mm profile, enabling standardized mounting within the Rittal system. The delivery includes a plastic handle with safety insert No. 3524 E, enabling safe and convenient handling of the viewing window. The protection rating IP 54 according to EN 60 529 protects against dust and splashing water, making it suitable for industrial environments with moderate contamination and moisture risk.

Technology Explained Simply

The IP protection rating IP 54 means the viewing window is protected against dust (dust cannot enter the interior) and against splashing water from any direction (e.g., from a hose). This makes it suitable for use in production halls, workshops, or other industrial environments where some moisture or contamination may occur. The acrylic glass provides clear visibility, is impact-resistant, and resistant to UV radiation, increasing durability in outdoor applications or under direct sunlight. The maximum mounting depth of 32 mm allows installation of components such as displays, pushbuttons, or small control devices directly behind the viewing window.

Compatibility and Accessories

The viewing window is specifically developed for the AX enclosure series by Rittal and is compatible with enclosures having article numbers 1039.000, 1339.000, and 1009.000. It is designed for enclosures with a width of 600 mm and a height of 380 mm. Installation replaces a door or panel, with dimensions precisely matched to the standard sizes of the AX series. The accessories included in the delivery comprise the plastic handle with safety insert No. 3524 E, ensuring secure fastening and opening of the viewing window.

Installation and Mounting

Mounting is performed on the front side of the AX enclosure, with the holes and fastening elements of the viewing window aligning with the designated mounting points of the enclosure. The plastic handle is included in the delivery and enables easy and secure handling. Installation requires no additional tools or components, as the viewing window is directly inserted into the designated mounting openings. The maximum mounting depth of 32 mm must be considered when planning components to be mounted behind the viewing window.

Operational Advantages

The viewing window enables continuous visual monitoring of devices and indicators inside the enclosure without opening the cover. This reduces the need for openings that could compromise the safety and protection of the enclosure. The IP 54 protection rating ensures reliable operation in industrial environments with moderate contamination and moisture risk. The use of acrylic glass ensures clear visibility and high mechanical strength, while the plastic handle enables safe and convenient handling. The exact fit to AX enclosures ensures a clean and professional installation without additional modifications.

General
Model30-series profile
MaterialFrame: aluminium, natural anodized, glass panel: acrylic glass
Scope of deliveryIncluding plastic handle with safety insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54
Suitable for part no.1039.000, 1339.000, 1009.000
Suitable forenclosure type: AX, width: = 600 mm, height: = 380 mm
Width597 mm
Height377 mm
Depth36 mm
Visible surface areaViewing window width: 537 mm, viewing window height: 317 mm
Depth for components (max.)32 mm


Product data sheet
Datasheet for Rittal 2730010, EAN: 4028177938465

Questions & answers

What is the delivery time of Rittal 2730010 viewing window, 597x377x34 mm, incl. plastic handle?

The article Rittal 2730010 viewing window, 597x377x34 mm, incl. plastic handle is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2730010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2730010 viewing window, 597x377x34 mm, incl. plastic handle always at the best possible price. We can give you a discount of 2% on Rittal 2730010 viewing window, 597x377x34 mm, incl. plastic handle if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
